This system is designed to connect directly to your existing radiator circuit and is supplied with everything required to install your underfloor heating solution.
The included Professional Grade 5-layer Premium Pipe is manufactured to the highest standards and outperforms older PEXa & PEXb type pipes in all aspects.
System Coverage and Pipe Spacing Options:
-
High Output Heat – Ideal for conservatories and areas of high heat loss (pipe spacing: 150mm) — covers approximately 9.0 m²
-
Total Room Heat – Provides total room heating for general rooms (pipe spacing: 200mm) — covers approximately 12.0 m²
-
Background Heat – Floor heating used alongside radiators (pipe spacing: 300mm) — covers approximately 18.0 m²
Designed to connect directly to your existing radiator circuit, including a pump and full temperature control unit, this Single Room System is ideal for combining an area of underfloor heating with a standard radiator system. It is supplied with everything required to install your underfloor heating solution, including:

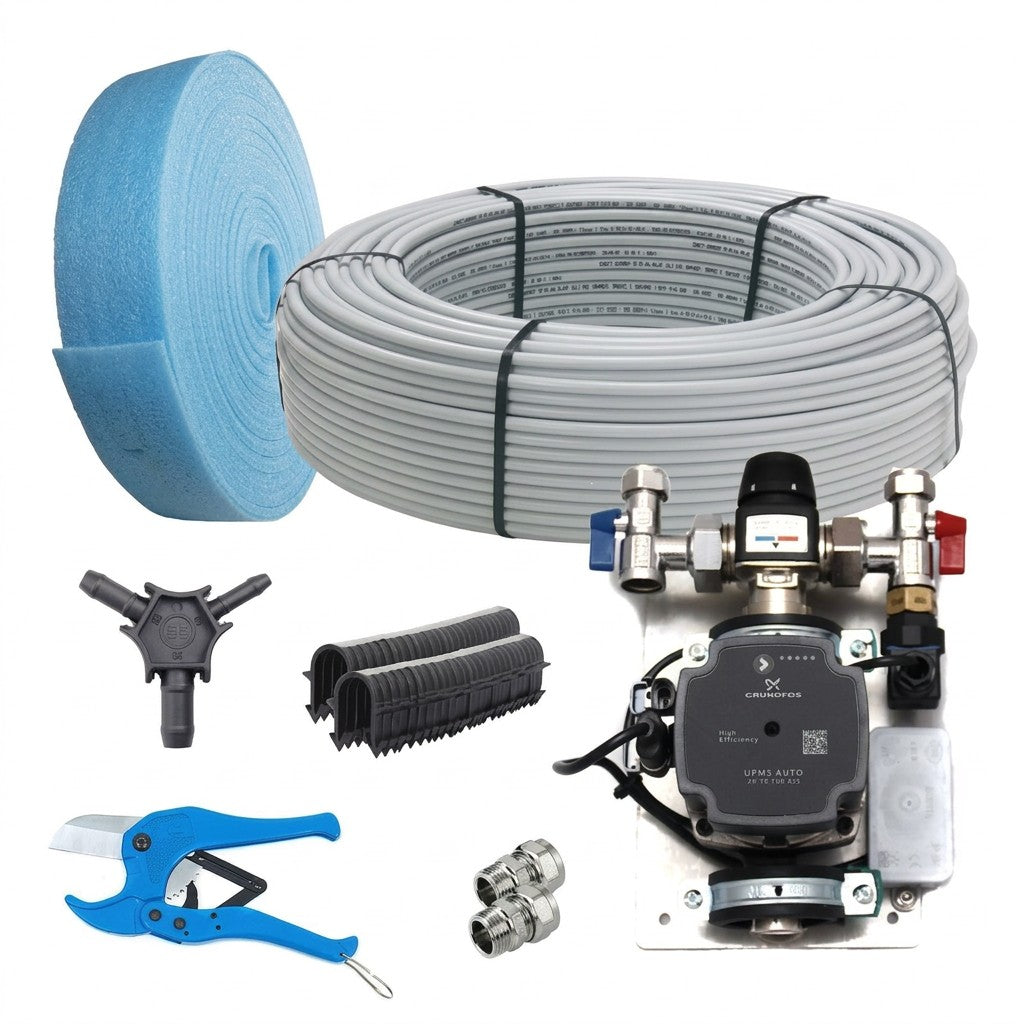

What’s Included
-
A-Rated Grundfos Circulation Pump – Efficient pump to ensure reliable water circulation throughout the system.
-
Single Zone Mixing Valve – Controls water temperature for safe and efficient underfloor heating operation.
-
Professional Grade 5-Layer Premium Pipe – Approximately 90 metres of 16mm multilayer pipe with integrated oxygen barrier, superior to traditional PEX pipes.
-
Fixing Clips – Pack of 100 high-grip clips to securely fasten pipework to insulation boards or subfloors.
-
Edge Insulation Roll – 50 metres to prevent heat loss at the edges and to accommodate screed expansion.
-
Pipe Cutter and Pipe Reaming Tool – Essential installation tools for clean, precise pipe cutting and preparation.
-
Flow and Return Connections & Fixing Kit – All necessary connectors, blanking caps, and fittings to complete plumbing connections.
-
Installation Instructions and Layout Guide – Detailed documentation to assist with layout, installation, and commissioning.
Optional
-
Room Thermostat: Programmable thermostat for accurate temperature control within the heated space.
Key Features
- Complete single zone underfloor heating kit designed for floor areas from 9.0 to 18.0 m² depending on pipe spacing
- Designed for direct connection to existing radiator circuits, ideal for combining radiator and underfloor heating
- High quality A-rated Grundfos pump ensuring efficient and reliable water circulation
- Single zone thermostatic mixing valve to maintain safe underfloor heating water temperatures
- Professional grade 5-layer multilayer pipe with oxygen diffusion barrier, outperforming traditional PEX pipes
- Included edge insulation roll helps reduce heat loss and allows floor screed to expand freely
- All fixing clips, fittings, and installation tools included for professional and hassle-free assembly
- Suitable for use with various heat sources including boilers and heat pumps
- Components comply with UK water safety standards and are WRAS approved
Benefits
- Ensures comfortable, even heat distribution across the floor area
- Energy-efficient operation by mixing water to optimal floor temperature
- Combination with radiator circuits offers flexible heating control for mixed systems
- Reduces radiators and frees wall space, enhancing room aesthetics
- Improves air quality by minimizing dust circulation compared to forced air heating
- Easy to install with a full kit containing all essential components and tools
- Expandable for larger or multiple zone systems as needed
This Single Room Warm Water Underfloor Heating System offers a modern, efficient solution to heating a single room area. It combines professional-grade components with comprehensive accessories and clear documentation to ensure a successful and reliable installation.
