This system is designed to connect directly to your existing radiator circuit and is supplied with everything required to install your underfloor heating solution.
The included Professional Grade 5-layer Premium Pipe is manufactured to the highest standards and outperforms older PEXa & PEXb type pipes in all aspects.
System Coverage and Pipe Spacing Options:
-
High Output Heat – Ideal for conservatories and areas of high heat loss (pipe spacing: 150mm) — covers approximately 7.5 m²
-
Total Room Heat – Provides total room heating for standard rooms (pipe spacing: 200mm) — covers approximately 10.0 m²
-
Background Heat – Floor heating used alongside radiators (pipe spacing: 300mm) — covers approximately 15.0 m²
Designed to connect directly to your existing radiator circuit, including a pump and full temperature control unit, this single room system is ideal for combining an area of underfloor heating with a standard radiator system. It is supplied with everything required to install your underfloor heating solution, including:

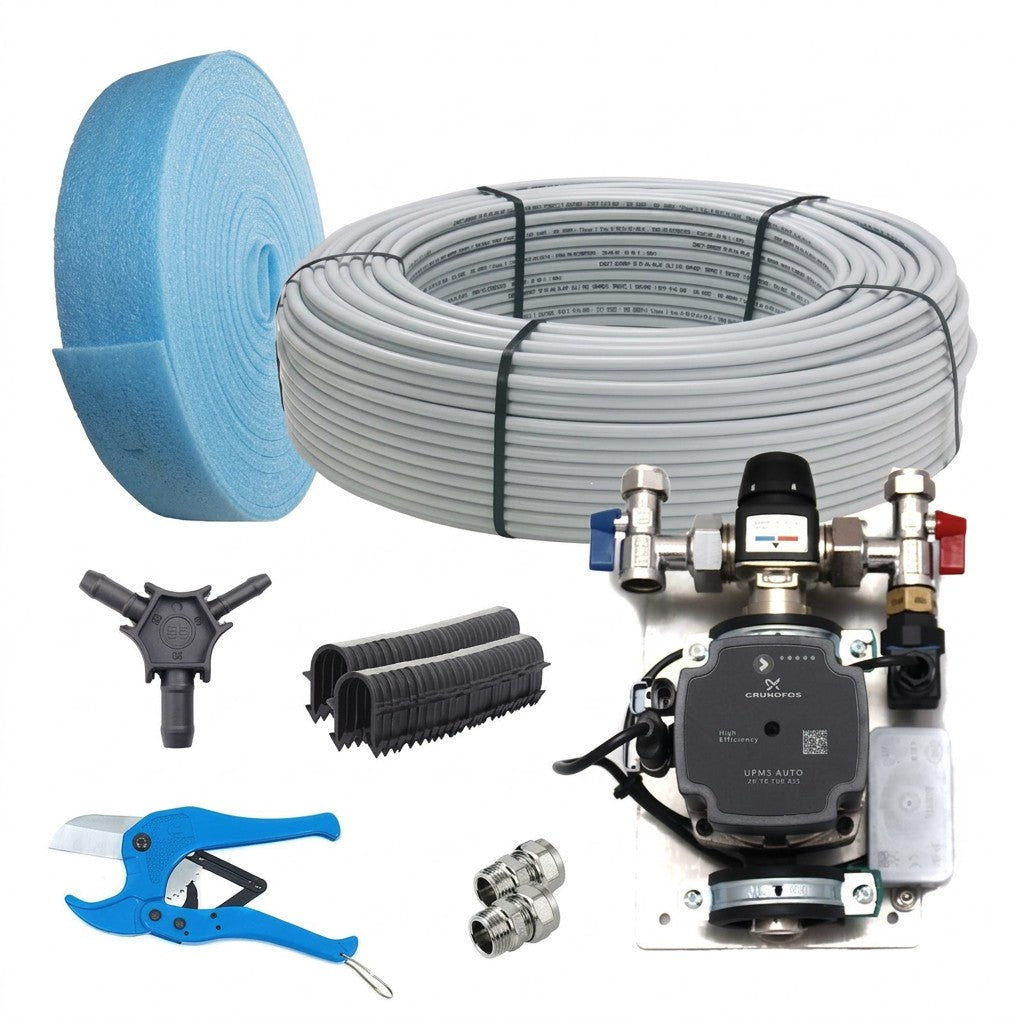

What’s Included
-
Grundfos Circulation Pump: High-efficiency pump for reliable water circulation through the system.
-

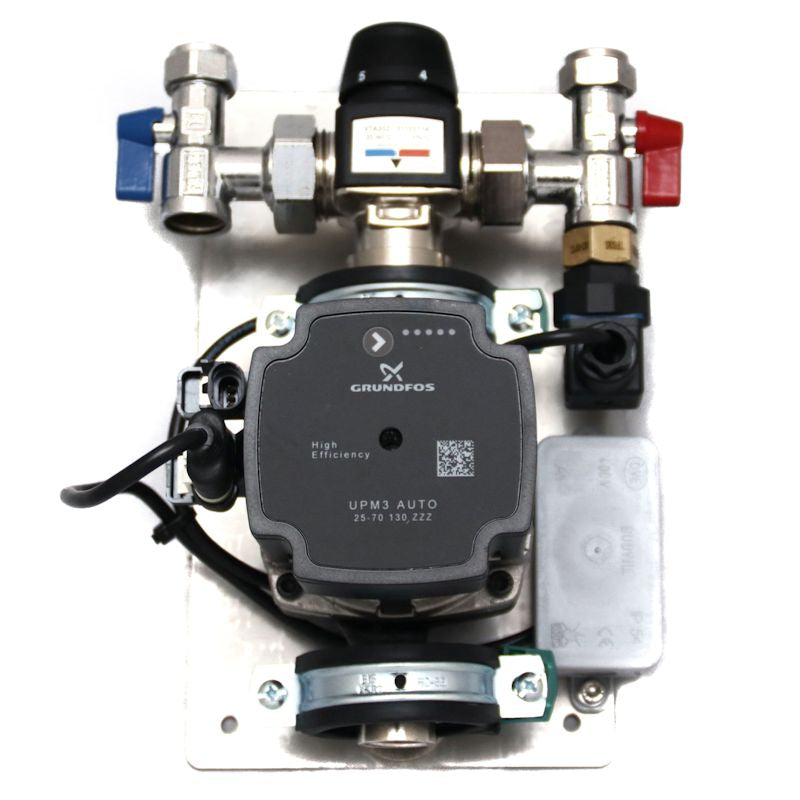

3-Port Thermostatic Mixing Valve with Electronic Controller: Regulates and maintains underfloor heating water temperature for safe and efficient heating.
-
Professional Grade 5-Layer Premium Pipe: Approximately 90 metres of 16mm multilayer PERT-AL-PERT oxygen barrier pipe, superior in performance to traditional PEXa and PEXb pipes.
-
Edge Insulation Roll: 50 metres, preventing heat loss at room perimeters and allowing screed expansion.
-
Pipe Clips: Pack of 100 high-grip clips to securely fasten pipework to insulation boards or subfloor.
-
Pipe Reaming Tool: Professional tool for deburring and preparing pipe ends to ensure secure fittings.
-
Fittings and Accessories Kit: Includes compression connectors, blanking caps, and all necessary adapters for plumbing connections.
-
Installation Instructions and Layout Guide: Comprehensive documentation with system layout, installation steps, and commissioning information.
Optional
-
Room Thermostat: Programmable thermostat for accurate temperature control within the heated space.
Key Features
- Designed for easy integration with existing radiator circuits
- Complete single zone system with all components included for quick installation
- High-quality brass manifold with flow meters, valves, and gauges for accurate system balancing
- Grundfos circulation pump optimized for underfloor heating applications
- Highly durable 5-layer premium pipe offers enhanced longevity and performance compared to older PEX pipes
- Electronic thermostatic mixing valve maintains water temperature below 50°C for safe floor heating
- Edge insulation limits heat loss and supports screed movement
- Compatible with multiple pipe spacing options for different heat output requirements
- Includes full set of pipe fixings, fittings, and tools for a professional finish
- WRAS certified and compliant with UK potable water regulations
Benefits
- Provides efficient, comfortable heat distributed evenly underfoot
- Energy-saving operation by mixing boiler water to an optimal temperature for underfloor systems
- Allows combination of underfloor heating with existing radiator use for flexible heating solutions
- Reduces clutter by eliminating the need for extra radiators in the heated area
- Improves indoor air quality by avoiding dust circulation common in forced-air heating
- Easy to install and expand for future heating upgrades
This warm water underfloor heating system is the perfect solution for combining underfloor heating and radiator circuits in a single room, offering enhanced comfort, efficiency, and comprehensive kit completeness for hassle-free installation.
