6.0kW Hybrid Inverter
8.06kWh LFP Storage
☀️ Solar + Battery + Backup
MPN: SIG-EC-6.0-SP-BAT-8.0
The Sigenergy SigenStor EC 6.0 SP with 9.0 kWh Battery is a complete, ready-to-install home energy storage system combining a 6.0kW single-phase hybrid inverter/energy controller with one SigenStor BAT 8.0 LFP battery module — delivering 8.06 kWh total / 7.8 kWh usable storage. The 6.0kW inverter is well-suited to larger homes with higher solar array capacity, supporting up to 12,000W of PV input (DC/AC ratio 2.0) across dual MPPT inputs. Like the rest of the SigenStor range, the system is fully modular and upgradeable: storage can be expanded to 48 kWh at any time simply by stacking additional BAT modules beneath the Energy Controller, and the Sigen Energy Gateway (sold separately) adds full whole-home backup power with 0ms switchover.
What's in this Package

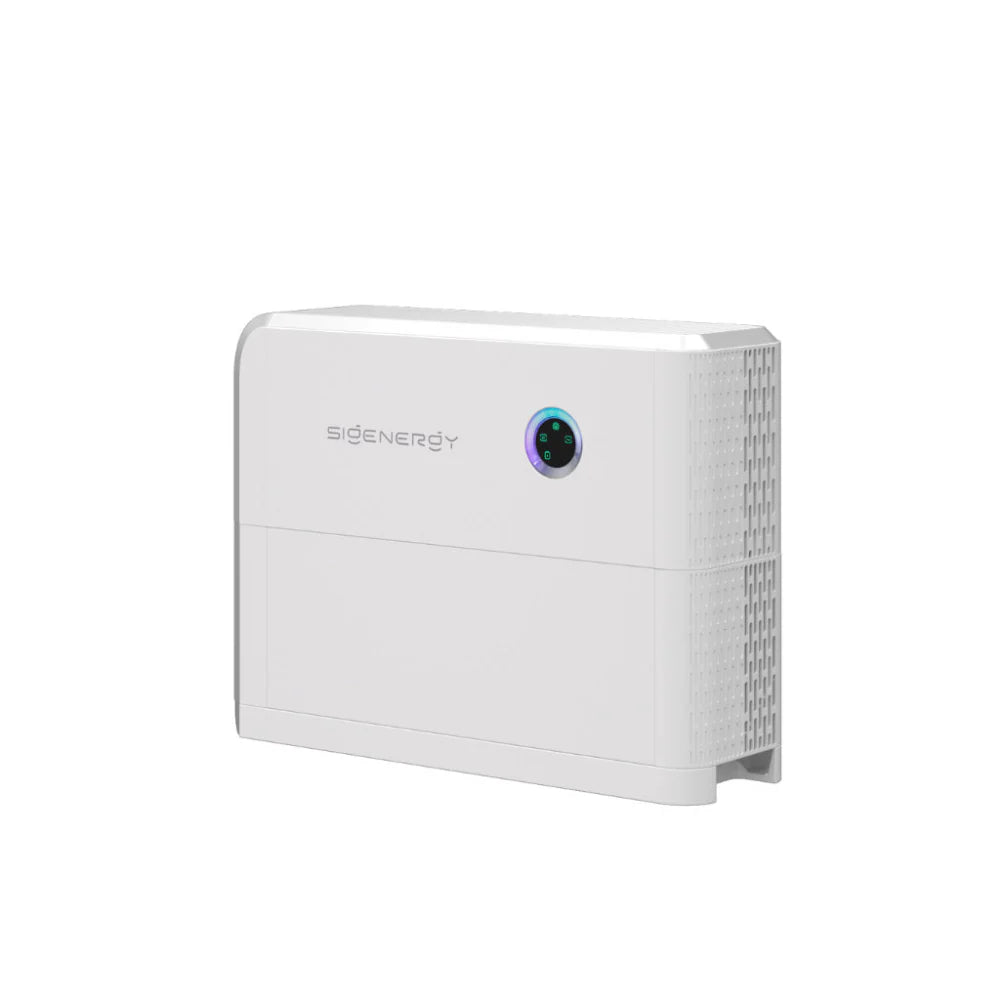

① SigenStor Energy Controller EC 6.0 SP
A 6.0kW single-phase hybrid inverter with integrated EMS, dual MPPT solar inputs, battery charge controller, and grid management. Smart air cooling for efficient thermal management under higher load. Supports up to 6 battery modules (up to 48 kWh). Dimensions: 700 × 300 × 260mm. Weight: 36kg.
② 1 × SigenStor BAT 8.0 Battery Module
One modular 8.06 kWh LFP (LiFePO₄) battery module (marketed as 9.0 kWh). Delivers 7.8 kWh usable capacity, 4,000W continuous / 6,000W peak discharge power, and up to 10,000 charge cycles. Mounts directly below the Energy Controller. Dimensions: 767 × 270 × 260mm. Weight: 70kg.
Key Features
☀️ High-Capacity Solar IntegrationDual MPPT inputs accept up to 12,000W of PV panels (DC/AC ratio 2.0), with a 50–550V voltage range accommodating most residential string configurations. The higher 6.0kW AC output is ideal for larger homes where export limiting to 3.68kW would otherwise waste significant solar generation. Works with any grid-connected PV array.
🔋 Start Lean, Expand at WillThis package provides a single 8.06 kWh battery module — an efficient entry point that keeps upfront cost down while leaving room to grow. Add up to 5 further SigenStor BAT modules at any time, reaching up to 48 kWh total storage on this single inverter. Modules can be mixed (BAT 5.0, 6.0, 8.0) using the per-module battery optimiser.
💡 AI Energy Management + Dynamic TariffsThe mySigen app (GPT-4o AI-powered) automatically schedules grid charging during cheap off-peak periods (Octopus Agile, Octopus Go, Economy 7), discharges at peak times, and maximises solar self-consumption — all without manual input. Tariff rates can be entered manually for fixed-rate tariffs. Full control and override also available.
🛡️ Whole-Home Backup Ready (Gateway Required)Add the Sigen Energy Gateway (sold separately) to enable 0ms load-side switchover during a grid outage, keeping your home powered seamlessly. Solar continues to generate and charge batteries even during a power cut. Backup peak output: 9,000W for 10 seconds — enough for most household loads.
🔌 EV & V2X EcosystemFully compatible with the Sigen EV AC Charger 7kW (solar-priority AC charging) and the Sigen EV DC Module 25kW (bidirectional DC fast charging with Vehicle-to-Home and Vehicle-to-Grid capability). At 6.0kW inverter output, there is headroom to charge an EV simultaneously with powering the home from solar, rather than one or the other.
🔒 LFP Battery Safety — 5 LayersSigenStor BAT 8.0 uses LFP cells with Sigenergy's five-layer safety system: cell-level temperature monitoring, internal fire-extinguishing kit, high-temperature resistance insulated pads, aerogel insulated pads between cells, and a decompression valve. LFP chemistry provides inherent stability and thermal safety advantages over NMC chemistries.
🌡️ IP66 — Indoor or OutdoorBoth the Energy Controller and the BAT 8.0 module are IP66-rated for full weather resistance. The smart air cooling system in the EC 6.0 SP manages heat efficiently under high-load conditions. Stack can be installed in garages, utility rooms, plant rooms, or on external walls. Operating range: -30°C to 60°C (controller), -20°C to 55°C (battery).
📊 Real-Time Monitoring + SEG TrackingMonitor all energy flows in real time via the mySigen app — solar generation, battery state of charge, grid import/export, household consumption, and EV charging. Updates every 10 seconds. AI-generated insights, historical energy charts, SEG export tracking, and remote diagnostics for installers via Sigen Cloud. G98 and G100 certified for DNO notification and export registration.
How the 6.0 SP Compares to the 3.6 SP
| Feature |
EC 3.6 SP |
EC 6.0 SP (this product) |
| Nominal AC output |
3.68 kW |
6.0 kW |
| Backup peak (10s) |
5,520W |
9,000W |
| Max PV input |
7,360W |
12,000W |
| DC/AC ratio |
Up to 2.0 |
Up to 2.0 |
| MPPT inputs |
2 |
2 |
| Max efficiency |
98.0% |
98.0% |
| EU weighted efficiency |
97.1% |
97.4% |
| Cooling |
Natural convection |
Smart air cooling |
| Dimensions (W×H×D) |
700×300×245mm |
700×300×260mm |
| Weight |
18kg |
36kg |
| Best suited for |
Smaller homes, <4kW solar, retrofit |
Larger homes, 4–12kW solar, new-build |
Scalability — Expansion Options (with EC 6.0 SP)
| Configuration |
BAT 8.0 Modules |
Total Capacity |
Usable Capacity |
Max Discharge Power |
| This package ★ |
1 |
8.06 kWh |
7.8 kWh |
4,000W |
| +1 module |
2 |
16.12 kWh |
15.6 kWh |
8,000W |
| +2 modules |
3 |
24.18 kWh |
23.4 kWh |
12,000W |
| +3 modules |
4 |
32.24 kWh |
31.2 kWh |
16,000W |
| Maximum (6 modules) |
6 |
48.36 kWh |
46.8 kWh |
24,000W |
Battery modules can also be mixed with BAT 5.0 (5.38 kWh) or BAT 6.0 (6.02 kWh) modules. Up to 10 EC inverters can be connected in parallel for whole-site expansion up to 480 kWh.
Technical Specifications
| Specification |
Detail |
| Package |
| Part No (this bundle) |
SIG-EC-6.0-SP-BAT-8.0 |
| EAN |
Not published by manufacturer |
| Brand |
Sigenergy |
| Contents |
1 × SigenStor EC 6.0 SP Energy Controller + 1 × SigenStor BAT 8.0 Battery Module |
| Total storage (this bundle) |
8.06 kWh nominal / 7.8 kWh usable |
| Energy Controller — EC 6.0 SP (Inverter / EMS) |
| Nominal AC output power |
6,000W |
| Max. AC output apparent power |
6,600 VA |
| Nominal output voltage |
220 / 230 / 240V single-phase |
| Nominal grid frequency |
50 Hz / 60 Hz |
| Max. efficiency |
98.0% |
| European weighted efficiency |
97.4% |
| Backup peak output (10 seconds) |
9,000W |
| Backup switchover time |
0ms load-side disruption (requires Sigen Energy Gateway) |
| Max. PV input power |
12,000W (DC/AC ratio up to 2.0) |
| Max. DC input voltage |
600V |
| MPPT voltage range |
50–550V |
| Number of MPPT inputs |
2 |
| Max. input current per MPPT |
16A |
| Max. short-circuit current per MPPT |
20A |
| Battery module voltage range |
300–600V (single-phase system) |
| Battery modules supported |
1–6 modules per controller (SigenStor BAT series) |
| Communication |
WLAN, Fast Ethernet, RS485, Sigen CommMod (4G/3G/2G, sold separately) |
| Protection rating |
IP66 |
| Cooling |
Smart air cooling |
| Dimensions (W × H × D) |
700 × 300 × 260mm |
| Weight |
36kg |
| Operating temperature |
-30°C to 60°C |
| Certifications |
G98, G100; IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1, IEC/EN 61000-6-2 |
| Warranty |
10 years |
| Battery Module — SigenStor BAT 8.0 (× 1 supplied) |
| Battery chemistry |
LiFePO₄ (LFP — Lithium Iron Phosphate) |
| Total energy capacity |
8.06 kWh |
| Usable energy capacity |
7.8 kWh (97% depth of discharge) |
| Max. continuous charge/discharge power |
4,000W |
| Peak charge/discharge power (10 sec) |
6,000W |
| Round-trip efficiency |
98% |
| Cycle life |
Up to 10,000 cycles (at 25°C, 0.5C, SOH ≥ 60%) |
| Battery module voltage (single phase) |
300–600V |
| Dimensions (W × H × D) |
767 × 270 × 260mm |
| Weight |
70kg |
| Protection rating |
IP66 |
| Cooling |
Natural convection (passive — no fans) |
| Operating temperature |
-20°C to 55°C |
| Storage temperature |
-25°C to 60°C |
| Mounting |
Floor-standing (stackable) or wall-mounted |
| Standards |
IEC/EN 62619, IEC/EN 63056, UN 38.3 |
| Warranty |
10 years (70% capacity retention guaranteed) |
⚠️ Important — backup power requires the Sigen Energy Gateway: The EC 6.0 SP and BAT 8.0 alone provide solar self-consumption, tariff optimisation, and export. Whole-home backup power during a power cut requires the Sigen Energy Gateway (sold separately). The Gateway handles the 0ms switchover and isolates the house from the grid during an outage, allowing the battery and solar to continue powering your home. Without it, the system shuts down on grid failure per G98/G100 anti-islanding requirements.
What's in the Box
- 1 × SigenStor Energy Controller EC 6.0 SP (single-phase hybrid inverter/EMS)
- 1 × SigenStor BAT 8.0 battery module (8.06 kWh)
- Stack base and mounting hardware
- Inter-module connection cables
- Quick installation guide
Not included: Sigen Energy Gateway (required for backup/power-cut protection); Sigen CommMod (for 4G remote monitoring without home Wi-Fi); Sigen Power Sensor (required for dynamic load management with the Sigen EV AC Charger); additional battery modules; solar panels and DC cabling. MCS certification and DNO notification required for grid connection — consult your installer.
FAQs
Why does the product title say "9.0 kWh" when the part number says BAT-8.0?
This is a naming convention difference within the Sigenergy range. The battery module supplied is the SigenStor BAT 8.0, which has a nominal capacity of 8.06 kWh (7.8 kWh usable). Sigenergy and some distributors refer to this as a "9.0 kWh" battery in product titles — this likely reflects marketing rounding or naming alignment with a newer BAT 9.0 module (9.04 kWh) introduced for other markets. The part number BAT-8.0 in the SKU is the definitive reference. The actual usable storage delivered is 7.8 kWh from a single module.
Is the 6.0kW inverter right for my home?
The EC 6.0 SP is best suited to homes with larger solar arrays (typically 4kW–12kW), higher daytime consumption, or where a single EV charger may be running simultaneously with household loads. For a typical UK home with a 3–4kW solar system, the EC 3.6 SP is often sufficient and more cost-effective. The 6.0kW rating means more solar power can be converted and more stored energy can be discharged simultaneously — notably, the backup peak output of 9,000W (vs 5,520W for the 3.6 SP) also provides more headroom for running large appliances during a power cut.
Can I add more batteries to this system later?
Yes — this is one of SigenStor's core strengths. The EC 6.0 SP supports 1 to 6 battery modules, so you can add up to 5 more BAT modules over time, reaching up to 48.36 kWh with BAT 8.0 modules. No inverter changes are required. Modules can also be mixed (BAT 5.0, 6.0, and 8.0), with the per-module battery optimiser managing any differences in age or capacity. Each additional module simply stacks beneath the existing stack.
Does this system qualify for any UK incentives?
Battery storage (when installed alongside or connected to solar panels) qualifies for 0% VAT under the UK's Energy Saving Materials scheme. The system itself does not receive a direct grant, but it enables significantly higher self-consumption of solar-generated electricity, reducing bills. The mySigen app tracks import/export for Smart Export Guarantee (SEG) submissions. Your MCS-certified installer will register the system with the DNO using the G98/G100 certificates provided by Sigenergy.
ℹ️ Complete your system:
Sigen Energy Gateway — adds whole-home backup power (0ms switchover, 100A single-phase) ·
Additional SigenStor BAT 8.0 modules — expand storage to 48 kWh on this inverter ·
Sigen EV AC Charger 7kW — solar-priority smart EV charging ·
SigenStor EV DC Module (25kW) — bidirectional DC fast EV charging with V2H/V2G ·
Sigen CommMod — 4G connectivity for sites without reliable Wi-Fi
