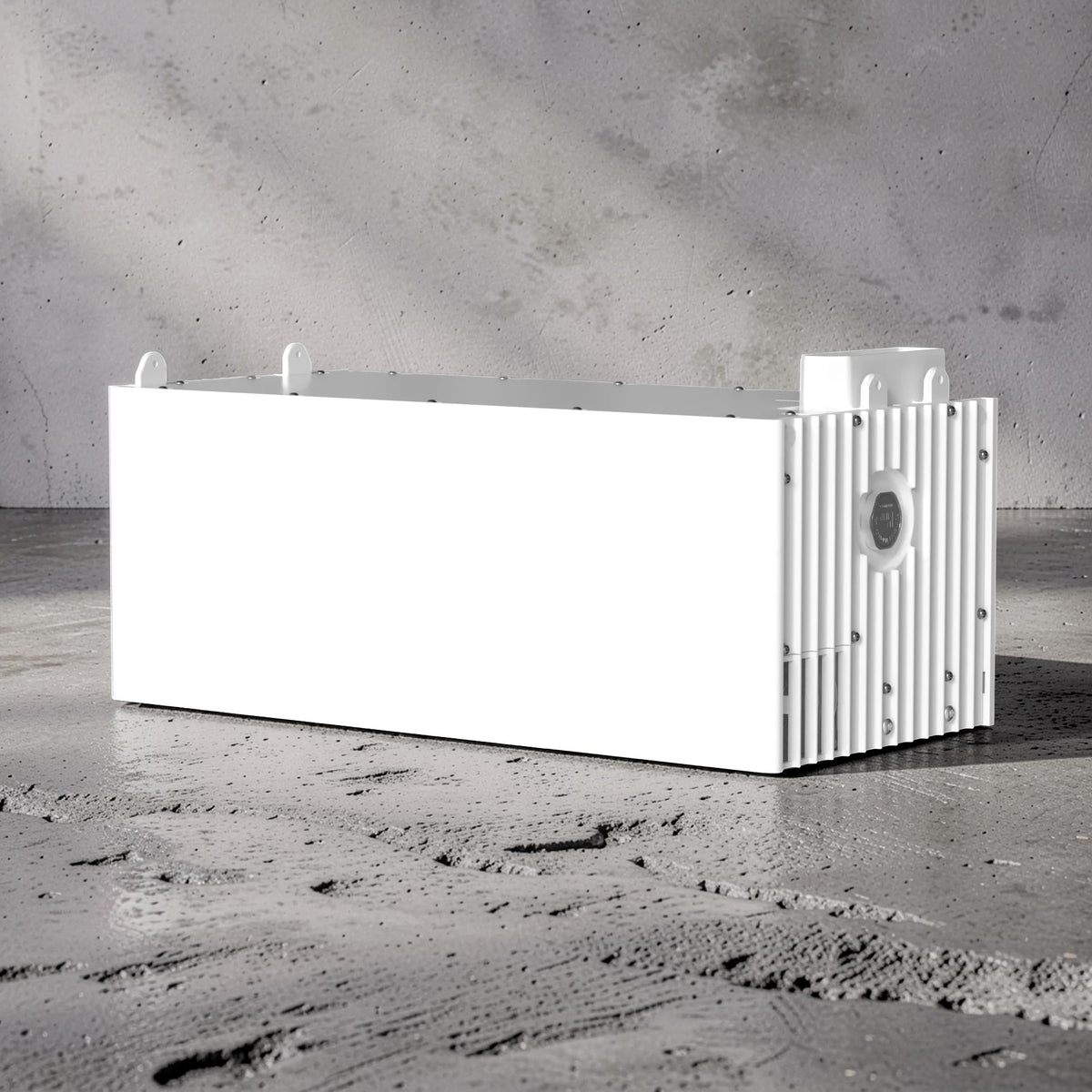

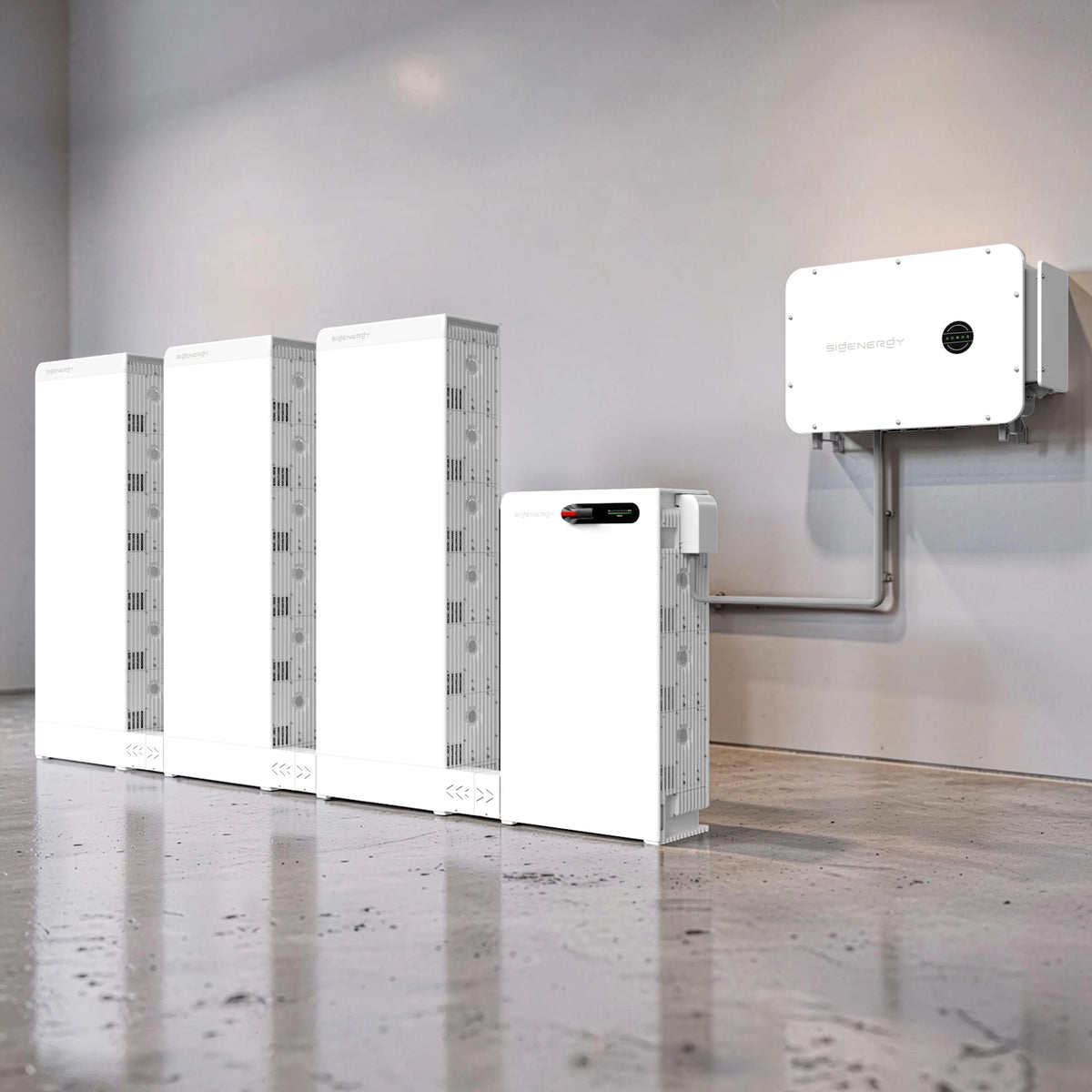

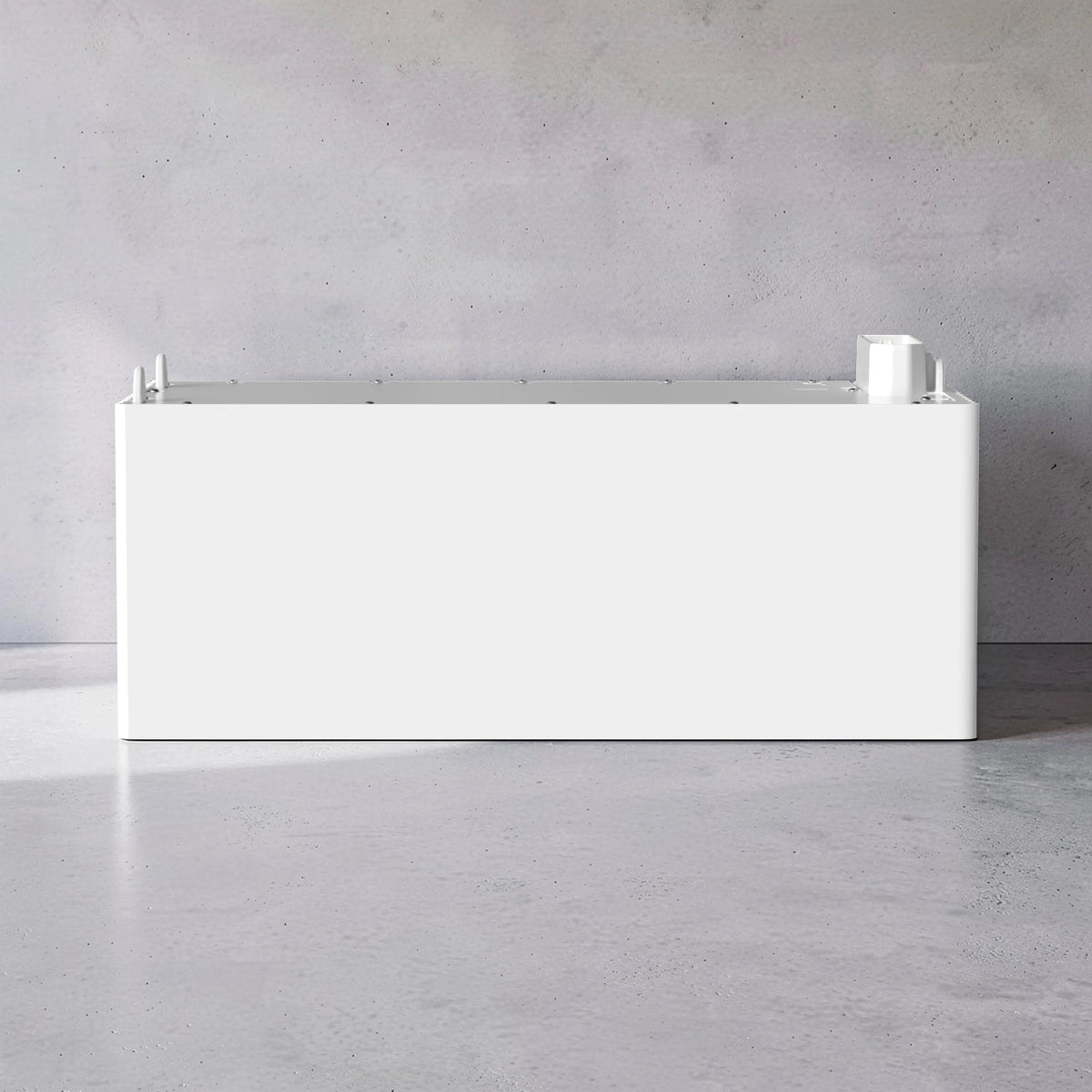

Sigenergy SigenStack Battery 12.0 kWh | LiFePO4 C&I Modular Storage

The SigenStack Battery 12.0 kWh is the modular LiFePO₄ battery module at the heart of the Sigenergy SigenStack commercial and industrial energy storage system. Each module delivers 12.006 kWh of nominal energy at a nominal 0.5C charge/discharge rate, with a peak rate of 1C. Between 4 and 21 modules can be stacked per system, giving a scalable capacity range from approximately 48 kWh up to 253 kWh — precisely sized to project requirements without over-specifying. Modules stack and connect without cranes or specialist lifting equipment, keeping installation straightforward on commercial rooftops and in plant rooms. IP66-rated enclosures provide full weather protection, and pack-level fire suppression with cell thermal runaway control delivers the safety standard required for commercial deployments. CAN-bus communication ensures seamless integration with Sigenergy's M1-HYA hybrid inverter and Battery Controller.

• 12.006 kWh per module — high energy density in a compact, stackable footprint
• 4–21 modules per system — scalable from ~48 kWh to ~253 kWh with no wasted capacity
• LiFePO₄ chemistry — superior thermal stability, long cycle life, and enhanced safety vs NMC
• IP66 rated — suitable for outdoor and semi-exposed plant room installation
• Pack-level fire suppression and cell thermal runaway control — commercial-grade safety
• No cranes required — modules stack and connect by hand, reducing installation cost
• Stack-and-play wiring — no complex inter-module cabling; automatic device networking
• CAN-bus integration — direct communication with Sigen M1-HYA hybrid inverter and BC
• DC-coupled design — up to 2% better round-trip efficiency versus AC-coupled alternatives
• Dimensions: 768 × 195 × 363 mm · Weight: 107 kg
