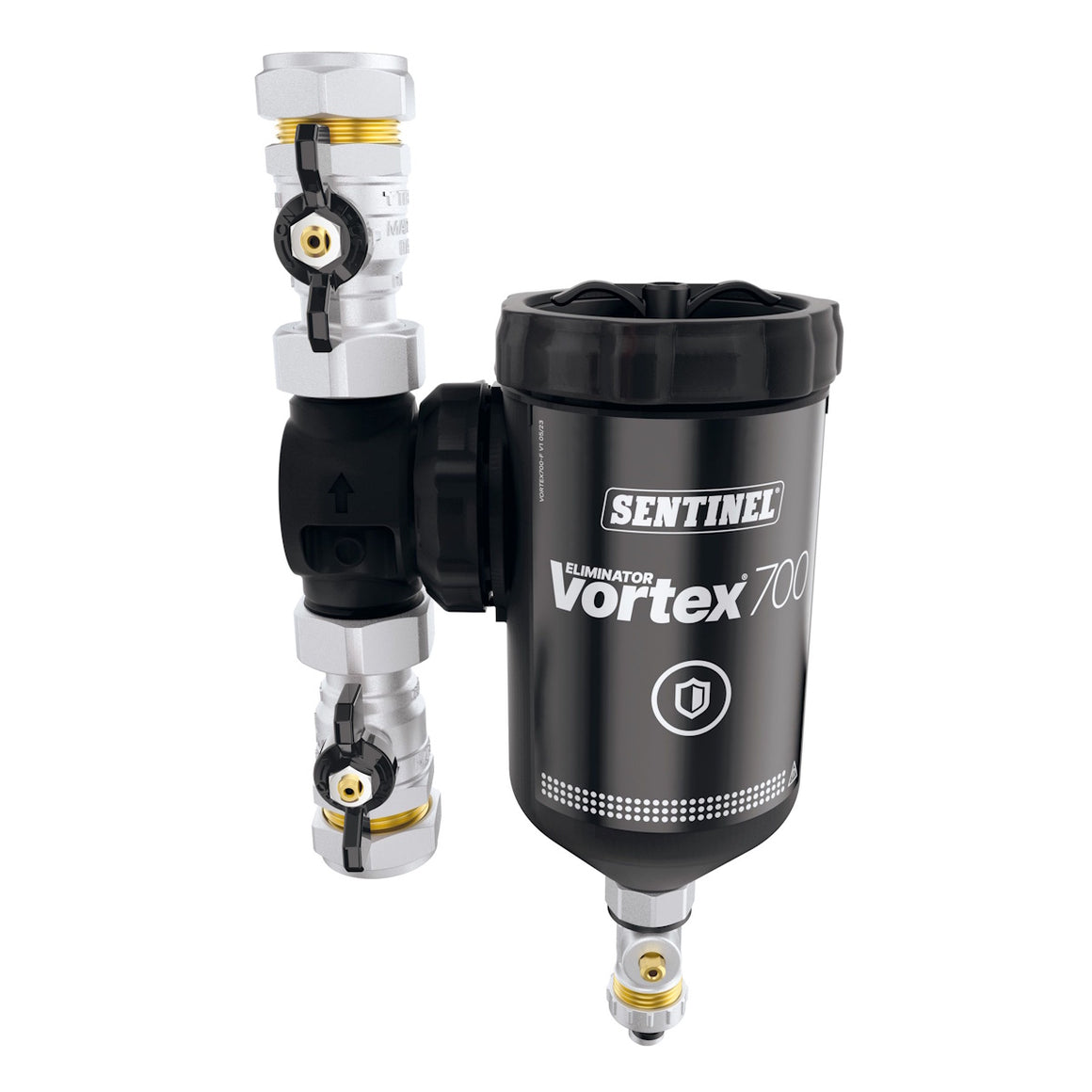

The Sentinel Eliminator Vortex 700 (MPN ELIMV700-GRP28-EXP) is a large-capacity magnetic filter purpose-built for air source heat pump (ASHP) systems, combining an 800 micron sieve with a powerful 9,000 gauss neodymium-iron-boron magnet to capture both magnetic and non-magnetic circulating debris. Its robust GRP-reinforced polymer body is suitable for system water with high glycol content, making it well matched to heat pump circuits filled with glycol-based thermal fluids such as Sentinel R600.
28mm Compression
Connection
9,000 Gauss
Magnet Strength
Built for Glycol-Filled Systems
The GRP-reinforced polymer body is specifically suitable for system water with high glycol content, making this filter appropriate for air source heat pump circuits filled with inhibited antifreeze such as Sentinel R600.
Choice of Connection Sizes
The Eliminator Vortex 700 range is available with a choice of isolation valve sizes: 28mm compression, 1" M and 1¼" M to suit different heat pump pipework. This listing is the 28mm compression variant.
Servicing Note
Fitted with full bore isolation valves and dual seals pressure-tested on every unit. Debris can be flushed away by removing the magnet from its sleeve and opening the drain valve, or the filtration chamber can be removed entirely to inspect and clean the sieve. Always isolate the system fully before servicing.
Dual-Action Filtration
Combines an 800 micron sieve to capture non-magnetic debris with a powerful 9,000 gauss neodymium-iron-boron magnet to trap magnetic particles such as rust and sludge, in a single unit.
Designed for ASHP Systems
Purpose-built as a large filter for air source heat pumps, where greater debris collection capacity is often required compared with standard boiler systems.
Glycol-Compatible Construction
The GRP reinforced polymer body is suitable for system water with high glycol content, avoiding the material compatibility issues some filters have with antifreeze-treated circuits.
Fast, Flexible Installation
A 360° adjustable T-piece allows in-line installation in minutes across a variety of pipework orientations, with EU-manufactured brass valves included.
Simple Servicing
Can be flushed in seconds under system pressure by removing the magnet from its sleeve and opening the drain valve, or the filtration chamber can be removed entirely to inspect and clean the sieve with a soft brush.
10-Year Guarantee
Backed by a 10 year total product guarantee, with dual seals pressure-tested on every single unit for long-term reliability in continuous ASHP operation.
| Product Identity |
| Manufacturer |
Sentinel (Sentinel Performance Solutions) |
| Product Name |
Sentinel Eliminator Vortex 700 |
| MPN |
ELIMV700-GRP28-EXP |
| EAN |
5060154183856 |
| Connection Size |
28mm compression |
| Filtration Performance |
| Sieve Rating |
800 micron |
| Magnet |
9,000 gauss neodymium-iron-boron, fully removable |
| Filter Chamber Capacity |
500 ml |
| Maximum Flow Rate |
35 L/min |
| Physical & Pressure Specification |
| Maximum Operating Pressure |
3 bar |
| Body Material |
GRP reinforced polymer |
| Valve Material |
EU-manufactured brass |
| Dimensions |
H 283mm x W 88mm x D 127mm |
| ErP (Energy Efficiency) |
N |
| Application & Warranty |
| Suitable For |
Air source heat pump circuits, high glycol content system water |
| Installation |
360° adjustable T-piece, in-line |
| Available Connection Sizes |
28mm compression, 1" M, 1¼" M |
| Guarantee |
10 years |
Is this filter suitable for glycol-filled heat pump systems?
Yes. The GRP reinforced polymer body is specifically suitable for system water with high glycol content, making it appropriate for ASHP circuits filled with products such as Sentinel R600.
What size debris does this filter capture?
It combines an 800 micron sieve for non-magnetic debris with a 9,000 gauss neodymium-iron-boron magnet for magnetic particles such as rust and sludge.
How is this filter serviced?
Debris can be flushed away by removing the magnet from its sleeve and opening the drain valve at the base of the unit, or the filtration chamber can be removed entirely to inspect and clean the sieve with a soft brush.
What connection size does this model use?
This listing is the 28mm compression variant. The Vortex 700 range is also available with 1" M and 1¼" M connections to suit different heat pump pipework.
What is the maximum flow rate and pressure rating?
It is rated to a maximum flow rate of 35 L/min and a maximum operating pressure of 3 bar.
What guarantee does this filter come with?
It is backed by a 10 year total product guarantee, with dual seals pressure-tested on every single unit before dispatch.
