Schletter Roof Solar Hook with Replacement Tile, Rapid2+ Slate125 - Kit | SLT-109019-SLATE

Description

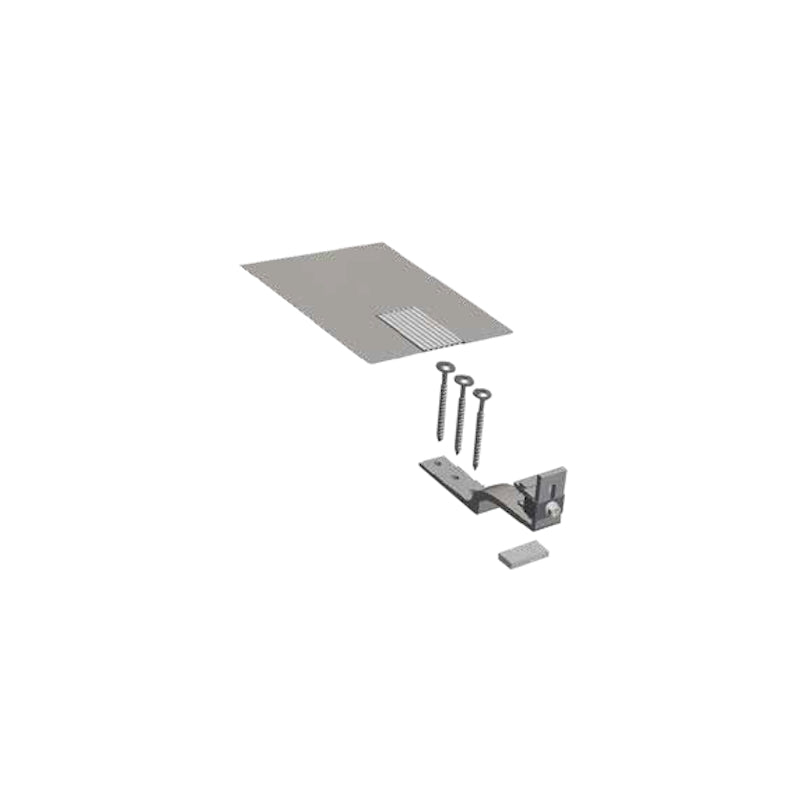

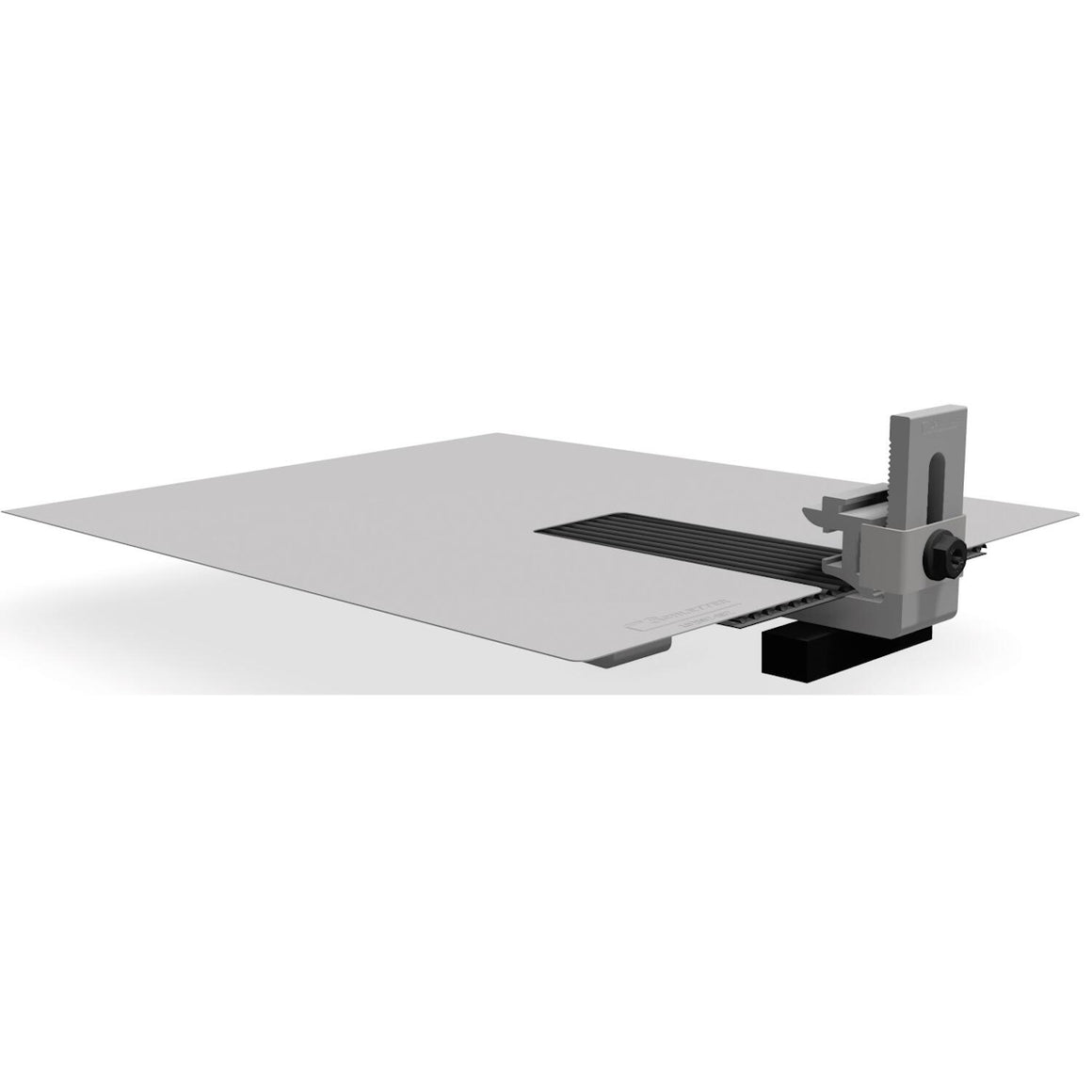

This combined kit pairs the Schletter Roof Hook for Slate Replacement Tile Rapid2+ Slate125 (SLT-109019-024) with its matching slate replacement tile (SLT-109017-010) in a single order, providing a complete fixing solution per roof hook position on slate roofs.

The hook suits slate overlaps up to 125mm and includes a rotatable multi-adapter for Solo and Pro mounting rail compatibility, while the aluminium replacement tile may need cutting down on site to match the exact slate dimensions of your roof.

2-Part Kit

Hook + Tile

125mm

Max Slate Overlap

Rotatable

Multi-Adapter

Solo & Pro

Compatible Rails

245 x 123 x 35mm

Hook Dimensions

Site-Cut Tile

Fitting Adjustment

Key Features

Complete Fixing Point in One Order

Bundles the roof hook and matching slate replacement tile, removing the need to calculate and order the two matched parts separately.

Suits Overlaps Up To 125mm

Designed to accommodate slate overlaps of up to 125mm, covering most standard UK slate roofing profiles.

Rotatable Multi-Adapter

Connects to both Solo and Pro mounting rail systems from a single hook via the rotatable adapter.

Flexible Fixing Screw Arrangement

The hook can be fixed with three 6mm screws or two 8mm screws in a straight line, improving suitability on narrower rafters.

Direct Load Transfer to Rafters

Roof load transfers directly onto the rafters, protecting the surrounding slate from point-loading stress.

Site-Adjustable Replacement Tile

The included tile may need cutting down on site to match the exact slate dimensions and overlap on your specific roof.

Please Note

Wood screws for fixing the hook to the rafter are not included and must be ordered separately. The replacement tile may require cutting down on site to match your specific slate profile.

Technical Specification

Kit Contents

Component 1

Roof Hook for Slate Replacement Tile Rapid2+ Slate125 (SLT-109019-024)

Component 2

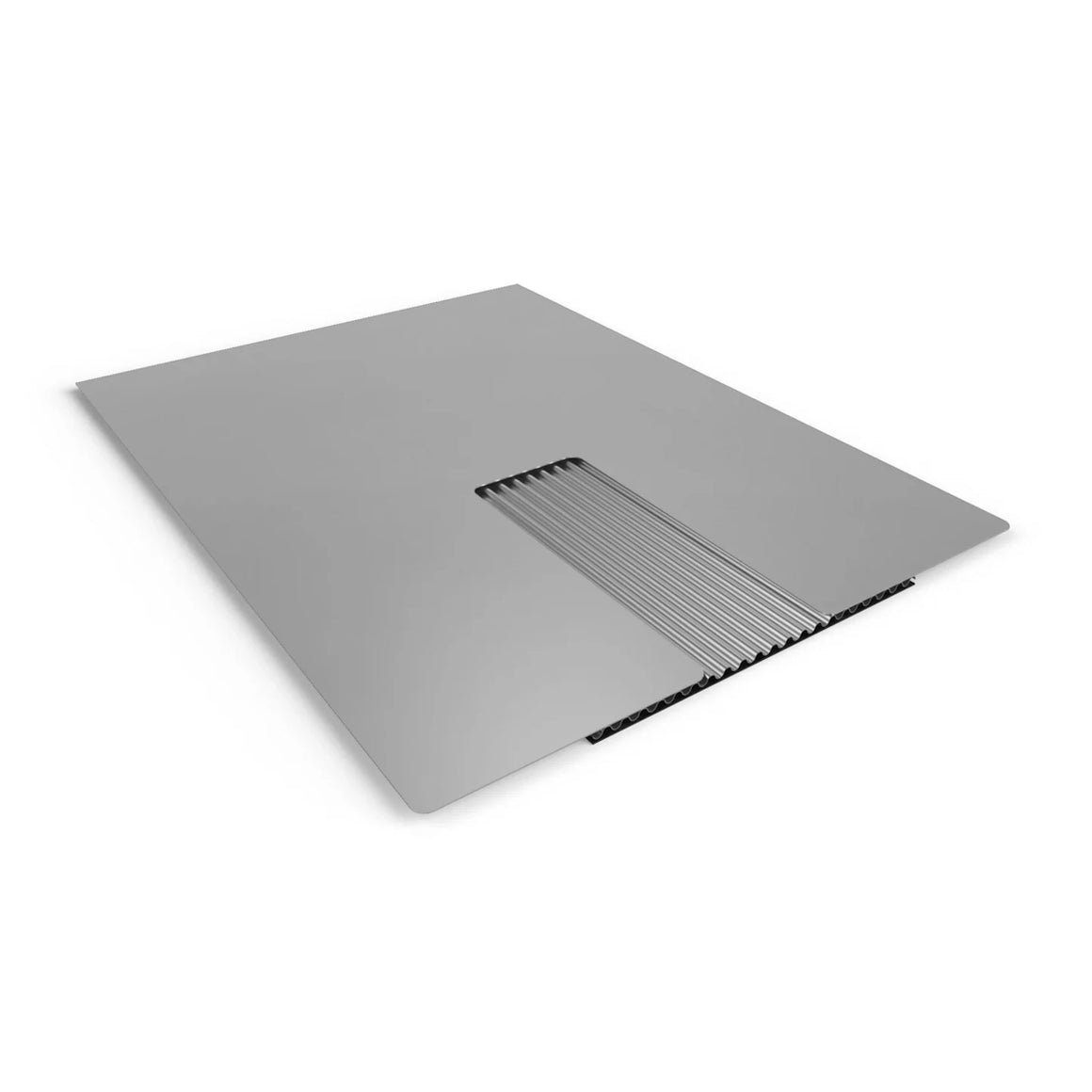

Slate Replacement Tile Rapid2+ Slate125 (SLT-109017-010)

Roof Hook Specification

Maximum Slate Overlap

125 mm

System Compatibility

Solo and Pro mounting rails, via rotatable multi-adapter

Fixing Screws

3 x 6mm or 2 x 8mm, in straight line (screws sold separately)

Overall Dimensions (H x W x D)

245 x 123 x 35 mm

Hook Material

Aluminium

Replacement Tile Specification

Site Fitting

May require cutting down to fit specific slate dimensions

Frequently Asked Questions

What's included in this kit?

The kit includes both the Rapid2+ Slate125 roof hook and its matching slate replacement tile, so you receive a complete fixing solution for one roof hook position in a single order.

Are fixing screws included?

No, wood screws for fixing the hook to the rafter are sold separately. The hook can be fixed with three 6mm screws or two 8mm screws in a straight line.

Will the replacement tile need modifying on site?

It may need cutting down to fit precisely around the specific slate size and overlap on your roof, since slate dimensions vary by region and property.

How many kits do I need?

Order one kit per roof hook fixing position across your array.

What rail systems is this kit compatible with?

The roof hook's rotatable multi-adapter connects to both Schletter Solo and Pro mounting rail systems.
