Schletter Roof Hook for Slate Replacement Tile, Rapid2+ Slate125 | 109019-024

Description

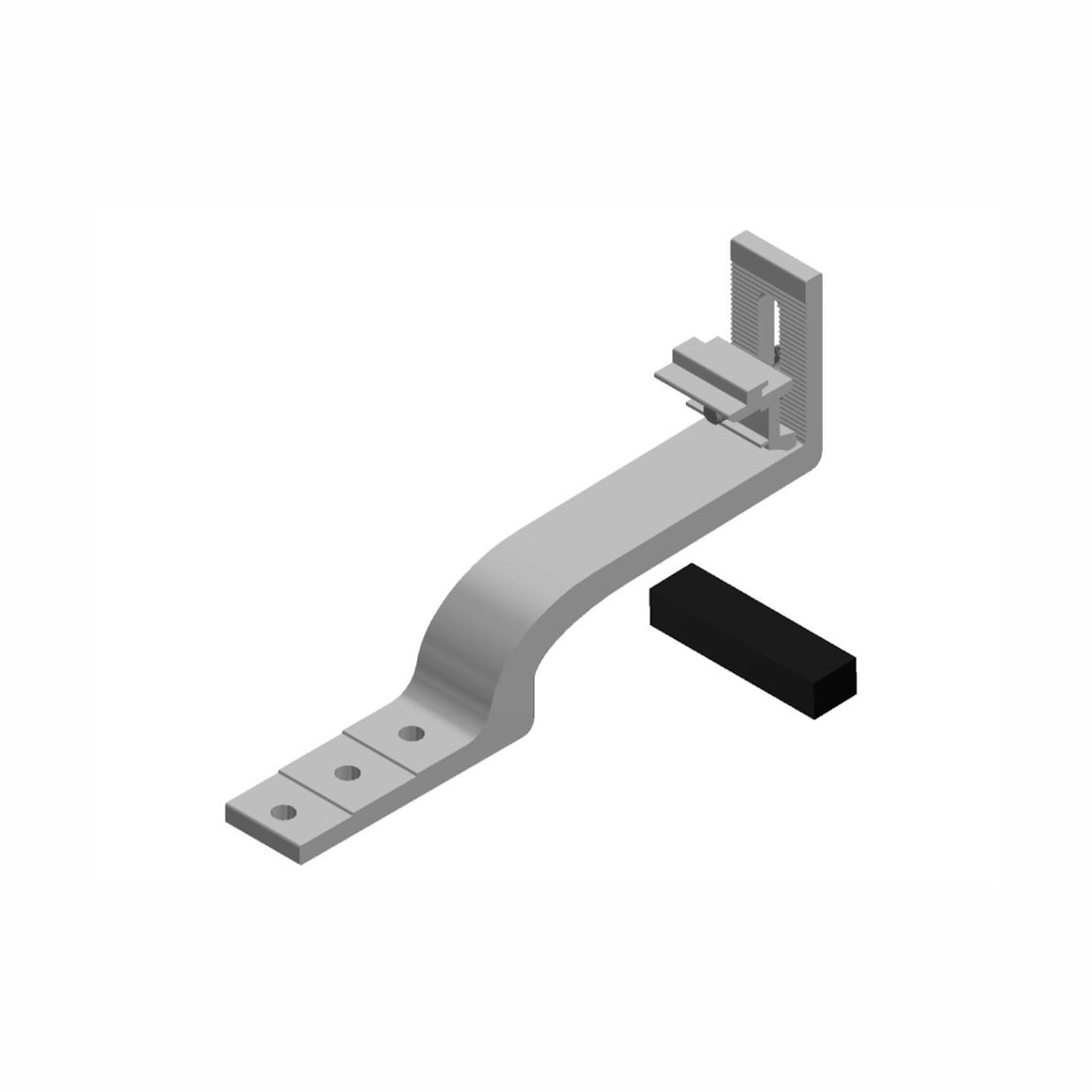

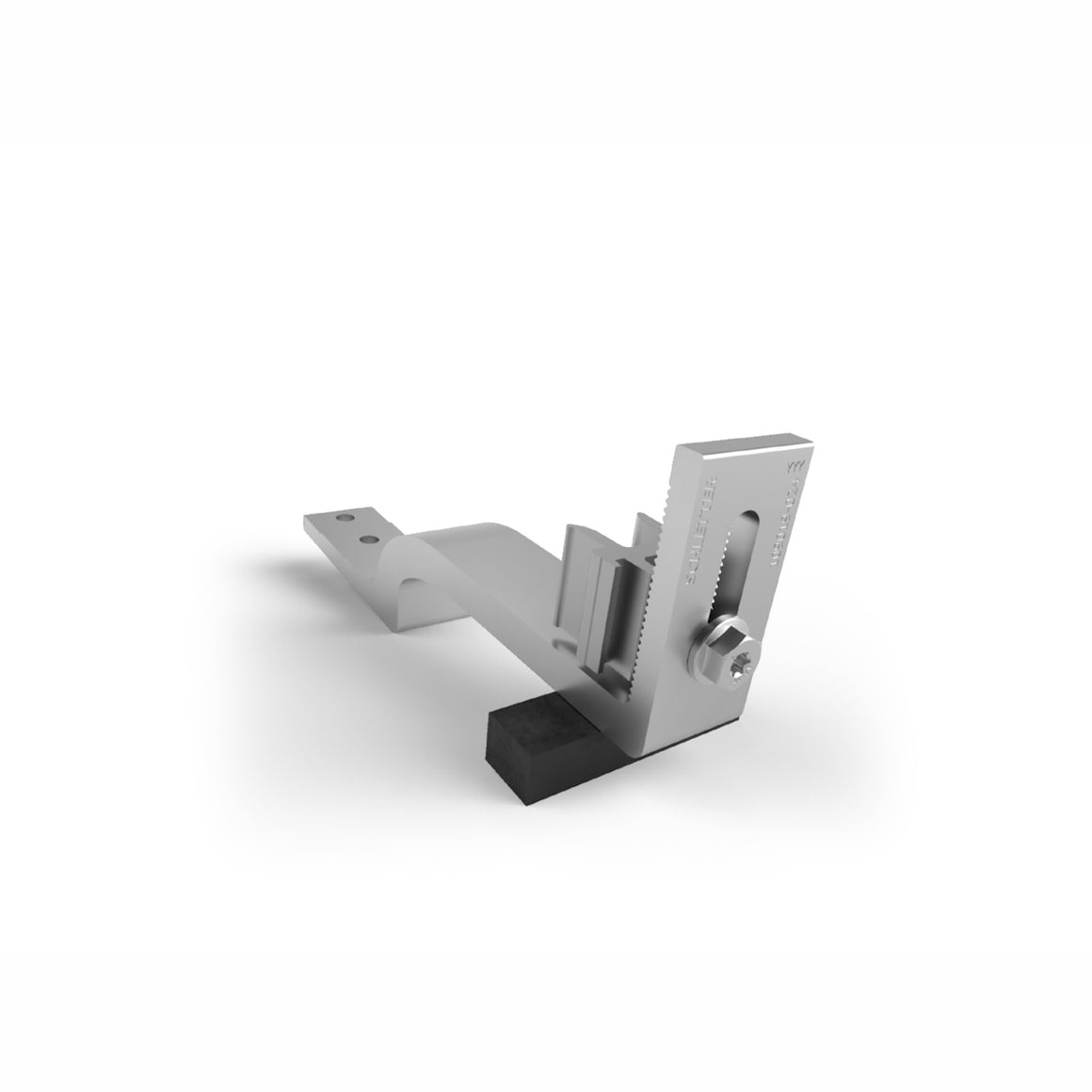

This Schletter Rapid2+ Pro roof hook is designed for slate roofs, using a matching slate replacement tile to seat the fixing without disturbing the surrounding slate courses. It suits slate overlaps of up to 125mm, covering the great majority of UK slate roofing profiles.

The hook includes a rotatable multi-adapter for fast connection to Solo and Pro mounting rails, and offers flexible screw positioning — three 6mm or two 8mm screws arranged in a straight line — giving better compatibility with narrow rafters.

125mm

Max Slate Overlap

245 x 123 x 35mm

Overall Dimensions (H x W x D)

Rotatable

Multi-Adapter

Solo & Pro

Compatible Rails

Direct Rafter Load

Load Transfer Method

Aluminium

Hook Material

Key Features

Suits Overlaps Up To 125mm

Designed to accommodate slate overlaps of up to 125mm, covering most standard UK slate roofing profiles without needing a different hook variant.

Flexible Screw Arrangement for Narrow Rafters

Can be fixed with three 6mm screws or two 8mm screws in a straight line, giving better suitability on narrower rafters than a fixed screw pattern would allow.

Rotatable Multi-Adapter

The rotatable adapter connects to both Solo and Pro mounting rail systems, reducing the number of hook variants required in stock.

Direct Load Transfer to Rafters

Transfers roof load directly onto the rafters rather than through the slate covering, protecting the slates from point-loading stress.

Flexible Corrugated Roof Panel Strip

Incorporates a roof panel with a flexible corrugated strip to help the replacement tile conform to the surrounding slate profile.

Quick, Straightforward Installation

Designed for quick and easy installation, suiting a range of slate and shingle roofing types beyond standard natural slate.

Please Note

The matching covering plate and wood screws are not included and must be ordered separately to complete the fixing. Pair with the corresponding Schletter Slate Replacement Tile (SLT-109017-010), or select the combined kit for both parts in one order.

Technical Specification

Roof Hook Specification

Roof Type

Slate (natural slate and compatible shingle types)

Maximum Slate Overlap

125 mm

System Compatibility

Solo and Pro mounting rails, via rotatable multi-adapter

Fixing Screws

3 x 6mm or 2 x 8mm, in straight line

Load Transfer

Direct onto rafters

Overall Dimensions (H x W x D)

245 x 123 x 35 mm

Materials

Hook Material

Aluminium

Covering Plate

Ordered separately

Frequently Asked Questions

What slate overlap does this hook suit?

It is designed for slate overlaps of up to 125mm, which covers most standard UK slate roofing profiles.

Does this hook come with fixing screws?

No, wood screws are excluded and ordered separately. The hook can be fixed using either three 6mm screws or two 8mm screws in a straight line.

Why would I use two 8mm screws instead of three 6mm screws?

The two-screw, 8mm arrangement is useful on narrower rafters where fitting three screws in a straight line may not be practical.

What rail systems does this hook connect to?

The rotatable multi-adapter connects to both Schletter Solo and Pro mounting rail systems.

Does this hook include the replacement tile?

No, this listing is for the roof hook only. The matching Slate Replacement Tile (SLT-109017-010) is ordered separately, or you can choose the combined kit for both parts together.
