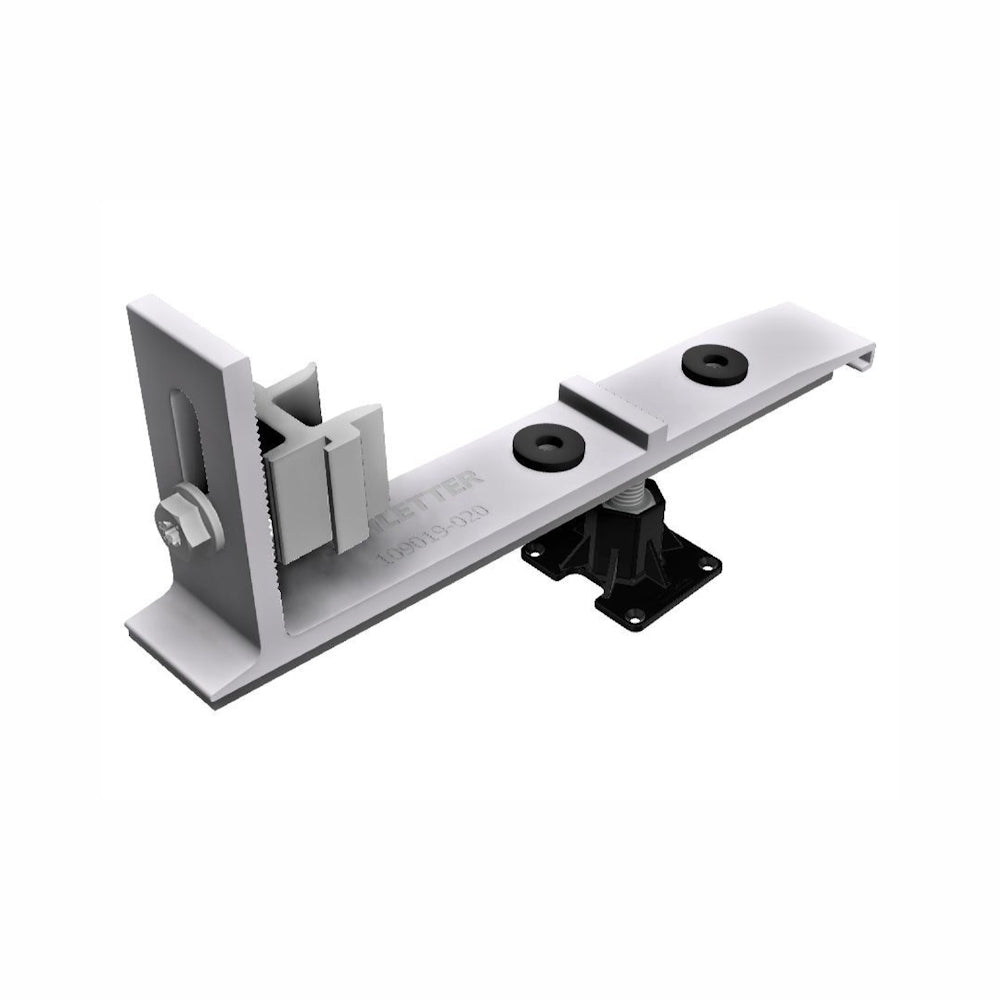

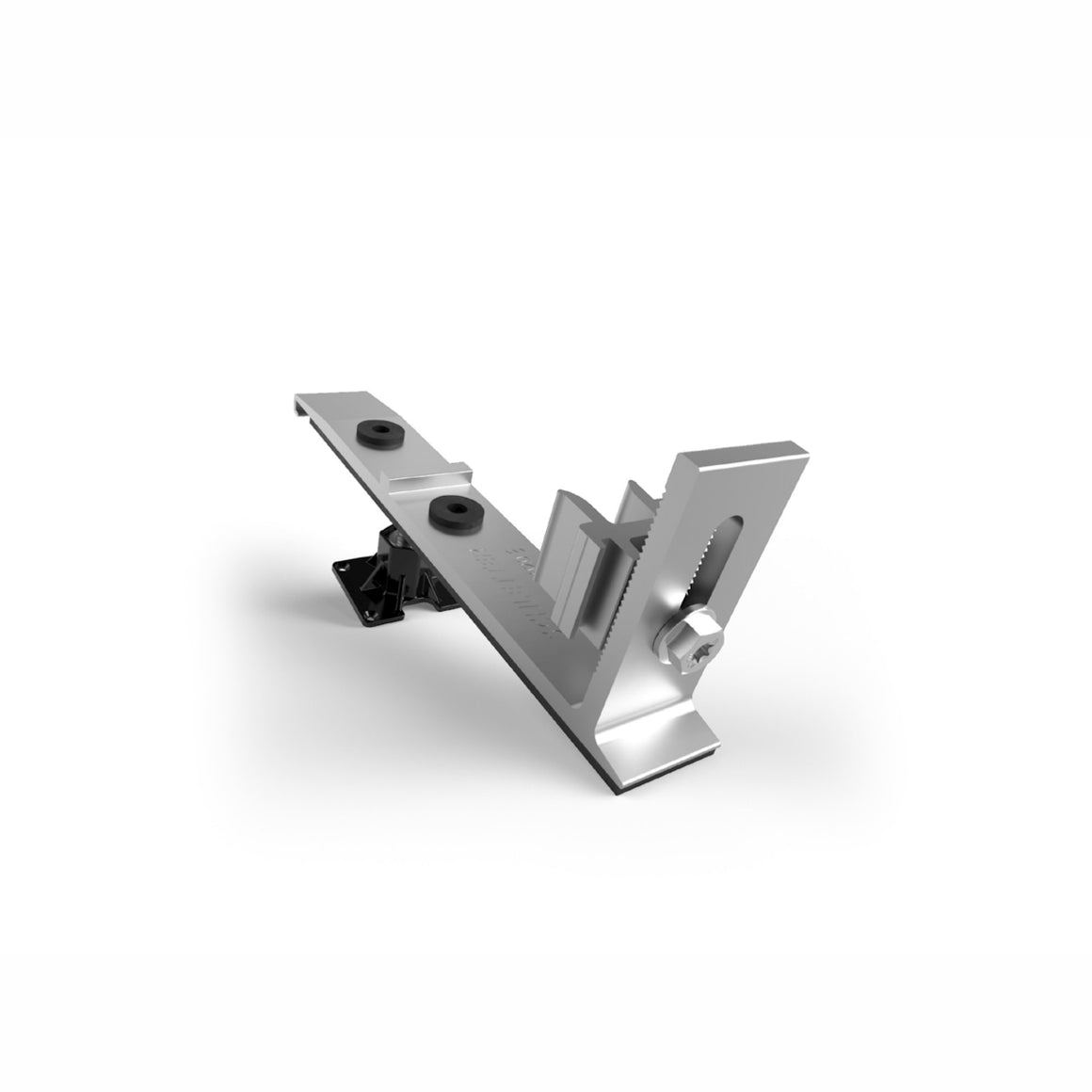

Schletter Roof Hook for Metal Replacement Tiles, UK Plain Tile | 109019-020

Description

This Schletter Roof Hook is part of the Rapid Pro Alu system, purpose-built for UK plain tile roofs using a metal replacement tile to seat the hook without disturbing the surrounding tiling. A rotatable multi-adapter lets the hook connect quickly to both Solo and Pro mounting rails from a single part.

The hook offers height adjustment to compensate for uneven roof surfaces and is pre-assembled for fitting with a single tool (Torx TX40), combining aluminium and stainless steel construction with a UV-resistant EPDM seal at the fixing point.

Plain Tile

Roof Type

TX40 Torx

Single Tool Install

Rotatable

Multi-Adapter

Solo & Pro

Compatible Rails

EPDM Seal

Weatherproofing

Height Adjustable

Uneven Roof Compensation

Key Features

Rotatable Multi-Adapter

A single rotatable adapter connects to both Solo and Pro mounting rail systems, reducing the number of hook variants needed in stock.

Height Adjustment for Uneven Roofs

Built-in height adjustment compensates for roof surface irregularities, helping the finished array sit level even where the roof itself is not perfectly consistent.

Single-Tool Installation

Pre-assembled and fitted with just a Torx TX40 tool, simplifying the toolkit installers need on site.

UV-Resistant EPDM Seal

A UV-resistant EPDM seal at the fixing point maintains a weatherproof connection at the roof penetration for the life of the installation.

Aluminium & Stainless Steel Construction

Combines aluminium and stainless steel components for a strong, corrosion-resistant hook that spreads load effectively.

Designed for Plain Tile Roofs Specifically

Engineered for the UK plain tile roofing profile, working together with a sheet metal replacement tile to maintain the roof's weathertightness around the hook.

Please Note

This roof hook is sold separately from the matching sheet metal replacement tile required for a complete plain tile installation. Order both components together, or choose the combined kit if you prefer a single part number.

Technical Specification

Roof Hook Specification

Roof Type

UK plain tile

System Compatibility

Solo and Pro mounting rails, via rotatable multi-adapter

Height Adjustment

Yes, for uneven roofs

Installation Tool

Torx TX40

Assembly

Pre-assembled

Materials & Sealing

Materials

Aluminium and stainless steel

Sealing

UV-resistant EPDM

Frequently Asked Questions

Does this roof hook include the replacement tile?

No, this listing is for the roof hook only. The matching sheet metal replacement tile (170 x 380mm for UK plain tile) is ordered separately, or you can choose the combined kit if you'd prefer both in one order.

What rail systems does this hook connect to?

The rotatable multi-adapter connects to both Schletter Solo and Pro mounting rail systems.

What tool do I need to install this hook?

A Torx TX40 driver is all that's needed — the hook is pre-assembled ahead of delivery.

Does this hook compensate for an uneven roof surface?

Yes, it includes height adjustment to help level the rail run even where the roof surface itself is slightly uneven.

Is this hook suitable for tile types other than UK plain tile?

This specific hook and its accompanying replacement tile are designed for the UK plain tile profile. For other tile or slate types, Schletter offers separate roof hook variants matched to those profiles.
