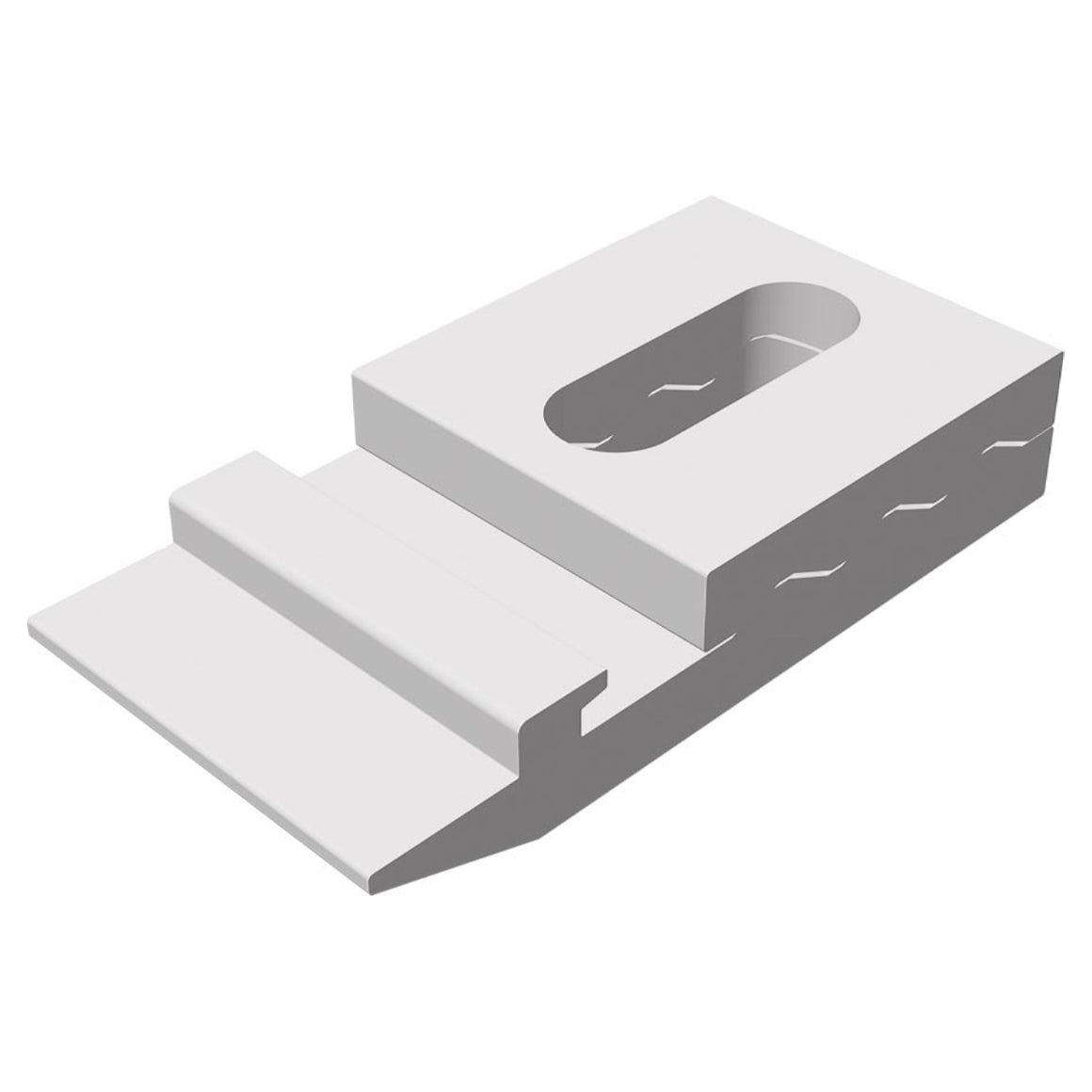

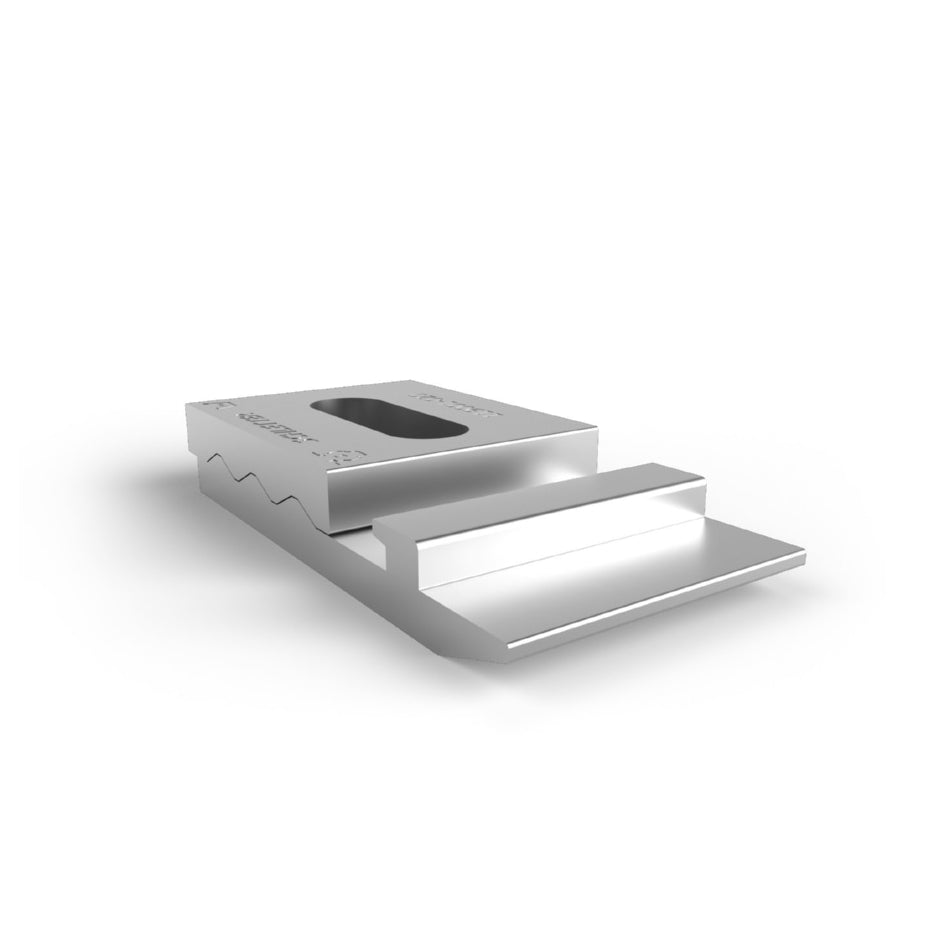

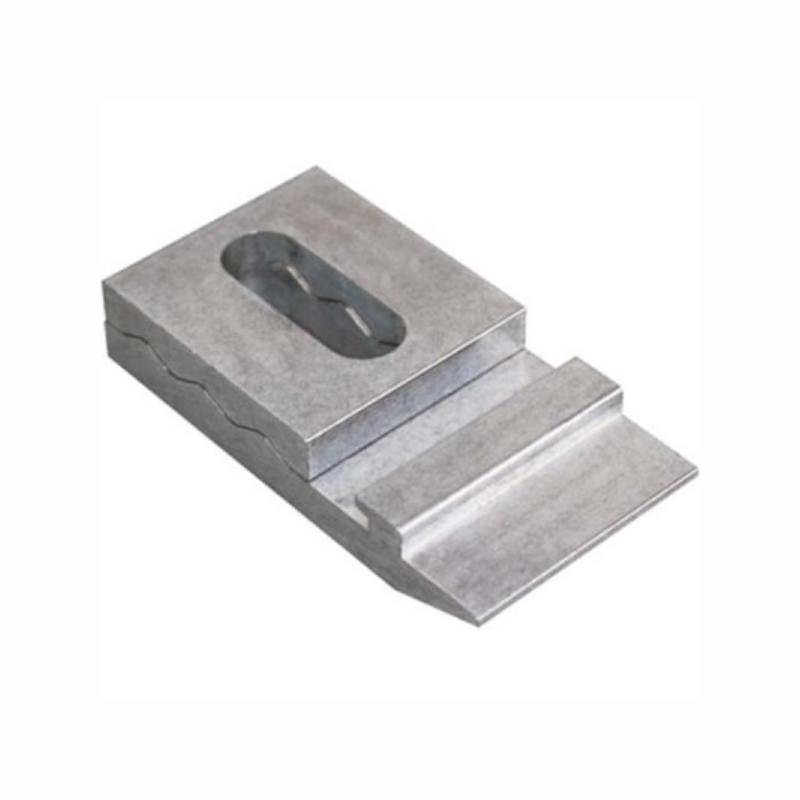

Schletter KlickTop Attachment for Hanger Bolt | 119001-020

Description

The Schletter KlickTop Attachment is an extension piece that adapts an M10 or M12 hanger bolt for use with Schletter's click-in KlickNut rail systems, letting a hanger bolt roof fixing connect directly into a Solo or ProLine module-bearing rail.

Supplied loose in aluminium, the attachment fits over the top of the hanger bolt and provides the correct interface geometry to click into the rail's channel, bridging the roof-side fixing and the rail-side mounting system in one simple adapter part.

M10 / M12

Compatible Bolt Sizes

45mm

Width

16.7mm

Height

92.6mm

Depth

Aluminium

Material

Loose Part

Supply Format

Key Features

Universal Solo/ProLine Fit

Works with both Schletter Solo and ProLine module support profiles, so the same attachment covers two rail ranges.

Adapts M10 or M12 Hanger Bolts

Suits both M10 and M12 hanger bolt diameters, giving flexibility depending on which bolt size your roof fixing kit uses.

KlickTop Pro Successor Design

This is the direct successor to the original KlickTop attachment, refined for use across Schletter's current Solo and ProLine ranges.

Lightweight Aluminium Build

Made from aluminium to keep the fixing lightweight while maintaining structural rigidity at the roof-to-rail connection point.

Simple Click-Fit Assembly

Designed to click directly into the rail's KlickNut channel once fitted to the hanger bolt, avoiding extra bracketry at the fixing point.

Supplied Loose For Flexible Sourcing

Delivered as a loose component, so it can be ordered separately or paired with hanger bolt kits depending on stock and project needs.

Technical Specification

Attachment Specification

Compatible Bolt Sizes

M10 / M12 hanger bolt

Compatible Rail Profiles

Schletter Solo, Schletter ProLine

Execution

Clamp / extension attachment

Width

45 mm

Height

16.7 mm

Depth

92.6 mm

Materials & Supply

Material

Aluminium

Surface Protection

Untreated

Supply Format

Loose (mounting material not included)

Frequently Asked Questions

What is the KlickTop attachment used for?

It adapts a standard M10 or M12 hanger bolt so it can connect into the KlickNut channel of a Schletter Solo or ProLine rail, bridging the roof fixing and the module-bearing rail.

Does this work with M12 hanger bolts as well as M10?

Yes, the attachment is designed to suit both M10 and M12 hanger bolt diameters.

Is this compatible with both Solo and ProLine rail ranges?

Yes, it is a universal part designed to work across both the Schletter Solo and Schletter ProLine module support profile ranges.

Does the attachment come with its own fixing screws?

It is supplied as a loose component without mounting material included, so it should be ordered alongside the appropriate hanger bolt and any fixing hardware your installation requires.

How does this differ from the original KlickTop attachment?

This is the current-generation KlickTop Pro design, developed as the direct successor to the earlier KlickTop attachment, offering the same universal Solo/ProLine compatibility.
