Schletter Hanger Bolt 10 x 200 with KlickTop Attachment SET

Description

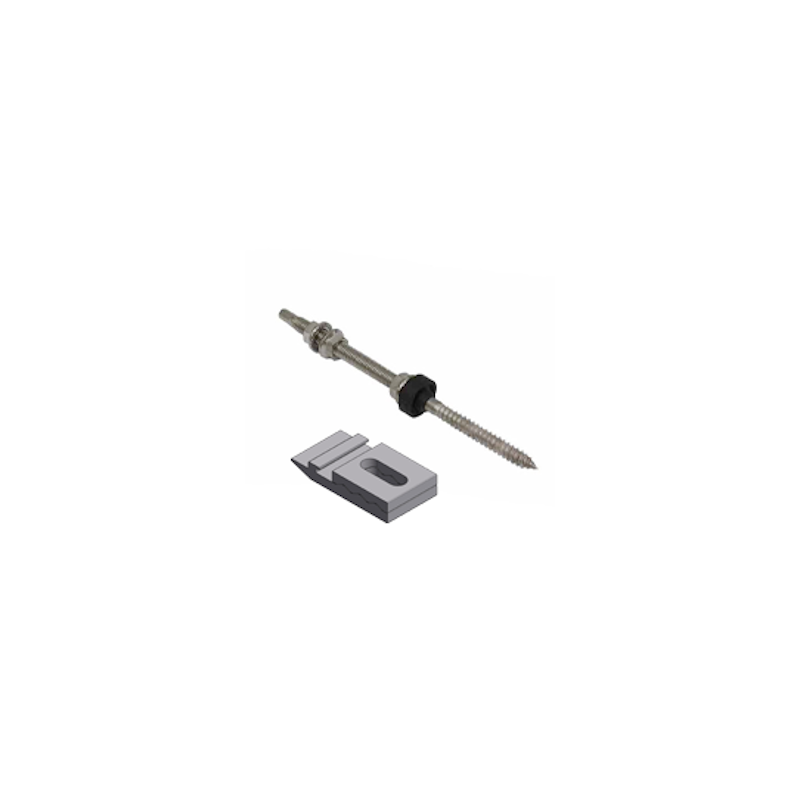

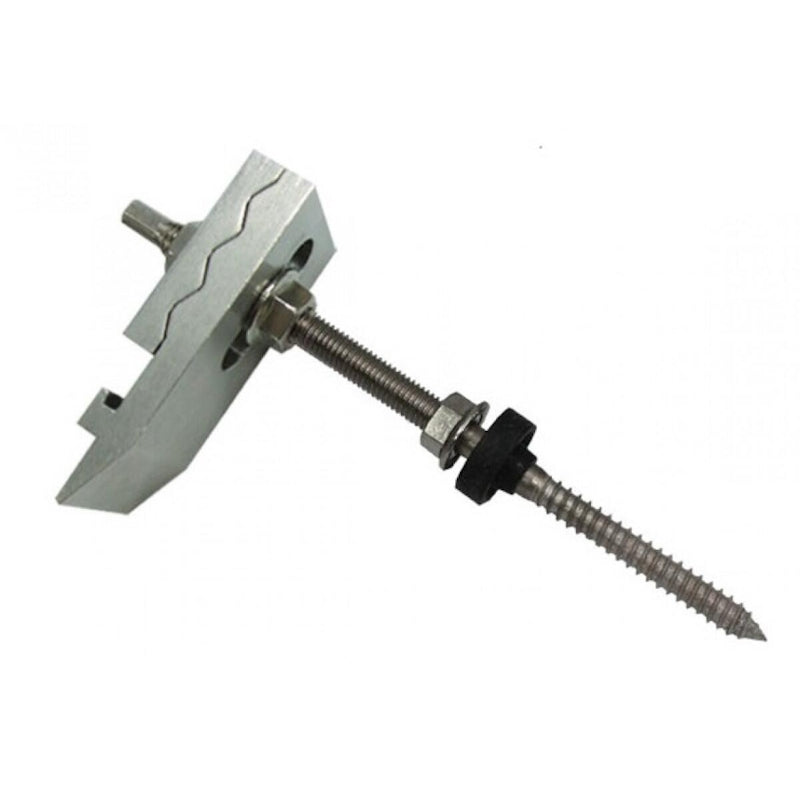

This Schletter Hanger Bolt SET combines the pre-assembled M10 x 200mm hanger bolt kit (SLT-110010-200) with a KlickTop attachment (SLT-119001-020) in a single package, giving installers a ready-to-fit roof-to-rail fixing without sourcing the two parts separately.

The hanger bolt element passes through corrugated or trapezoidal roofing into the wood purlin below, sealed with a vulcanised EPDM washer, while the KlickTop attachment on top provides the interface to click directly into a Schletter Solo or ProLine module-bearing rail.

M10 x 200mm

Hanger Bolt Size

2-Part Set

Bolt + KlickTop

EPDM

Seal Type

3x V4A Nuts

Included Fixings

Wood Purlins

Application

Pre-Assembled

Bolt Kit Format

Key Features

Complete Roof-to-Rail Fixing in One Order

Bundles the hanger bolt kit and KlickTop attachment together, so installers do not need to separately calculate and order the matching adapter part.

Vulcanised UV-Resistant EPDM Seal

The hanger bolt element includes a vulcanised, UV-resistant EPDM sealing washer to weatherproof the roof penetration point.

Direct Click-Fit Into Solo/ProLine Rails

The included KlickTop attachment clicks straight into Schletter Solo or ProLine module-bearing rails, completing the connection from purlin to rail.

Three V4A Stainless Steel Flange Nuts

The hanger bolt kit includes three V4A stainless steel flange nuts for a corrosion-resistant, secure roof-side fixing.

Reduces Site Part-Matching Errors

Supplying the bolt and attachment as a matched set removes the risk of pairing the wrong adapter with the wrong bolt size on site.

Suited to Wood Purlin Roofs

Designed for use under corrugated fibre-cement or trapezoidal sheet metal roofing over a timber purlin substructure.

Technical Specification

Set Contents

Component 1

Hanger Bolt Kit 10 x 200 Assembled (SLT-110010-200)

Component 2

KlickTop Attachment for Hanger Bolt (SLT-119001-020)

Hanger Bolt Kit Specification

Bolt Size

M10 x 200 mm

Seal

Vulcanised EPDM sealing washer, UV-resistant

Included Nuts

3 x flange nuts, V4A stainless steel

Assembly

Pre-assembled

KlickTop Attachment Specification

Compatible Bolt Sizes

M10 / M12 hanger bolt

Compatible Rail Profiles

Schletter Solo, Schletter ProLine

Material

Aluminium

Application

Roof Type

Wood purlins under corrugated fibre-cement or trapezoidal sheet metal roofing

Frequently Asked Questions

What is included in this SET compared to buying the hanger bolt kit alone?

This SET bundles the pre-assembled M10 x 200mm hanger bolt kit together with the KlickTop attachment, so you receive both the roof-side fixing and the rail-side adapter in one order.

Which rail systems does the KlickTop attachment in this set fit?

The included KlickTop attachment is compatible with both Schletter Solo and Schletter ProLine module-bearing rail profiles.

Is the hanger bolt pre-sealed for weatherproofing?

Yes, the hanger bolt kit includes a vulcanised, UV-resistant EPDM sealing washer to weatherproof the roof penetration.

What roof construction is this SET intended for?

It is designed for wood purlin roofs finished with corrugated fibre-cement sheets or trapezoidal sheet metal.

Do I need to buy anything else to complete the roof-to-rail connection?

This SET provides the complete roof-to-rail fixing path — hanger bolt through the roof into the purlin, and KlickTop attachment clicking into the rail. You will separately need the module-bearing rail itself and appropriate module clamps.
