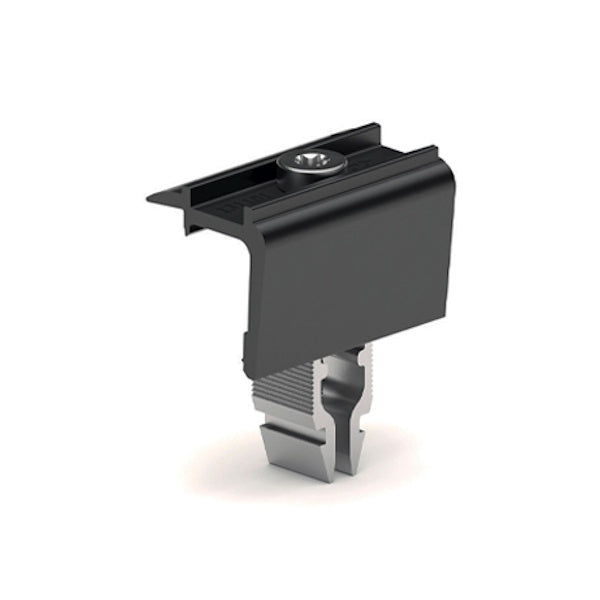

Schletter End Clamp V Classic Wide 30-40mm, Black | 131101-922

Description

The Schletter End Clamp Classic Wide V secures the outer edge of a module row for framed panels with a 30-40mm frame height, using Schletter's established Classic-profile bolt-through fixing method.

Finished in black anodised aluminium to match black module frames, this end clamp pairs with the Mid Clamp Classic Wide to complete a full row of modules on Classic-profile mounting rails.

30-40mm

Module Frame Range

Black Anodised

Finish

End Clamp

Clamp Position

Classic Wide

Profile Family

Aluminium

Material

Pre-Assembled

Supply Format

Key Features

Wide Clamping Surface

The wider clamp foot spreads pressure across a greater area of the module frame edge, reducing point-loading compared with narrower clamp designs.

Black Anodised Finish

Finished in black anodised aluminium, giving a consistent, matched appearance alongside black-framed solar modules.

Row-Terminating End Clamp

Positioned at the end of a module row, working alongside Classic Wide mid clamps to complete a full row on Classic-profile rails.

Pre-Assembled Hardware

Supplied pre-assembled for quick fitting on site, reducing loose parts to manage during array build-out.

Durable Anodised Construction

High-quality anodised aluminium resists corrosion and weathering, matching Schletter's long-term outdoor durability standards.

Technical Specification

Clamp Specification

Clamp Type

End (row-terminating) clamp, Classic Wide profile

Compatible Module Frame Height

30 – 40 mm

Finish

Black anodised

Assembly

Pre-assembled

Materials

Clamp Material

Aluminium

Corrosion Protection

Anodised aluminium surface treatment

Frequently Asked Questions

What is the difference between this and the Mid Clamp Classic Wide?

This is an end clamp, positioned at the outer edge of a module row, while the Mid Clamp Classic Wide sits between two adjacent modules. Both are needed to complete a full row.

Is a silver version of this end clamp available?

Yes, Schletter's Classic Wide end clamp range is available in both silver and black anodised finishes; this listing is specifically the black variant.

What module frame thickness does this clamp suit?

It's designed for framed modules with a frame height of 30 to 40mm.

Is this clamp compatible with Rapid16 rails?

This is part of the Classic Wide profile family using Schletter's bolt-through fixing method, distinct from the click-in Rapid16 range. Confirm your rail profile before ordering.

Is this clamp pre-assembled?

Yes, it's supplied pre-assembled for straightforward on-site fitting.
