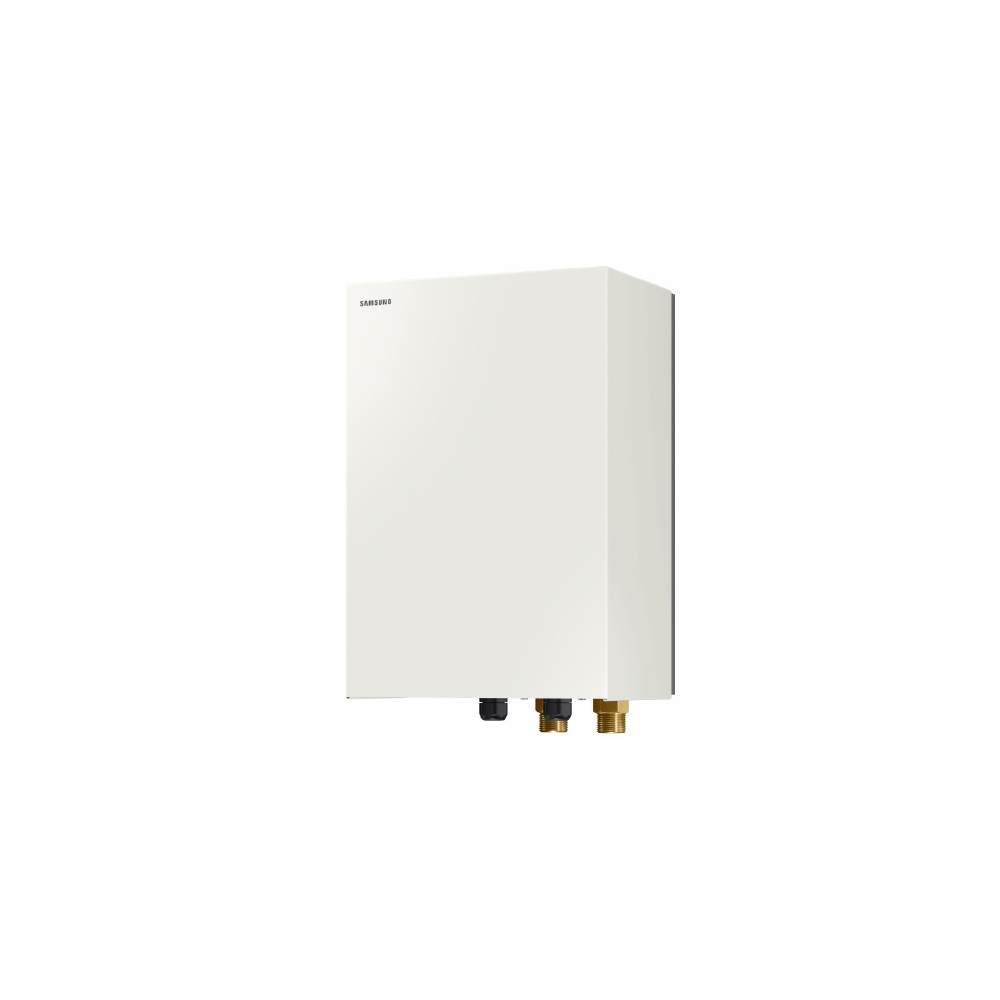

Samsung Optional 4kW Tank Backup Heater for Climate Hub

The Samsung Optional 4kW Tank Backup Heater for Climate Hub (model MHC‑400FE) is an auxiliary electric immersion heater designed to increase hot‑water and heating backup capacity in compatible Samsung ClimateHub tanks, providing additional resilience in cold weather and during peak demand.

Product Overview

• Model: MHC‑400FE Optional Tank Backup Heater for Samsung ClimateHub (4kW).
• Type: electric immersion‑type backup heater module for tank‑integrated ClimateHub systems.
• Power rating: 4kW single‑phase backup heater, typically powered from a 230V AC supply via a suitably rated circuit.
• Application: used with Samsung ClimateHub 1.5 Mono (R32/R290) and compatible ClimateHub tanks to supplement the built‑in booster heater when conditions or loads demand it.

Key Features

• Extra heating capacity – provides an additional 4kW of electric heating, helping maintain DHW temperature and supporting space‑heating output during very low outdoor temperatures or high load periods.
• Optimised for ClimateHub – specifically designed as an optional accessory for Samsung ClimateHub tanks, with appropriate physical and electrical compatibility.
• Legionella support – works alongside the tank’s existing immersion/booster heater to help achieve periodic high‑temperature cycles for hygienic operation and legionella protection.
• Compact and lightweight – low installed weight (approx. 2kg, around 3.3kg gross with packaging) for easy handling and installation in tight plant spaces.

Technical Details

• Model number / MPN: MHC‑400FE.
• Power output: 4kW nominal.
• Electrical: single‑phase 230V operation (installer must provide appropriately rated protective devices and cabling in line with local regulations).
• Weight: approx. 1.95kg net; around 3.3kg including packaging.
• Product type: tank backup heater / auxiliary heater for ClimateHub.
• Warranty: typically 2‑year manufacturer’s warranty, subject to Samsung terms and correct installation.
• GTIN / EAN: 8806090050046.

Installation & Use

• Compatibility: intended only for use with compatible Samsung ClimateHub tanks (such as ClimateHub 1.5 Mono R32/R290 units) that provide the correct boss, wiring provision and control logic.
• Mounting: installs into the designated immersion/backup heater port on the ClimateHub tank, with electrical connection to the dedicated backup‑heater terminals.
• Control: operation is managed by the ClimateHub’s internal controller, which can call on the backup heater automatically based on temperature, load, or defined backup logic.
