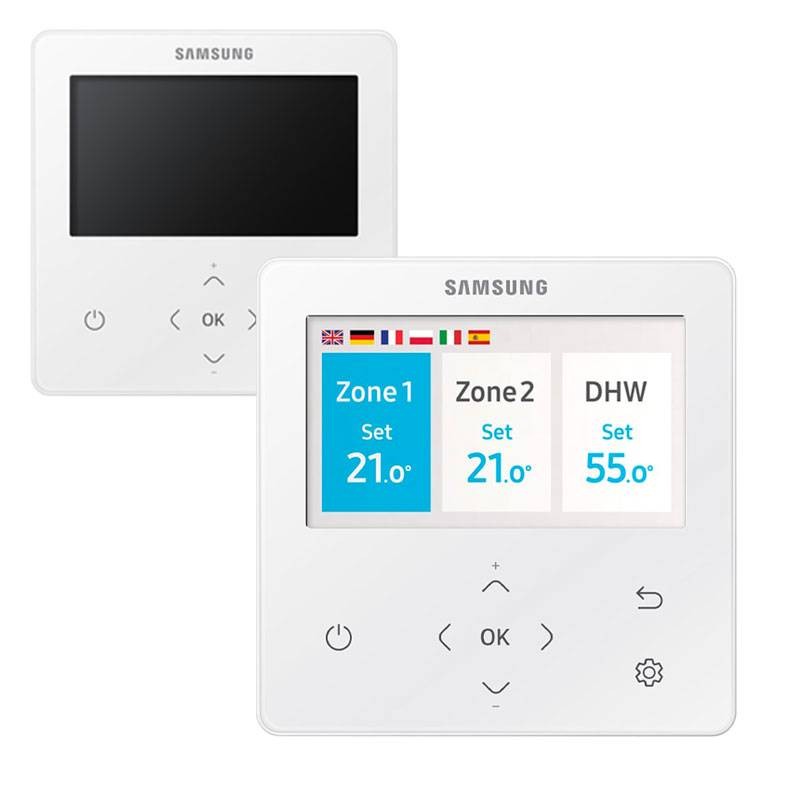

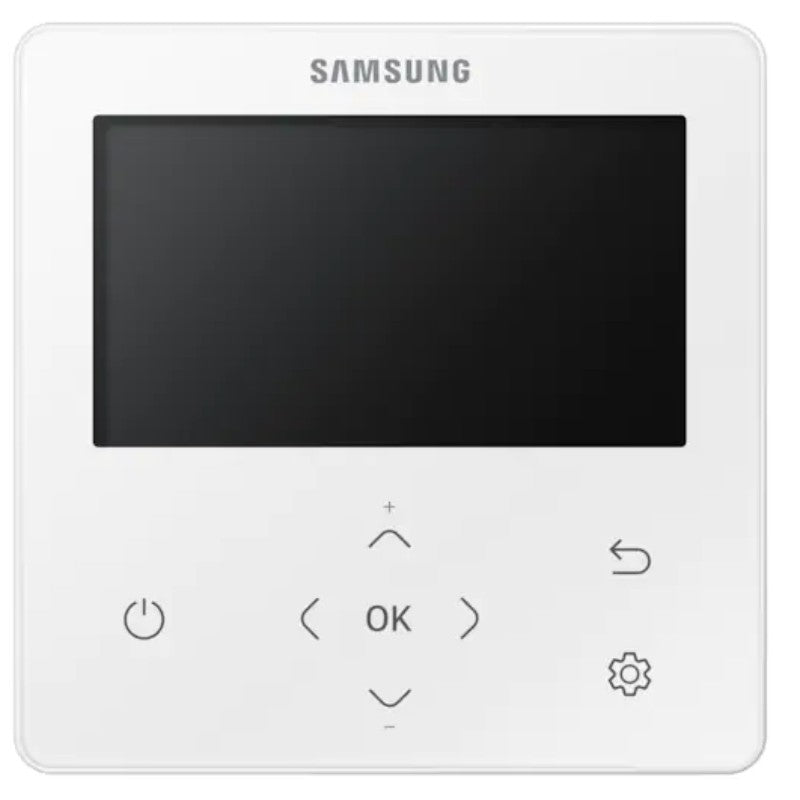

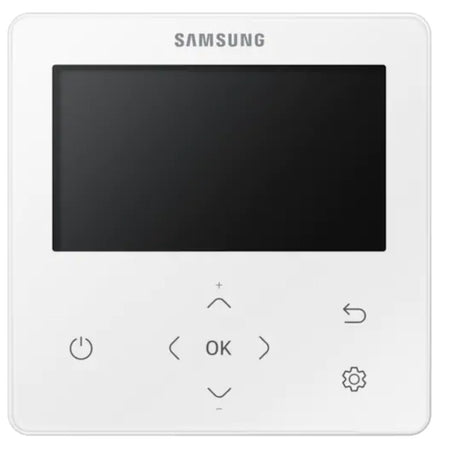

The Samsung EHS Wired Controller (MWR-WW10N) is the official wall-mounted remote control unit for Samsung EHS air-to-water heat pump systems. It features a 4.3-inch colour touchscreen for monitoring and adjusting heating, cooling, and hot water operation, and is the same wired controller supplied as standard with Samsung's Mono and Hydro control kits.
This standalone listing is for installers who need a replacement controller, or an additional Slave unit to enable independent temperature control in a second zone. Up to two wired controllers (one Master, one Slave) can be connected to a single Samsung control kit or Hydro unit.
4.3"
Colour LCD Touchscreen
2
Zones Supported
245 × 165 × 80mm
Dimensions
0.35 kg
Weight
6
Display Languages
Wall-Mount
Fixing Type
Please Note
This controller is compatible with Samsung EHS Hydro units and Mono/Hydro control kits (including the MIM-E03CN Mono Control Kit). It is supplied as standard within those kits — buy this listing separately only if you need a spare, replacement, or second-zone (Slave) unit.
4.3-Inch Colour Touchscreen
A bright, floating-display colour LCD gives clear visibility of temperatures, operating modes, and system status at a glance.
Two-Zone Control
Configure the controller as Master or Slave to independently manage temperature settings across two heating zones.
Energy Usage Monitoring
Built-in energy monitoring displays instantaneous power draw plus weekly, monthly, and yearly usage in graph form.
Flexible Scheduling
Set daily, weekly, yearly, and holiday schedules to automate operation and reduce running costs.
Multi-Language Interface
Choose from six display languages to suit the end user, switchable at any time from the settings menu.
Compact Wall-Mount Design
A discreet 245 × 165 × 80mm housing fits neatly on a wall in any convenient room location.
Technical Specifications
Product Details
Brand
Samsung
Model / SKU
MWR-WW10N
Type
Wired remote controller / wall-mounted user interface
F3 / F4 on control kit or Hydro unit terminal block
Cable Note
Route communication and power cables separately if run exceeds 10m
Good to Know
The display supports multiple interface languages, including English, German, Spanish, French, Italian, and Polish, selectable from the on-screen settings menu.
Important Safety Information
Wiring and installation of the controller and its communication cable must be carried out by a qualified installer in accordance with the system's installation manual. Always isolate the power supply before connecting or disconnecting the controller.
Frequently Asked Questions
Is this controller already included with the Samsung control kits?
Yes. The MWR-WW10N is supplied as standard inside Samsung's Mono and Hydro control kits, such as the MIM-E03CN. This standalone listing is for a replacement or additional (second-zone) unit.
Can I install two of these controllers on one system?
Yes. Up to two wired controllers can be connected to a single control kit or Hydro unit — one configured as Master and the second as Slave — enabling independent monitoring or basic two-zone control.
What languages does the display support?
The MWR-WW10N interface is available in English, German, Spanish, French, Italian, and Polish, selectable from the on-screen settings menu.
Does the controller show energy usage data?
Yes. The Energy menu displays instantaneous power draw along with weekly, monthly, and yearly energy usage figures in graph form, alongside total operation time.
How is the controller wired to the system?
The controller connects via a 2-core communication cable to the F3/F4 terminals on the control kit or Hydro unit terminal block. If the cable run exceeds 10m, the power and communication cables should be routed separately to avoid interference.
Is this controller compatible with all Samsung EHS systems?
The MWR-WW10N is designed for Samsung EHS air-to-water heat pump systems using compatible Mono or Hydro control kits. Confirm compatibility with your specific outdoor unit and control kit model before ordering.
