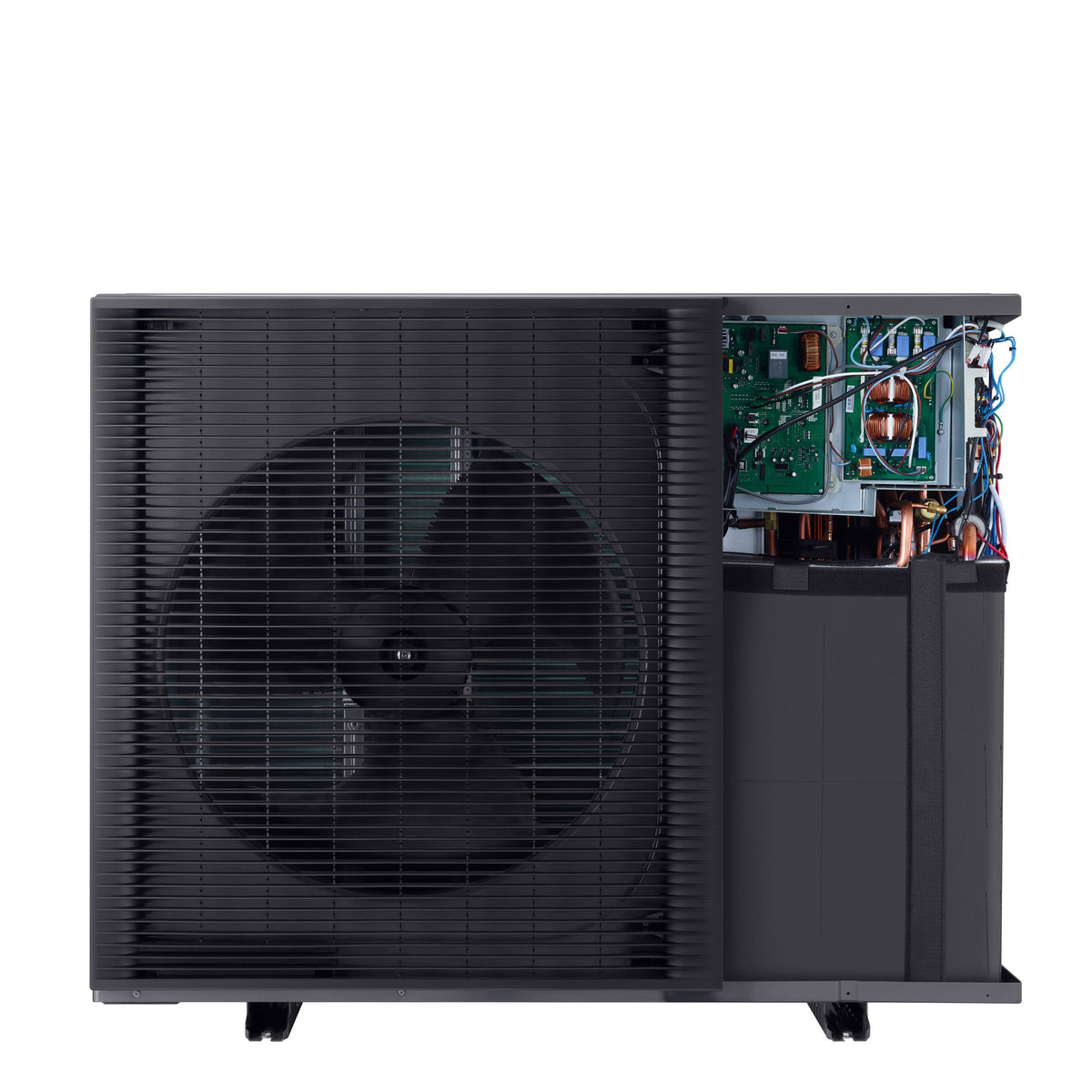

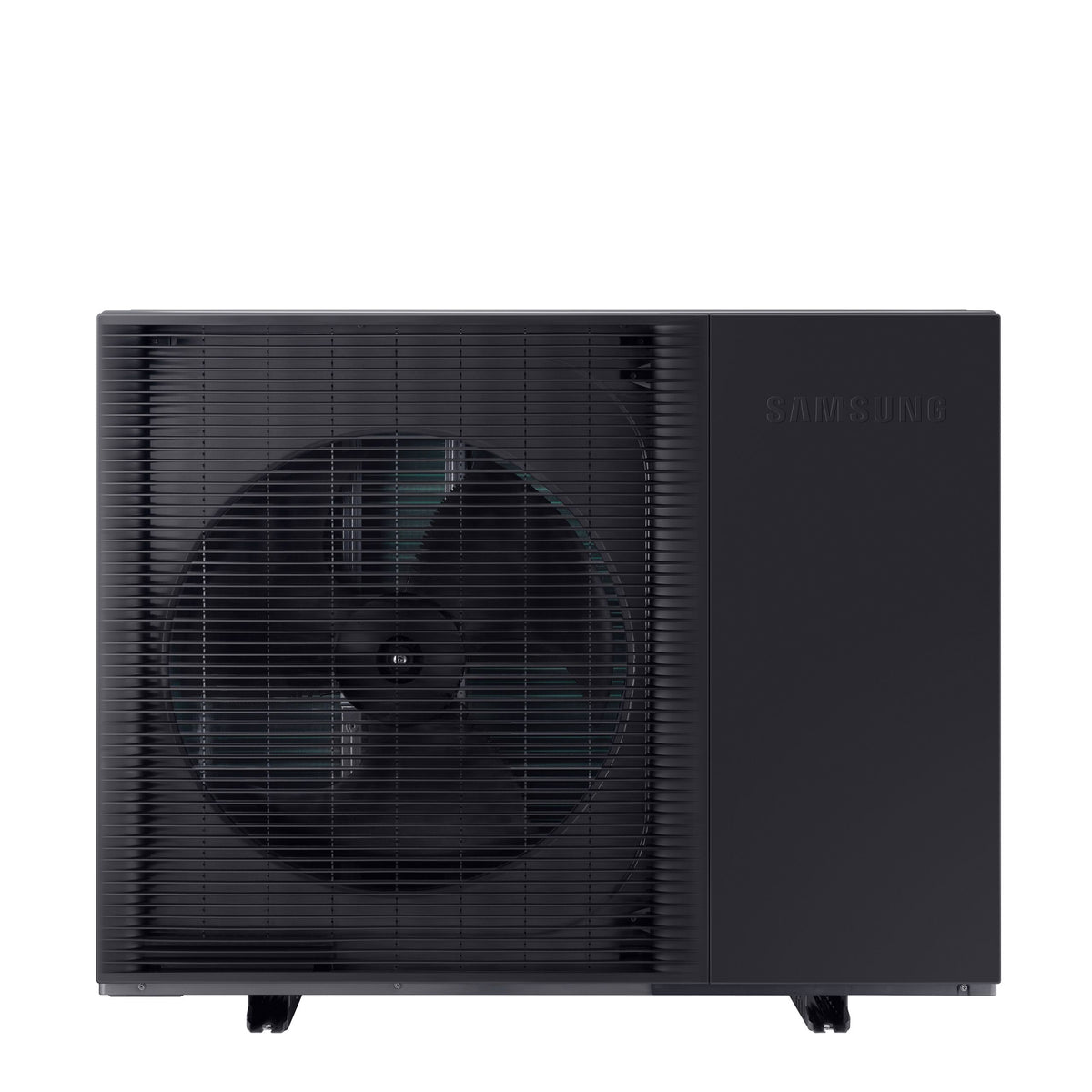

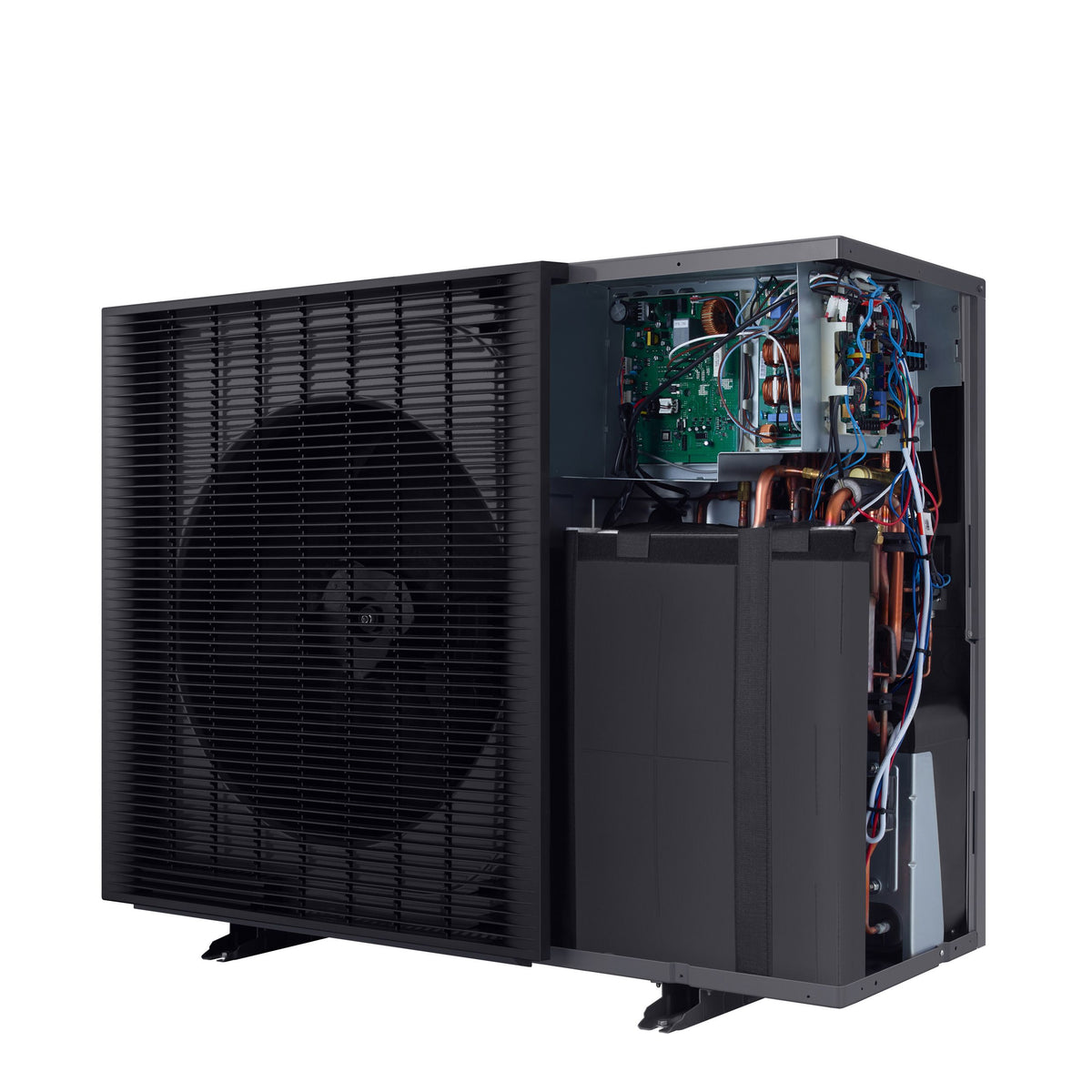

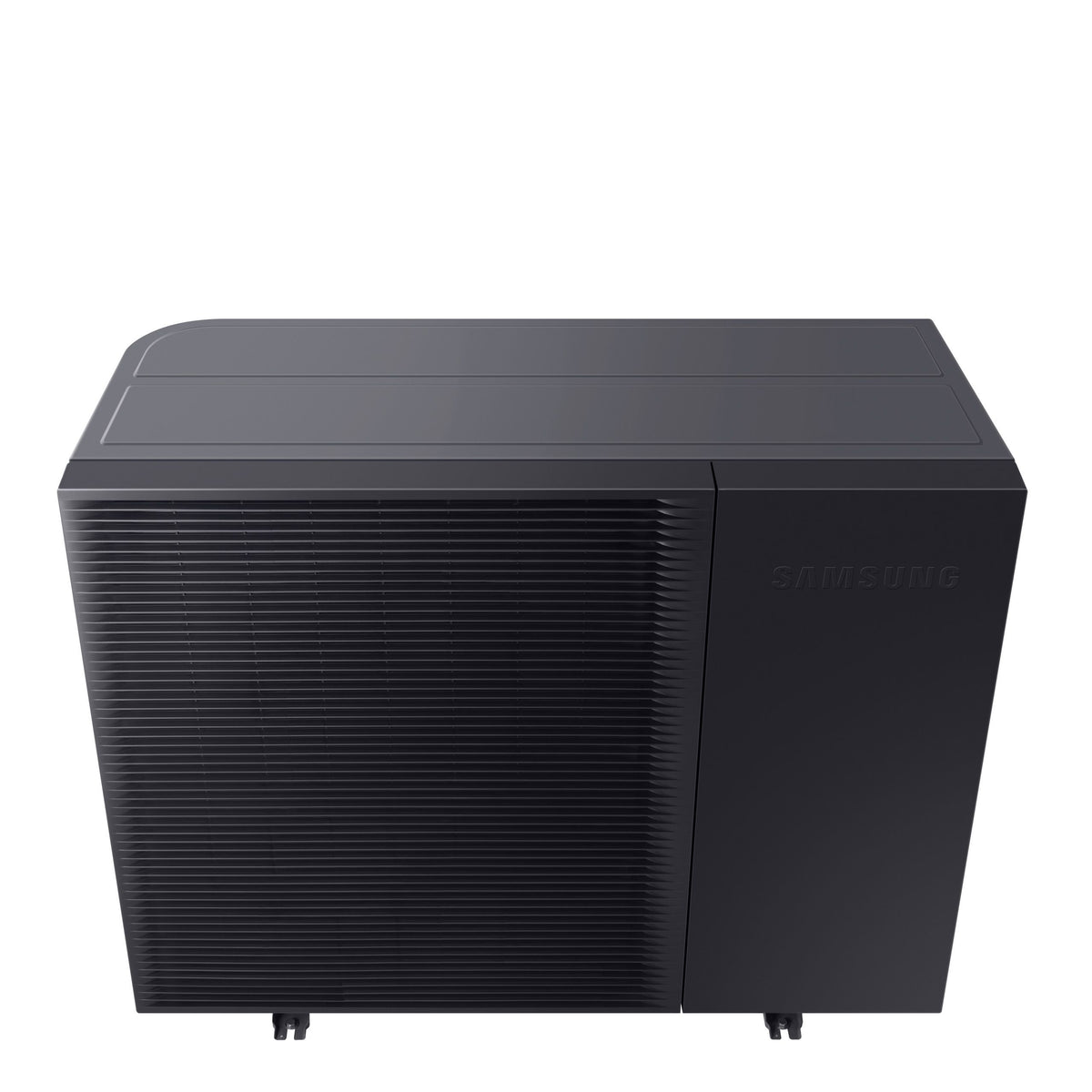

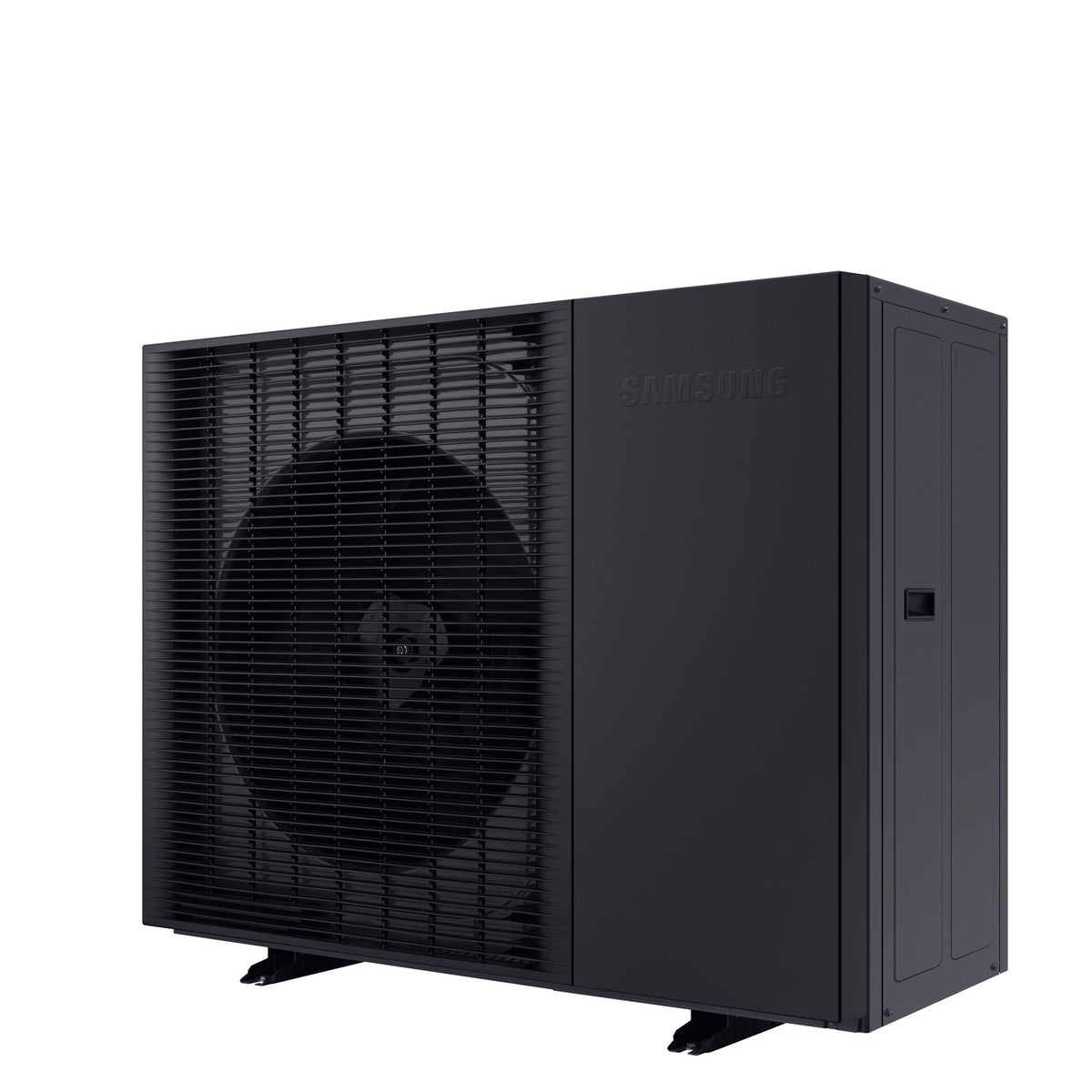

Samsung EHS HT Quiet Mono R32 Heat Pump - 8kW to 14kW

The Samsung R32 HT Quiet Monobloc Heat Pump range consists of high‑temperature, low‑noise R32 air‑to‑water monobloc units, available in single‑phase and three‑phase variants from 8kW to 14kW for radiator‑based and mixed‑temperature systems.

Product Description

These outdoor units use R32 refrigerant and Samsung’s HT Quiet technology to deliver flow temperatures up to around 70°C with very low sound levels, making them suitable for boiler‑replacement projects in existing properties. As monoblocs, all refrigerant components remain outside; the installer only connects water pipework and standard electrical supplies, simplifying installation and compliance.

Key Features

• High‑temperature operation: capable of high flow temperatures (up to 70°C on HT Quiet) for radiator circuits and high‑temperature DHW cylinders.
• Quiet running: HT Quiet acoustic design with single‑fan outdoor units and multi‑step quiet modes for low sound power levels.
• R32 refrigerant: reduced GWP versus legacy refrigerants with strong performance at low ambient temperatures.
• Wide operating range: heating operation down to approximately −25 to −30°C outdoor, with cooling capability where enabled by the system design.
• Monobloc format: only water connections (no internal refrigerant work), aiding faster installation and easier compliance.

Single‑Phase Models (DEG)

• AE080BXYDEG/EU – 8kW R32 HT Quiet Monobloc
  8kW single‑phase HT Quiet unit for small to medium homes needing high‑temperature radiators and low outdoor noise.
  Approx. unit dimensions (W × H × D): 1270 × 1018 × 330mm
  Approx. net weight: 126kg
• AE120BXYDEG/EU – 12kW R32 HT Quiet Monobloc
  12kW single‑phase monobloc for larger or higher‑loss properties requiring more output while retaining compact outdoor footprint.
  Typical unit dimensions (W × H × D): ~1270 × 1420 × 330mm (R32 12kW envelope)
  Approx. net weight: ~110–130kg (exact value to be taken from label/datasheet)
• AE140BXYDEG/EU – 14kW R32 HT Quiet Monobloc
  14kW single‑phase HT Quiet flagship for large homes or light commercial installations needing high flow temperatures and very low noise.
  Unit dimensions (W × H × D): 1270 × 1018 × 330mm
  Approx. net weight: 126kg

Three‑Phase Models (DGG)

• AE080BXYDGG/EU – 8kW 3‑Phase R32 HT Quiet Monobloc
  8kW three‑phase variant sharing the same HT Quiet platform, intended for properties with 400V three‑phase supply; ideal for small to medium dwellings or small commercial sites.
• AE120BXYDGG/EU – 12kW 3‑Phase R32 HT Quiet Monobloc
  12kW three‑phase model for larger dwellings or multi‑zone systems where three‑phase supply and higher continuous output are required.
• AE140BXYDGG/EU – 14kW 3‑Phase R32 HT Quiet Monobloc
  14kW three‑phase top‑end unit for large homes, multi‑residential blocks or small commercial buildings with significant peak heat loads.

System & Application Notes

• System layout: monobloc outdoor unit connects to heating/DHW hydraulics via an external cylinder or buffer; no indoor refrigerant unit is needed.
• Electrical supply: DEG models are 230V single‑phase; DGG models are 400V three‑phase, so selection must match site supply and design load.
• Use cases: high‑temperature radiator retrofits, boiler change‑outs and new‑builds where low outdoor noise and high flow temperatures are key requirements.
