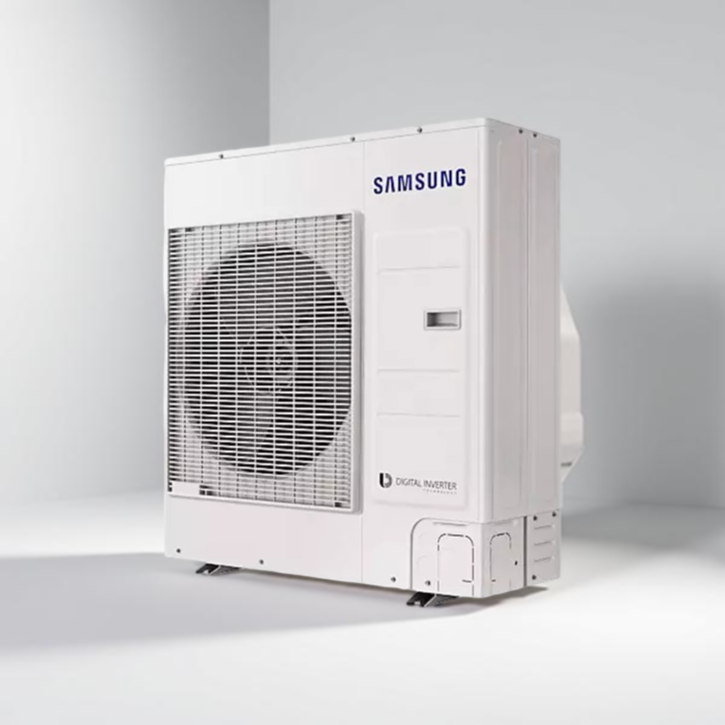

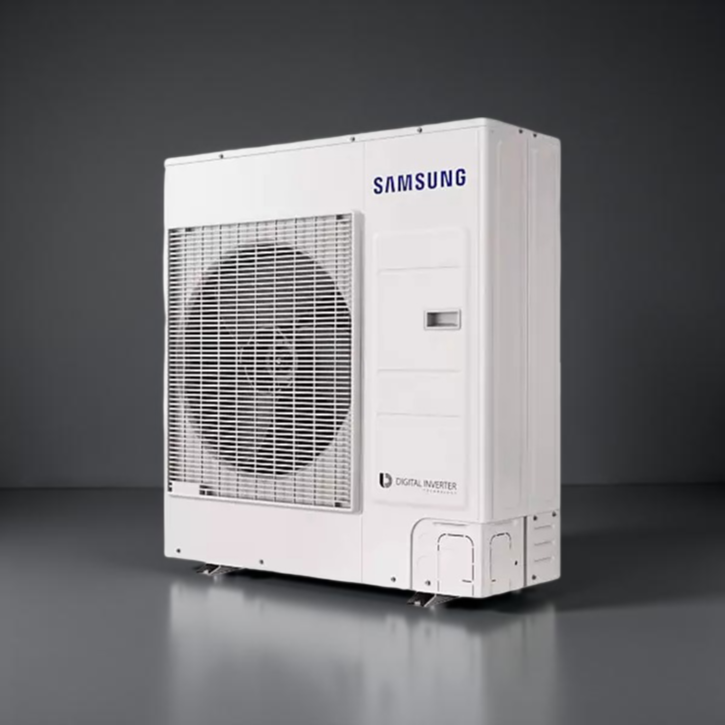

Samsung EHS Gen6 Mono R32 8kW 1-Phase Air-to-Water Outdoor Heat Pump AE080RXYDEG/EU

• F-Gas regulations apply. R32 is a fluorinated greenhouse gas (GWP 675). All installation, commissioning, and decommissioning must be performed by an F-Gas certified engineer. Refrigerant site records must be maintained.
• No integral pressure relief valve. The outdoor unit does not contain a PRV. A compliant pressure relief valve must be installed in the hydraulic circuit per BS EN 12828 and Building Regulations Part G.
• MCS registration required for BUS grant. The installation must be carried out and registered by an MCS-certified installer before the Boiler Upgrade Scheme grant is submitted.
• Minimum system water volume: confirm from Samsung installation documentation for this specific model. A buffer vessel must be fitted if the hydraulic circuit volume (including pipework and cylinder coil) does not meet the minimum.

• Control module not included. The outdoor unit requires the Samsung MIM-E03CN control module (includes Touch Controller MWR-WW10N) to operate. Order separately or as part of a ClimateHub package.
• Wi-Fi not embedded. SmartThings App connectivity requires the optional MIM-H04N Wi-Fi Kit (sold separately).
• Dedicated electrical circuit required: 22 A MCB. This unit draws MCA 22.0 A / MFA 27.5 A. Confirm available supply capacity and cable sizing to MCA before specifying.
• Phase options: a 3-phase variant (AE080RXYDGG/EU, 380–415 V) is also available for commercial or 3-phase-supplied properties. Performance specifications are identical.
• Filter/strainer mandatory on the return water pipe to protect the heat exchanger from system debris. Clean regularly to maintain the minimum water flow rate.
• Primary pipework: minimum 28 mm copper or 32 mm multilayer. All outdoor pipework must be fully insulated and weatherproofed.

• MCS Listed — qualifies for the UK Boiler Upgrade Scheme (BUS) £7,500 grant when installed by an MCS-certified contractor.
• Compatible with the Samsung ClimateHub tank-integrated hydro unit (200 L or 260 L) or third-party cylinders and control kits from various manufacturers.
• 2-Zone Control supported — independently control a radiator zone and an underfloor heating zone from a single outdoor unit.
• PV-Enabled & Smart Grid Ready — shifts electrical demand to periods of solar generation surplus or off-peak tariffs to minimise running costs.

True Monoblock Architecture

The EHS Mono houses the complete refrigerant circuit outdoors. No refrigerant pipework penetrates the building — only insulated water pipes connect the outdoor unit to the indoor hydraulic system. This eliminates F-Gas work on the indoor side, broadens compatibility with third-party cylinders and control kits, and simplifies compliance with Building Regulations Part F.

SCOP 4.44 — ErP A+++ at LWT 35°C

Tested across a full seasonal load profile per EN 14825, this unit achieves SCOP 4.44 at a 35°C leaving water temperature — the ideal point for underfloor heating systems. At 55°C (legacy radiator retrofits) the SCOP is 3.23 (A++), still substantially better than a condensing gas boiler. The inverter-driven compressor modulates continuously to match heat demand, eliminating on/off cycling losses.

Right-Sized for Mid-Range UK Homes

At 940 × 998 × 330 mm and 76.0 kg, the 8 kW occupies the same footprint width and depth as the larger 12 kW and 16 kW models but at a reduced height, making it a practical choice for moderately insulated UK homes typically up to approximately 130–150 m². Its single-fan design and 1.15 kg R32 charge position it as a versatile mid-range option suited to both new-build and whole-house retrofit projects.

−25°C Cold-Climate Performance

The unit maintains rated output at low temperatures, achieving 7.35 kW at −7°C ambient (A−7/W35 peak condition) and continuing to operate down to −25°C ambient. Domestic hot water production remains available down to −25°C. Even at A2/W35 (2°C ambient) the unit delivers 7.0 kW, covering the full range of UK winter conditions reliably.

Up to 65°C Flow Temperature

A maximum leaving water temperature of 65°C means this unit can serve existing radiator systems without mandatory system re-sizing, provided heat-loss calculations confirm adequate emitter output at the specified flow temperature. The highest efficiency is realised at lower flow temperatures (35–45°C for underfloor heating), so partial or phased radiator upgrades are a common and cost-effective approach.

Anti-Salt Coating & Weather-Resistant Casing

The heat exchanger features an Anti-Salt coating on fins and tubes (Wide Louver geometry, Φ7 mm, 2-row) for enhanced corrosion resistance in coastal or industrially polluted environments. The powder-coated electro-galvanised steel casing in Earth Brown provides robust weathering protection. A single axial-flow fan (1 × 125 W) delivers 66 m³/min airflow at 780 rpm with a low sound pressure of just 48 dB(A).

Smart Connectivity & Energy Management

Via the optional MIM-H04N Wi-Fi Kit, the unit integrates with Samsung SmartThings for remote on/off, scheduling, and energy monitoring from iOS or Android. The included Touch Controller MWR-WW10N supports 2-Zone temperature scheduling, error monitoring, and summer-mode cooling. Smart Grid Ready and PV-Enabled logic allow demand shifting toward off-peak tariffs or surplus solar generation.
