Samsung AI Home 7" Touchscreen Mono Control Kit | MIM-E03FN | Gen 6/7

Description

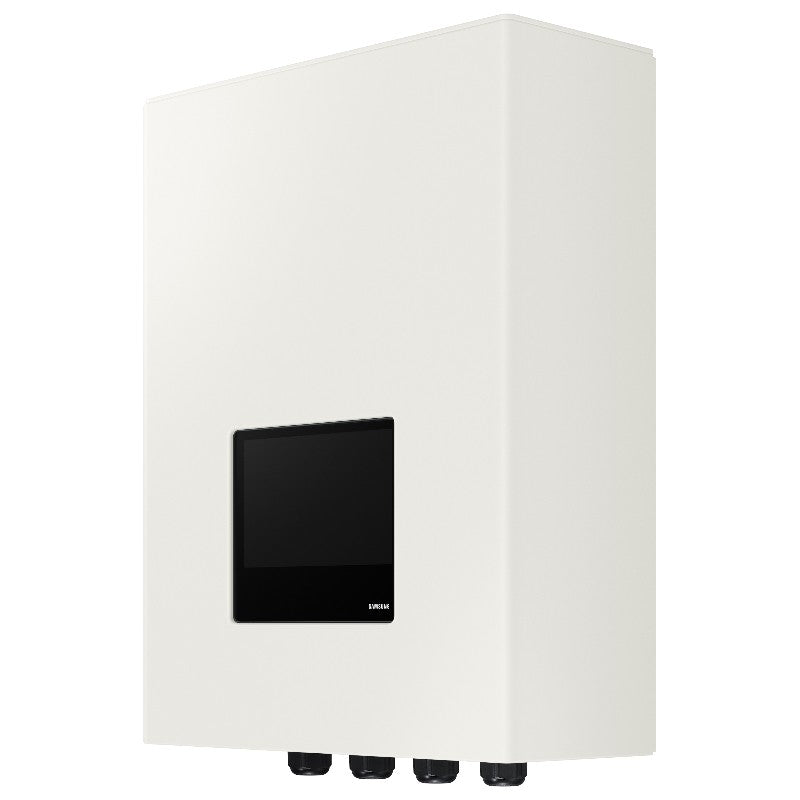

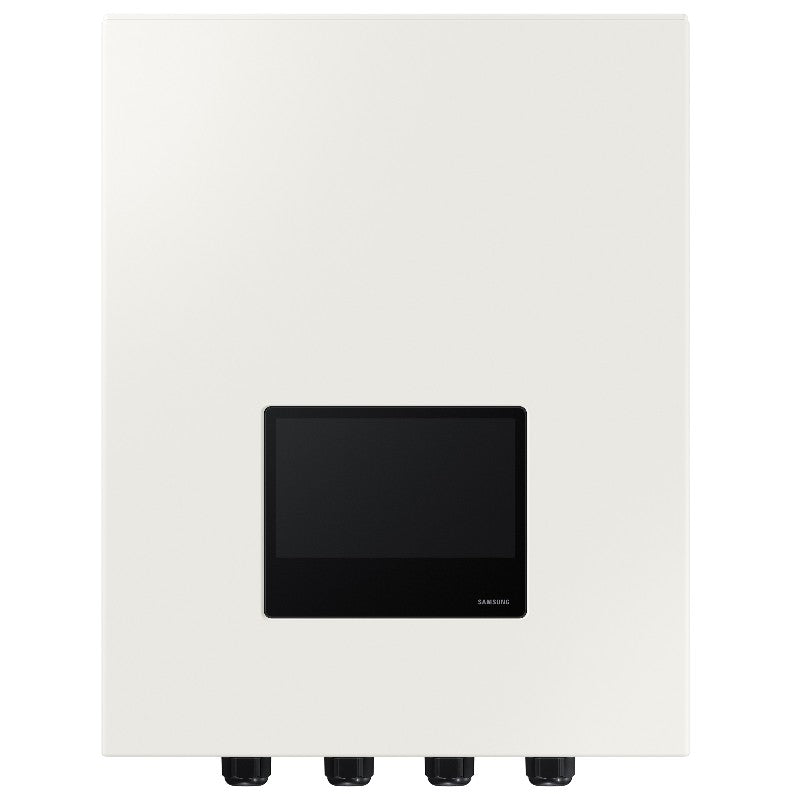

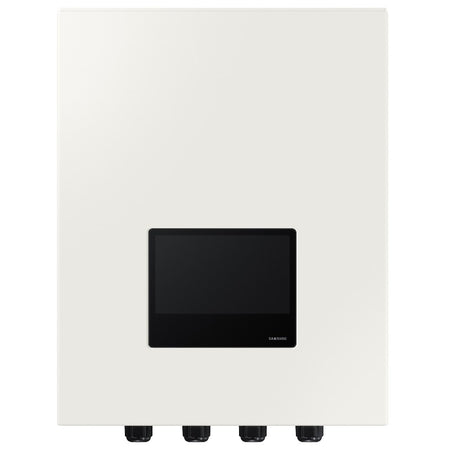

The Samsung AI Home Mono Control Kit (MIM-E03FN) is an all-in-one heat pump control solution built around a 7" animated touchscreen display, giving installers and homeowners a single, intuitive interface for heating, cooling, hot water and smart-home connectivity. This updated control board covers all Samsung Gen 6 and Gen 7 monobloc and HTQ heat pump ranges, and replaces the previous MIM-E03CN control kit as Samsung's current external mono controller.

Supplied as a complete kit, the MIM-E03FN consolidates domestic hot water (DHW) management, PV integration, mixing valve control and immersion/backup heater control into one board and one display, with everything needed for a fast, tidy installation. It is not required on integrated R290 units, which already have a controller built in.

7"

Touchscreen Display

MIM-E03FN

Samsung MPN

Gen 6 & 7

Compatible Ranges

Replaces

MIM-E03CN

PV Ready

Solar Integration

All-in-One

Control Kit

Superseded Model: Replaces MIM-E03CN

The MIM-E03FN control board is Samsung's current-generation replacement for the MIM-E03CN control kit. It covers all Gen 6 and Gen 7 monobloc systems previously served by the MIM-E03CN, adding the 7" animated touchscreen and AI Home / SmartThings connectivity in place of the older interface. Installers upgrading or replacing a MIM-E03CN board should specify the MIM-E03FN going forward.

Which Systems Need This Kit

This kit is required on Samsung Gen 6 monobloc, Gen 7 monobloc and HTQ heat pump ranges, which do not include a built-in controller. It is not required on integrated R290 units, which already have a control interface built into the appliance.

7" AI Touchscreen Display

A large, animated colour touchscreen gives clear visibility of system status, temperatures, schedules and operating modes, for both the installer during commissioning and the homeowner day to day.

Covers Gen 6 & Gen 7, Replaces MIM-E03CN

This board is the current control solution for all Gen 6 and Gen 7 monobloc and HTQ ranges, superseding the previous MIM-E03CN kit with an updated interface and expanded smart features.

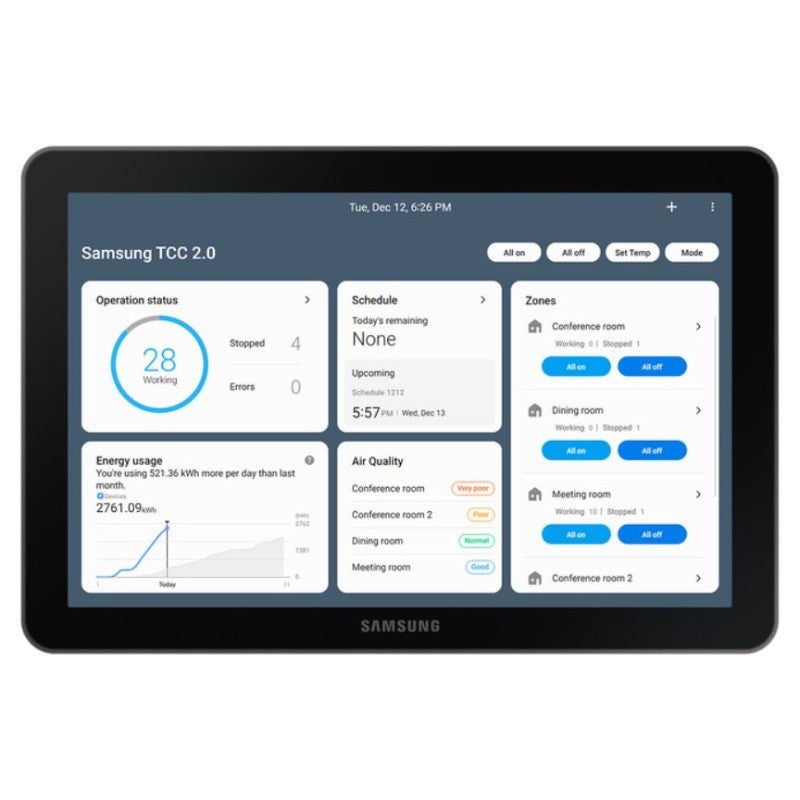

SmartThings & AI Home App

Integrates with Samsung's SmartThings / AI Home platform for remote monitoring, app-based control and smart-home energy management from anywhere with an internet connection.

DHW, Mixing Valve & Heater Control

Dedicated sensors and outputs for domestic hot water cylinders, motorised mixing valves and immersion or backup heaters bring comprehensive system control into a single interface.

PV Integration

A supplied PV control cable allows the kit to integrate with a photovoltaic system, directing surplus solar generation intelligently to the heat pump and hot water production.

All-in-One, Fast to Install

Supplied complete with controller, sensors, flow sensor and connection components, so installers can commission the system without sourcing additional control hardware.

General

Manufacturer Part Number

MIM-E03FN

Product Type

AI Home mono control kit

Brand

Samsung

Display

7" animated touchscreen

Supersedes

MIM-E03CN

Compatibility

Compatible Ranges

Samsung Gen 6 monobloc, Gen 7 monobloc, HTQ heat pump ranges

Not Required For

Integrated R290 units with a built-in controller

Optional Add-On

MWR-WW10N wired room controller (sold separately) for zone/room control

Kit Contents

Controller

MIM-E03FN AI Home mono control module

Display

7" AI touchscreen, wall-mounted user interface

Sensors

1 x DHW sensor, 1 x mixing valve sensor, 1 x heater sensor

PV Cable

Pre-made PV control cable for photovoltaic integration

Flow Sensor

1 x flow sensor assembly (approx. 1.5m) with copper tubing and fittings

Fixings

Connection components and tapes for installation

Documentation

Installation manual and user manual

Control Functions

Heating & Cooling

Centralised control of space heating and cooling operation

Domestic Hot Water

DHW cylinder monitoring and control via dedicated sensor

Mixing Valve

Motorised mixing valve control for blended-temperature circuits

Auxiliary Heater

Immersion or backup electric heater control and monitoring

Solar/PV

Surplus PV generation management for heat pump and DHW production

Frequently Asked Questions

Does the MIM-E03FN replace the MIM-E03CN?

Yes. The MIM-E03FN control board covers all Gen 6 and Gen 7 monobloc and HTQ models previously served by the MIM-E03CN, and is the current kit to specify for new installations or replacements.

Which Samsung heat pumps need this control kit?

The MIM-E03FN is required for Gen 6 monobloc, Gen 7 monobloc and HTQ ranges, which do not have a built-in controller. It is not needed on integrated R290 units, since those already include a control interface.

What is included in the kit?

The kit includes the MIM-E03FN control module, a 7" AI touchscreen display, a DHW sensor, a mixing valve sensor, a heater sensor, a PV control cable, a flow sensor assembly with copper tubing and fittings, connection components, and full documentation.

Can I add a room controller alongside the touchscreen?

Yes. The MIM-E03FN supports an optional MWR-WW10N wired room controller, sold separately, for zone or room-based temperature control alongside the main touchscreen interface.

Does the kit support solar PV integration?

Yes. A PV control cable is supplied as standard, allowing the control kit to manage surplus solar generation and direct it to the heat pump and hot water system.

Can the touchscreen be relocated away from the heat pump?

Yes, using the separate Samsung MVW-EE300 30m extension wire and blanking panel kit, which allows the 7" touchscreen to be mounted up to 30 metres away from the main enclosure.
