The Samsung MVW-EE300 30m Extension Wire and Blanking Panel is the official Samsung EHS accessory kit for relocating the 7" AI Home touchscreen controller away from the heat pump enclosure to a more accessible position, such as a hallway, utility room or plant room wall. It is designed for use with Samsung's latest "FN" control kits (such as the MIM-E03FN AI Home Mono Control Kit) and the touchscreen-equipped ClimateHub 2.0 and Hydro Unit 2.0 ranges.
Rather than leaving the touchscreen mounted on the front of the monobloc or hydro box, the MVW-EE300 lets installers run the display up to 30 metres away along a pre-terminated cable, while a matching blanking panel neatly covers the original controller cut-out to keep the appliance looking factory-finished.
Gen 6/7
Compatible Systems
Pre-terminated
Cable Type
Compatibility Check Before Ordering
This kit is designed for "FN"-series AI Home control kits (e.g. MIM-E03FN) and the ClimateHub 2.0 / Hydro Unit 2.0 models that use the 7" animated touchscreen. It is not intended for older wired remote controllers such as the MWR-WW10N or MIM-E03CN, which use a different connector and mounting profile.
Important Safety Information
Installation and commissioning must be carried out by a qualified, Gas Safe or F-Gas competent heating engineer in line with the Samsung EHS installation manual. The heat pump must be fully isolated from the electrical supply before the enclosure is opened or any wiring is disturbed.
Controller Relocation
Moves the factory-fitted 7" touch controller from the front of the monobloc, ClimateHub or hydro unit to a wall location that suits the end user, such as a hallway, kitchen or plant room.
30m Extension Cable
A pre-terminated 30-metre cable carries both signal and power between the heat pump enclosure and the relocated touchscreen, removing the need to make up custom cable runs on site.
Matching Blanking Panel
A colour-matched blanking panel covers the original controller aperture on the appliance once the display has been moved, maintaining a clean, factory-finished appearance and protecting the internal electronics from dust and moisture ingress.
Built for FN-Series Kits
Purpose-designed for Samsung's AI Home style control kits, including the MIM-E03FN, and for the latest ClimateHub 2.0 and Hydro Unit 2.0 models that ship with the 7" touch display as standard.
Simple, Documented Fitting
Supplied with a basic installation guide covering mounting, connection points and cable routing, so the extension and blanking panel can be fitted quickly during first installation or as a retrofit.
Tidy Long-Cable Runs
The 30m maximum run gives installers flexibility to route the display well away from plant room noise and condensation, into a genuinely convenient everyday location for the homeowner.
General
Manufacturer Part Number
MVW-EE300
Product Type
Controller extension wire and blanking panel kit
Cable Length
30m maximum run
Cable Type
Pre-terminated signal and power extension cable
Compatibility
Compatible Control Kits
AI Home "FN" style kits, e.g. MIM-E03FN
Compatible Systems
Samsung monobloc systems, ClimateHub 2.0, Hydro Box 2.0 (7" touch display models)
Display Relocated
7" AI Home touchscreen controller
Kit Contents
Included Items

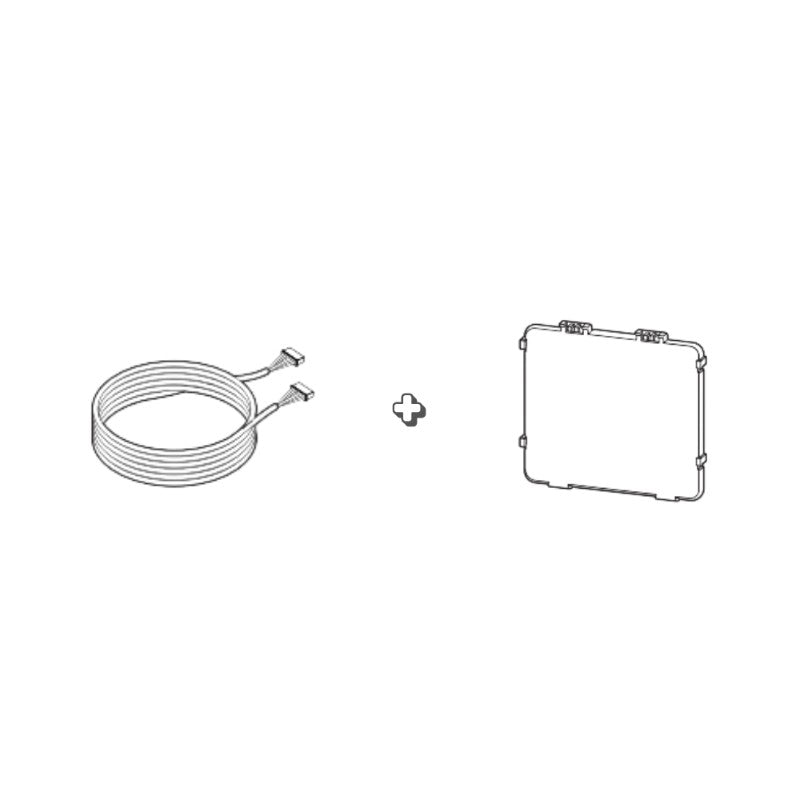

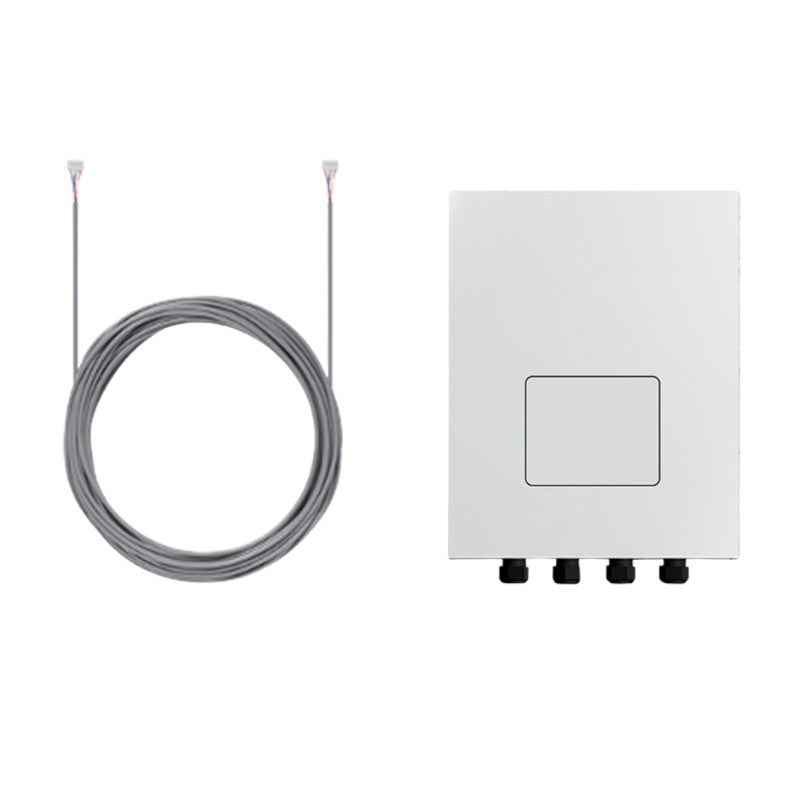

1 x 30m extension cable, 1 x blanking panel, 1 x basic installation guide
Installation Guide
Short instruction leaflet covering mounting, connections and cable routing
Frequently Asked Questions
What does the Samsung MVW-EE300 kit include?
It includes a 30-metre pre-terminated extension cable for the 7" AI Home touchscreen controller, a matching blanking panel to cover the original controller aperture on the heat pump enclosure, and a basic installation guide.
Which Samsung control kits is this compatible with?
The MVW-EE300 is designed for Samsung's "FN"-series AI Home control kits, such as the MIM-E03FN, and for ClimateHub 2.0 and Hydro Unit 2.0 models fitted with the 7" animated touchscreen display.
How far can the touchscreen controller be relocated?
The supplied cable supports a run of up to 30 metres between the heat pump enclosure and the relocated touchscreen, giving flexibility to site the display somewhere convenient for daily use.
Do I still need the blanking panel if I keep the display on the unit?
No. The blanking panel is only needed if you move the touchscreen away from the appliance, since it covers the cut-out left behind on the enclosure once the original controller is removed.
Can this be fitted to older Samsung wired controllers like the MWR-WW10N?
No. This kit is built around the 7" touchscreen connector and mounting profile used on FN-series kits and ClimateHub 2.0 / Hydro Unit 2.0 systems, which differs from older wired remote controllers such as the MWR-WW10N.
Who should install the extension kit?
Installation should always be carried out by a qualified heating engineer familiar with the Samsung EHS system, with the heat pump fully isolated from the power supply before work begins.
