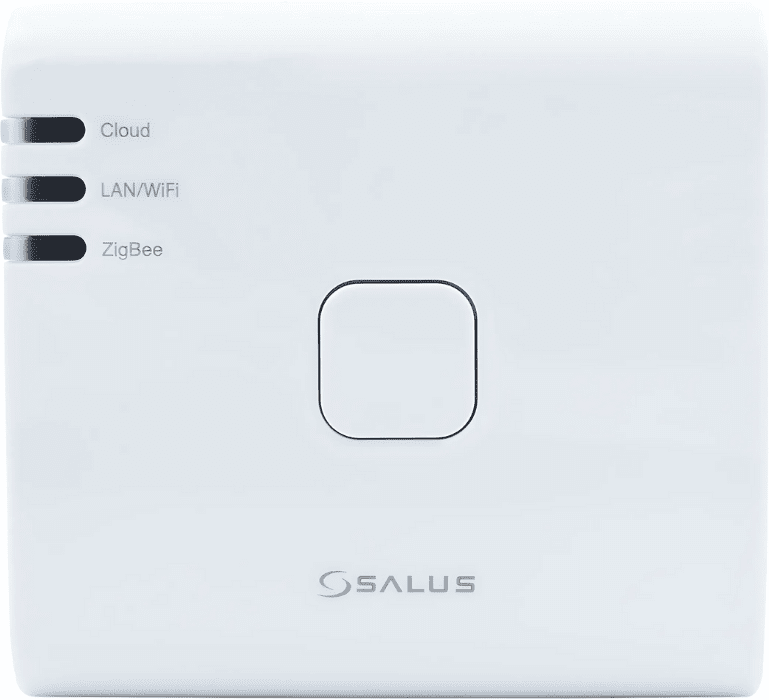

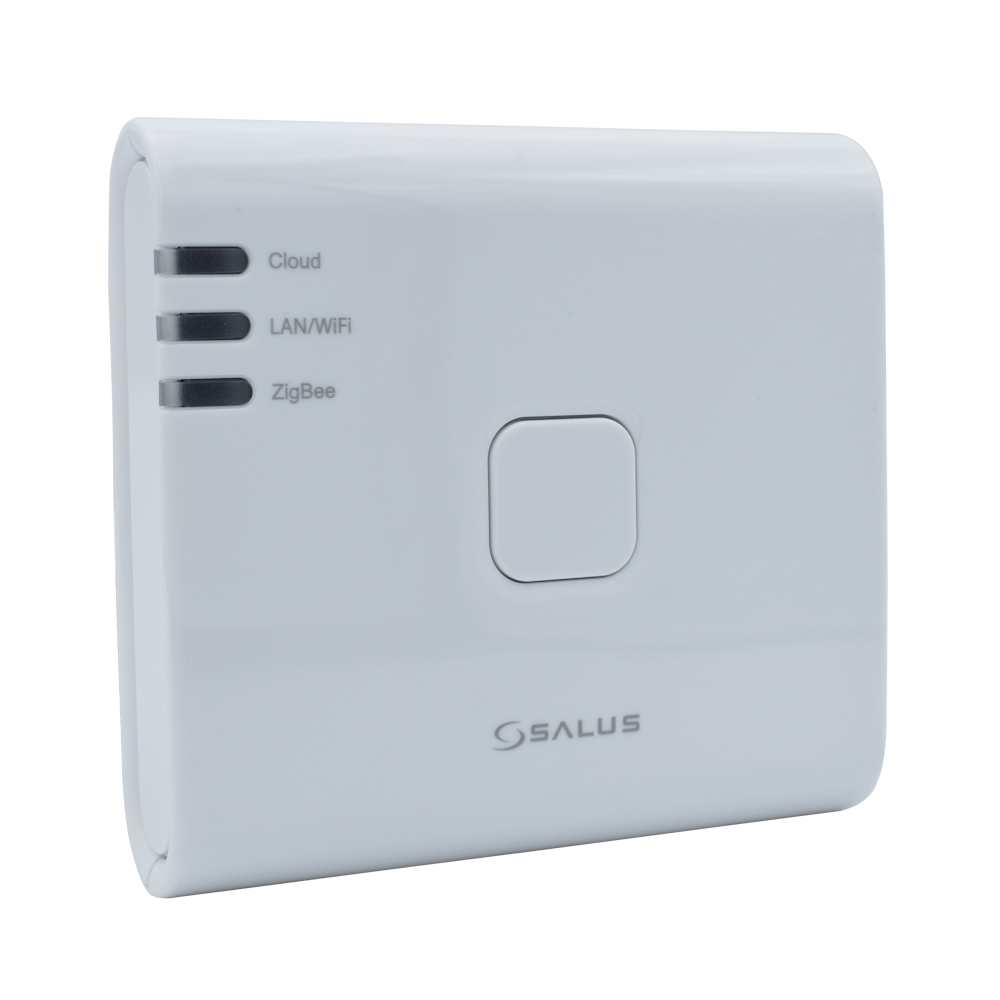

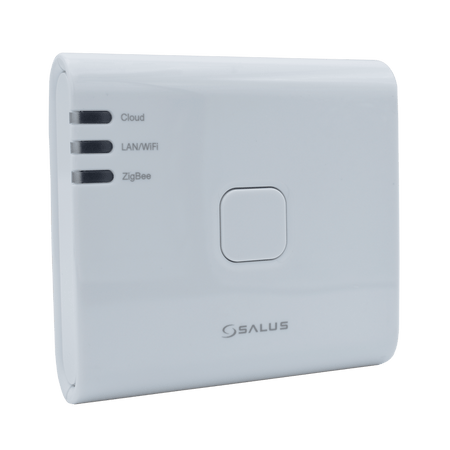

Salus Universal Gateway - UG800

Salus Universal Gateway – UG800

The Salus UG800 Universal Gateway is the central controller for your Salus Smart Home system, using advanced ZigBee 3.0 wireless technology to connect and manage up to 200 compatible devices. Suitable for both home and small commercial environments, this gateway supports integration with thermostats, sensors, actuators, and smart plugs, providing seamless smart control and energy management—all accessible from the Salus Smart Home app.

Technical Information

• Device Type: Smart Home Gateway
• ZigBee Version: ZigBee 3.0
• Connectivity: WiFi (802.11 b/g/n), 10/100Mbps Ethernet LAN, Bluetooth (for commissioning only)
• Maximum Devices Supported: Up to 200 ZigBee wireless devices
• Power Supply: 5 VDC via micro USB (includes AC100–240V, 50-60Hz adapter; output 5.0V, 0.85A, 4.25W)
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Operating Humidity: 5% to 95% RH (non-condensing)
• Degree of Protection: IP30
• Dimensions (H x W x D): 80 x 80 x 25 mm / 88 x 56 mm (version dependent)
• Mounting: Wall or desktop
• Frequency: 2.4 GHz
• Compatibility: Salus Smart Home devices, Alexa, Google Home Assistant, floor sensors, thermostats, and other ZigBee 3.0 compatible products
• Features: LED status indication, quick setup, over-the-air firmware updates, settings memory back-up, emergency notifications, energy consumption monitoring, cloud integration (AWS IoT), RoHS/REACH compliant
• Warranty: 5 years

Suitable For

• Smart home owners seeking centralised, reliable automation and control
• Integration with Salus and other ZigBee 3.0 smart devices (thermostats, radiator valves, security sensors, etc.)
• Heating system optimisation, including underfloor heating and smart radiator control
• Remote monitoring, control, and automation of home devices via mobile app
• Businesses or small offices wishing to integrate energy monitoring, heating, and safety across multiple devices

Package Contents

• Salus UG800 Universal Gateway
• Micro USB power supply (AC100–240V adapter included)
• Ethernet LAN cable
• Installation and setup manual
