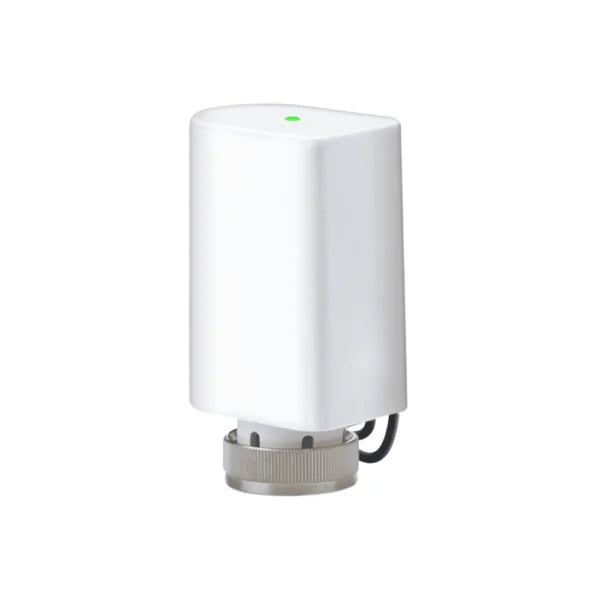

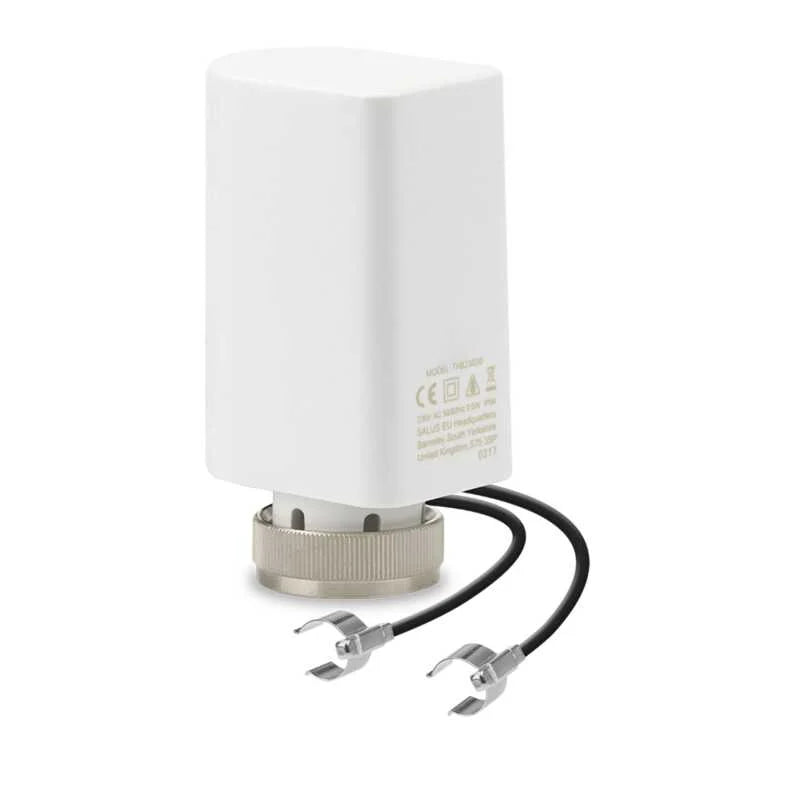

Salus THB23031 Auto-Balancing Underfloor Heating Actuator

Salus THB23031 Auto-Balancing Underfloor Heating Actuator

The Salus THB23031 is a cutting-edge auto-balancing actuator designed for underfloor heating systems. Utilising advanced technology and dual temperature sensors, this actuator ensures the dynamic and automatic hydraulic balancing of each heating loop, delivering optimal comfort and energy efficiency without the need for manual balancing or calibration. It monitors and maintains the correct temperature differential (ΔT) between flow and return pipes, providing consistent heating performance in both new and retrofit installations.

Technical Information

• Product Type: Auto-balancing actuator (Normally Closed)
• Voltage: 230V AC, 50/60 Hz
• Power Consumption: Approx. 1W
• Mounting: Valve-mounted, M30x1.5 thread
• Suitable Systems: Wet underfloor heating and cooling manifolds
• Sensors: Two external temperature sensors (for flow and return pipes)
• Temperature Sensor Resolution: 0.1°C
• Valve Opening Time: Maximum 3 minutes (typically 30 seconds)
• Stroke Length: Adaptive, up to 4mm
• Ingress Protection: IP54 rated (protected against dust and water spray)
• Dimensions: 93 mm (H) x 38 mm (W) x 54 mm (D)
• Status Indicator: Bi-colour LED (green/red) for operation and error status
• Warranty: 5 years

Suitable For

• Automatic balancing of wet underfloor heating systems in domestic and commercial buildings
• New installations and retrofits where ease of installation and performance are priorities
• Applications requiring precise temperature control for both heating and cooling functions
• Projects demanding low power consumption and high operational reliability

Key Features

• Automatic, dynamic hydraulic balancing with no calibration required
• Maintains even heat distribution across all circuits
• Fast and precise valve operation
• High energy efficiency with electronic motor
• Clear status indication with LED
• Compatible with most underfloor heating manifolds using M30x1.5 connections

Package Contents

• Salus THB23031 Auto-Balancing Actuator
• Two pipe temperature sensors
• Installation and wiring instructions
