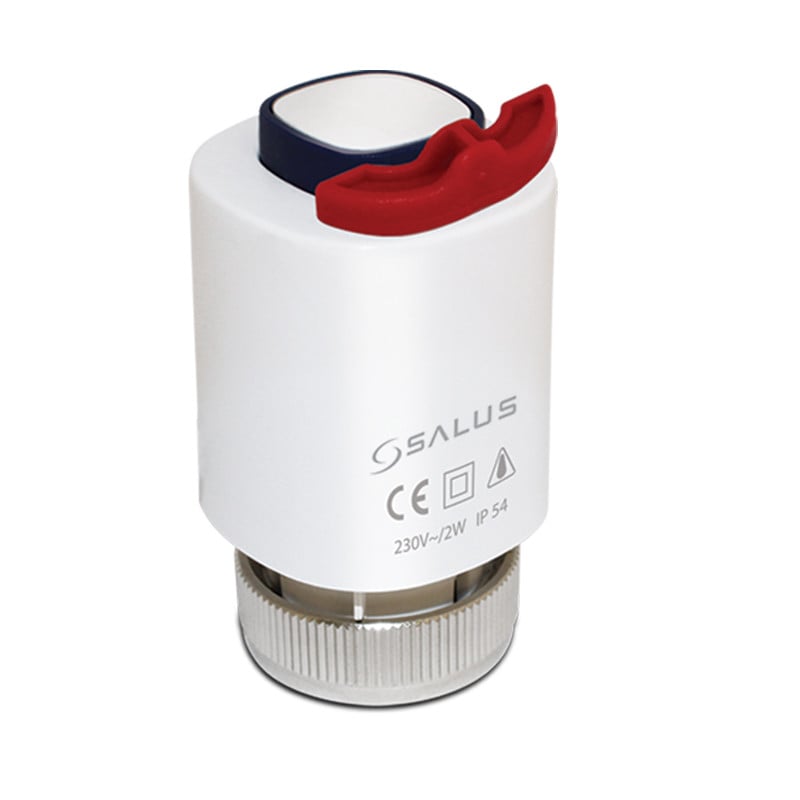

Salus T30NC230 Underfloor Heating Thermal Actuator

Salus T30NC230 Underfloor Heating Thermal Actuator

The Salus T30NC230 is a robust 230V normally closed thermal actuator, purpose-built for precise regulation of underfloor heating and cooling manifolds. Its advanced engineering delivers reliable zone control, energy efficiency, and straightforward installation, making it suitable for residential and commercial projects requiring individual loop management.

Technical Information

• Product Type: Electro Thermal Actuator (Normally Closed)
• Power Supply: 230V AC, 50Hz
• Power Consumption: 2W
• Force: 100N (±10%)
• Stroke Length: Adaptive, 4mm
• Thread Size: M30 x 1.5mm
• Opening/Closing Time: Approx. 2 minutes
• First Open Function: Yes (for easy installation)
• Indication: Visual open/close indicator
• Protection Rating: IP54
• Cable Length: 89cm

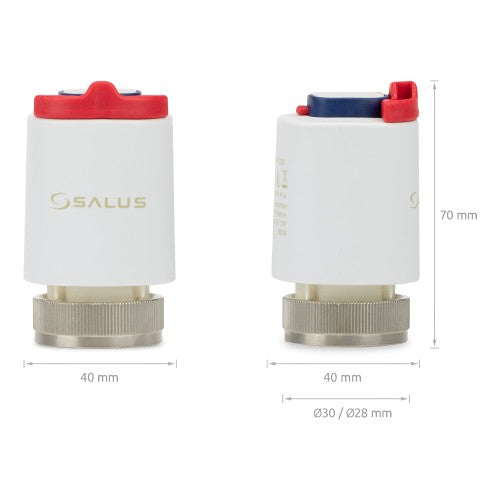

• Dimensions: 40 x 60 x 42 mm
• Warranty: 5 years

Suitable For

• Wet underfloor heating and cooling manifolds
• Zoning control in multi-loop heating systems
• Residential or commercial applications with requirements for efficient, precise temperature regulation
• Integration with most UK and European manifolds and wiring centres using the standard M30 x 1.5mm connection

Key Features

• Normally closed design: automatically shuts off flow when unpowered for added safety
• First open function simplifies initial system filling and installation
• Adaptive stroke length for consistent performance across different systems
• Low power consumption for energy efficiency
• Robust 100N force for reliable valve operation
• Maintenance-free, durable wax element ensures long service life
• Clear visual indicator for open and closed position status
• Universal compatibility with standard manifold connections

Package Contents

• Salus T30NC230 Underfloor Heating Thermal Actuator
• Pre-attached connection cable
• Installation and wiring instructions
