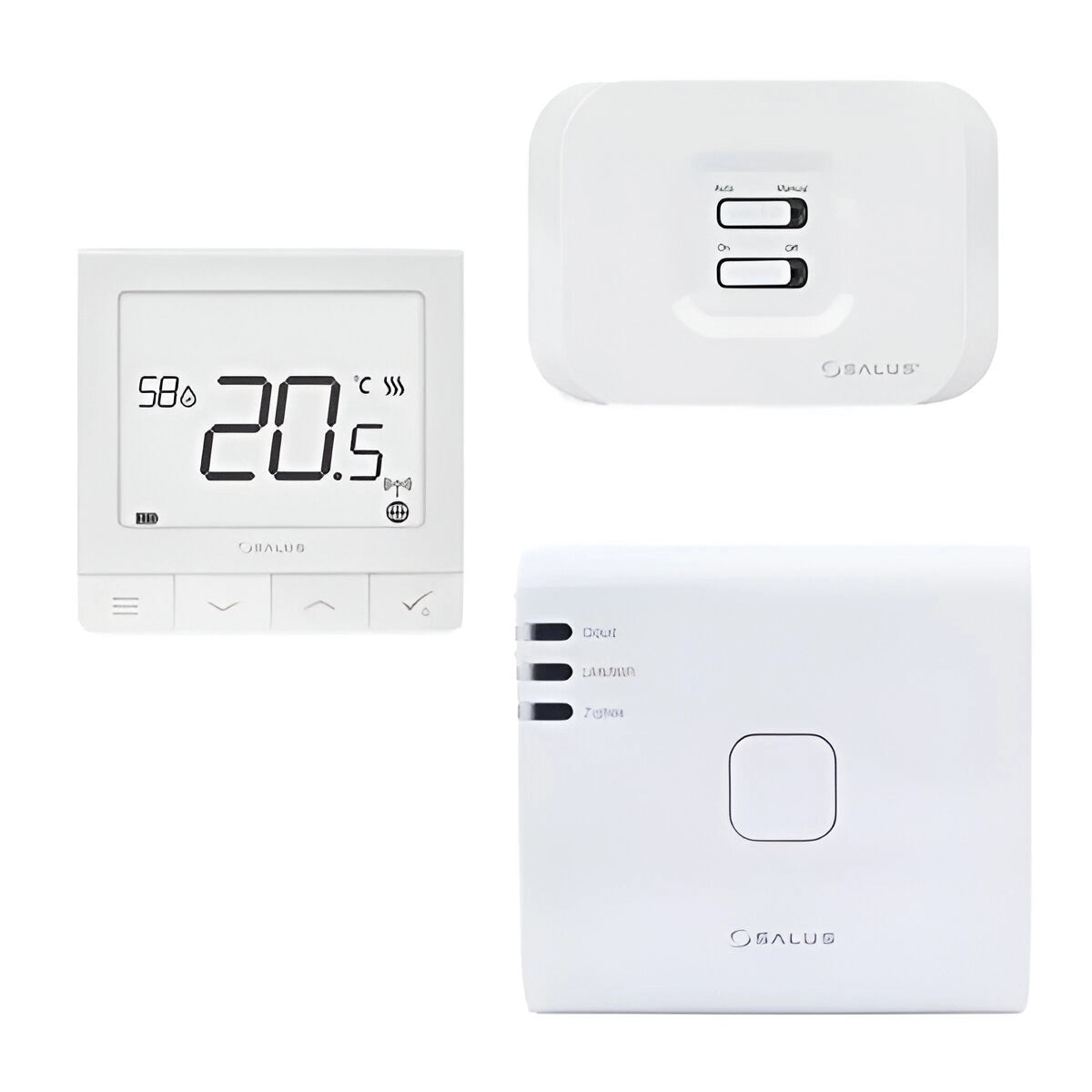

Salus Smart Home Base Pack of UG800, SQ610RF and RX10RF

Salus Smart Home Base Pack c/w UG800, SQ610RF & RX10RF

The Salus Smart Home Base Pack is the essential starter kit for implementing a single-zone smart heating system, with expansion potential for full multi-zone or underfloor heating management via additional SALUS components. This pack includes:

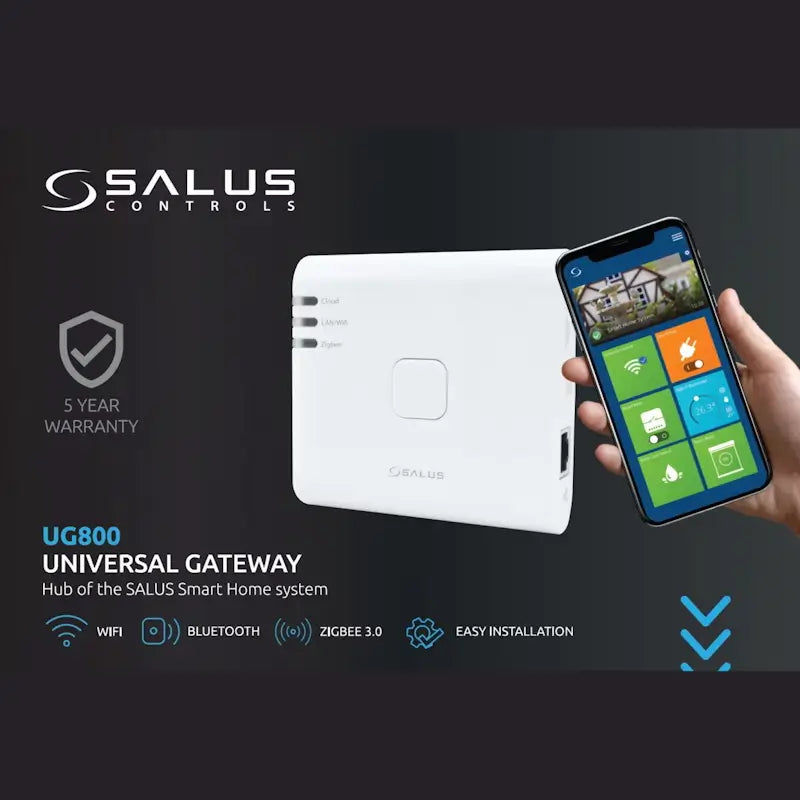

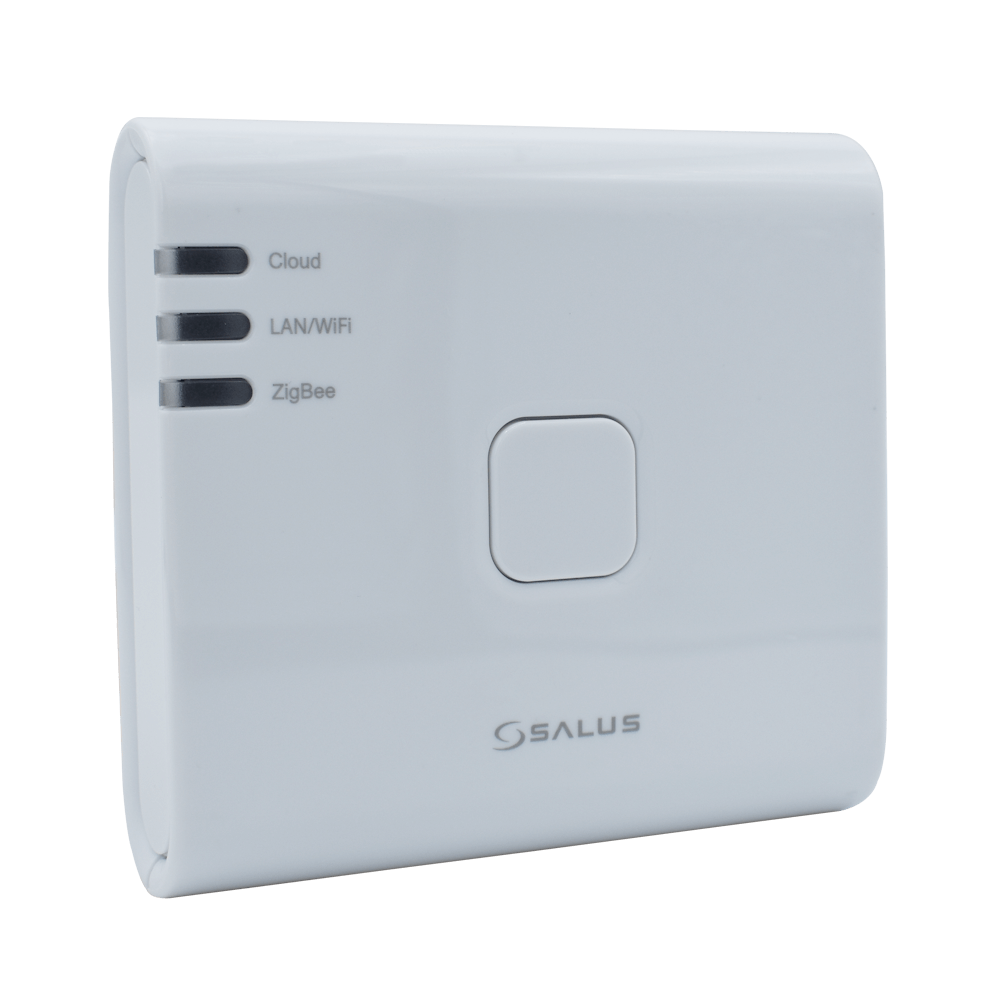

• UG800 Universal Gateway: The Salus UG800 Universal Gateway is the central controller for your Salus Smart Home system, using advanced ZigBee 3.0 wireless technology to connect and manage up to 200 compatible devices. Suitable for both home and small commercial environments, this gateway supports integration with thermostats, sensors, actuators, and smart plugs, providing seamless smart control and energy management—all accessible from the Salus Smart Home app.
  Main roles: Device management, rule-based automation, seamless expansion with sensors, TRVs, and relays.
  Dimensions: Approx. 100 x 100 x 25 mm
  Power Supply: 5V micro-USB adapter
  Wireless Standard: ZigBee 2.4 GHz / WiFi connection to router

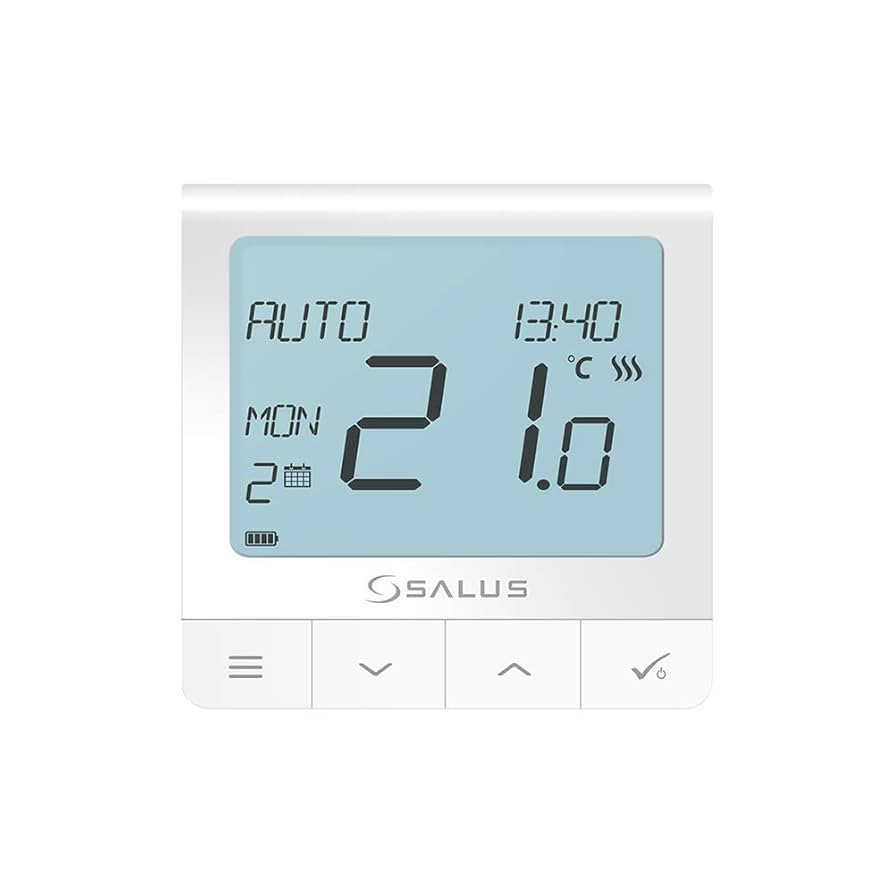

• SQ610RF Wireless Thermostat (White): Ultra-slim, rechargeable thermostat for controlling a heating zone. Offers advanced scheduling (7-day, etc.), load compensation, open window detection, and both heating/cooling functions. Wall or desktop installation, integration with voice assistants (Alexa, Google Home) via gateway.
  Battery: Built-in Li-Ion (recharge by micro USB, no replacement needed)
  Display: Large 3.5" LCD with touch controls
  Temperature Range: 5°C–35°C
  Control Algorithms: ITLC (Intelligent Load Compensation), Optimum Start/Stop
  Extra features: Landlord/child PIN, frost/valve protection, holiday setting, humidity indicator
  Dimensions: 86 x 86 x 11 mm
• RX10RF Boiler Receiver: Wireless relay that links the thermostat and gateway to your heating source (boiler or zone valve). Controls heating based on app/thermostat commands.
  Power Supply: 230V AC
  Switching: Volt-free and 230V relay contact (max 16A/5A SPST)
  Manual override option and LED status indicators
  Mounting: Wall, 145 x 100 x 35 mm

Suitable For

• Single-zone heating (expandable to multi-zone with TRVs or more thermostats)
• Underfloor heating system integration (when combined with Salus wiring centres/actuators)
• Remote control of home heating via smartphone/tablet/PC from anywhere
• London/UK market with full British compliance and 5-year warranty
• Expansion: add smart plugs, sensor modules, window/door sensors, and radiator controllers as needed

Key Features

• Easy setup and pairing of devices through Salus App and web portal
• Remote and local scheduling, frost protection, and energy saving modes
• Open window detection and intelligent load algorithms for greater efficiency
• Boiler Plus compliant
• Expandable to suit underfloor and multi-zone radiator setups
• Integrates with ZigBee-based Salus actuators, TRVs, centres, and sensors

Package Contents

• 1 x UG800 Universal Gateway (hub)
• 1 x SQ610RF Wireless Thermostat (White)
• 1 x RX10RF Wireless Boiler Receiver
• Power adapters, mounting screws, and user manuals for each component

Warranty: 5 years
