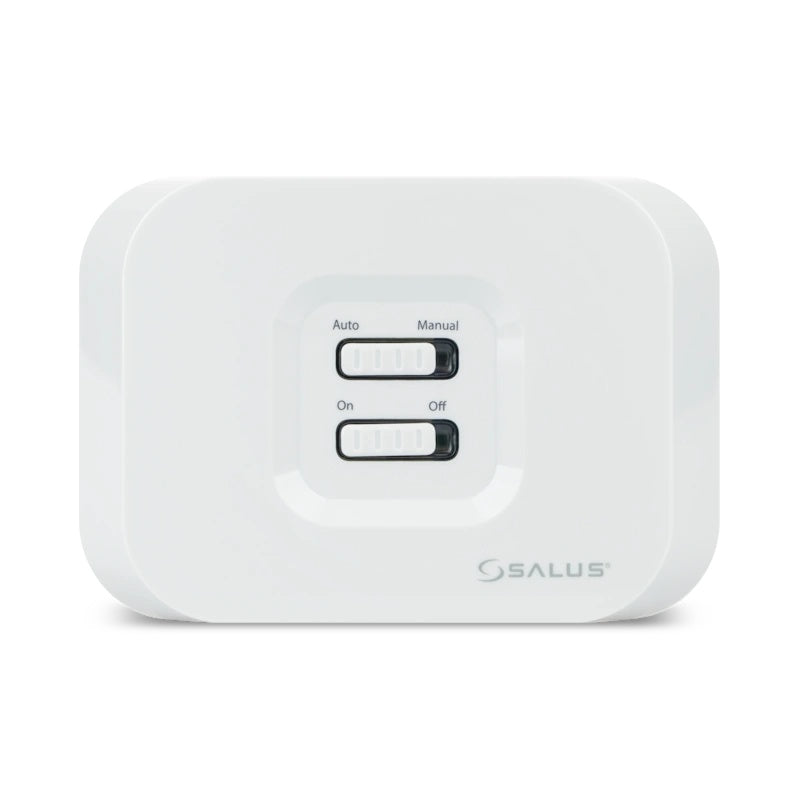

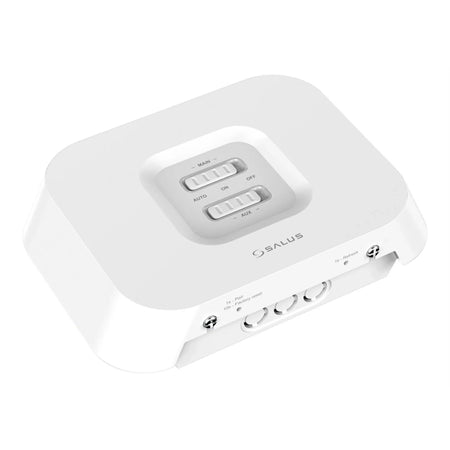

Salus RX30RF Zigbee Smart Home Receiver 230V - Dual Channel, OpenTherm for Boiler & Zone Control

The Salus RX30RF Zigbee Smart Home Receiver 230V is a versatile dual-channel wireless receiver designed for the SALUS Smart Home system, enabling control of boilers, pumps, and zone valves with OpenTherm support for enhanced efficiency in heating and hot water systems.

Product Description

The Salus RX30RF is an advanced Zigbee 3.0 receiver that acts as a central hub for smart heating control. It supports configuration as a remote boiler switch, zone valve controller, or dual-zone system, making it ideal for radiator, underfloor heating, and domestic hot water setups. With dual-channel outputs and OpenTherm compatibility, it integrates seamlessly with SALUS Elypso thermostats, TRV heads, and gateways for app-based scheduling, monitoring, and energy optimization. The compact design and LED indicators ensure easy installation and status visibility.

Key Features

• Zigbee 3.0 connectivity: Secure, low-power wireless communication with SALUS Smart Home devices.
• Dual-channel control: Supports central heating + hot water or two independent zones.
• OpenTherm support: For precise boiler modulation and efficiency.
• Flexible configurations: Boiler switch, zone valve, or heat/cool independent system.
• LED status indicators: Clear feedback for power, pairing, and operation.
• Manual override: For testing and commissioning.
• 5-year warranty: For long-term reliability.

Technical Specifications

• Model: RX30RF – Zigbee Receiver.
• Power supply: 230 V AC, 50/60 Hz.
• Switching capacity: 5 (3) A @ 230 V AC (SPST relay).
• Wireless protocol: Zigbee 3.0 (2.4 GHz).
• Operating temperature: 0 °C to +40 °C.
• Protection rating: IP20.
• Dimensions: 86 x 86 x 38 mm (approx.).
• Cable length: 1 metre pre-wired.

Dimensions & Weights

• Width: 86 mm.
• Height: 86 mm.
• Depth: 38 mm.
• Weight: 180 g (approx.).

System & Application Notes

• Ideal for single or dual-zone heating with SALUS Elypso thermostats and TRVs.
• Compatible with UG600/UG800 gateways for full app control via SALUS Premium Lite.
• Installation: Wall-mounted; pair with thermostats via gateway; supports OpenTherm for modern boilers.
• Professional installation recommended for electrical connections.
• Enhances energy efficiency with smart scheduling and monitoring.
