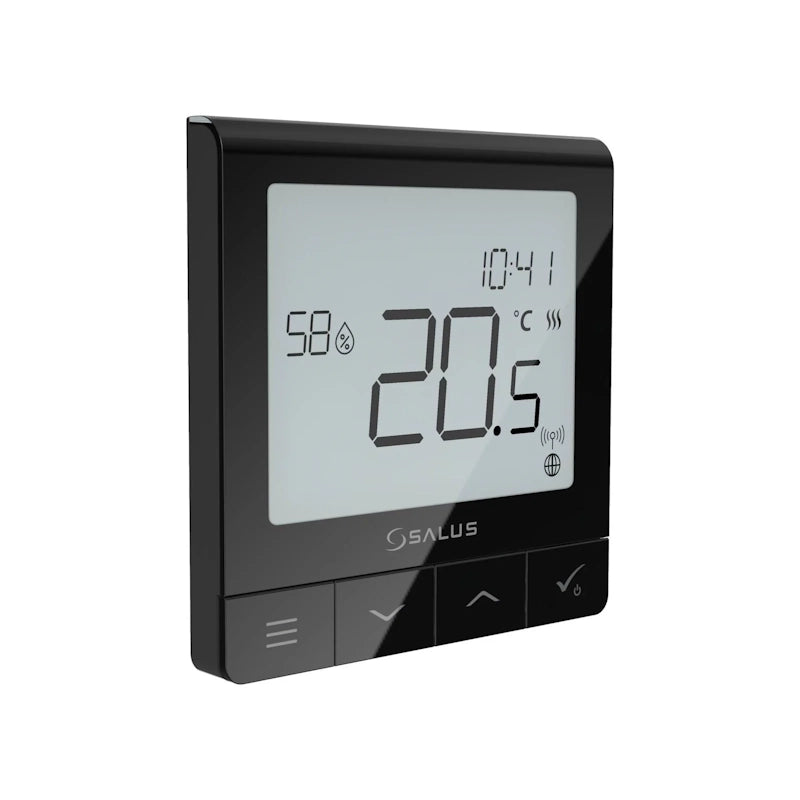

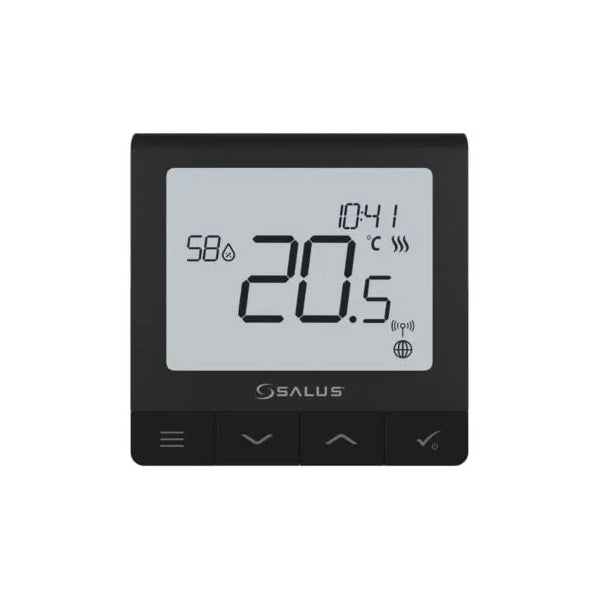

Salus Quantum Hard Wired Thermostat - SQ610 Black

Salus Quantum Hard Wired Thermostat – SQ610 (Black)

The Salus Quantum SQ610 (Black) is an ultra-slim, mains-powered (230V) programmable smart thermostat, tailored for advanced heating and cooling control in homes or commercial premises. With a sleek black finish and large 3.5″ LCD display, it combines modern design with intuitive operation. The SQ610 enables precise scheduling, load compensation algorithms, and seamless integration with Salus Smart Home devices when combined with a gateway, making it ideal for underfloor heating, radiators, and boiler applications.

Technical Information

• Product Type: Hard wired programmable thermostat (black finish)
• Power Supply: 230V AC, 50Hz (mains powered)
• Control Protocol: Wired (volt free or 230V switching); ZigBee 2.4GHz enabled for smart integration
• Relay Rating: 3 (1) A
• Temperature Control Algorithm: ITLC (Intelligent Temperature Load Compensation), with scheduling and optimisation
• Temperature Range: 5°C – 35°C
• Adjustable Hysteresis: 0.25°C or 0.5°C
• Scheduling: Fully programmable (7-day, daily or 5/2-day)
• Mounting: Flush wall mounting; protrudes just 10mm from the wall
• Dimensions: 86 mm x 86 mm x ~28 mm
• Display: Large 3.5" LCD with backlight
• Humidity Sensor: Yes
• Outputs: Volt free and 230V switching
• Compatible Applications: Underfloor heating, radiator heating, boilers; smart integration via Salus Gateway
• Additional Features: Heating/Cooling mode, Landlord/Service PIN, valve and frost protection, floor sensor compatibility, quick install
• Operating Temperature: 0°C – 50°C
• Warranty: 5 years

Suitable For

• Modern homes and commercial spaces requiring discrete, hard-wired temperature control
• Direct control of underfloor heating, radiators, and boilers
• Integration into Salus Smart Home systems for app, remote, and voice control (requires gateway)
• Landlords or property managers seeking PIN security, service reminders, and schedule flexibility

Key Features

• Sleek, ultra-slim black design (only ~10mm thick on wall)
• 230V mains-powered for uninterrupted operation (no battery needed)
• Large, easy-to-read LCD screen with backlight
• Smart ZigBee connectivity for integration with Salus iT600 system
• Advanced control algorithms (ITLC), efficient scheduling, and local override
• Built-in humidity sensor and multiple protection features
• PIN security for service, landlord, and child protection
• Quick installation with clear wiring options

Package Contents

• Salus Quantum SQ610 Thermostat (Black)
• Mounting screws and fixings
• Installation and user manual
