Home » Salus Wireless Programmable Thermostat | RT510RF+ | Boiler Plus

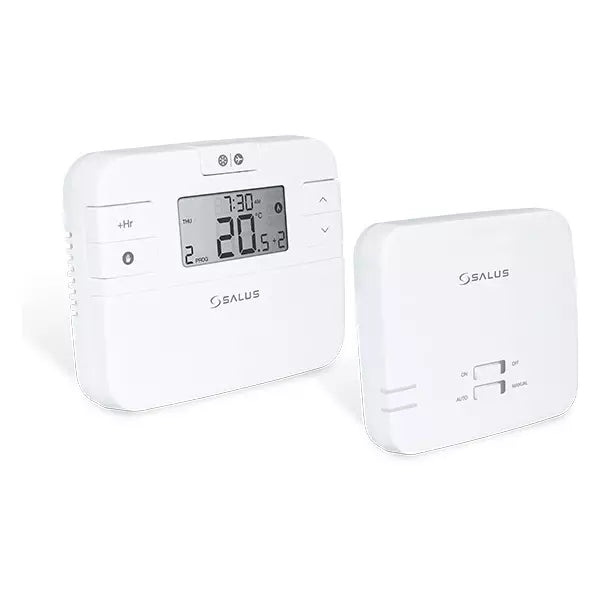

white Salus thermostat and boiler receiver on a white backgroundSalus Boiler Plus Room Thermostat RF Programmable – RT510RF+
white Salus thermostat and boiler receiver on a white backgroundSalus Boiler Plus Room Thermostat RF Programmable – RT510RF+
SKU: RT510RF+
(0)

Salus Wireless Programmable Thermostat | RT510RF+ | Boiler Plus

Salus
Save 17%
£49.95 Inc. VAT £41.63 Exc. VAT
£60.00 Inc. VAT £49.95 Inc. VAT £41.63 Exc. VAT
  • FREE Express Delivery (1-3 days) in UK Mainland on most orders*
  • Excluding: Solar Panels (£170 delivery / free above £2,500), Batteries (£39 delivery), Small Items (£4.95/5.95 delivery / free above £500)
  • Contact Us to check for Next Working Day Delivery or Same-day Delivery options
  • Contact Us for Click & Collect options
  • Custom quote available on request
*See checkout or shipping policy for full details

Payment options

  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • Diners Club
  • Discover
  • EPS
  • Google Pay
  • iDEAL Wero
  • JCB
  • Klarna
  • Maestro
  • Mastercard
  • Multibanco
  • MB WAY
  • MobilePay
  • PayPal
  • Przelewy24
  • Shop Pay
  • Union Pay
  • Visa
Tools & Kits

Need a full system?

Design your complete solution in minutes with our kit builders.

Build your kit

Do you have a question
about this product?

One of our expert advisors will be happy to help you!

Contact Us
Question Image

The Salus RT510RF+ is a fully programmable wireless room thermostat and receiver pack built for modern UK boiler control. It combines ITLC (Internal Temperature Load Compensation) for Boiler Plus compliance, a pre-paired 868MHz RF link with a 30 metre range and a clear LCD display, so you can position the thermostat where it best reads the room without running control cable back to the boiler. It is the upgraded replacement for the Salus RT510RF.

Choose between a 5/2 day or 24 hour (7-day) programmer, then fine-tune comfort with manual mode, temporary override, a +Hr boost of up to 9 hours, frost protection, holiday mode and sleep mode. The wall-mounted RXRT510 receiver offers volt-free and 230V switching with a 16(5)A rating and a built-in AUTO / ON / OFF override switch. Backed by a 5 year manufacturer warranty.

5–35°C
Temperature range
30 m
Wireless range
868 MHz
RF frequency
16(5) A
Receiver rating
5 Years
Manufacturer warranty
ITLC
Load compensation
Boiler Plus ready
ITLC measures how far the room is from the set temperature and moderates the heating cycle to limit overshoot. This is the load compensation measure that supports Boiler Plus requirements for gas boiler installations in England. Keep the thermostat on ITLC (DIP switch 2) to retain this function.
Replaces the Salus RT510RF
The RT510RF+ is the upgraded successor to the Salus RT510RF wireless programmable thermostat. Salus developed the RT510 range into the RT510+ range, with the headline upgrade being the addition of ITLC load compensation for Boiler Plus. The pack keeps the same RXRT510 receiver and 868MHz wireless platform, and the wireless-only RT510TX+ thermostat is the matching add-on thermostat for it.
Compatibility notes
This thermostat is not suitable for underfloor heating and is not internet or app controlled. For plug-in boiler receiver applications set DIP switch SW1 to RAD. Selecting SPAN on DIP switch 2 replaces ITLC with a conventional on/off span, so ITLC will not be active. Always confirm your boiler accepts a volt-free or 230V room thermostat input.
Safety and installation
The receiver connects to a 230V AC supply. Isolate the mains before wiring. Installation must be carried out by a qualified, competent person in accordance with BS 7671, national regulations and the boiler manufacturer's instructions (Gas Safe registered for any work on gas appliances). For indoor use only. Use only AA 1.5V alkaline batteries in the thermostat; do not use rechargeable batteries.

Key Features

ITLC Load Compensation
Internal Temperature Load Compensation adapts the heating cycle as the room nears target, improving efficiency and supporting Boiler Plus compliance.
Pre-Paired Wireless
Thermostat and receiver arrive factory paired over 868MHz RF with up to 30 m range, plus a built-in RF test function to check the link.
Flexible Programming
Select a 5/2 day or 24 hour (7-day) programmer in installer mode, with time and temperature setpoints for each period.
Override Options
Use manual mode, a temporary override until the next period, or the +Hr boost to change the setpoint for up to 9 hours.
Frost, Holiday and Sleep
Frost protection defaults to 5°C and is adjustable from 5°C to 17°C. Holiday mode holds the frost temperature while you are away and sleep mode pauses all functions.
Versatile Receiver
Volt-free and 230V switching, 16(5)A rating and a manual AUTO / ON / OFF slide switch for simple commissioning and fault finding.

Installer Settings and Everyday Use

Installer mode lets you set temperature display increments (0.1°C or 0.5°C), apply a temperature offset of up to ±3.0°C, change the frost protection setpoint and choose the programmer type. Settings are retained in internal memory while you change batteries (replace them within 30 seconds), and a low battery icon on the LCD display gives advance warning. The desk stand supplied means the thermostat can sit on a shelf or be mounted on the wall.

Technical Specification

Thermostat (RT510RF+)
Type
Wireless programmable room thermostat
Power supply
2 x AA 1.5V alkaline batteries
Temperature range
5°C to 35°C
Display resolution
0.1°C or 0.5°C (selectable)
Temperature offset
±3.0°C
Control algorithm
ITLC or SPAN (DIP switch selectable)
Adjustable hysteresis
0.25
Display
LCD

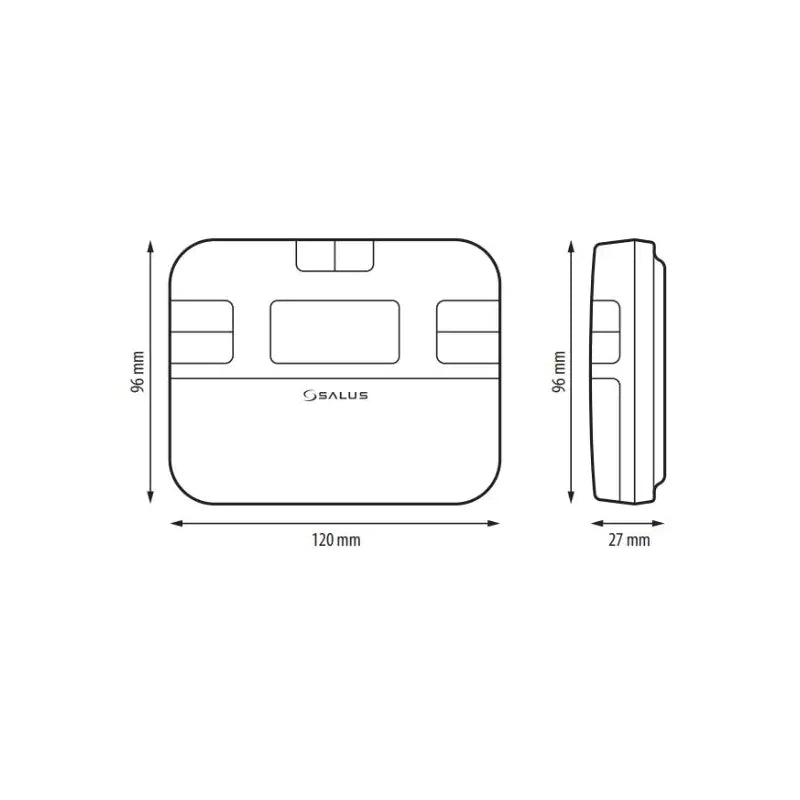

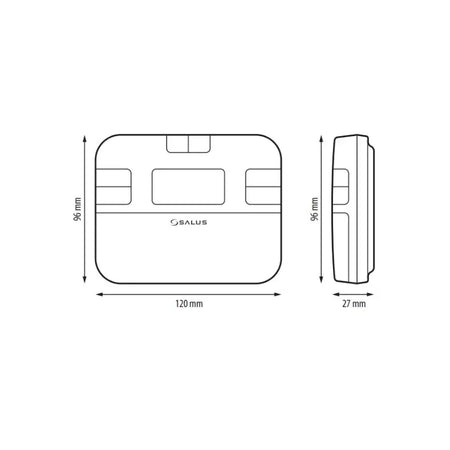

Dimensions (W x H x D)
120 x 96 x 27 mm
Mounting
Wall or desk (stand included)
Receiver (RXRT510)
Supply
230V AC ±10%, 50Hz
Switching rating
16(5)A
Output
Volt-free NO / COM, volt-free and 230V switching
Manual control
AUTO and ON / OFF slide switches
IP rating
IP30
Wireless
Frequency
868MHz (868.0–868.6 MHz, below 13dBm)
Communication range
30 m
Pairing
Pre-paired; RF test function included
Programming and Modes
Programmer
5/2 day or 24 hour (7-day), selectable
Operating modes
Automatic, manual, temporary override, +Hr boost (up to 9 hours)
Frost protection
Default 5°C, adjustable 5.0°C to 17.0°C
Other modes
Holiday mode, sleep mode
Cooling mode function
Yes
Works with NO and NC actuators
Yes
Approvals and Warranty
Boiler Plus
Compliant (ITLC)
Energy efficiency
ErP IV certified
Suitable for underfloor heating
No
Internet controlled
No
Warranty
5 years
Model / MPN
RT510RF+

What's in the Box

Included

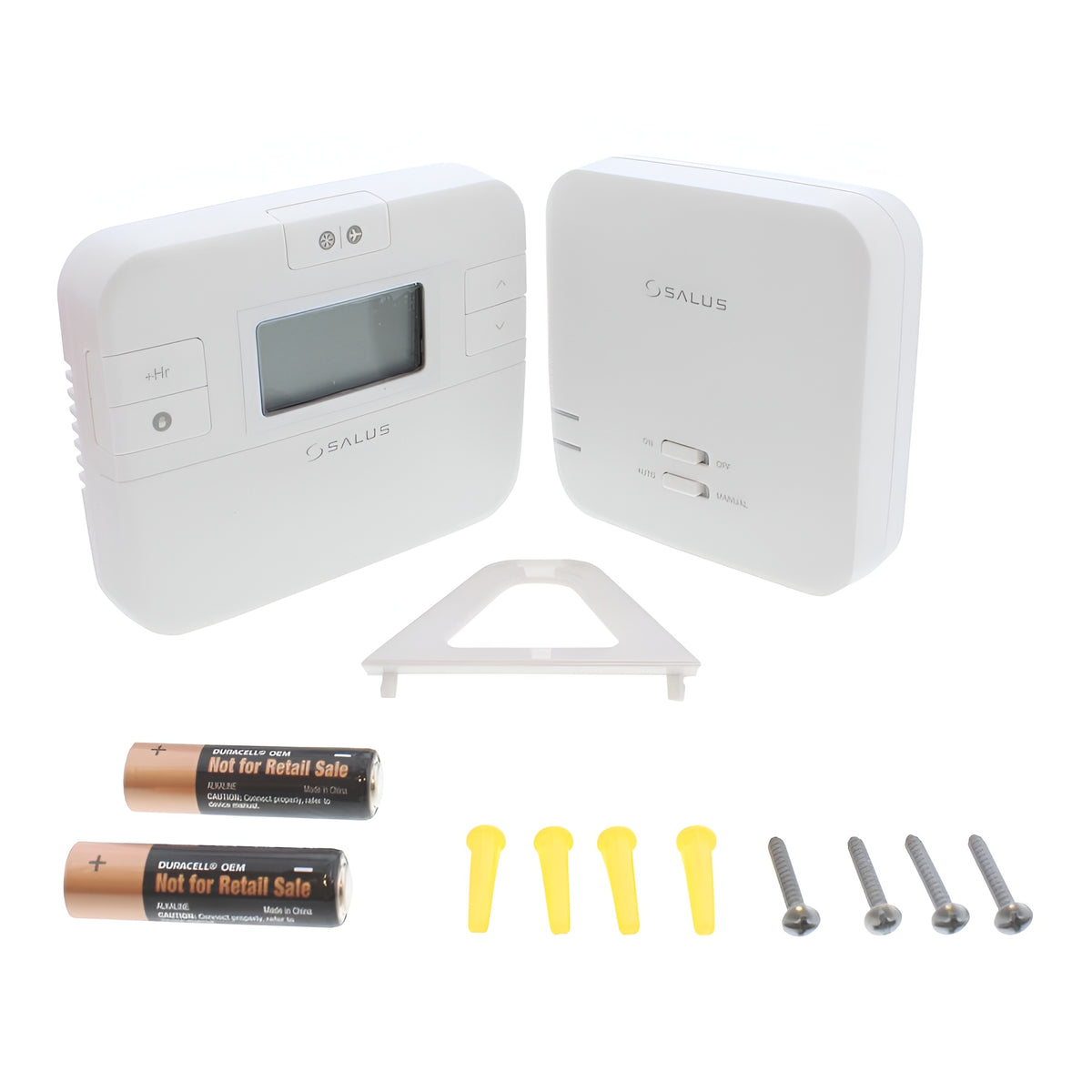

Salus RT510RF+ wireless thermostat, pre-paired RXRT510 receiver, desk stand and installation guide.

Frequently Asked Questions

Which Salus model does the RT510RF+ replace?
It replaces the Salus RT510RF programmable RF thermostat and receiver pack. The RT510RF+ adds ITLC load compensation for Boiler Plus, while keeping the RXRT510 receiver and 868MHz wireless platform. The matching wireless-only RT510TX+ thermostat uses the same receiver.
Will the RT510RF+ work with my boiler?
It works with boilers and heating systems that accept a volt-free or 230V on/off room thermostat input. The receiver output is volt-free NO / COM and is rated 16(5)A. Check your boiler's room thermostat terminals before ordering; this is a thermostat for on/off control and is not for underfloor heating.
What does ITLC do and does it meet Boiler Plus?
ITLC (Internal Temperature Load Compensation) compares the room temperature with the set temperature and moderates the heating cycle to avoid overheating. It provides the load compensation measure that supports Boiler Plus compliance. Keep DIP switch 2 on ITLC; choosing SPAN switches ITLC off.
Can I use it with underfloor heating?
No. Salus states the RT510RF+ is not suitable for underfloor heating. Use a thermostat designed for underfloor systems instead.
How do I test or re-pair the wireless link?
The thermostat and receiver are paired at the factory, so no pairing is needed on first use. Press the TEST / PAIRING button to check the connection with the receiver, and press it again to return to the main screen. If you need to re-pair, set the receiver switches to AUTO and ON, power it up and follow the pairing sequence in the supplied guide.
What batteries does it use and what happens when they run low?
The thermostat uses 2 x AA 1.5V alkaline batteries; rechargeable batteries must not be used. A low battery icon appears on the LCD. Settings are held in internal memory, so fit new batteries within 30 seconds to keep your programme.
Can I switch between 5/2 day and 7-day programming?
Yes. In installer mode parameter d04 selects the 5/2 day or 24 hour (7-day) programmer. Programmed schedules should use all time periods.
