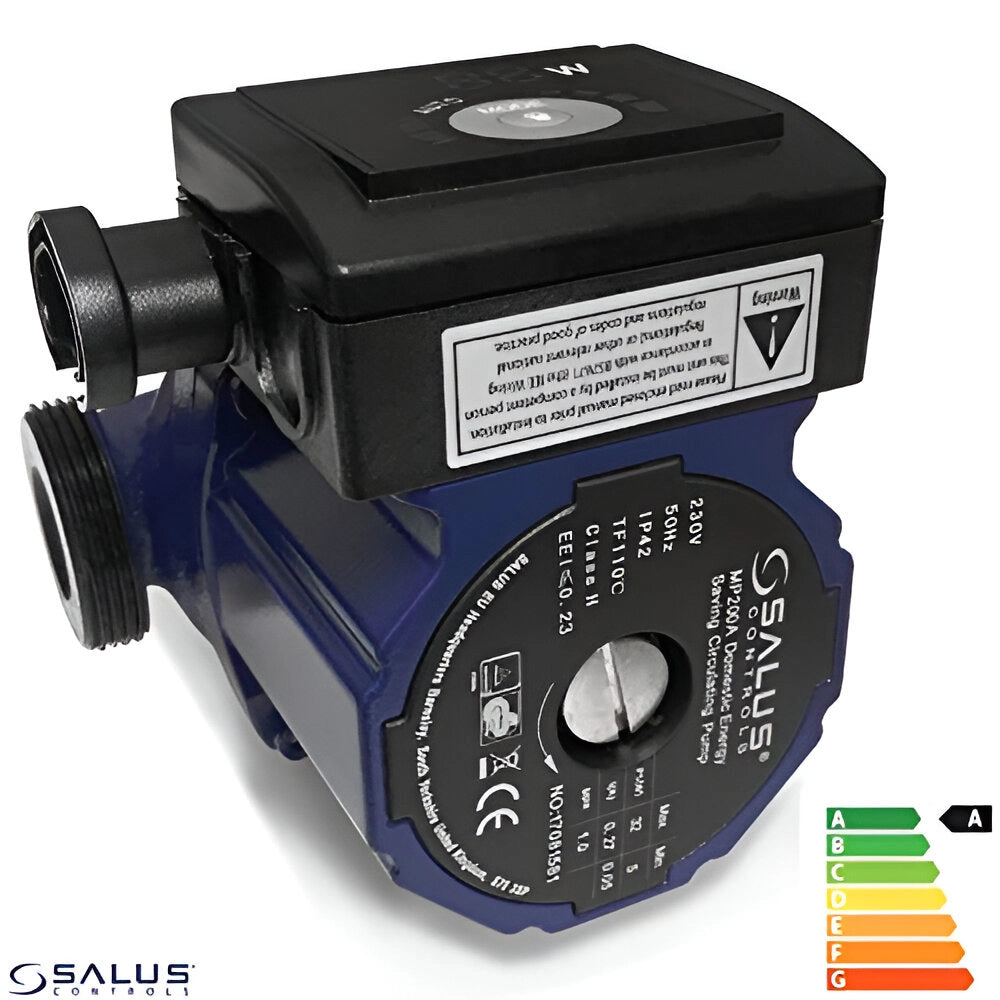

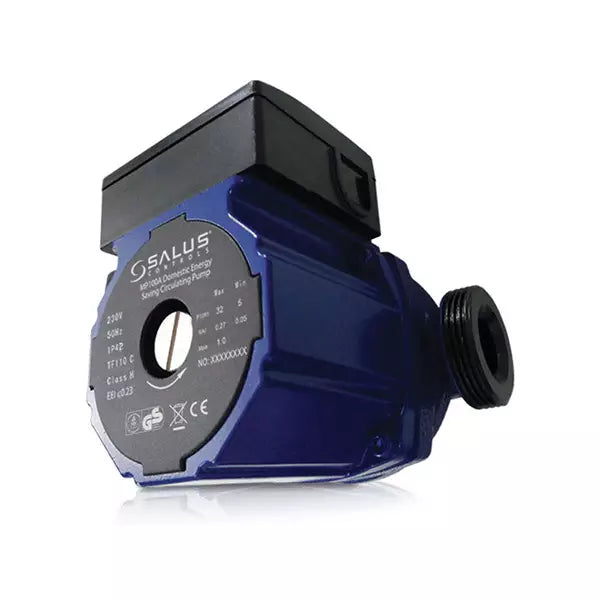

Salus A Rated Circulating Pump (4–6M Head) – MP200A

Salus A Rated Circulating Pump (4–6M Head) – MP200A

The Salus MP200A A Rated Circulating Pump is engineered for use in domestic central heating and hot water systems. Featuring high energy efficiency (ErP Class A) and a variable-speed, permanent magnet motor, this pump offers significant power savings, quiet operation, and flexible control options. Its compact design, robust cast iron body, and straightforward installation make it a reliable direct replacement for older, less efficient pumps in UK homes.

Technical Information

• Model: Salus MP200A (A Rated Circulating Pump)
• Maximum Head: 4–6 metres
• Maximum Flow Rate: 2.4 m³/h
• Power Consumption: 5–32W (automatic adjustment based on system demand)
• Voltage: 230V AC, 50Hz
• Body Material: Cast iron
• Operating Temperature Range (liquid): +2°C to +110°C
• Maximum Surface Temperature: +125°C
• Connection Size: 1.5" BSP thread (approx. 38–40mm), 130mm length
• Degree of Protection: IP42
• Insulation Class: H
• System Pressure: Max 1.0MPa
• Noise Level: <43dB(A)
• Control: Permanent magnet motor, automatic differential pressure control, front control panel
• Speed Settings: Automatic (self-adaptive), variable, and fixed speed
• Compliance: ErP/EuP 2016/2018, Boiler Plus compatible
• Warranty: 5 years

Suitable For

• Domestic central heating systems
• Hot water circuits (sealed or open vented)
• Direct replacement of older and inefficient pumps
• Installations requiring low noise and high reliability

Key Features

• Trusted A rated energy efficiency for reduced running costs
• Pre-wired “Plug & Pump” design for fast and simple installation
• Quiet, durable operation suited to residential properties
• Front panel for user-friendly speed and mode adjustment
• Reliable cast iron construction for long service life
• Automatic and variable speed settings ensure compatibility and comfort in a wide range of systems

Package Contents

• Salus MP200A Circulating Pump unit
• Installation manual
• Seals and connectors
• Factory-fitted cable and plug
