Salus 3 Port Motorised Valve 22mm – PMV32

Salus 3 Port Motorised Valve 22mm – PMV32

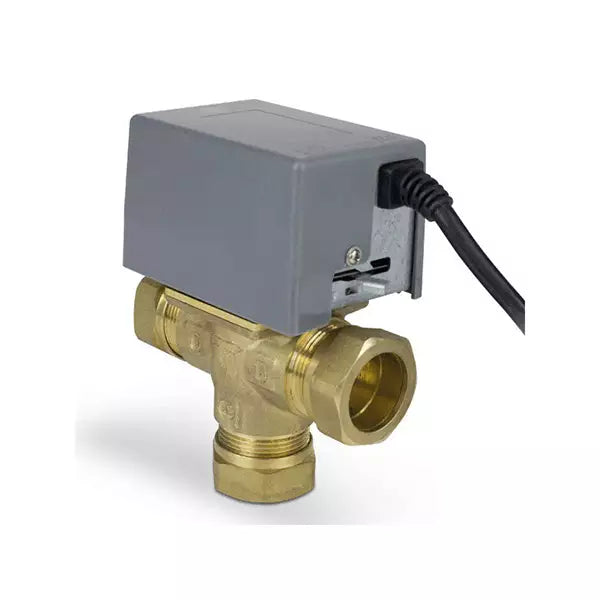

The Salus PMV32 is a 3 port mid-position motorised valve designed for domestic central heating and hot water systems—particularly for use in Y-Plan applications, allowing automatic switching between heating, hot water, or both. With a universal 22mm compression fitting, industry-standard 5-wire cable, and a quick-release detachable actuator, it serves as a direct replacement for Honeywell and other leading brand valves. The design ensures minimal disruption for service or retrofit jobs in UK homes.

Technical Information

• Product Type: 3 Port Mid Position Motorised Valve (Y-Plan)
• Valve Size: 22mm compression fitting
• Switching Voltage: 230V AC, 50Hz
• Power Consumption: 6W
• Maximum Static Pressure: 8.6 bar
• Maximum Differential Pressure: 0.8 bar (22mm model)
• Liquid Temperature Range: 5°C – 88°C
• Operating Temperature: -10°C to +60°C
• Protection Class: IP20 (indoor use)
• Opening Time: approximately 14 seconds
• Closing Time: approximately 3 seconds (spring return)
• Maximum Load: 3A
• Dimensions: Approx. 88 mm (W) x 122 mm (H) x 65 mm (D)
• Cable: 1 metre, 5-wire industry standard colour coding
• Manual Lever: Yes (for system draining/testing/manual override, with position indicator)
• Compatible Bodies: Detachable actuator for Honeywell and other industry-standard valves
• Warranty: 5 years

Suitable For

• Central heating and hot water systems using Y-Plan/wiring
• Controlling the flow between heating only, hot water only, or both
• Retrofit installations—direct replacement for Honeywell and compatible zone valves
• Systems requiring quick actuator removal for service without draining

Key Features

• Mid-position/3 port valve for automatic zoning between heating and hot water
• Removable actuator head—easy replacement and maintenance
• Manual lever with visual position indicator for system testing/manual override
• Industry-standard wiring for simple install and compatibility
• Spring return actuator for safe closure on power loss

Package Contents

• Salus PMV32 3 Port Motorised Valve (22mm)
• Detachable actuator with 1m 5-wire cable
• Compression nuts and olives
• Installation and wiring instructions

EAN: (Verify with your supplier)
MPN: PMV32
