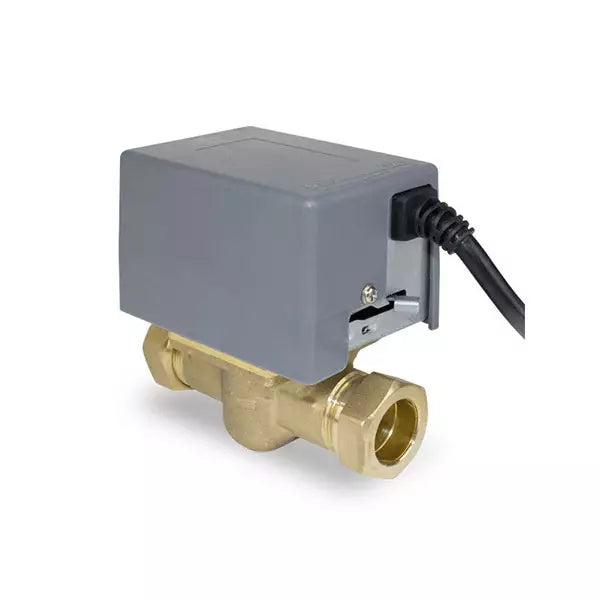

Salus 2 Port Motorised Valve 28mm - PMV28

Salus 2 Port Motorised Valve 28mm – PMV28

The Salus PMV28 is a robust 2 port zone valve designed for the reliable control of individual heating zones in domestic hot water and central heating systems. Compatible with 28mm pipework and featuring a quick-release, detachable actuator head, the PMV28 offers easy installation and servicing. Its industry-standard wiring and actuator design make it a straightforward direct replacement for Honeywell and other popular valves, supporting both new installations and retrofits.

Technical Information

• Product Type: 2 Port Motorised Valve (Zone Valve)
• Valve Size: 28mm compression fitting
• Switching Voltage: 230V AC, 50Hz
• Power Consumption: 6W
• Maximum Static Pressure: 8.6 bar
• Maximum Differential Pressure: 0.6 bar (28mm model)
• Liquid Temperature Range: 5°C – 88°C
• Operating Temperature: -10°C to +60°C
• Protection Class: IP20 (Indoor use)
• Opening Time: Approx. 14 seconds
• Closing Time: Approx. 3 seconds (spring return)
• Maximum Load: 6 (2) A
• Dimensions: Approx. 88 mm (W) x 122 mm (H) x 65 mm (D)
• Cable: 1 metre, industry standard colour coding
• Manual Lever: Yes (with position indicator for test/manual override)
• Compatible Bodies: Detachable actuator for Honeywell and similar bodies
• Warranty: 5 years

Suitable For

• Controlling 28mm heating or hot water zones in S and C plan domestic systems
• Replacement for existing 28mm 2-port zone valves (including Honeywell compatible setups)
• Retrofitting with minimum disruption thanks to universal actuator fit

Key Features

• Removable actuator for easy service or replacement without draining system
• Industry-standard colour coded wiring for simple installation
• Spring return for safe closure on power loss/shutdown
• Manual lever and visible position indicator for system testing or manual override
• Compatible with 28mm copper pipe and standard compression fittings

Package Contents

• Salus PMV28 2 Port Motorised Valve (28mm)
• Detachable actuator head with 1m cable
• Compression nuts and olives
• Installation and wiring instructions
