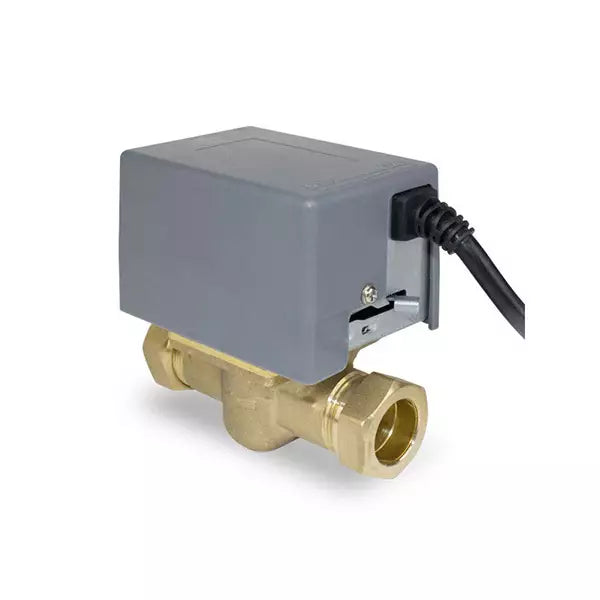

Salus 2 Port Motorised Valve 22mm – PMV22

Salus 2 Port Motorised Valve 22mm – PMV22

The Salus PMV22 is a premium 2 port zone valve designed for use in domestic central heating and hot water systems, particularly for the efficient control of individual heating zones. With a 22mm compression fitting, detachable head and industry-standard wiring, this valve provides robust, reliable performance and is suitable for both new installations and as a retrofit replacement for Honeywell and other compatible valve bodies.

Technical Information

• Product Type: 2 Port Motorised Valve (Zone Valve)
• Valve Size: 22mm compression fitting
• Switching Voltage: 230V AC, 50Hz
• Power Consumption: 6W
• Maximum Static Pressure: 8.6 bar
• Maximum Differential Pressure: 0.8 bar (22mm model)
• Liquid Temperature Range: 5°C – 88°C
• Operating Temperature: -10°C to +60°C
• Protection Class: IP20 (for indoor use)
• Opening Time: approx. 14 seconds
• Closing Time: approx. 3 seconds (spring return)
• Maximum Load: 3A
• Dimensions: Height 82 mm x Width 55 mm x Depth 60 mm
• Cable: 1 metre, industry standard colour coding
• Compatible Bodies: Detachable head for Honeywell and other industry-standard valve bodies
• Manual Lever: Yes (with position indicator)
• Warranty: 5 years

Suitable For

• Individually controlling heating or hot water zones in S and C plan domestic central heating systems
• Replacement for existing 22mm two-port zone valves (including Honeywell compatible)
• Retrofitting with minimal hassle due to universal fit and detachable actuator

Key Features

• Removable actuator for easy servicing or replacement—no need to drain down system
• Industry-standard colour coded wiring for simple installation
• Manual lever and visible position indicator, ideal for system testing or manual override
• Spring return for automatic closure on power loss or system shutdown

Package Contents

• Salus PMV22 2 Port Motorised Valve (22mm)
• Detachable actuator head with 1m cable
• Compression nuts and olives
• Installation and wiring instructions
