TapBoost Single Outlet Booster 7-11 L/min

Description

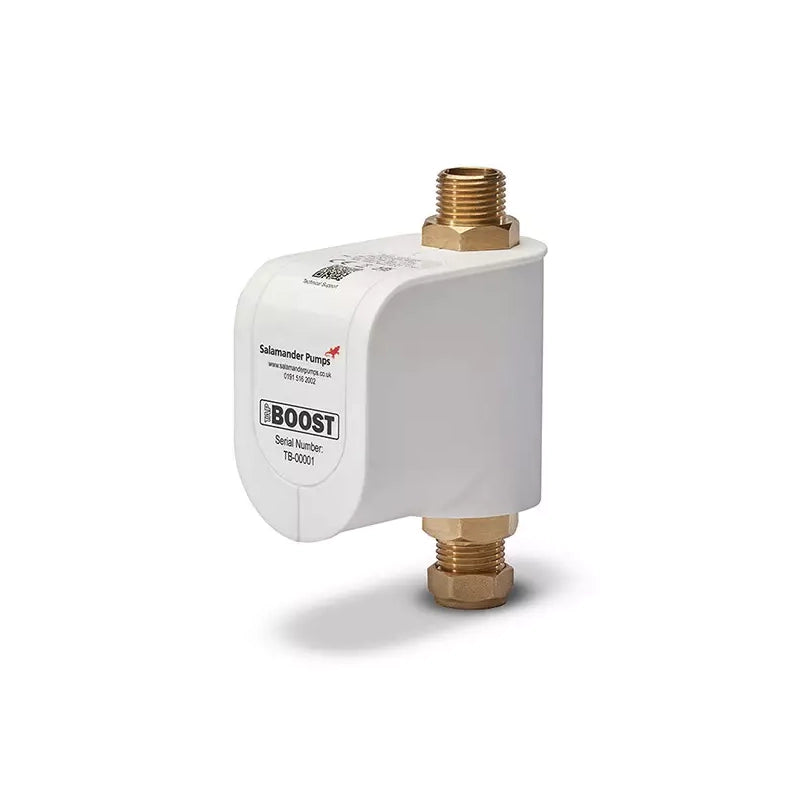

The Salamander TapBoost (TBS15) is a compact inline booster pump for a single outlet, such as a tap, toilet cistern, dishwasher, washing machine or suitable electric shower, that suffers from weak flow. It lifts flow to between 7 and 11 L/min depending on incoming flow, activates from just 1.2 L/min of natural flow, and works on mains or gravity-fed systems.

Intelligent flow sensing starts the pump when the outlet opens and idles it once flow reaches 11 L/min, keeping output within the Water Supply (Water Fittings) Regulations 1999. It runs on 12 V DC from a plug-in power supply (18 W maximum) at 34.2 dBA, with an integrated non-return valve, a 15 mm compression inlet and a 1/2" BSP male outlet. It is WRAS approved and NSF REG4 certified with a 2-year manufacturer's warranty.

7–11 L/min

Boosted output

1.2 L/min

Min. natural flow

18 W

Max pump power

34.2 dBA

Noise rating

4–60°C

Water temperature

2 years

Manufacturer warranty

Key notes before you specify

Electrical safety and bathrooms

The pump and its power supply must be installed indoors and protected from frost. In a bathroom or shower room the pump may be fitted within Zone 2, but the power supply unit (IPX0) must be beyond Zone 2, ideally outside the room, with the plug outside the bathroom and protected from water and moisture. Use only the power supply and mains cable supplied. If unsure, consult a qualified electrician.

Know the limits

Single outlet only. TapBoost cannot overcome restricted incoming pipework, such as a lead main, or naturally restrictive outlets, and some combi boilers and electric showers are already at their maximum flow. On an unvented system fit it to cold-water outlets only, never to hot water from an unvented cylinder. A natural flow of at least 1.2 L/min is needed to activate the pump.

Reading the status LED

Steady blue (for 5 minutes): power on, outlet closed. Fast flashing: boosting. Slow pulsing: idle, incoming flow is 11 L/min or more. No light: standby for over 5 minutes, or no power. The power supply has a green LED that lights when powered.

Key features

1

Boosts a single outlet to 7–11 L/min

Raises flow to a tap, cistern, dishwasher or washing machine to between 7 and 11 L/min, depending on the natural flow arriving at the pump.

2

Starts from 1.2 L/min

Activates from a natural flow of just 1.2 L/min and lifts it up to 7 L/min at that minimum, provided there are no restrictions.

3

Hot or cold, mains or gravity

Suits mains and gravity-fed systems, on hot or cold outlets in combi systems, and on cold outlets only from unvented cylinders.

4

Very quiet and compact

Runs at 34.2 dBA in a 95 x 53 x 124 mm inline body that fits under a sink or in a tight space.

5

Built-in protection

Integrated non-return valve and a pre-fitted inlet filter with a spare supplied, plus IPX4 pump protection.

6

Certified for UK installations

WRAS 2212032, NSF REG4 certified, UKCA and CE marked, and complies with the Water Supply (Water Fittings) Regulations 1999.

Technical specification

Performance

Boosted output flow rate

7 to 11 L/min (varies with incoming flow)

Minimum flow for activation

1.2 L/min

Maximum head

5 m (0.5 bar)

Maximum inlet pressure

10 bar (1000 kPa)

Water temperature

4°C to 60°C

Duty rating

Continuous

Connections

Inlet

15 mm compression

Outlet

1/2" male BSP

Backflow protection

Integrated non-return valve

Electrical

Pump supply

12 V DC from supplied power supply

Maximum pump power

18 W

Full load current

1.5 A

Power supply input

100 to 240 V AC, 50/60 Hz, 1.5 A

Power supply output

12 V DC, 60 W, 5.0 A

Mains plug

UK 3-pin plug with 3 A fuse

Pump protection

IPX4

Power supply protection

IPX0, keep dry

Dimensions, weight and noise

Pump dimensions

95 x 53 x 124 mm (without inlet nut)

Pump weight

0.6 kg

Power supply dimensions

145 x 52 x 34 mm

Power supply weight

0.4 kg

Noise rating

34.2 dBA

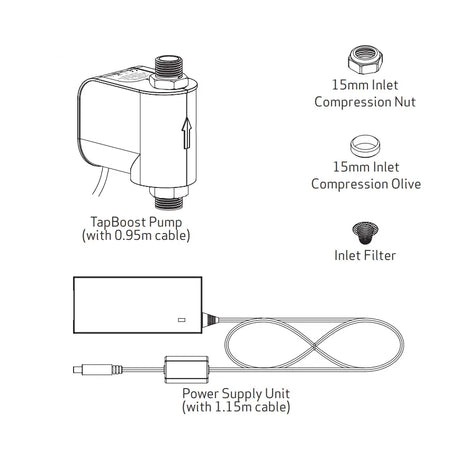

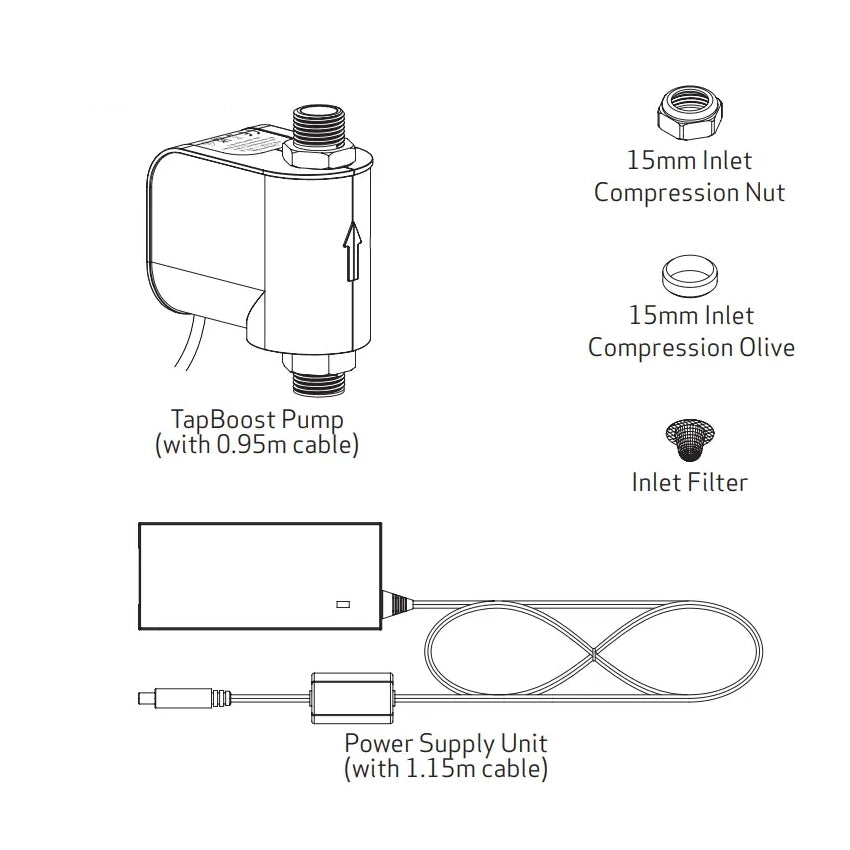

In the box

Pump

1 x TapBoost pump with 0.95 m cable

Power supply

1 x power supply with 1.15 m cable and 1.9 m mains cable

Fittings

1 x 15 mm inlet compression nut and olive

Filter

1 x spare inlet filter (one pre-fitted)

Approvals and identification

Approvals

WRAS 2212032, NSF REG4, UKCA and CE

Manufacturer warranty

2 years (register within 15 days of purchase)

Manufacturer part number

TBS15

EAN

5055070819163

Frequently asked questions

Can TapBoost boost more than one outlet?

No. It is designed for a single outlet. If several outlets in a mains-fed system have poor flow, a larger inline pump or an accumulator is the better choice; in a gravity-fed system, a bathroom or whole-house pump.

Can I fit it to hot and cold supplies?

Yes on combi boiler systems, hot or cold, and on gravity-fed systems, provided there is at least 1.2 L/min of natural flow. On unvented cylinder systems it must only be fitted to cold-water outlets, never to hot water from the cylinder.

Is it suitable for an electric shower?

Sometimes. Some electric showers are restrictive and may already be delivering their maximum flow, in which case TapBoost will not help. Check the shower manufacturer's figures and Salamander's installation manual for the limitations.

Can it be installed in a bathroom or used on drinking water?

The pump can go in Zone 2 of a bathroom, but the power supply and plug must be outside the zones and protected from moisture. It is suitable for outlets supplying drinking water, such as kitchen taps.

How should I install it?

Fit it indoors, close to the outlet, with the flow arrow pointing the right way. Vertical gives the best performance, horizontal is acceptable, and never upside down. Use rigid, supported pipework (not hose sets) on mains water, complete soldering first, and add an isolating valve on the inlet.

What maintenance does it need?

If performance drops, check and clean the inlet filter, and swap in the spare if needed. There are no other user-serviceable parts. In hard-water areas Salamander advises a water softener after the stop tap.
