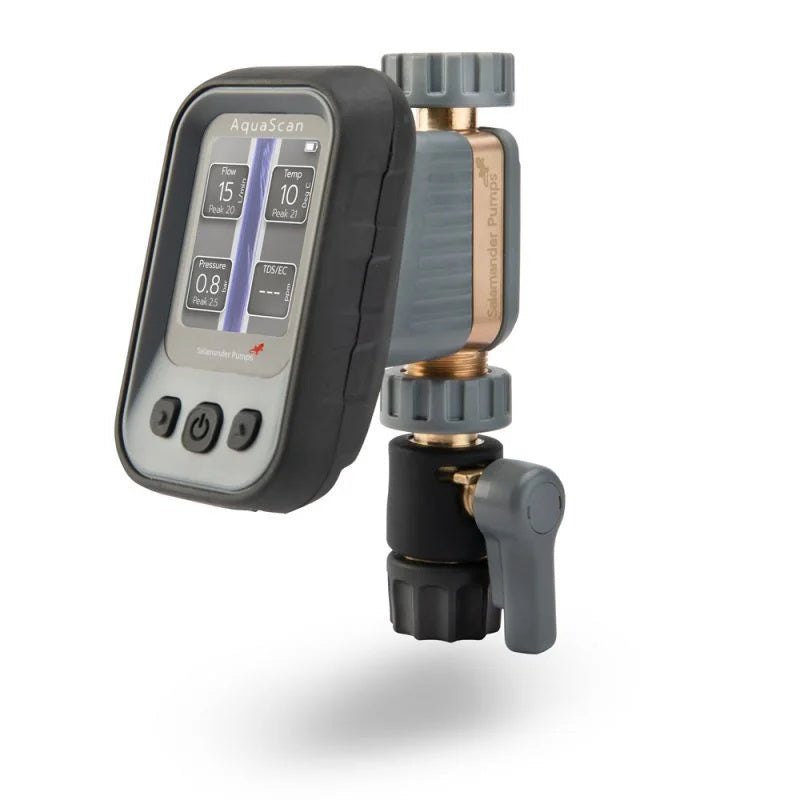

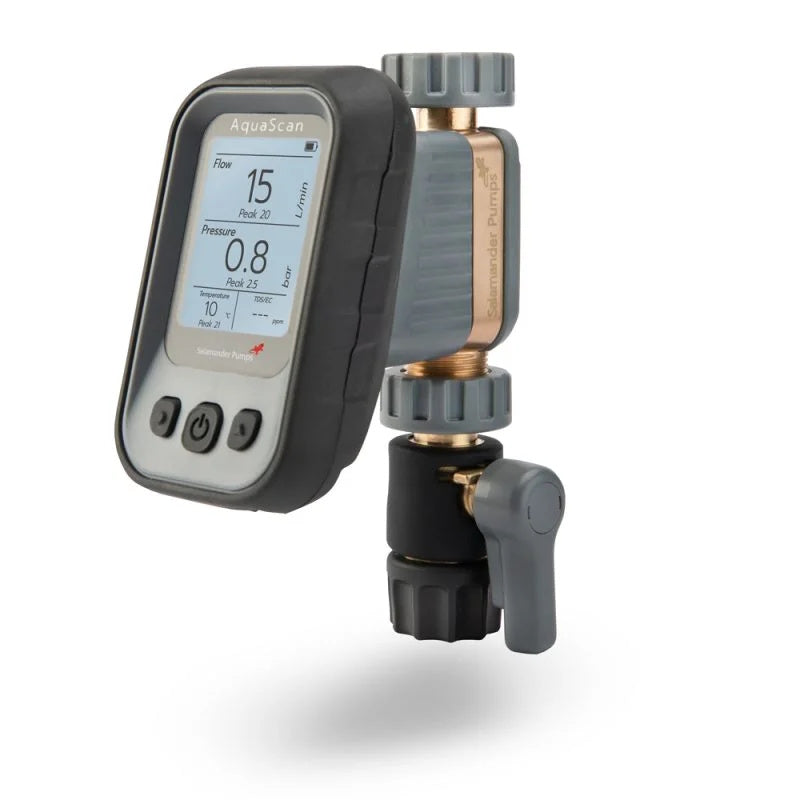

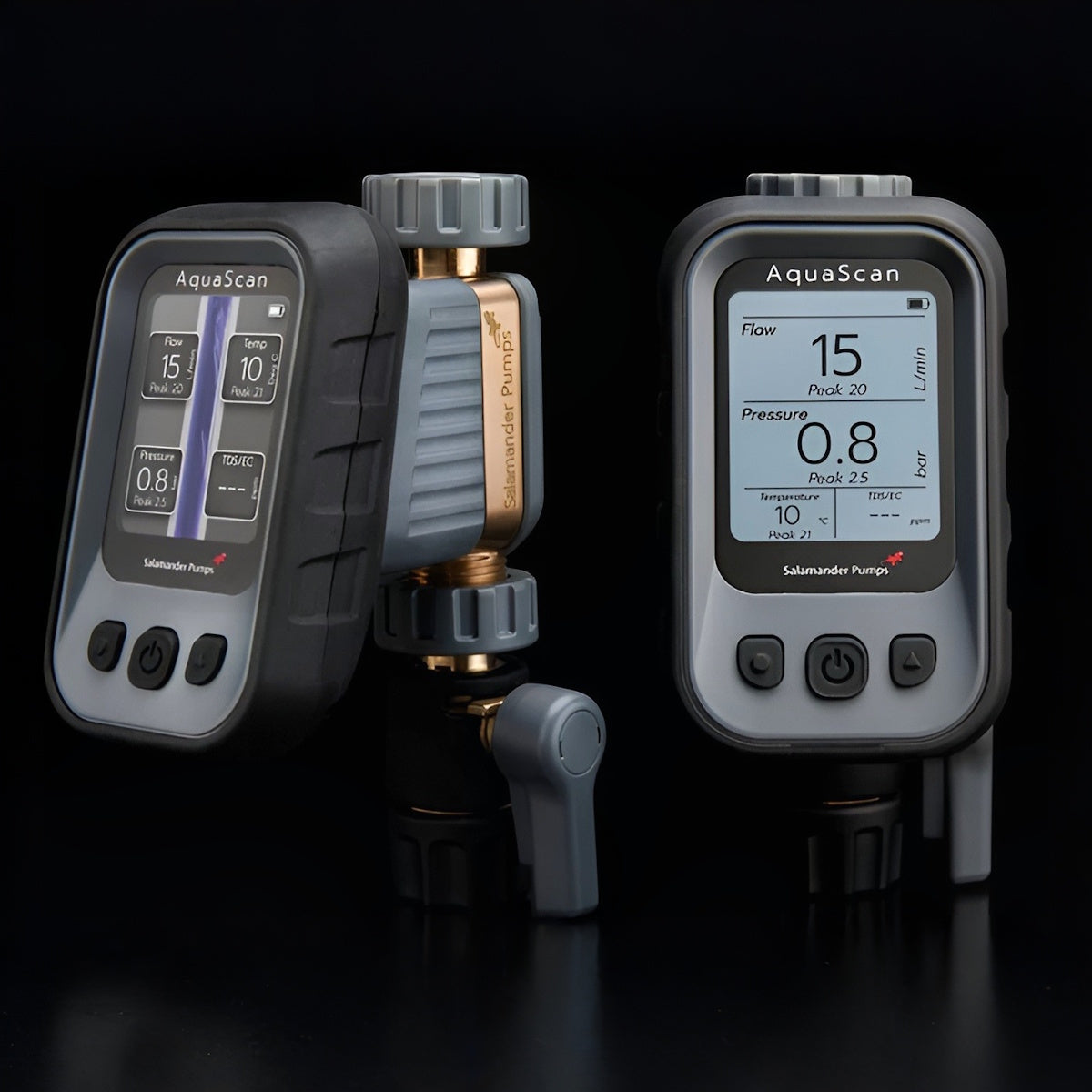

AquaScan 4-in-1 Digital Water Multimeter

Description

The Salamander AquaScan is a 4-in-1 handheld digital water multimeter that measures water flow, pressure, temperature and a hardness indication via total dissolved solids (TDS) in a single, portable unit. It gives installers and plumbers the water insight needed to select the right product for an installation and to diagnose pressure, flow or temperature problems on new or existing systems.

A clear digital display shows live and peak readings, and the brass waterway is built to last on site. AquaScan is rechargeable via USB-C and supplied in a robust protective carry case with a range of connection accessories for taps, showers, pipework and hoses. It is handheld and needs no permanent installation into the pipework. Part number: AQUASCAN. Made in the UK.

4-in-1

Flow, pressure, temp, TDS

0-10 bar

Pressure range

0-30 L/min

Flow range

0-85 °C

Temperature range

0-1000 ppm

TDS hardness indicator

~12 hours

Battery life per charge

Safety: depressurise before disconnecting

Before removing AquaScan from an outlet, open the isolation valve, turn the outlet off and confirm the pressure reads 0.0. When measuring hot water (up to 85 °C), discharge into a suitable container such as a basin or bucket and take care to avoid scalding. Use with clean, potable water only.

Hardness reading is an indication only

TDS gives an indication of hardness, not a full analysis. The water must be static to take a TDS reading (the display shows --- while water is flowing), allow a settling time of at least 30 seconds, and test before any water softener. Where a result is high, a further chemical composition analysis is needed to establish the exact mineral content.

No data logging

AquaScan shows live and peak readings but does not store them. Record results in the specification notepad supplied with the unit.

Works on any installation

A Salamander pump is not required. AquaScan can be used wherever accurate pressure, flow, temperature or hardness measurements are needed.

Key features

4 measurements in 1

Flow, pressure, temperature and a TDS hardness indication in one instrument instead of separate tools.

Live and peak readings

A digital display with three selectable layouts, live and peak values, and a reset button to clear peaks between tests.

Brass waterway

Brass inlet and outlet (3/4 inch female inlet, 3/4 inch male outlet) with an integral isolation valve.

USB-C rechargeable

Integral 2400 mAh lithium polymer battery gives approximately 12 hours of use, with automatic shut-off after 20 minutes.

Complete accessory kit

Robust carry case with connectors, adaptors, a 300 mm flexible hose and a USB-C cable to suit taps, mixers, aerators, showers and pipework.

Award-winning design

Winner of the Pump Industry Awards 2025, iF Design Award 2025 and HPM Awards 2025 Most Innovative Plumbing Product.

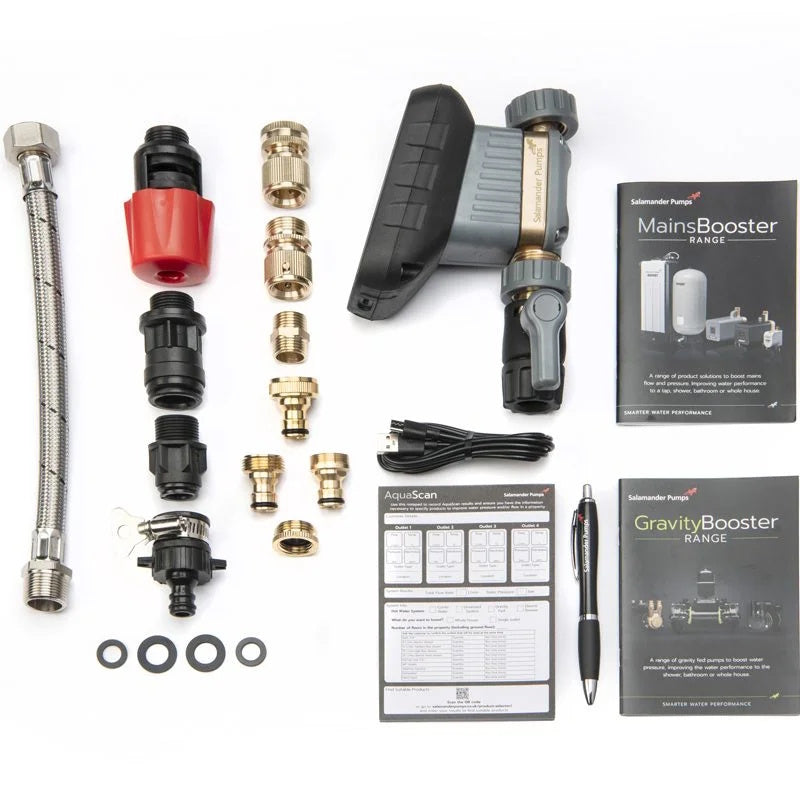

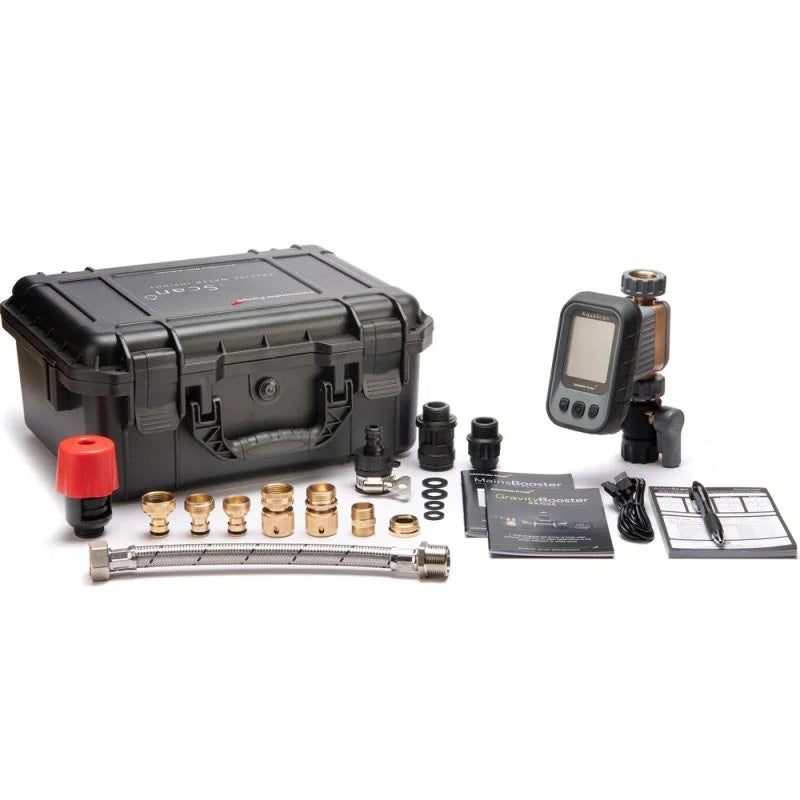

What is in the case

Supplied with AquaScan

• AquaScan unit with integral isolation valve
• USB-C to USB cable, 1 m
• 3/4 inch male thread to hose quick connector
• 3/4 inch female thread to hose quick connector
• 15 mm pipe push-fit to 3/4 inch male thread
• 22 mm pipe push-fit to 3/4 inch male thread
• Mixer tap hose connector
• Single tap to male hose connector
• 3/4 inch thread to 1/2 inch thread adaptor
• 1/2 inch male to male connector
• 3/4 inch and 1/2 inch washers
• Flexible hose, 3/4 inch male and female, 300 mm overall
• 3/4 inch male thread to male hose connector
• 3/4 inch female thread to male hose connector
• Male and female aerator thread to male hose connector
• Specification notepad

Technical specification

General

Brand

Salamander Pumps

Part number

AQUASCAN

Warranty

1 year

Made in

UK

Enclosure protection

IPX5

Media

Clean, potable water

Measurement

Pressure

0-10 bar, accuracy 1.5% of full scale

Flow

0-30 L/min, accuracy 5% of reading

Temperature

0-85 °C, accuracy 1.25% of full scale

TDS (hardness indicator)

0-1000 ppm, accuracy 10% of reading

Connections and display

Inlet connection

3/4 inch female thread (brass)

Outlet connection

3/4 inch male thread (brass)

Waterway material

Brass

Active display size

45 mm wide x 55 mm high

Controls

Power, display and reset buttons

Auto shut-off

20 minutes

Battery and power

Battery type

Lithium polymer, integral and rechargeable

Nominal voltage

3.7 V

Rated capacity

2400 mAh

Battery life

Approximately 12 hours on a full charge

Charging port

USB-C, 5 V charge voltage

Charge time

Up to 7 hours (0.5 A supply)

Dimensions and weight

Unit with isolation valve (H x W x D)

180 mm x 125 mm x 80 mm

Unit weight

1 kg

Case with contents (H x W x D)

370 mm x 300 mm x 170 mm

Case with contents weight

4.2 kg

Frequently asked questions

Do I need a Salamander pump to use AquaScan, and does it need to be installed?

No to both. AquaScan is a portable, handheld unit used at an outlet. It needs no permanent installation into the system and can be used on any installation that needs accurate readings.

How do I measure the incoming mains flow rate?

Connect AquaScan to the outlet, fully open its isolation valve, take three readings from the live flow display and average them. A garden tap is the best location. Where there is no outside tap, open several outlets and add together the flow at each outlet, keeping all of them open.

How do I check pressure?

For a static pressure test, connect to the outlet, let water flow through, close the isolation valve and make sure every outlet in the property is closed, then read the pressure. For a dynamic pressure test, fully open the isolation valve and open the outlet until the required flow rate is reached, then read the pressure. Always confirm the reading is 0.0 before removing the unit.

Can it test hot water temperature?

Yes, up to 85 °C. Discharge into a suitable container, open the outlet fully and let water run through the unit for 30 to 60 seconds for a more accurate reading.

How does the hardness test work?

AquaScan measures total dissolved solids (TDS/EC) to indicate hardness. Close the lever, keep the water static and allow at least 30 seconds to settle. Test before any water softener. It is an indicator only, so further analysis is needed for the exact mineral content.

Can AquaScan save my readings?

No. It displays live readings and also shows peak readings to cover fluctuations during a test. Note results in the specification notepad supplied.
