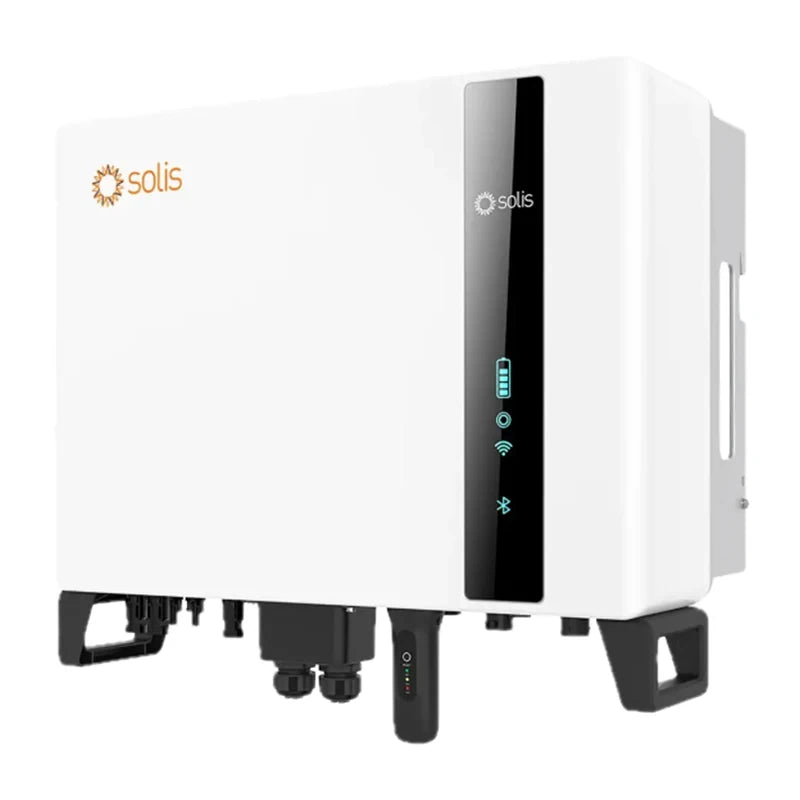

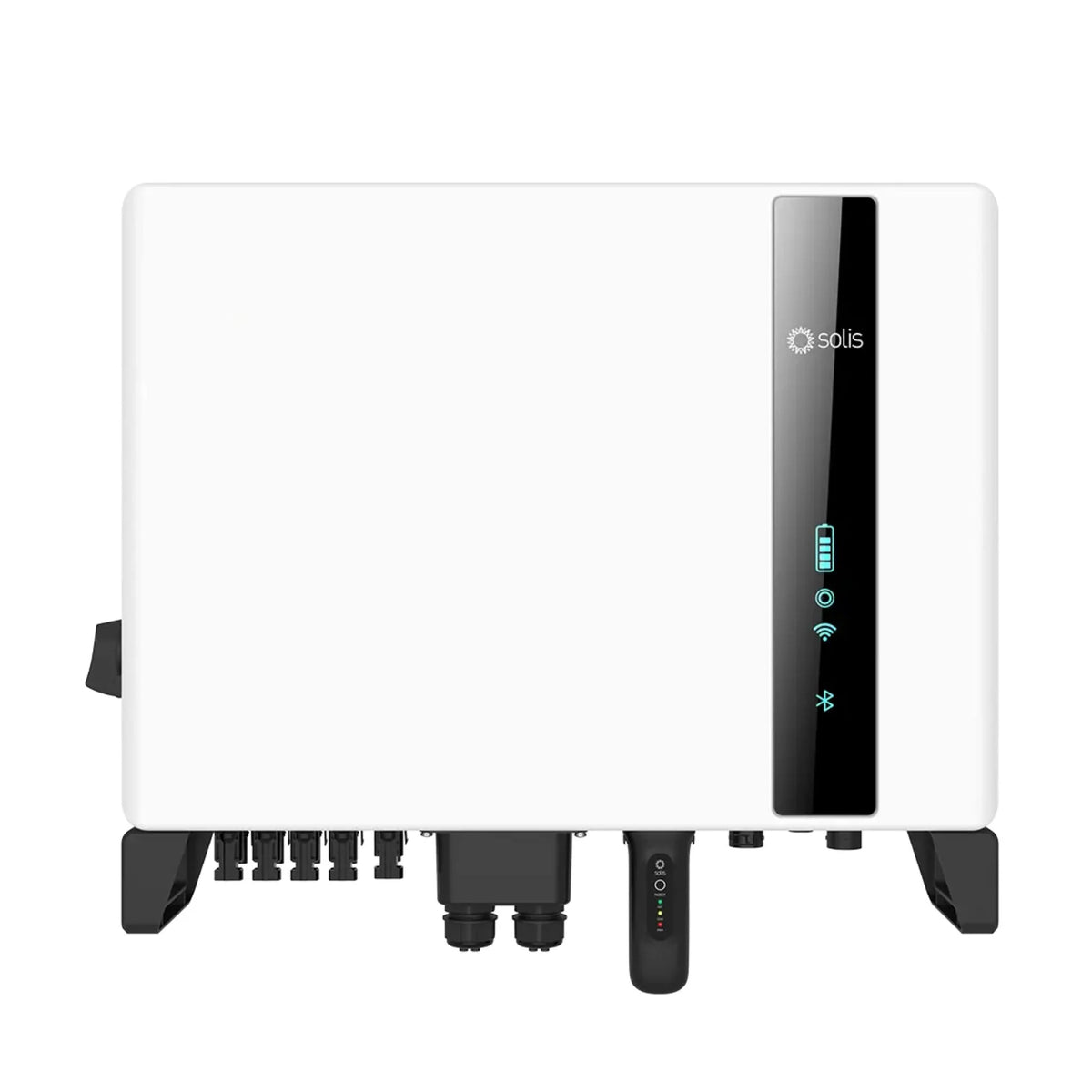

S6 5kW 3PH Hybrid Inverter incl. 3PH meter

The Solis S6 5kW 3PH Hybrid Inverter (incl. 3PH meter) UK (Part No: SOL-S6-EH3P-5.0K-H-UK) is a three-phase hybrid inverter designed for residential and small commercial energy storage systems, offering seamless integration with solar PV and batteries for optimized self-consumption, backup power, and grid compliance, including a 3-phase meter for export limitation.

Product Description

The S6-EH3P-5.0K-H-UK is a low-voltage hybrid inverter with two integrated MPPTs, supporting up to 8 kW PV input and compatible with lithium-ion and lead-acid batteries. It provides automatic UPS switching in under 4 ms, generator connectivity, and smart load management. With parallel operation for up to six units and 200% surge power for 10 seconds, it is ideal for on-grid, off-grid, and microgrid applications. The included 3-phase meter enables accurate monitoring and export control.

Key Features

• Battery compatibility: Supports Li-ion and lead-acid batteries with max 190A charge/discharge.
• Dual MPPT trackers: Wide voltage range for flexible PV configuration.
• UPS function: Automatic switchover <4 ms for seamless backup power.
• Surge capability: 200% overload for 10 seconds.
• Generator compatible: Multiple input methods with automatic On/Off control.
• Parallel operation: Up to 6 units for scalable systems.
• Smart load management: Dual backup ports and microgrid capability.
• Included 3PH meter: Enables export limitation and monitoring.

Technical Specifications

• Model: S6-EH3P-5.0K-H-UK – Three Phase Low Voltage Hybrid Inverter.
• Rated AC power output: 5 kW.
• Maximum AC apparent power: 5 kVA.
• Maximum PV input power: 8 kW.
• MPPT voltage range: 90–435 V.
• Maximum input voltage: 500 V.
• Maximum input current: 32 A / 32 A (per MPPT).
• Battery voltage range: 40–60 V.
• Max charge/discharge power: 5 kW.
• Max charge/discharge current: 190 A.
• Efficiency (max): 97.3%.
• Topology: Transformerless (for PV), high frequency isolation for battery.
• Protection rating: IP66.
• Certifications: G99, IEC standards, etc.

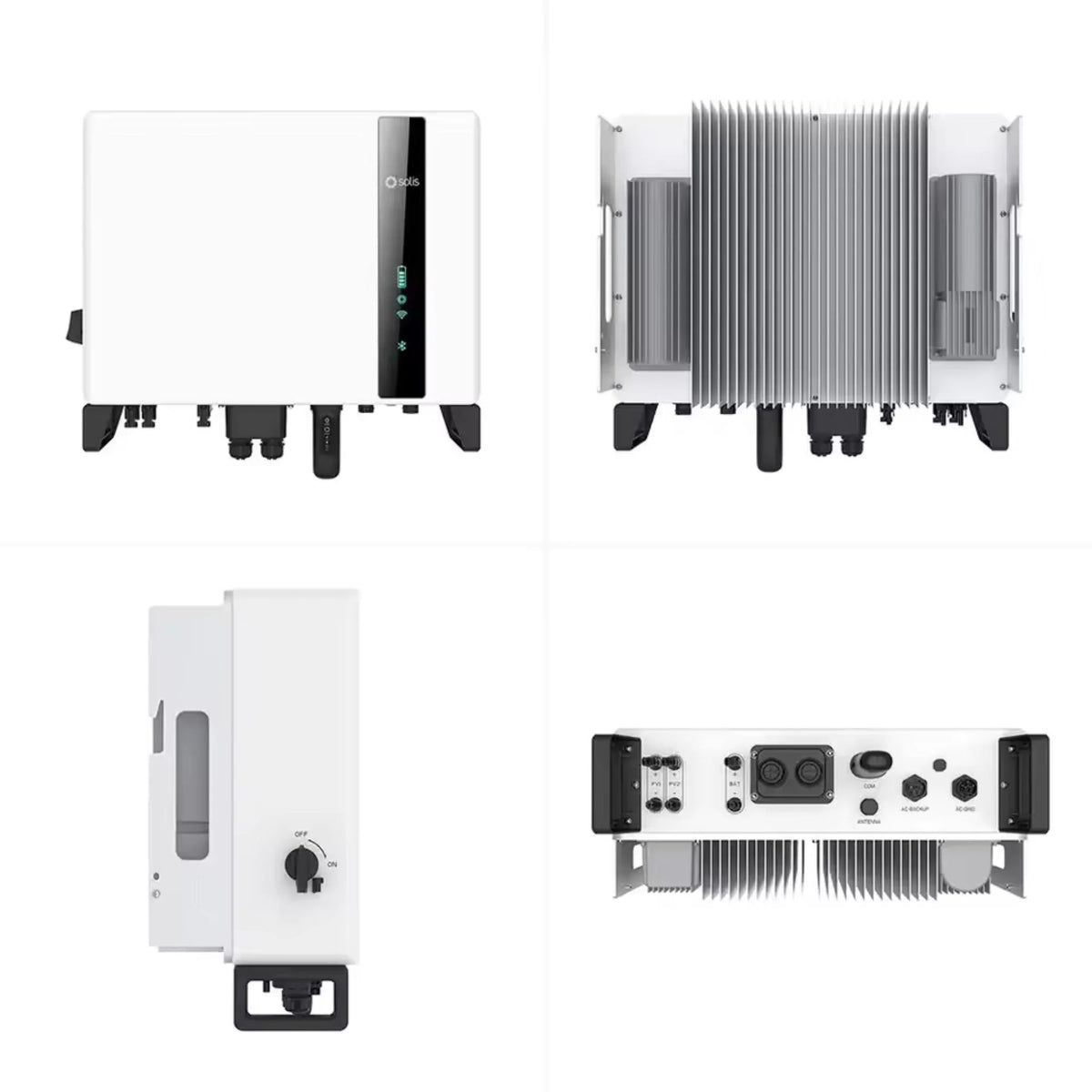

Dimensions & Weights

• Width: 335 mm.
• Depth: 253 mm.
• Height: 560 mm.
• Weight: 23.5 kg.

System & Application Notes

• Ideal for residential PV systems with 10-16 panels, battery-ready for future expansion.
• Compatible with Li-ion and lead-acid batteries, generator input, and microgrid operation.
• Suitable for on-grid, off-grid, and backup applications with smart load management.
• Supports monitoring via Solis app or portal.
• Installation by qualified solar professionals following Solis guidelines and local regulations.
• Warranty: 5 years standard (extendable).
