RWC 2 Port 22mm Zone Valve

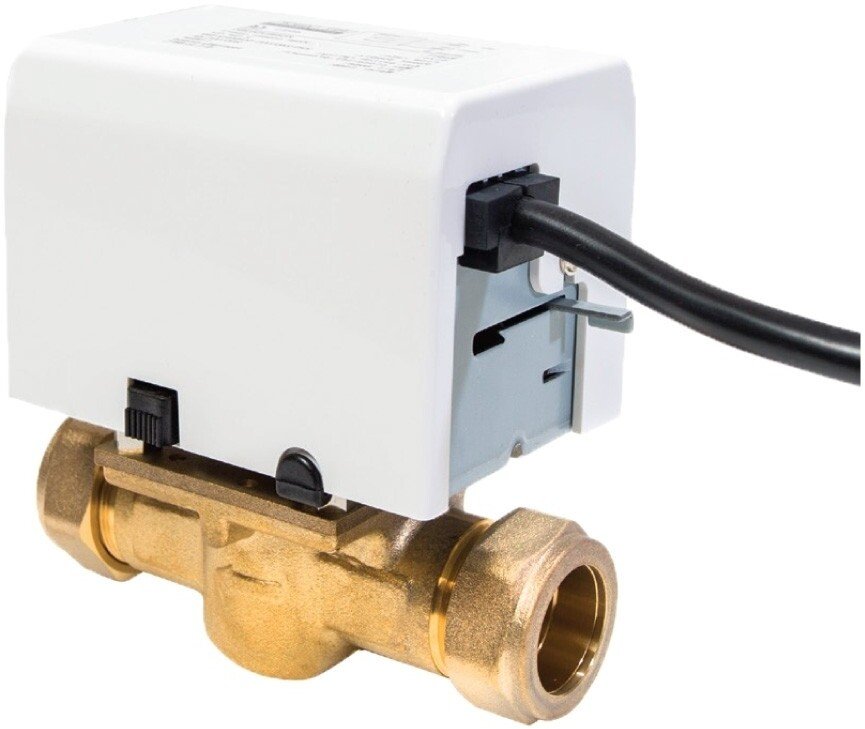

The RWC 2 Port 22mm Zone Valve is a high-quality, motorised valve designed for precise control of water flow in domestic and light commercial central heating and hot water systems. With a detachable actuator head, robust metal manual lever, and industry-standard wiring, it is suitable for new installations and direct replacement of most leading brands.
Key Features
- 22mm compression connections for easy integration with standard pipework
- Clip-on detachable actuator head with pre-moulded cable for quick servicing
- Metal manual operating lever for filling, draining, or system override
- Retrofit actuator head compatible with other manufacturers’ valve bodies
- Spring return (energise to open, spring to close) for safety and reliability
- Auxiliary switch for boiler or pump control
- Suitable for hot water and central heating use only
Technical Specifications
| Product Code | ZONE250305 |
|---|---|
| Connection Size | 22mm compression |
| Number of Ports | 2 |
| Power Supply | 230V AC, 50Hz |
| Max. Differential Pressure | 0.69 bar |
| Max. Static Pressure | 6.0 bar |
| Water Temperature Range | 5°C to 88°C |
| Manual Override | Yes (metal lever) |
| Actuator Head | Clip-on, detachable, pre-wired |
| Auxiliary Switch | Yes |
| Suitable For | Hot water and central heating |
| Warranty | 1 year (subject to manufacturer’s T&Cs) |
Typical Applications
- Central heating zone control
- Hot water cylinder isolation
- Multi-zone heating systems
Choose the RWC 2 Port 22mm Zone Valve for reliable, efficient, and easily serviceable control of your heating and hot water zones.
