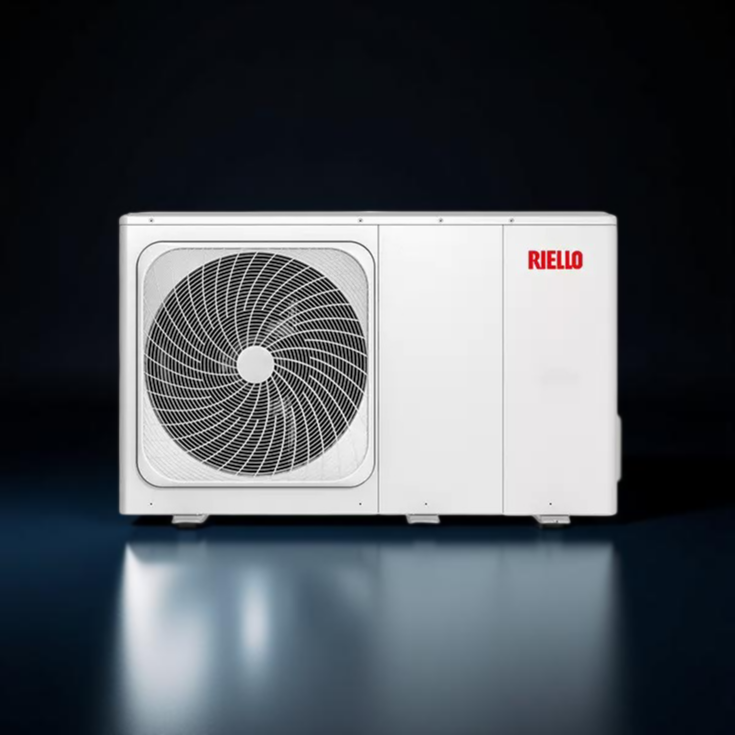

Riello NXHM 4kW Monobloc Air to Water Heat Pump Single Phase, R32

Description

Riello NXHM 4kW Monobloc Air to Water Heat Pump (Single Phase, R32)

The Riello NXHM 4kW Monobloc Air Source Heat Pump is a compact, ultra-efficient solution for small homes and apartments. Using environmentally friendly R32 refrigerant and advanced inverter technology, it delivers reliable heating, cooling, and domestic hot water with minimal noise and maximum efficiency.

Key Features

• Nominal heating capacity: 4.2kW
• Energy class: A+++ (35°C) / A++ (55°C)
• R32 refrigerant for low GWP and high performance
• Maximum flow temperature: 65°C
• Silent operation: 55 dB(A)
• Integrated control board and primary pump
• Blue-Fin anti-corrosion coil for durability and efficiency
• Compatible with underfloor heating, radiators, fan coils, and DHW cylinders
• Cascade-ready: connect up to 6 units
• Easy installation and MCS certified
• 7-year warranty (subject to registration)

Technical Specifications

Output	4.2kW
SCOP (35°C)	4.66
Refrigerant	R32 / 1.4kg
Max Flow Temp	65°C
Operating Temp Range	-25°C to +35°C
Water Connections	1” BSPP Male
Electrical Supply	220–240V, Single Phase
Dimensions (HxWxD)	792 × 1295 × 429 mm
Weight	98 kg
EAN	8018000405093
