Riello NXHM 16Tkw Three Phase Monobloc Air Source Heat Pump (14kW, R32)
Exc. VAT
Inc. VAT
Regular price
£5,800.00
(Inc. VAT)
inc. VAT
FREE Express Delivery (1-3 days) in UK Mainland on most orders
Excluding: Solar Panels (£59 delivery), Batteries (£49 delivery), Small Items (£4.95 delivery)
Next Working Day Delivery options if ordered before 12.00 pm — Contact Us
Same-day Delivery options — Contact Us
Click & Collect available — Contact Us
Custom quote available on request
*See checkout or shipping policy for full details
Payment options

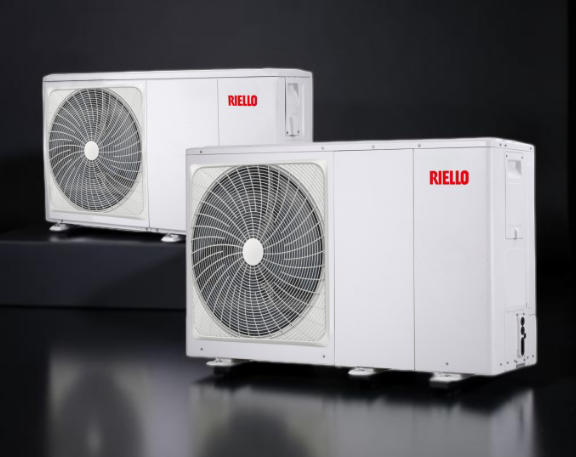

Riello NXHM 16Tkw Three Phase Monobloc Air Source Heat Pump (15.9kW, R32)
The Riello NXHM 16Tkw Three Phase Monobloc is engineered for large homes and light commercial applications. It features advanced inverter control, R32 refrigerant, and a Blue-Fin coil for long-term reliability and high efficiency, even in low outdoor temperatures.
Key Features
- Nominal heating capacity: 15.9kW
- Energy class: A+++ (35°C) / A++ (55°C)
- R32 refrigerant
- SCOP: 4.49 (35°C)
- Max flow temperature: 55°C
- Blue-Fin anti-corrosion coil
- Integrated inverter-driven pump and control board
- Silent operation
- Cascade-ready (up to 6 units)
- 7-year warranty (registration required)
Technical Specifications
| Heating Output | 15.9kW |
|---|---|
| SCOP (35°C) | 4.49 |
| Refrigerant | R32 |
| Max Flow Temp | 55°C |
| Water Connections | 1” BSPP Male |
| Electrical Supply | 400V, Three Phase |
| Dimensions (HxWxD) | 945 × 1385 × 526 mm |
| Weight | 160 kg |
| EAN | 8018000403716 |
- Type Air Source Heat Pumps
- Vendor Riello
- SKU NXHM16T
