Riello NXHM 12kW Monobloc Air to Water Heat Pump Single Phase, R32
Exc. VAT
Inc. VAT
Regular price
£3,770.00
(Inc. VAT)
inc. VAT
FREE Express Delivery (1-3 days) in UK Mainland on most orders
Excluding: Solar Panels (£59 delivery), Batteries (£49 delivery), Small Items (£4.95 delivery)
Next Working Day Delivery options if ordered before 12.00 pm — Contact Us
Same-day Delivery options — Contact Us
Click & Collect available — Contact Us
Custom quote available on request
*See checkout or shipping policy for full details
Payment options

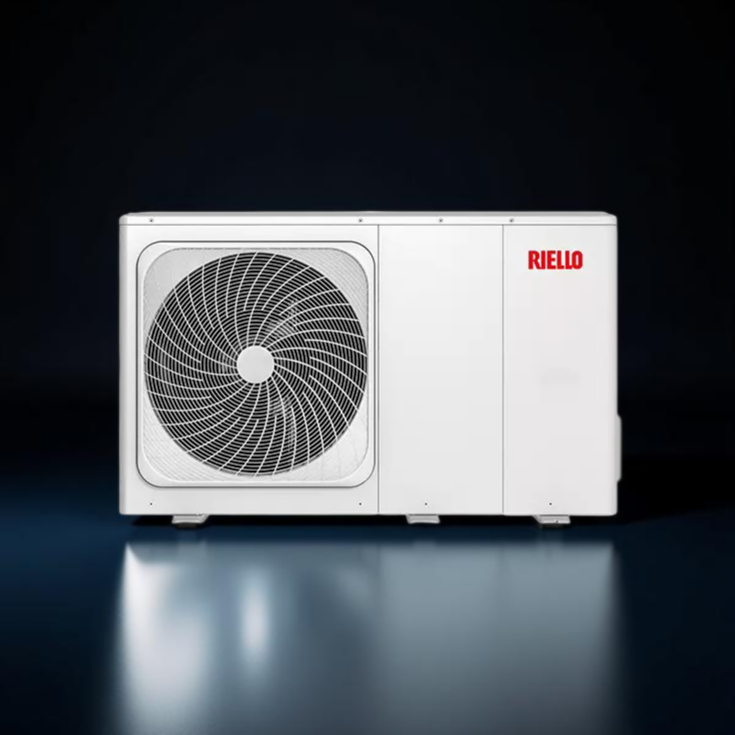

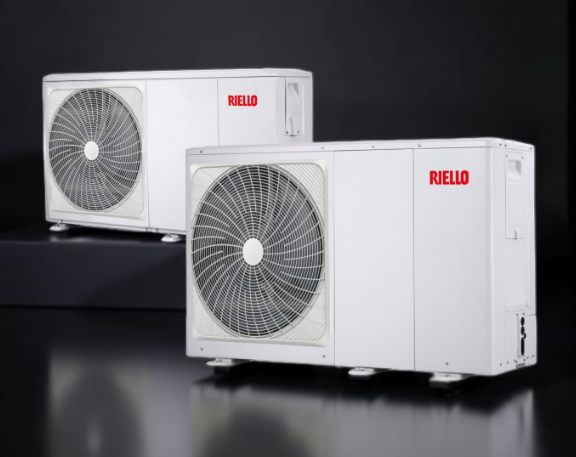

Riello NXHM 12 S1 Monobloc Air to Water Heat Pump (12.2kW, R32)
The Riello NXHM 12 S1 Monobloc is engineered for larger homes or small commercial spaces, providing powerful, efficient heating, cooling, and hot water. Its robust build and advanced controls ensure optimal performance year-round.
Key Features
- Nominal heating capacity: 12.2kW
- Energy class: A+++ (35°C) / A++ (55°C)
- R32 refrigerant
- Max flow temperature: 65°C
- Blue-Fin anti-corrosion coil
- Integrated pump and controls
- Silent operation
- Flexible for underfloor, radiators, fan coils, DHW
- Cascade-ready (up to 6 units)
- 7-year warranty (registration required)
Technical Specifications
| Heating Output (A7/W35) | 12.2kW |
|---|---|
| SCOP (35°C) | 4.60 |
| Refrigerant | R32 / 1.4kg |
| Max Flow Temp | 65°C |
| Water Connections | 1” BSPP Male |
| Electrical Supply | 220–240V, Single Phase |
| Dimensions (HxWxD) | 792 × 1295 × 429 mm |
| Weight | 98 kg |
- Type Air Source Heat Pumps
- Vendor Riello
- SKU NXHM12
