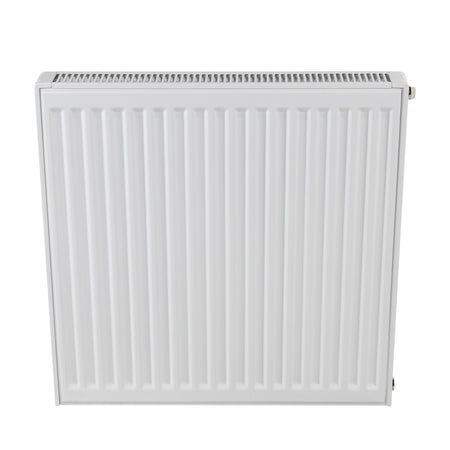

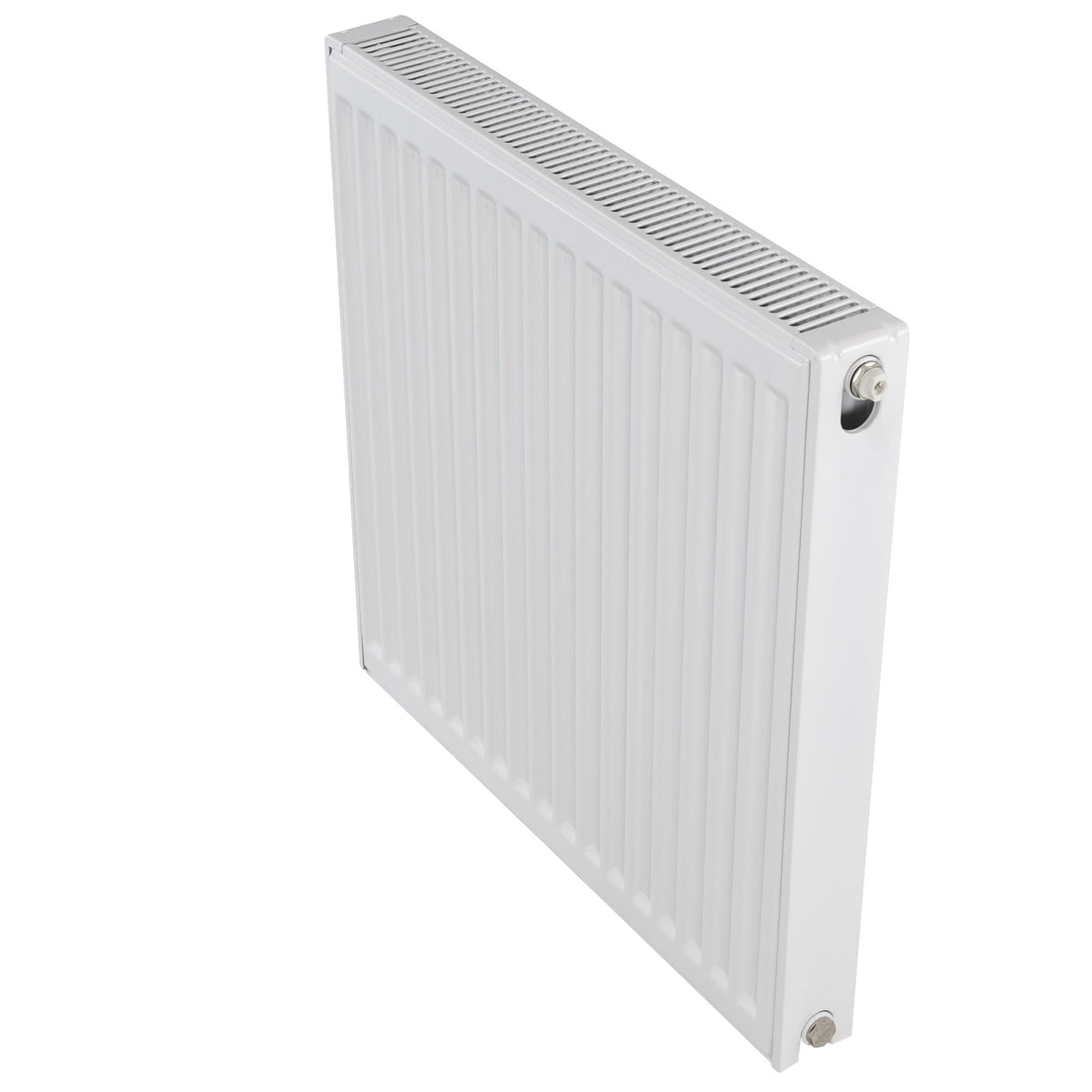

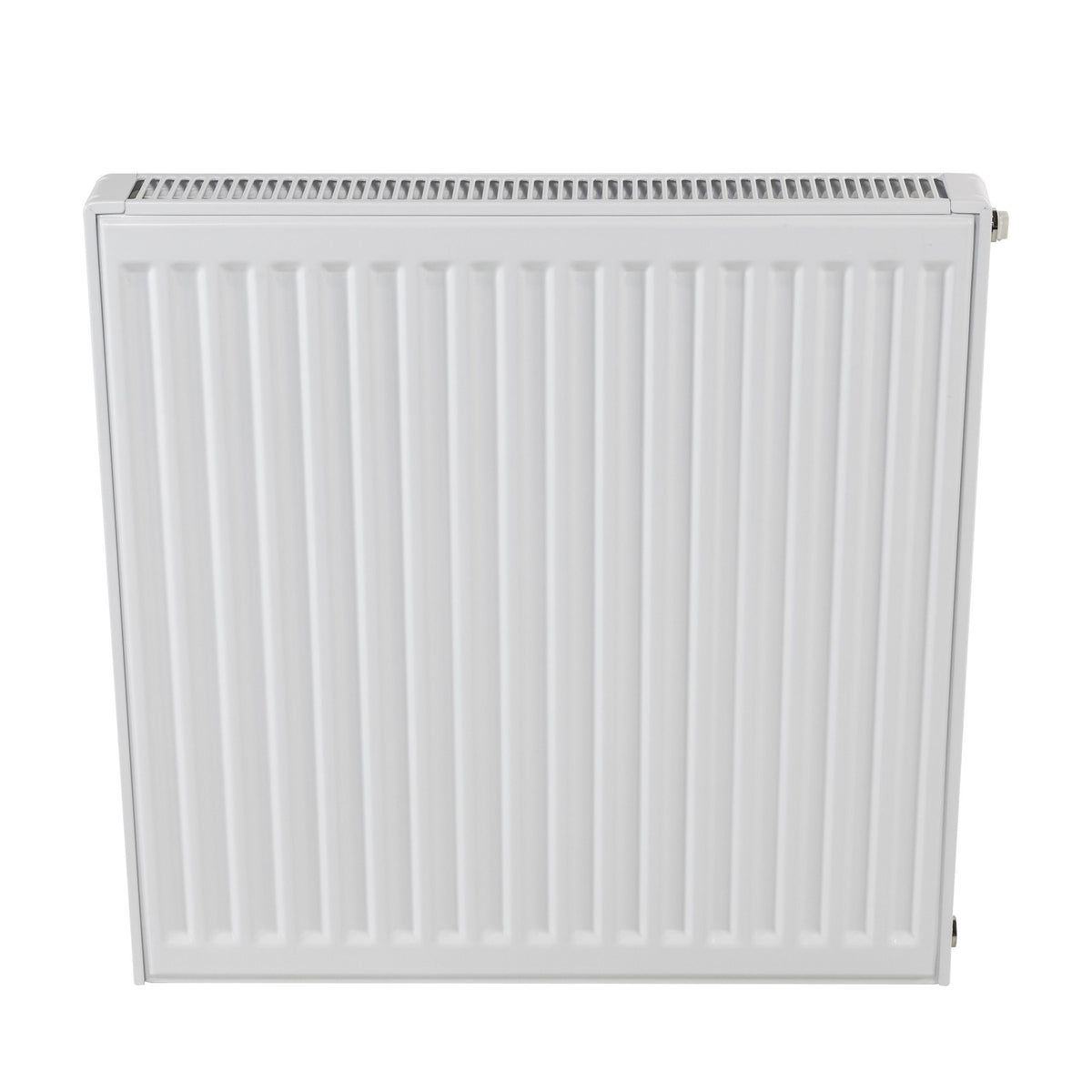

The Revive2 600mm x 1400mm P+ Compact Radiator is a double panel, single convector (Type 21) central heating radiator that delivers an impressive 1909W (6513 BTU/h) at the industry-standard Delta T50 test condition — strong enough for larger rooms while keeping the depth down to a slim 100mm, well short of a full K2 double convector.
Finished in durable powder-coated white (RAL 9016) with side-entry connections, the P+ compact suits domestic and light commercial installations on standard wet central heating systems, including living rooms, dining areas and open-plan spaces where strong output is needed without a deep-projecting radiator on the wall.
1909W
Heat Output
6513
BTU/h
600mm
Height
1400mm
Length
P+ / Type 21
Configuration
10 Year
Warranty
Good to Know
Heat output for this size (1909W / 6513 BTU/h) is the figure listed for this exact Revive2 model at the BS EN 442 Delta T50 test condition (mean water temperature 70°C against a 20°C room). Always confirm the exact figure on your order confirmation before final room heat-loss calculations.
Double Panel, Single Convector
P+ (Type 21) construction: two full steel panels with a single convector fin between them, giving higher output than a K1 single-panel radiator without the extra depth of a K2.
Strong Output From a Slim Depth
At just 100mm deep, this radiator delivers 1909W (6513 BTU/h) - enough for larger rooms without the bulk of a deeper double convector model.

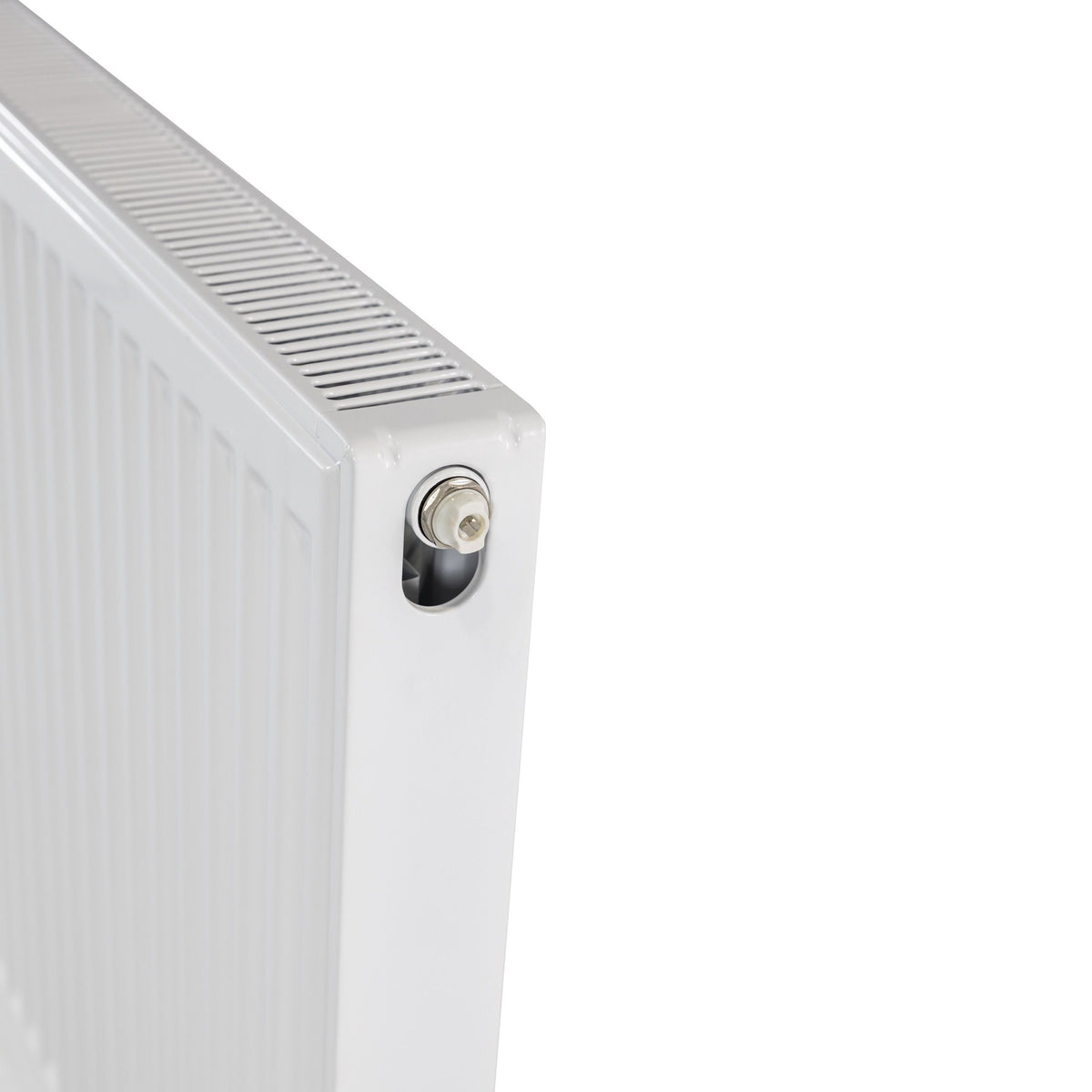

Side-Entry Connections
Side entry connections give flexible installation options to suit different pipework layouts.
BS EN 442 Tested
Manufactured and tested to BS EN 442, the harmonised European standard for radiator heat output, pressure and safety performance.
10 Bar Rated
Rated to a maximum operating pressure of 10 bar, giving it headroom for pressurised and unvented central heating systems as well as standard open-vent setups.
10-Year Manufacturer Warranty
Backed by a 10-year warranty against manufacturing defects, giving long-term peace of mind on a radiator built for everyday use.

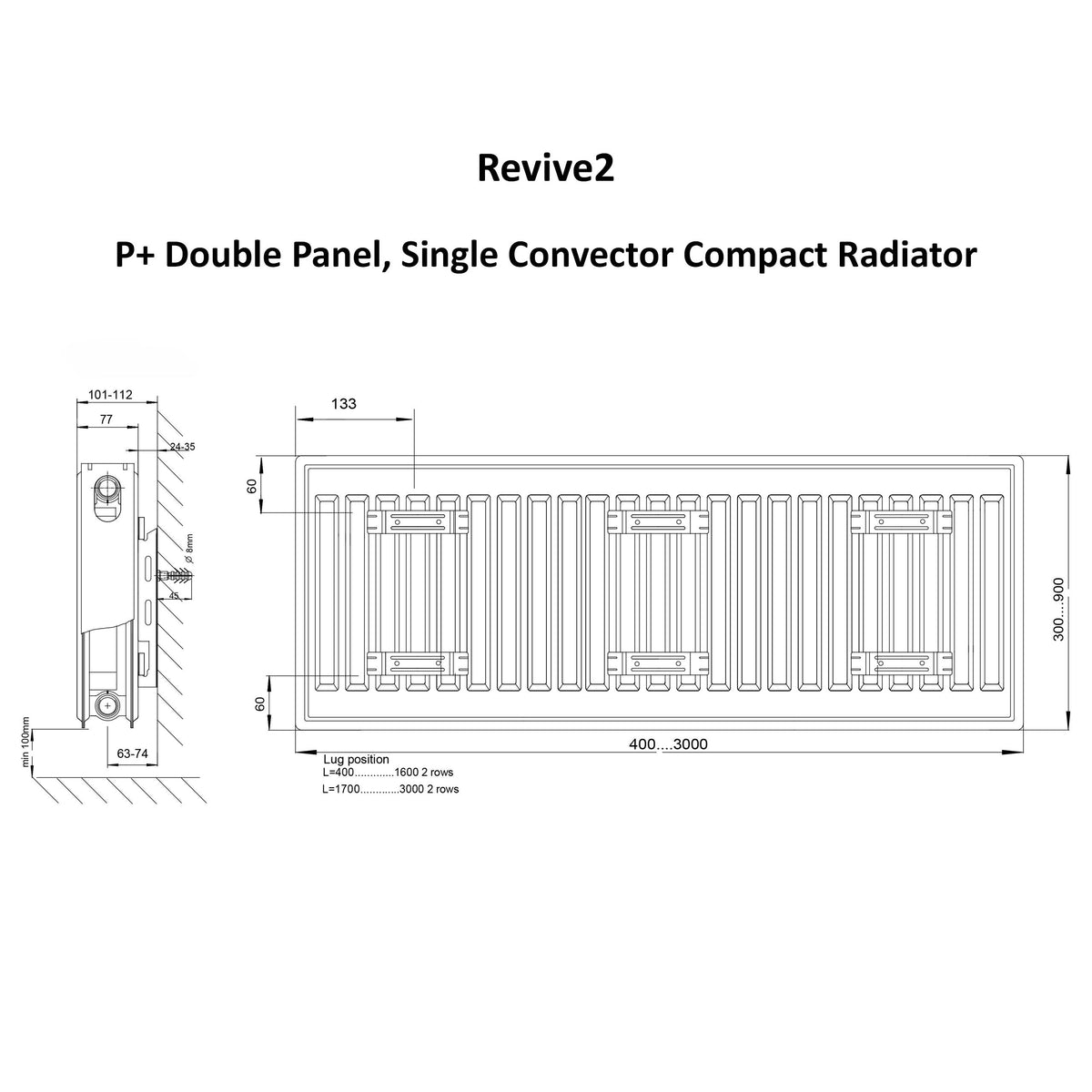

Dimensions
Height
600mm
Length
1400mm
Depth
100mm
Valve distance
101mm to 112mm
Wall to pipe distance
63mm or 74mm
Performance
Heat output (Watts)
1909W
Heat output (BTU/h)
6513 BTU/h
Test standard
BS EN 442, Delta T50
Water content
31.101 litres
Construction
Configuration
P+ / Type 21 - double panel, single convector
Brand
Revive2
Finish
White RAL 9016
Connection type
Side entry
What's included
Radiator valves
Not included - select compatible valves separately
Identification
MPN
80260017825
EAN
8698284025660
Warranty
Manufacturer warranty
10 years (subject to manufacturer's terms)
Is this a P+ or Type 21 radiator?
Both terms describe the same construction. "P+" and "Type 21" are interchangeable industry names for a double panel, single convector radiator - two full steel panels with one convector fin between them, giving higher output than a K1 (Type 11) single panel radiator, in a shallower body than a K2 (Type 22) double convector.
What size room will this radiator heat?
At 1909W (6513 BTU/h), this size suits a larger living room, dining space or open-plan area. Actual suitability depends on room volume, insulation standard, window area and target temperature, so we'd recommend running a proper heat-loss calculation for your specific room before ordering.
What does 'side entry' connection mean?
Side entry means the radiator's pipework connections are positioned at the sides rather than the bottom, which can suit certain pipework layouts and give more flexible installation options depending on where your pipes run.
Does it come with a valve?
No. Radiator valves are sold separately so you can choose the type that suits your system - manual, thermostatic (TRV), or angled/straight/corner pattern to match your pipework.
Can this be used with a heat pump?
P+ compact radiators can be used on heat pump systems, but because heat pumps run at lower flow temperatures than a gas boiler, the actual heat output will be lower than the BS EN 442 Delta T50 figure quoted here. For heat pump installations, always size radiators against the manufacturer's low-temperature output data (typically Delta T30) rather than the standard Delta T50 rating.
