Renusol VarioSole+ Mounting Rail 50x37x3600mm - REN-400570 | Aluminium Pitched Roof Solar Rail

Description

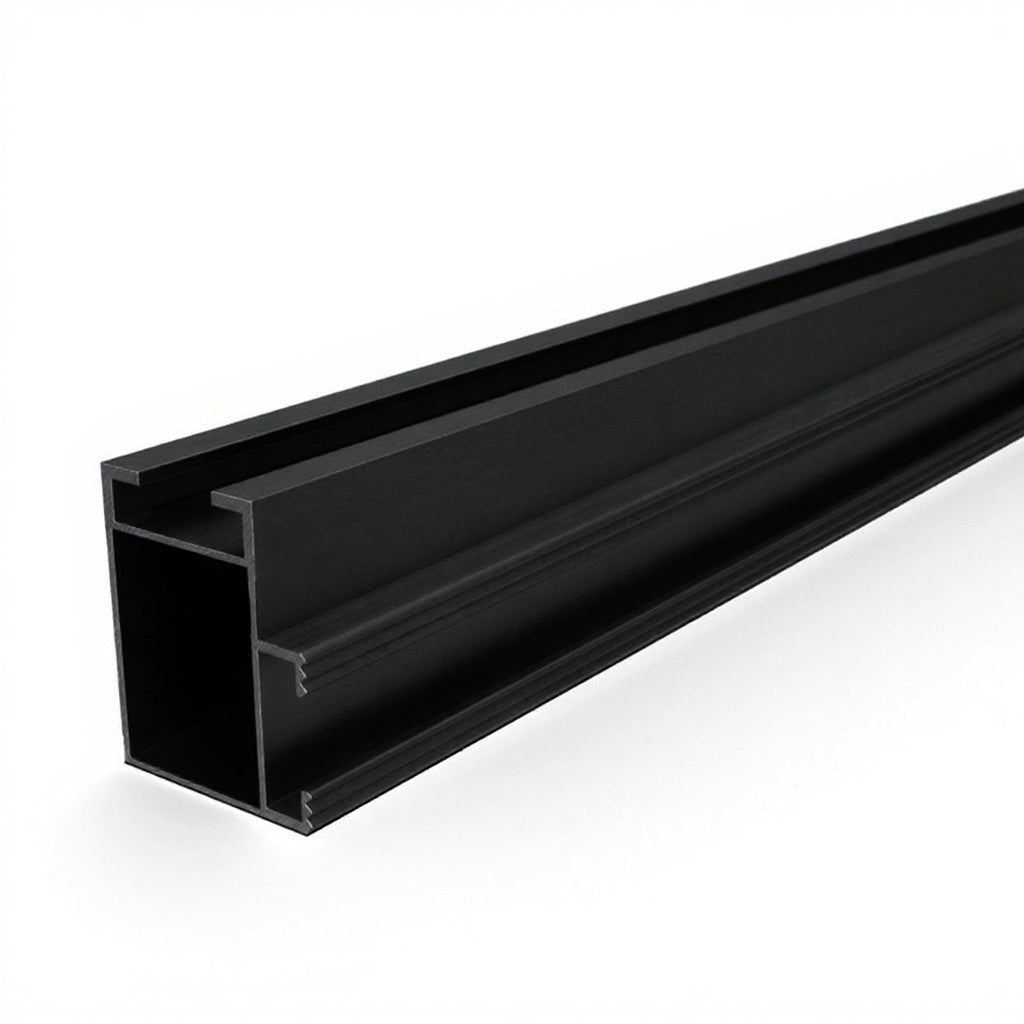

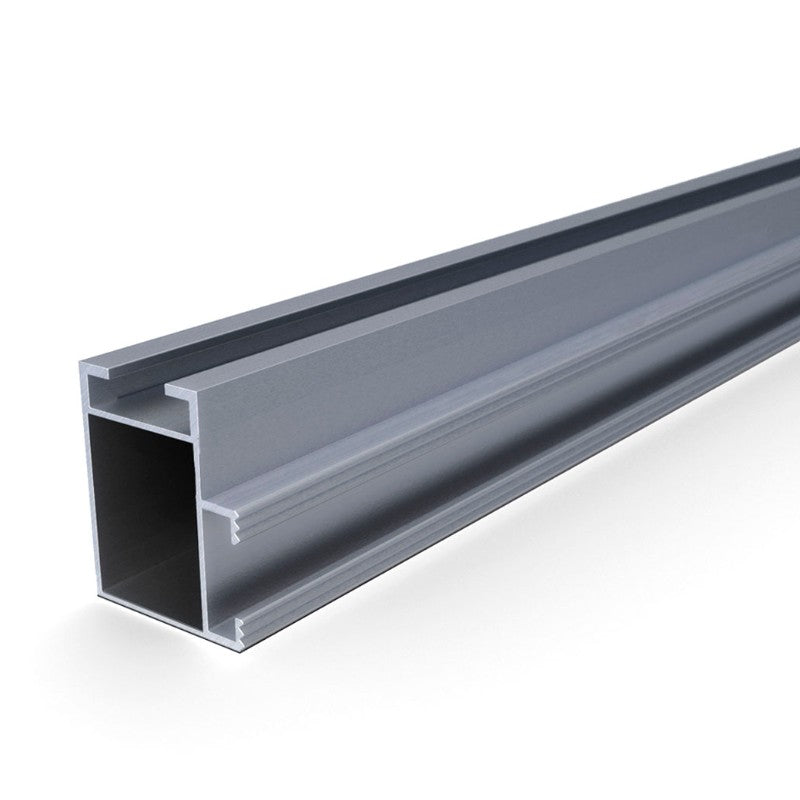

The Renusol VarioSole+ Mounting Rail 50×37×3600mm (Part No: REN-400570) is a heavier-duty aluminium mounting rail forming part of the Renusol VS+ pitched-roof mounting system. At 3.6 metres long with a 50×37mm cross-section, this rail offers a higher strength-to-weight ratio than the standard 41×35mm profile, suited to longer spans, larger module arrays, or roofs with higher structural loading requirements.

The VS+ system is designed as a universal fastening solution for nearly all types of pitched roofs, and this rail accepts the full range of Renusol VS+ end clamps, middle clamps, and rail connectors for a complete, warrantied mounting assembly.

50×37mm

Rail Profile

3600mm

Length

0.703 kg/m

Weight

~2.53kg

Approx. Total Weight

Aluminium

Material

TÜV Certified

Certification

Compatibility Warning

Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system.

Long-Item Delivery Note

As a rail longer than 1 metre, this product may be subject to a bulky/long-item delivery surcharge depending on courier and destination — check current delivery terms before checkout.

Key Features

Larger 50×37mm Profile

The 50×37mm cross-section offers a higher strength-to-weight ratio than the standard 41×35mm rail, suiting longer spans and larger arrays.

3.6 Metre Length

Supplied in a 3600mm length, reducing the number of joints needed across a typical pitched-roof row.

Aluminium Construction

Manufactured from aluminium for long-term corrosion resistance and a lightweight, manageable rail for on-site handling.

Universal Pitched Roof Fit

Part of the VS+ system, designed as a universal fastening solution for nearly all types of pitched roofs.

Compatible With Full VS+ Clamp Range

Accepts Renusol VS+ end clamps, middle clamps, and rail connectors sized for the 50×37mm profile.

TÜV Certified

Certified to TÜV ID 1111212485 and MCS012 IK0197/03, supporting MCS-compliant solar PV installations.

Technical Specifications

General

Part Number

REN-400570

Product Name

VarioSole+ Mounting rail 50 x 37 x 3600mm

Manufacturer

Renusol

System

VS+ (VarioSole+) pitched roof mounting

Construction

Material

Aluminium

Profile

50 × 37mm

Length

3600mm

Weight

0.703 kg/m (approx. 2.53kg for the full 3600mm length)

Certification

TÜV ID

1111212485

MCS Certification

MCS012 IK0197/03

Compatible Accessories

Rail Connector

REN-400532 (50 × 37mm)

Clamps

Renusol VS+ End Clamp+ and Middle Clamp+ range

Frequently Asked Questions

What's the difference between the 41×35mm and 50×37mm rail profiles?

The 50×37mm profile is a heavier-duty rail with a higher strength-to-weight ratio, suited to longer spans or larger module arrays than the standard 41×35mm rail.

Which rail connector do I need to join two lengths of this rail?

Use the REN-400532 rail connector, which is sized specifically for the 50×37mm rail profile.

What roof types is this rail suitable for?

The VS+ system is designed as a universal fastening solution for nearly all types of pitched roofs, including tile, slate, and metal roof coverings when combined with the correct roof hooks.

Is there a delivery surcharge for this rail?

As a length exceeding 1 metre, this product may be subject to a long-item delivery surcharge depending on courier and destination.

What certification does this rail carry?

It is certified to TÜV ID 1111212485 and MCS012 IK0197/03, supporting MCS-compliant UK solar PV installations.
