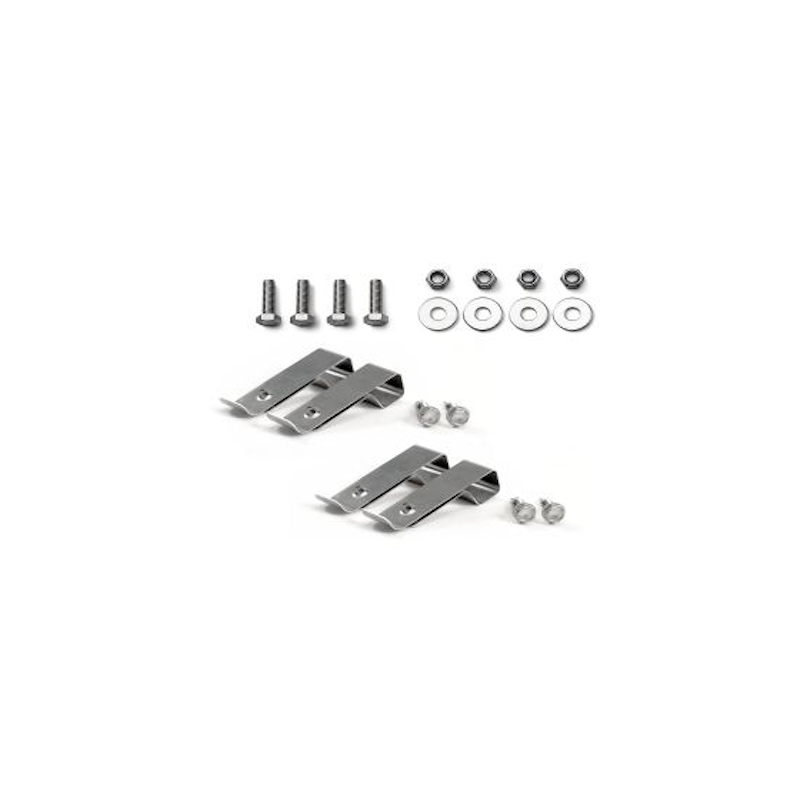

The Renusol Mounting Material for ConSole 4.1, 4.2, 5.2, 6.2 and CS+ (Part No: REN-420022) is the dedicated fixing hardware set used to secure solar PV modules onto the Renusol ConSole family of flat-roof and ground-mount trays. Manufactured from aluminium and stainless steel, this pre-assembled kit provides the screws, washers, nuts and ConSole clips needed to clamp a module securely to the tray's U-profile rail.
This mounting material is compatible with the 520041-K, 520042-K, 520052-K, 520062-K, and 520075-K ConSole tray models, making it a straightforward replacement or top-up part for installers building out flat-roof and ground-mount ballasted PV arrays.
120×170×10mm
Set Dimensions
Aluminium + Steel
Material
5 Models
ConSole Compatibility
TÜV Certified
Certification
Compatibility Warning
Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system.
Accessory Set, Not a Standalone Tray
This is a fixing hardware set for existing or newly ordered ConSole trays — it does not include the ConSole tray or U-profile rail itself. It must be paired with a compatible ConSole 4.1, 4.2, 5.2, 6.2, or CS+ tray.
Key Features
Complete Fixing Set
Includes all the screws, washers, self-locking nuts and ConSole clips needed to secure a module to the ConSole tray's U-profile rail in one pack.
Aluminium and Stainless Steel Construction
The clip and fixing components are made from aluminium and stainless steel for reliable, long-term corrosion resistance in exposed rooftop or ground-mount conditions.
Wide ConSole Compatibility
Compatible with five ConSole tray models (520041-K, 520042-K, 520052-K, 520062-K, 520075-K), covering the full ConSole and CS+ range.
M6 Fixing Hardware
Uses DIN933 M6×20 A2-70 hexagon screws with self-locking nuts and washers for a secure, vibration-resistant module clamp.
Pre-Assembled Clip Design
The ConSole clip is designed to click into the U-profile rail before final tightening, speeding up on-site module fitting.
TÜV-Certified Hardware
Certified to TÜV ID 1111212485, giving installers confidence in the fixing set's structural reliability.
Technical Specifications
General
Product Name
Mounting Material for ConSole 4.1, 4.2, 5.2, 6.2, CS+
Mounting Type
Flat roof / ground mount tray fixing
Construction
Material
Aluminium and stainless steel
Dimensions
120 × 170 × 10mm
Set Contents
Hexagon Screw
1 × DIN7504-ST5.5×25-A2-SW8
Hexagon Screws
4 × DIN933-M6×20 A2-70
Washers
4 × DIN9021-6.4-A2
Self-Locking Nuts
4 × DIN985-M6-A2
ConSole Clips
4 × ConSole Clip
Certification
Compatible ConSole Trays
Models
520041-K, 520042-K, 520052-K, 520062-K, 520075-K
Compatible Systems
ConSole 4.1, 4.2, 5.2, 6.2, CS+
Frequently Asked Questions
Does this include the ConSole tray itself?
No. This is a fixing hardware set only — screws, washers, nuts and clips — used to secure modules onto an existing or separately purchased ConSole tray.
Which ConSole tray models is this compatible with?
It is compatible with the 520041-K, 520042-K, 520052-K, 520062-K, and 520075-K ConSole tray models, covering ConSole 4.1, 4.2, 5.2, 6.2 and CS+.
What size screws does this set use?
The main clamping hardware uses M6 hexagon screws (DIN933-M6×20 A2-70) with matching washers and self-locking nuts.
Can I mix this with mounting hardware from another manufacturer?
No. Renusol mounting equipment must not be mixed with components from other suppliers, as doing so would void the system warranty.
Is this suitable for flat roofs and ground-mount installations?
Yes. The ConSole system is designed for flat-roof and ground-mount ballasted PV arrays, and this mounting material set is the standard fixing kit used across that range.
