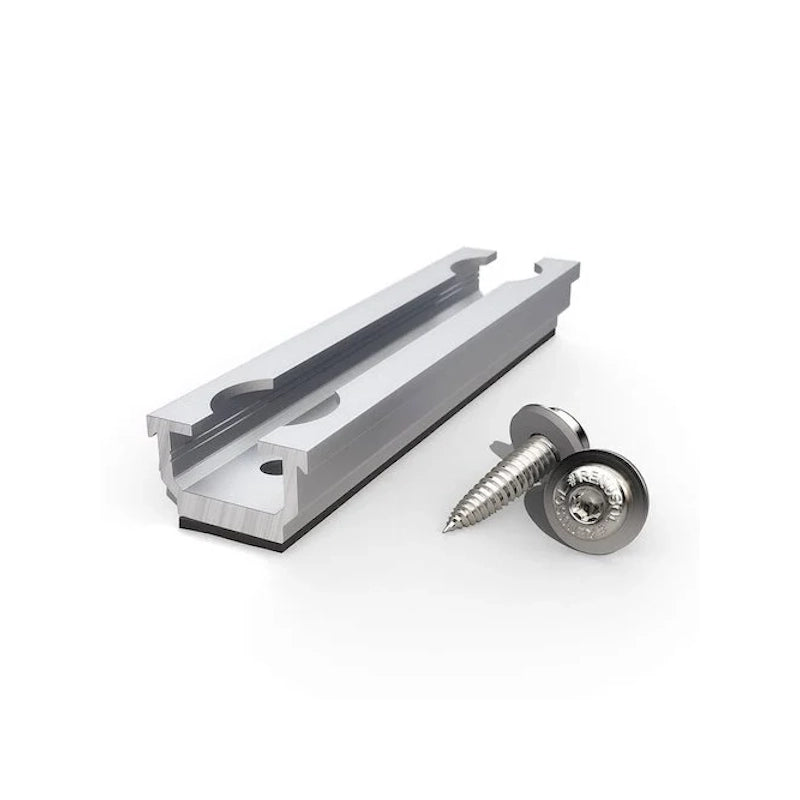

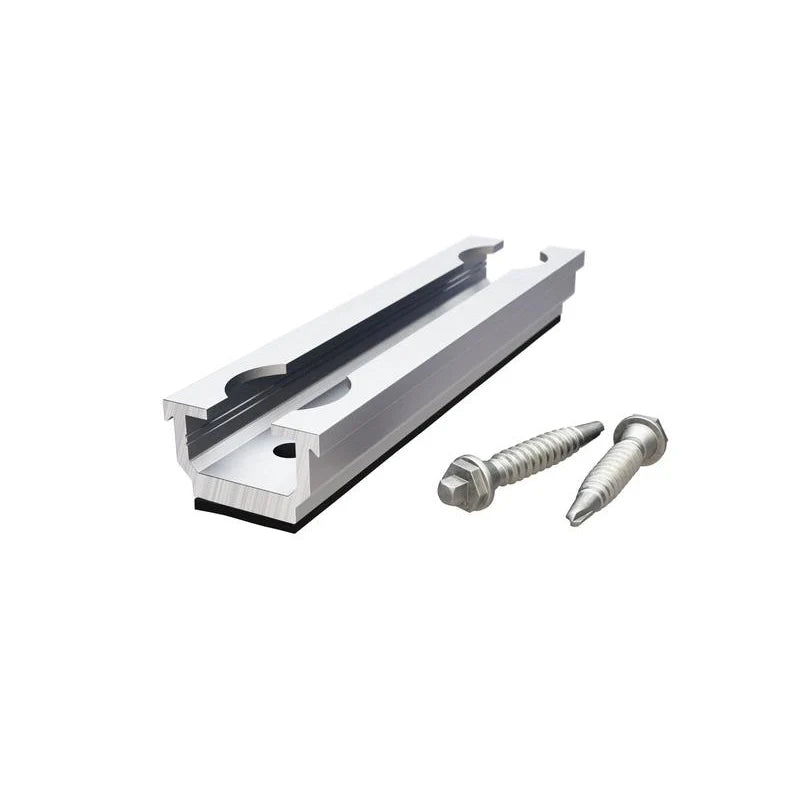

Renusol MetaSole+ Metal Roof Anchor - REN-420402 | Trapezoidal & Corrugated Sheet Roof Mount, Screws Included

Description

The Renusol MetaSole+ (Part No: REN-420402) is a compact, cost-effective roof anchor designed for mounting solar PV modules directly onto trapezoidal and corrugated metal sheet roofs, without the need for continuous mounting rails. Suitable for steel sheet thicknesses from 0.40–1.25mm and aluminium sheet from 0.50–2.00mm, this anchor is optimised for framed PV modules with a frame height of 30 to 50mm, mounted in landscape orientation.

Installation is fast and straightforward: the anchor is fixed directly to the metal roof using self-tapping, thread-forming screws included with the system, so no pilot drilling is required. A pre-attached EPDM seal at the base protects the mounting point against water ingress.

125×31×17mm

Dimensions

0.084kg

Weight

Aluminium

Material

30–50mm

Module Frame Height

2 Screws

Included

EPDM Sealed

Pre-Assembled

Compatibility Warning

Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system.

Roof Type & Clearance Notes

This anchor is suitable for trapezoidal sheet metal roofs. For corrugated roofs, the separate REN-420401 adapter is required. If greater panel-to-roof clearance is needed, the MetaSole+ High Top variant (REN-420423) can be used instead.

Key Features

No Pre-Drilling Required

Installs directly onto the metal roof using included self-tapping, thread-forming screws, with no need to pilot-drill the sheet.

No Continuous Rail Needed

The compact anchor design eliminates the need for a continuous mounting rail, reducing material costs and simplifying transport and storage.

Pre-Attached EPDM Seal

A pre-fitted EPDM seal protects each fixing point against water ingress at the roof penetration.

Wide Sheet Thickness Range

Suitable for steel sheet 0.40–1.25mm and aluminium sheet 0.50–2.00mm, covering most common trapezoidal roofing profiles.

Aluminium Construction

Built from aluminium for long-term corrosion resistance in exposed rooftop conditions.

Screws Included

Supplied complete with 2 self-tapping fixing screws, so no separate fastener order is required to get started.

Technical Specifications

General

Part Number

REN-420402

Product Name

MetaSole+ Sheet thickness: FE 0.50-1.50mm, AL 0.5-2.00mm (2 x screws included)

Manufacturer

Renusol

Module Orientation

Horizontal (landscape)

Construction

Material

Aluminium

Dimensions

125 × 31 × 17mm

Weight

0.084kg

Rail Length

125.0mm

Seal

EPDM, pre-assembled

Screw Diameter

6.0mm

Roof Compatibility

Roof Type

Trapezoidal sheet metal roof (corrugated roofs require REN-420401 adapter)

Steel Sheet Thickness

0.40–1.25mm

Aluminium Sheet Thickness

0.50–2.00mm

Minimum Rib Width

20mm

Module Compatibility

Frame Height

30–50mm framed PV modules

Certification

TÜV ID

1111212485

MCS Certification

MCS012 IK0197/02

Frequently Asked Questions

Does this anchor need pre-drilling into the roof sheet?

No. Installation uses the included self-tapping, thread-forming screws, which fix directly into the metal roof without pilot drilling.

Is this suitable for corrugated roofs?

This anchor is designed for trapezoidal sheet roofs. For corrugated roofing profiles, the separate REN-420401 adapter is required alongside this anchor.

What module frame heights is this compatible with?

It is suitable for framed PV modules with a frame height of 30 to 50mm, mounted in landscape orientation.

Are the fixing screws included?

Yes. This part is supplied with 2 self-tapping fixing screws included, ready to install without ordering separate fasteners.

What if I need more clearance between the panel and the roof?

For greater ventilation and cable-routing clearance, the MetaSole+ High Top variant (REN-420423) can be used as an alternative to this standard anchor.
