Renusol MetaSole+ High Top Solar Roof Mount - REN-420423 | Raised Landscape Trapezoidal Roof Anchor

Description

The Renusol MetaSole+ High Top (Part No: REN-420423) is a raised-height version of the standard MetaSole+ roof anchor, designed for mounting solar PV modules in landscape orientation on trapezoidal and corrugated sheet metal roofs. The High Top design lifts the module further from the roof surface than the standard MetaSole+ anchor, increasing rear ventilation and easing cable routing beneath the array.

Suitable for framed PV modules with a 30–50mm frame height, the anchor is fixed directly to the metal roof using included self-tapping screws, without pre-drilling, and is built for steel sheet 0.40–1.25mm or aluminium sheet 0.50–2.00mm thickness.

125×72×30mm

Dimensions

0.250kg

Weight

Landscape

Module Orientation

30–50mm

Module Frame Height

2 Screws

Included

Raised Design

High Top

Compatibility Warning

Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system.

Why Choose High Top

The High Top design increases the distance between the module and the roof surface compared with the standard MetaSole+ anchor, improving rear ventilation and making cable routing easier — particularly useful in high-temperature environments where increased airflow helps module performance.

Key Features

Raised Mounting Height

The High Top design lifts modules further from the roof surface than the standard MetaSole+, improving rear ventilation for better thermal performance.

Easier Cable Routing

The additional clearance beneath the module makes cable routing more accessible during and after installation.

No Pre-Drilling Required

Installs directly onto the metal roof using included self-tapping screws, with no pilot drilling needed.

Material-Saving, Non-Continuous Design

The short, individual anchor design saves material compared with continuous rail systems, reducing transport and storage costs.

Wide Sheet Thickness Compatibility

Suitable for steel sheet 0.40–1.25mm and aluminium sheet 0.50–2.00mm, covering common trapezoidal roofing profiles.

Landscape Column Mounting

PV modules are arranged in columns on the trapezoidal sheet in landscape orientation for straightforward array layout.

Technical Specifications

General

Part Number

REN-420423

Product Name

MetaSole+ LANDSCAPE - High Top

Manufacturer

Renusol

Module Orientation

Horizontal (landscape)

Construction

Dimensions

125 × 72 × 30mm

Weight

0.250kg

Set Contents

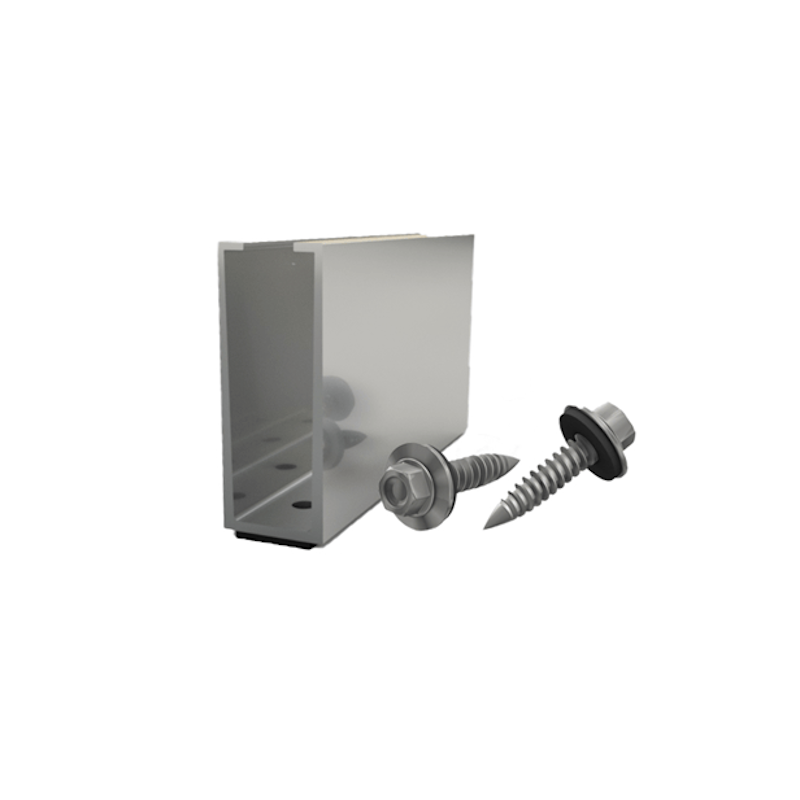

1 × High Top mounting plate, 2 × REN-400281 screws

Roof Compatibility

Roof Type

Trapezoidal and corrugated sheet metal roof

Steel Sheet Thickness

0.40–1.25mm

Aluminium Sheet Thickness

0.50–2.00mm

Minimum Rib Width

20mm

Pre-Drilling

Not required

Module Compatibility

Frame Height

30–50mm framed PV modules

Frequently Asked Questions

How does the High Top differ from the standard MetaSole+ anchor?

The High Top raises the module further from the roof surface than the standard MetaSole+ anchor, improving rear ventilation and making cable routing easier.

Does this anchor require pre-drilling into the roof?

No. It fixes directly into the trapezoidal metal roof using the included self-tapping screws, without pilot drilling.

What module frame heights is this compatible with?

It is suitable for framed PV modules with a frame height of 30 to 50mm.

Is this anchor suitable for corrugated roofs?

It is primarily designed for trapezoidal sheet roofs; corrugated roof compatibility may require an additional adapter — check the roof profile against the manufacturer's guidance before ordering.

Are fixing screws included with this anchor?

Yes. Each High Top mounting plate is supplied with 2 self-tapping fixing screws (REN-400281) included.
