Reina Todi RND-TDI120026 Towel Radiator 260mm x 1200mm

Description

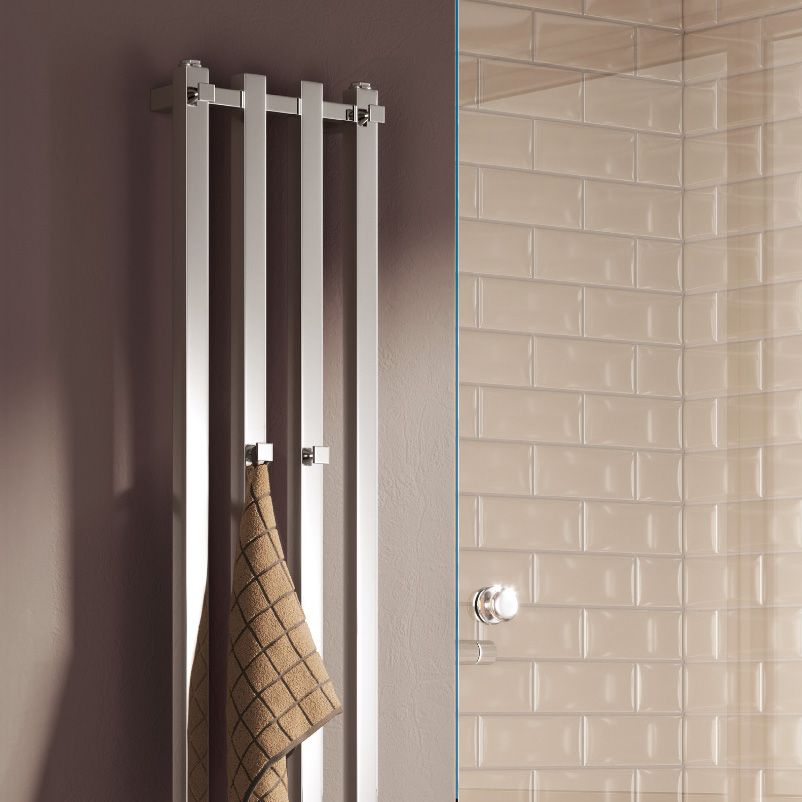

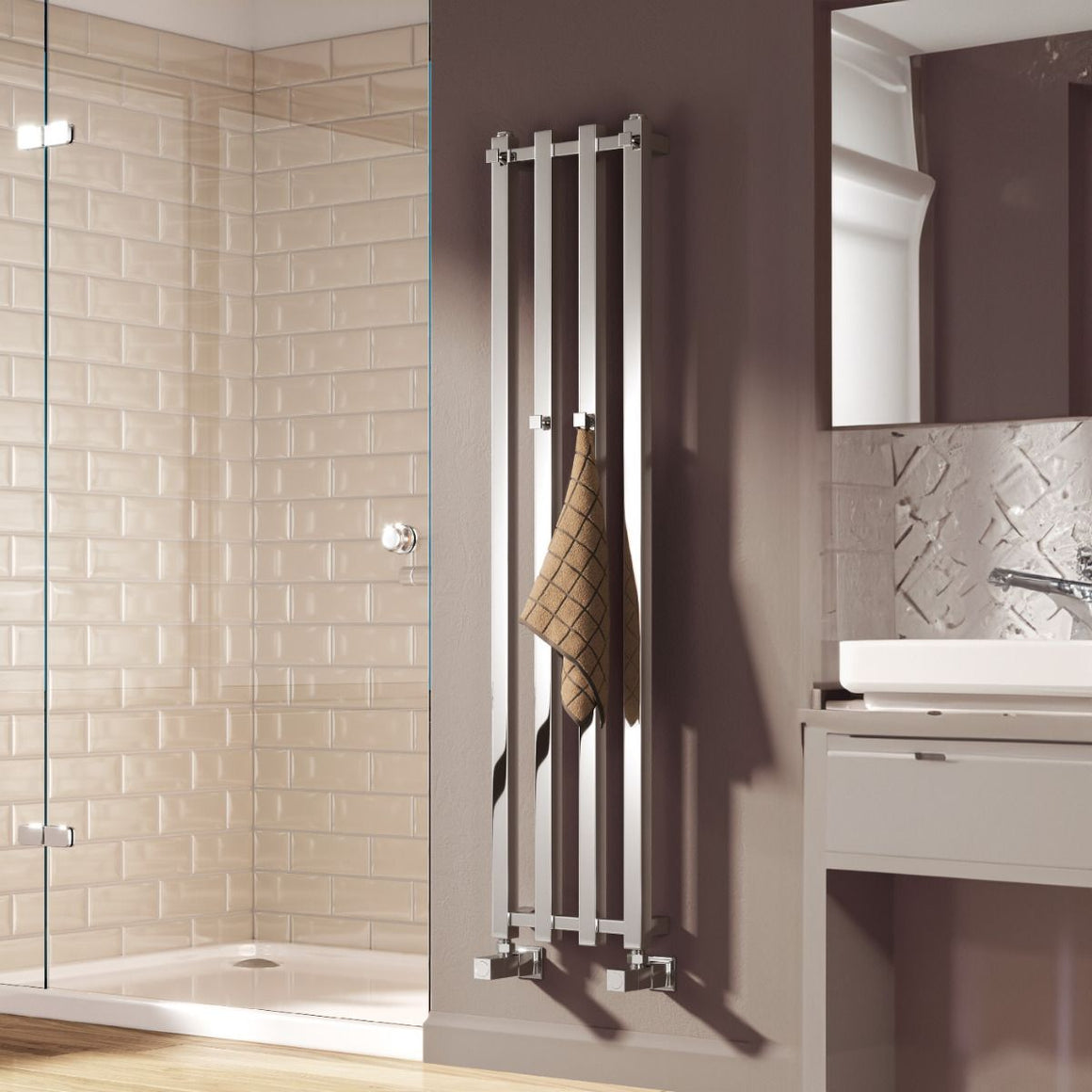

The Reina Todi is a vertical chrome towel radiator built from mild steel with square-section vertical tubes and integral towel hooks, finished in polished chrome. Its slim 108mm and 260mm widths, in 800mm and 1200mm heights, make it a strong fit for narrow bathroom walls, en-suites, cloakrooms and kitchens where a conventional ladder rail will not fit.

Every Todi is rated for central heating, electric or dual fuel use, comes with a 5-year Reina guarantee, and ships with wall brackets and fixings, an air vent and an end plug. Valves and any electric element are sold separately, so we have set out the recommended valves and thermostatic controls below to make the full specification easy.

105–258W

Output at ΔT50

C / E / D

Central, electric, dual fuel

5 Years

Reina guarantee

95°C / 4 bar

Max working limits

100–115mm

Projection from wall

Chrome

Polished mild steel

What is in the box

Each radiator is supplied with 4 wall brackets, 4 wall anchors, 4 fixing screws, 4 security screws, 4 washers, 1 air vent and 1 end plug. Valves are not included: Reina’s installation guide calls for one lockshield valve and one gate or thermostatic valve.

Qualified installation required

This radiator must be fitted by a fully qualified installer. Flush the system before fitting, and treat the water if its pH is outside 5.5–8.5. Where system water exceeds 50°C, fit a warning mark near the radiator to avoid accidental scalding. Any electric element must be fitted by a competent electrician in line with BS 7671 and Part P, with bathroom zones confirmed before installation.

Key features

Square tube design

Flat square vertical tubes give a clean, structured look that suits contemporary and minimalist bathrooms.

Integral towel hooks

Built-in hooks let you hang and dry towels directly on the radiator, with no separate rail needed.

Space-saving widths

108mm and 260mm widths fit narrow walls, alcoves and tight cloakrooms where wider rails cannot go.

Three fuel options

Rated C / E / D: run it on central heating, electric with a compatible element, or dual fuel for year-round warmth.

Durable mild steel

Mild steel construction with a polished chrome finish delivers consistent heat output and a bright, easy-to-clean surface.

5-year guarantee

Backed by a 5-year manufacturer guarantee from Reina, with brackets and fixings included for wall mounting.

Recommended valves

Choose the valve pattern to match your pipework

Pipes rising from the floor suit straight valves; pipes coming from the wall suit angled or corner valves. All Reina valve sets below are available in chrome to match this radiator and are sold as a pair.

Best design match

Reina Loge Square Valves – Chrome

Manual square-profile valves in solid brass with 15mm connections. Their cubic shape echoes the Todi’s square tubes. Available straight, angled or corner.

Thermostatic control

Reina Modal TRV Valves – Chrome

A thermostatic radiator valve and lockshield pair for room-by-room temperature control on central heating. Available angled, straight or corner, in chrome.

Value choice

Reina Portland Valves – Chrome

Manual round-handle valves in chrome-finished brass with 15mm connections. A simple, reliable pairing, available straight or angled.

Recommended thermostats and electric controls

Element wattage

Match the element to the rail. A 300W thermostatic element is the commonly specified size for these four Todi models. Reina does not publish Todi element wattages, so please confirm with us before ordering for electric-only use. Elements are sold separately and carry a 1-year Reina guarantee.

Smart control

Reina Square Thermostatic WiFi Element – Chrome

Smart Life app control with a 7–30°C room range, Heat Plus, LST mode, child lock and open window detection. IP44, Class I, in 300W or 600W.

Touch control

Reina Touch Thermostatic Element – Chrome

Touch-operated LCD with room (15–30°C) and liquid (30–70°C) control, 2/4 hour boost, overheat protection and open window detection. IP44, Class I.

Programmable

Reina Weekly Thermostatic Control Unit – Chrome

7-day, 24-hour programmable timer with adjustable +7°C to +35°C control. Pairs with the Reina Wireless Programmable Thermostat for remote switching.

Dual fuel fittings

Dual Fuel T-Piece and Modal TRV Dual Fuel Corner Valves

For dual fuel installs, the T-piece lets the element and the valves share the same radiator connection, so the rail can run on the boiler or on electricity.

Heat output basis

Outputs here are the manufacturer’s figures at ΔT50, the UK standard basis (BS EN 442), and at ΔT30. Some listings quote higher figures at ΔT70, so always compare like for like when sizing against other radiators.

Sizes and heat output

SKU

Size (H × W)

Pipe centres

Bars

Output ΔT50

Output ΔT30

RND-TDI080010

800 × 108mm

78mm

2

105W / 359 BTU

54W / 186 BTU

RND-TDI080026

800 × 260mm

230mm

4

169W / 575 BTU

87W / 298 BTU

RND-TDI120010

1200 × 108mm

78mm

2

124W / 423 BTU

64W / 219 BTU

RND-TDI120026

1200 × 260mm

230mm

4

258W / 879 BTU

133W / 455 BTU

Technical specification

General

Brand

Reina

Range

Todi

Product type

Vertical towel radiator with integral hooks

Material

Mild steel

Finish

Chrome (polished)

Fuel type

Central heating / Electric / Dual fuel

Guarantee

5 years (Reina)

Dimensions and fitting

Heights available

800mm and 1200mm

Widths available

108mm and 260mm

Pipe centres

78mm (108mm wide) / 230mm (260mm wide)

Wall to pipe centres

65–80mm

Wall distance (projection)

100–115mm

Minimum clearance

50mm below any overhanging surface; 100mm above the floor

Operating limits

Maximum working temperature

95°C

Maximum working pressure

4 bar

System water pH

5.5–8.5, otherwise treat with a compatible inhibitor

Supplied with

Fixings

4 brackets, 4 wall anchors, 4 fixing screws, 4 security screws, 4 washers

Fittings

1 air vent, 1 end plug

Not included

Valves, electric element, dual fuel T-piece

Frequently asked questions

Are valves included with the Todi?

No. The radiator ships with brackets, fixings, an air vent and an end plug only. Reina’s guide calls for one lockshield valve and one gate or thermostatic valve, so order a matching pair in chrome.

Which valve pattern do I need?

It depends on where your pipes come from. Straight valves suit pipes rising from the floor; angled or corner valves suit pipes from the wall. For the closest visual match, the Loge square valves follow the Todi’s square tubes.

Can I run the Todi on electricity only?

Yes. It is rated central heating, electric and dual fuel. For electric use you need a compatible thermostatic element fitted by a competent electrician. For dual fuel you also need a T-piece and valves so the rail can switch between boiler and electric heat.

What element size should I choose?

A 300W thermostatic element is the commonly specified size for these four models. Please confirm with us before ordering, particularly if the rail will be your only heat source in the room.

What heat output does it give?

At ΔT50 the four models give 105W, 124W, 169W and 258W (800×108, 1200×108, 800×260 and 1200×260). That suits warming towels and adding background heat; for a larger room, check the room’s heat loss first.

What are the fitting limits and clearances?

Maximum working temperature is 95°C at 4 bar. Mount at least 50mm below any shelf and 100mm above the floor, and use fixings suited to your wall. Clean with a soft cloth only, and never climb on the radiator.
