Reina Modal 15mm Corner TRV & Lockshield | VLV-MDLWC | White

Description

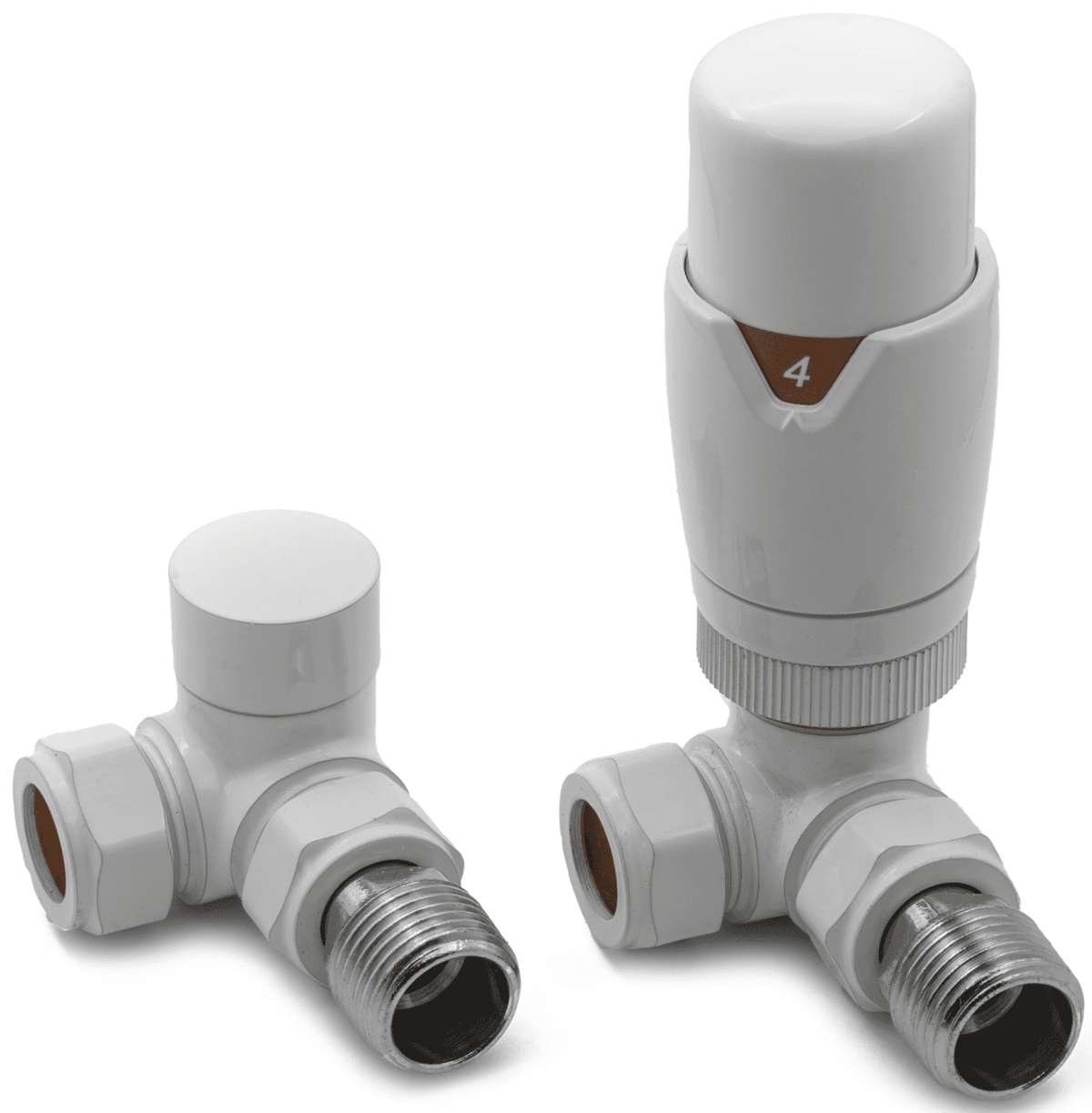

The Reina Modal TRV Corner Valve with Lockshield is a matched thermostatic valve set available in Anthracite (VLV-MDLAC), Chrome (VLV-MDLCC), White (VLV-MDLWC) and Black (VLV-MDLKC). Each pack contains one thermostatic radiator valve with a round thermostatic head and one lockshield valve, both with solid brass bodies, a compact corner pattern and 15mm connections.

The head senses room temperature and adjusts the flow of hot water automatically, with a 7 to 28 degrees C setting range, a frost protection setting and positive shut-off. The lockshield lets you isolate and balance the radiator, and its plastic protective cap helps prevent accidental adjustment. The valves are rated for up to 10 bar working pressure.

7-28°C

setting range

10 bar

max working pressure

15mm

pipe connection

TRV + LS

thermostatic valve and lockshield

Brass

valve bodies

1 Year

manufacturer guarantee

Flow direction - check before you fit

Published information on whether the Modal valve body is bi-directional is not consistent across the trade. Until you have confirmed this against the instructions supplied with the valves, treat the valve as flow-direction sensitive: look for any flow arrow or marking on the body, connect the flow pipe accordingly, and follow the manufacturer's instructions in the box. If in doubt, contact our technical team before fitting.

Head position and smart thermostat heads

Keep the thermostatic head clear of curtains, covers and shelves so it can sense the room air. The supplied head is a standard manual thermostatic head (not smart). If you plan to fit a smart or aftermarket head, confirm that it is compatible with us before ordering.

Installation and safety

Isolate and drain down the heating circuit, and let the system cool, before fitting. Installation should be carried out by a competent installer in line with the manufacturer's instructions and current regulations. After refilling, bleed the radiator, check every joint for leaks, and make sure the system water is treated with inhibitor to BS 7593.

What's in the pack

1 x thermostatic radiator valve with head and 1 x lockshield valve, both in the corner pattern and your chosen finish.

Key Features

Thermostatic Temperature Control

The round head regulates hot water flow automatically across a 7 to 28 degrees C range, with a numbered scale for easy setting.

Matching Lockshield Included

The corner lockshield lets you isolate and balance the radiator, with a protective cap to prevent tampering.

Frost Protection and Positive Shut-Off

A frost protection setting guards against cold conditions and positive shut-off closes the valve fully when required.

Solid Brass, 10 Bar Rated

Brass valve bodies with 15mm connections and a 10 bar maximum working pressure for dependable service.

Compact Corner Pattern

The corner body is neat and compact, suiting tight spaces and radiators or towel rails where pipework comes from the wall.

Designer Finishes

Available in anthracite, chrome, white and black to complement Reina radiators and towel rails.

Suitable For

Radiators and heated towel rails with 15mm connections, including Reina designer radiators and towel rails, on domestic central heating systems.

Choose Your Finish

Modal TRV Corner Valves - Available Finishes

Finish

Part number

Pattern

Contents

Anthracite

VLV-MDLAC

Corner

TRV + lockshield

Chrome

VLV-MDLCC

Corner

TRV + lockshield

White

VLV-MDLWC

Corner

TRV + lockshield

Black

VLV-MDLKC

Corner

TRV + lockshield

Technical Specification

General

Brand

Reina

Range

Modal TRV

Manufacturer part numbers

VLV-MDLAC (Anthracite), VLV-MDLCC (Chrome), VLV-MDLWC (White), VLV-MDLKC (Black)

Supplied as

Pair - 1 x thermostatic valve and 1 x lockshield valve

Manufacturer guarantee

1 year

Valve

Valve type

Thermostatic radiator valve with lockshield

Pattern

Corner

Body material

Brass

Pipe connection

15 mm

Radiator connection

1/2 inch BSP

Head

Round, manual (not smart)

Temperature setting range

7 to 28 degrees C

Frost protection

Yes

Shut-off

Positive shut-off

Maximum working pressure

10 bar

Colours

Anthracite, Chrome, White and Black

Application

Domestic heating - radiators and heated towel rails

Frequently Asked Questions

What is included in the pack?

One thermostatic radiator valve (TRV) with thermostatic head and one lockshield valve, supplied as a pair with the compact corner pattern.

Which end does the TRV go on?

Fit the thermostatic valve and the lockshield at opposite ends of the radiator. Many installers put the TRV on the flow and the lockshield on the return. Check any flow marking on the valve body and the instructions supplied in the box.

What temperature range does the head cover?

The head adjusts between 7 and 28 degrees C and has a frost protection setting, so the radiator will open to protect the room in cold conditions.

Can I use a smart thermostatic head instead?

The supplied head is manual, not smart. Smart heads depend on the valve's head connection, so please contact us to confirm compatibility before you order or fit one.

Do I need TRVs on every radiator?

Under Part L guidance for England, the usual approach is to fit TRVs on every radiator except in the room that has the room thermostat. Always follow the requirements that apply to your job and region.

Why does the radiator cool down when the room is warm?

That is the TRV doing its job. The head closes the valve as the room reaches the set temperature and reopens when it drops, so a low setting will hold the radiator back sooner.

What guarantee do they have?

Reina supplies the Modal TRV valves with a 1 year manufacturer guarantee.
