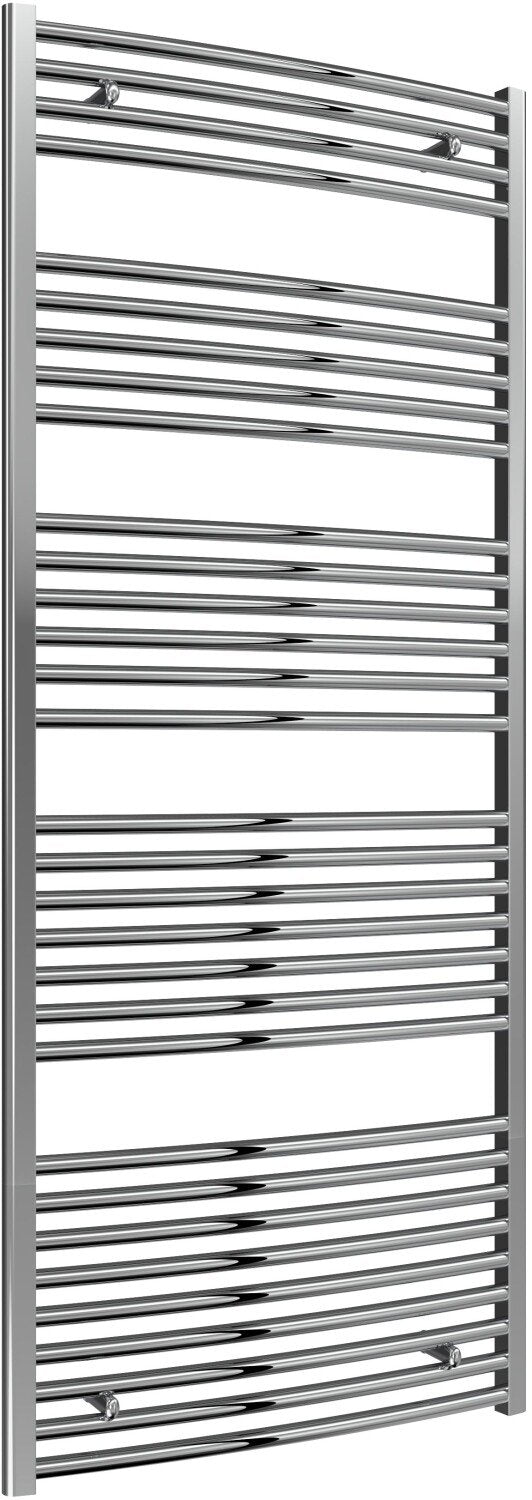

Reina Diva AG75180CC Chrome Curved Towel Rail 750mm x 1800mm

Description

The Reina Diva is a best-selling ladder-style heated towel rail built from 25mm diameter cross-tubes, chosen for stronger heat output and a more substantial feel than standard rails. This 750mm-wide option is the widest size in the Diva range, offering generous towel-hanging space across three heights – 800mm, 1200mm, and 1800mm – in a polished chrome finish, in both a straight/flat bar profile and a gently curved bar profile.

Built from durable mild steel and supplied with 4 wall brackets, wall anchors, fixing screws, an end plug, and an air vent, this width suits family bathrooms and ensuites where more hanging space is wanted. Manufactured to BS EN 442 and backed by a 5-year guarantee from Reina.

750mm

Width

800-1800mm

Height Range

25mm

Tube Diameter

Flat & Curved

Two Profiles

Mild Steel

Construction

5 Years

Guarantee

Radiator Valves Required

Reina's Diva range works with a wide selection of matching valves. For central heating only installation, choose a Reina Portland or Modal valve pair in a matching chrome finish. For dual-fuel use, you will additionally need a T-piece and a compatible heating element. For electric-only installation, a heating element and electric-only filling liquid are required in place of valves. Valves, elements, and filling liquid are all sold separately.

Fuel Type Compatibility

The 800mm and 1200mm-high models in this width are compatible with central heating, dual-fuel, and electric-only systems (with the appropriate accessories). The 1800mm-high model is central heating only and is not recommended for dual-fuel or electric-only use.

25mm Cross-Tubes

Thicker than standard ladder rail bars, giving a premium feel and stronger heat output per rail.

Flat or Curved Profile

Choose the straight/flat bar look or the softer curved bar design to suit your bathroom style.

Widest Rail in the Range

At 750mm wide, this is the most generous width available in the Diva collection for towel hanging space.

Multi-Fuel Compatible

Central heating, dual-fuel, and electric-only compatible on the 800mm and 1200mm heights, with the right accessories.

Complete Fixing Kit

Supplied with wall brackets, anchors, fixing screws, an end plug, and an air vent for a full installation.

BS EN 442 Compliant

Manufactured and heat-output tested to the BS EN 442 European standard for heated towel rails.

Part Number

Profile

Height

Colour

Output (ΔT70)

AG75800CF

Flat

800mm

Chrome

1534 BTU / 450W

AG75800CC

Curved

800mm

Chrome

1534 BTU / 450W

AG75120CF

Flat

1200mm

Chrome

2570 BTU / 754W

AG75120CC

Curved

1200mm

Chrome

2570 BTU / 754W

AG75180CF

Flat

1800mm

Chrome

3157 BTU / 926W (ΔT60, curved datasheet)

AG75180CC

Curved

1800mm

Chrome

3157 BTU / 926W (ΔT60)

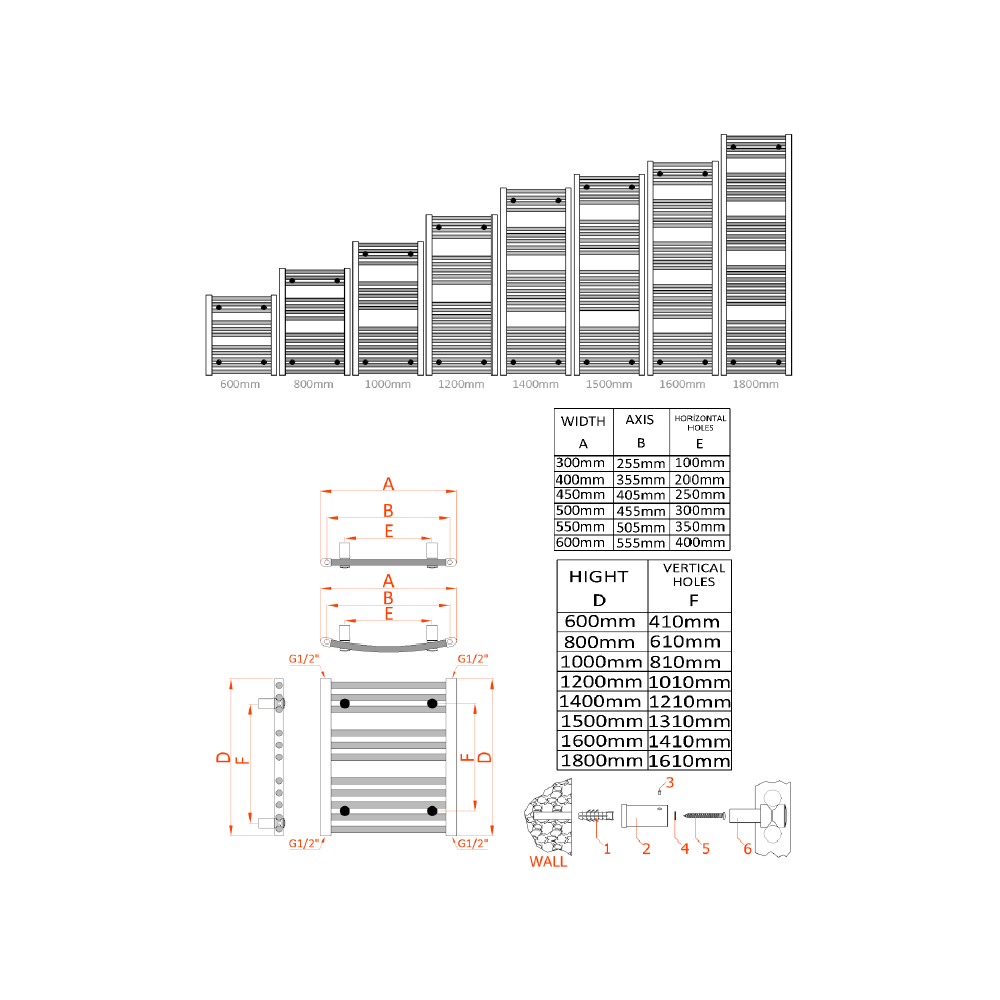

Dimensions (all heights)

Width

750mm

Wall Distance

85-100mm

Wall to Pipe Centres

70-85mm

Pipe Centres by Height

800mm

710mm

1200mm

710mm

1800mm

710mm

Construction & Compliance

Material

Mild Steel

Tube Diameter

25mm

Orientation

Vertical (wall-mounted)

Standard

BS EN 442

Guarantee

5 Years (Reina)

Are valves or a heating element included?

No. All rails are supplied without valves or heating elements. Choose the correct accessory for your fuel type: valves for central heating, valves plus a T-piece and element for dual-fuel, or a heating element and filling liquid for electric-only.

What is the difference between the flat and curved profile?

Both use the same 25mm tube diameter and deliver the same heat output at a given size. The flat profile has straight horizontal bars, while the curved profile has a gentle bow across each bar for a softer, more contemporary look.

Is this width available in colours other than chrome?

No. The 750mm width is currently offered in chrome only, across both the flat and curved profiles. Other Diva widths offer white, black, and anthracite options.

Can the 1800mm-high rail be used with an electric heating element?

No. The 1800mm-high model in this width is rated for central heating systems only and is not recommended for dual-fuel or electric-only conversion, unlike the shorter 800mm and 1200mm heights.

What comes in the box?

Each rail includes 4 wall brackets, 4 wall anchors, 4 fixing screws with washers and security screws, 1 end plug, and 1 air vent.

What guarantee does this towel rail carry?

Reina provides a 5-year manufacturer's guarantee against manufacturing defects, provided the rail is installed and maintained correctly.
