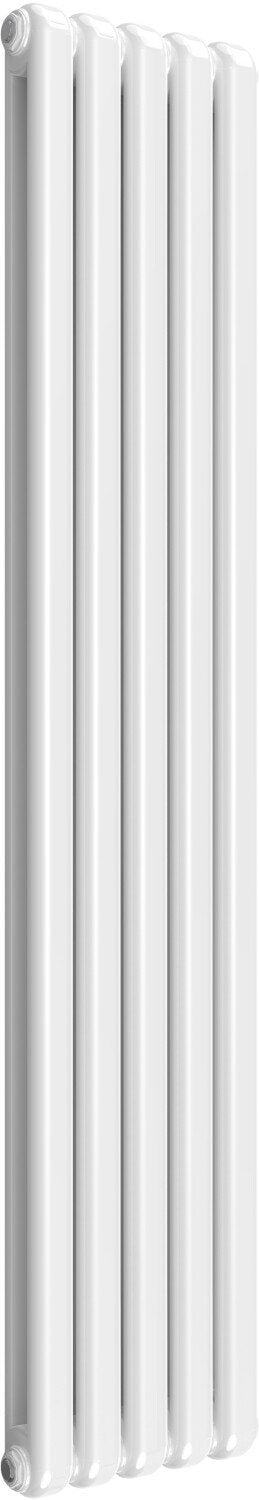

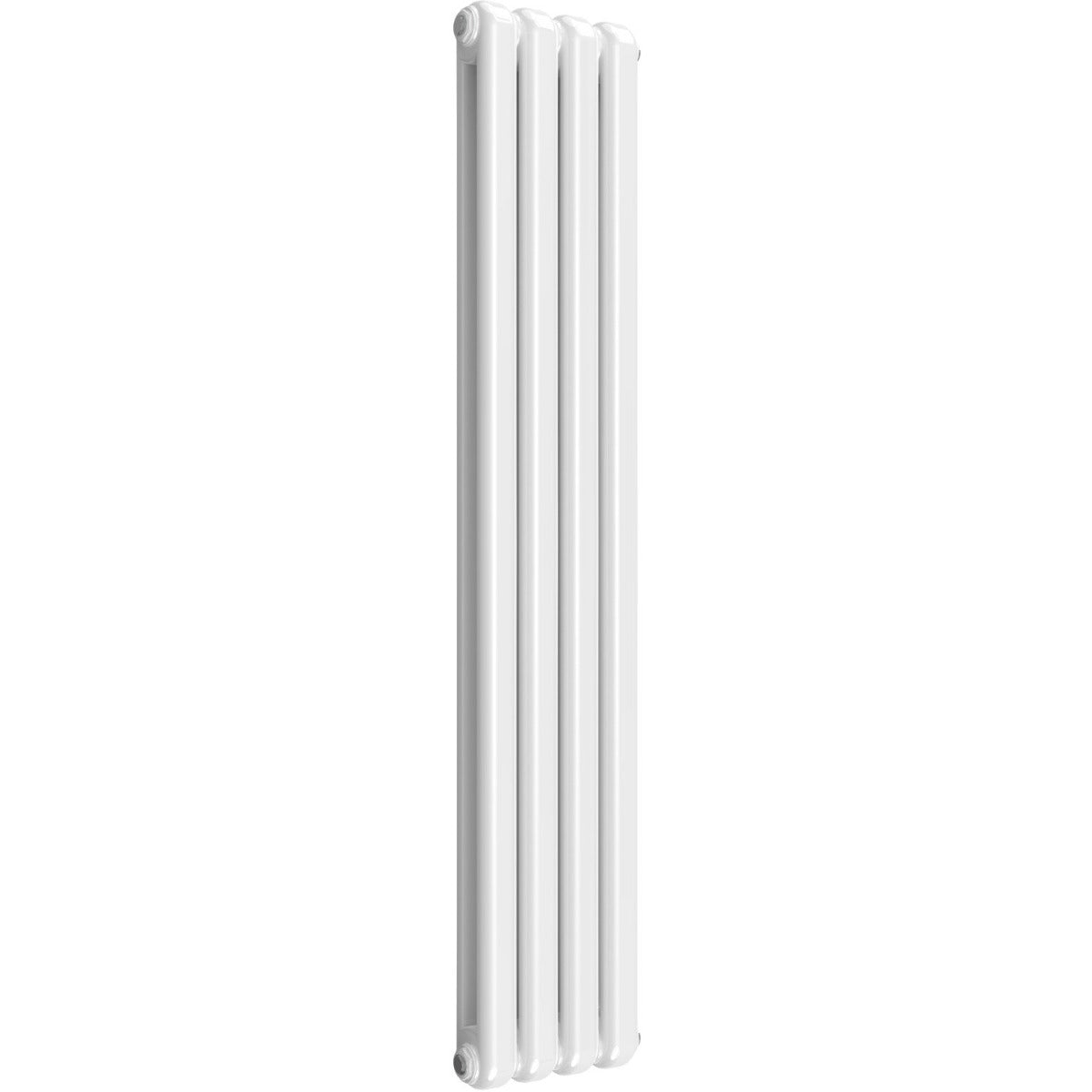

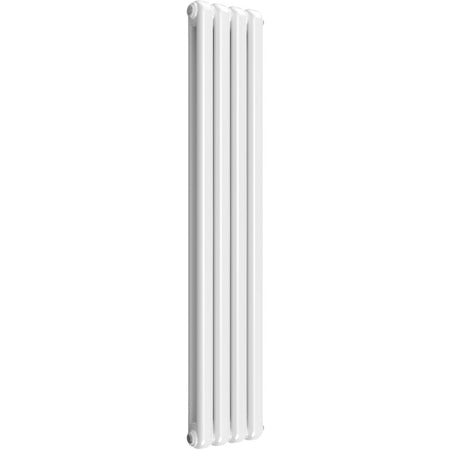

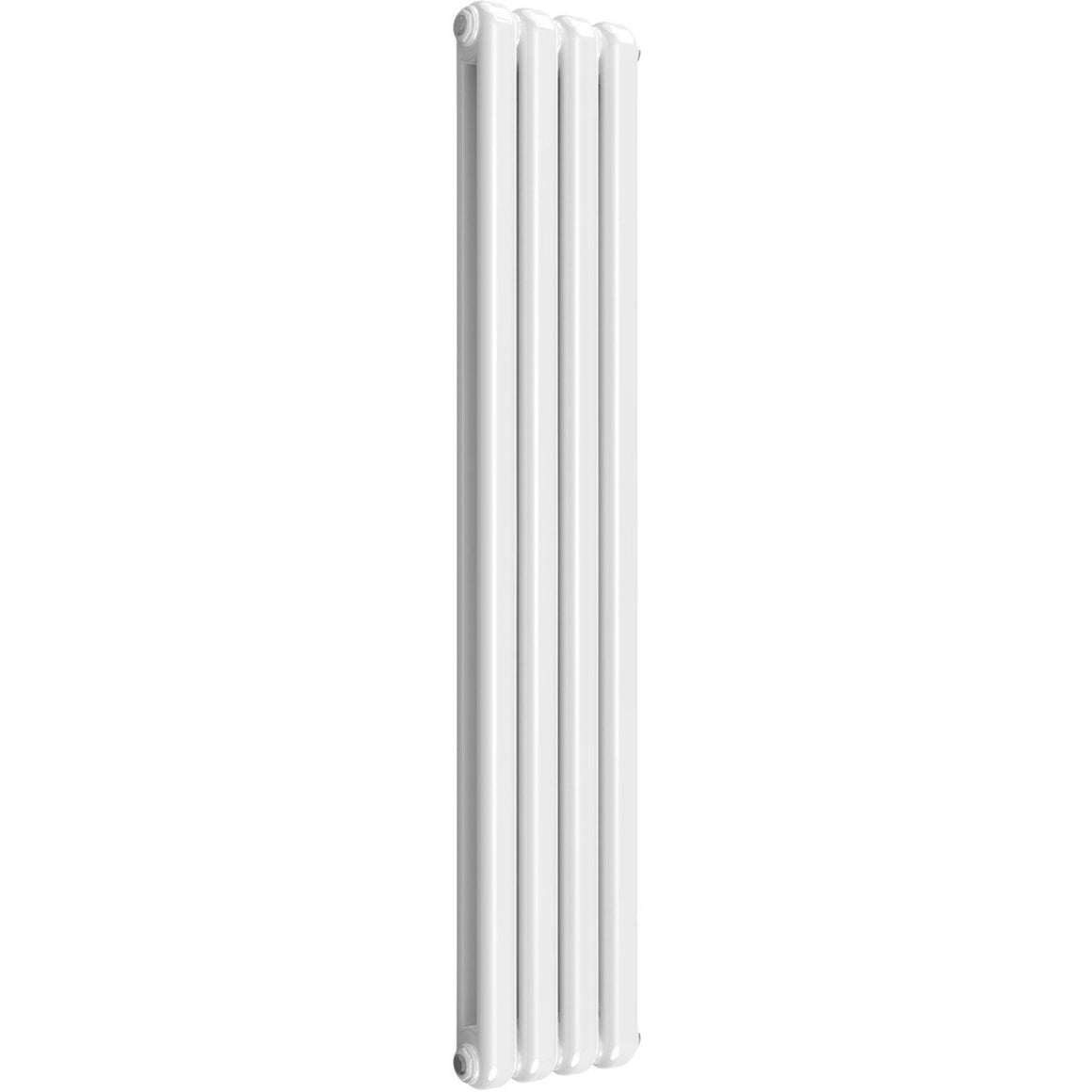

The Reina Coneva vertical designer radiator brings a contemporary twist to the traditional column radiator, replacing sharp edges with a smooth, rounded two-column tube profile measuring 70mm across each section. This 1800mm height range spans four widths – 300mm, 370mm, 440mm, and 510mm – each available in a classic matt white (RAL 9016) or modern textured anthracite (RAL 7016) finish, built from mild steel for durable, even heat distribution.
Every size and colour combination is supplied complete with wall-mounting brackets and fixings, ready for installation onto a standard central heating system. Manufactured to BS EN 442 and backed by a 5-year guarantee from Reina, the range suits living rooms, hallways, and larger bathrooms where a bold vertical statement piece is wanted.
1800mm
Height
300-510mm
Width Range
1143-2000W
Output @ ΔT50
4 Widths
x 2 Colours
Mild Steel
Construction
5 Years
Guarantee
Radiator Valves Required
This radiator is supplied without valves. See the recommended valves section below for compatible options before you order.
Central Heating Only
Vertical Coneva radiators are only suitable for central heating systems and must not be fitted to dual-fuel or electric-only setups.
Rounded Column Profile
A modern reinterpretation of the classic column radiator, with smooth 70mm-wide two-column sections replacing traditional flat tubes.
Four Widths Available
Choose from 300mm, 370mm, 440mm, or 510mm to suit the available wall space and required output.
Two Colourways
Available in classic matt white (RAL 9016) or modern textured anthracite (RAL 7016) to suit the room.
Mild Steel Build
Robust mild steel construction engineered for long-term reliability and consistent heat transfer.
Wall-Mount Ready
Supplied complete with wall brackets and fixings for straightforward vertical installation.
BS EN 442 Compliant
Manufactured and heat-output tested to the BS EN 442 European standard for radiators.
Part Number
Width
Colour
Output @ ΔT50
Output @ ΔT70
RND-CNV18030W
300mm
White
1143W / 3897 BTU
1770W / 6036 BTU
RND-CNV18030A
300mm
Anthracite
1143W / 3897 BTU
1770W / 6036 BTU
RND-CNV18037W
370mm
White
1429W / 4872 BTU
2213W / 7547 BTU
RND-CNV18037A
370mm
Anthracite
1429W / 4872 BTU
2213W / 7547 BTU
RND-CNV18044W
440mm
White
1714W / 5845 BTU
2655W / 9055 BTU
RND-CNV18044A
440mm
Anthracite
1714W / 5845 BTU
2655W / 9055 BTU
RND-CNV18051W
510mm
White
2000W / 6819 BTU
3098W / 10564 BTU
RND-CNV18051A
510mm
Anthracite
1984W / 6765 BTU
3070W / 10473 BTU
Dimensions (all widths)
Height
1800mm
Wall to Front (Projection)
113mm
Wall to Pipe Centres
68mm
Pipe Centres
Width + valve
Construction & Compliance
Material
Mild Steel
Orientation
Vertical
Fuel Type
Central Heating only
Standard
BS EN 442
Guarantee
5 Years (Reina)
Confirmed EAN Barcodes
RND-CNV18030A
8800161126265
RND-CNV18051A
8800161203065
Recommended Radiator Valves
Reina recommends pairing this radiator with a matching Reina Modal TRV valve set (thermostatic radiator valve and lockshield, sold as a pair) in angled, straight, or corner configuration to suit your pipework. Choose a white valve set for the white colourway, or an anthracite valve set to match the anthracite finish. Valves are sold separately and are not included with the radiator.
Are radiator valves included with this radiator?
No. All widths in the vertical Coneva 1800mm range are supplied without valves. Reina recommends a matching Modal TRV valve and lockshield pair, chosen in angled, straight, or corner configuration to suit your pipe layout.
What is the difference between the Reina and UK Standard output figures?
Reina publishes its own output figures at ΔT70, while the current European and UK standard rating is ΔT50. The ΔT50 figures in the table above give the more realistic comparison against other manufacturers' radiators.
Can this radiator be used with an electric or dual-fuel heating element?
No. The vertical Coneva range is designed and rated for central heating systems only, and is not suitable for dual-fuel or electric-only conversion.
What is included in the box?
Each radiator is supplied with wall-mounting brackets and fixings. Valves, pipework, and bleed accessories are ordered separately.
Is there a difference in output between the white and anthracite finishes?
Output is effectively the same across colours at a given width, with the exception of the 510mm model, where the anthracite (RND-CNV18051A) has a marginally lower confirmed output than the white (RND-CNV18051W) due to differences in manufacturer testing.
What guarantee does this radiator carry?
Reina provides a 5-year manufacturer's guarantee against manufacturing defects, provided the radiator is installed and maintained correctly on a central heating system.
