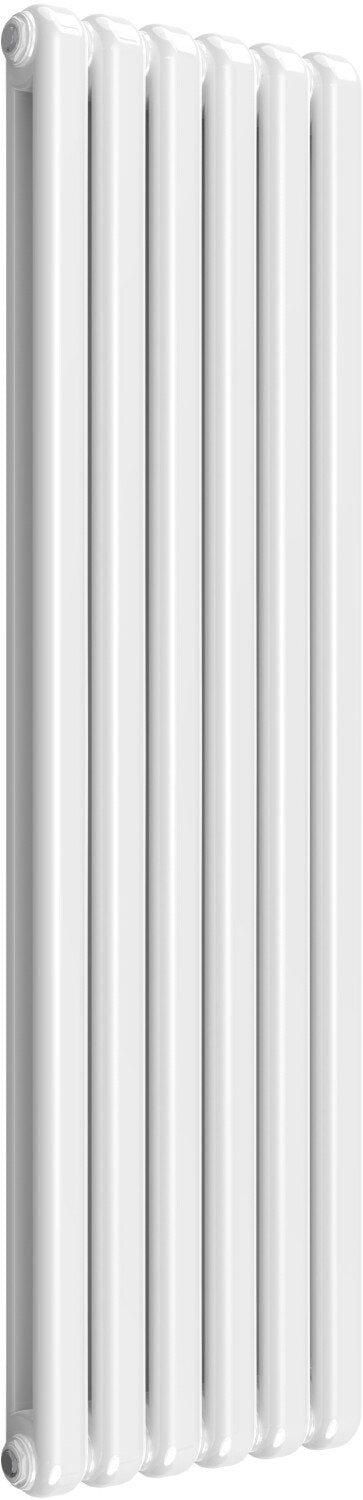

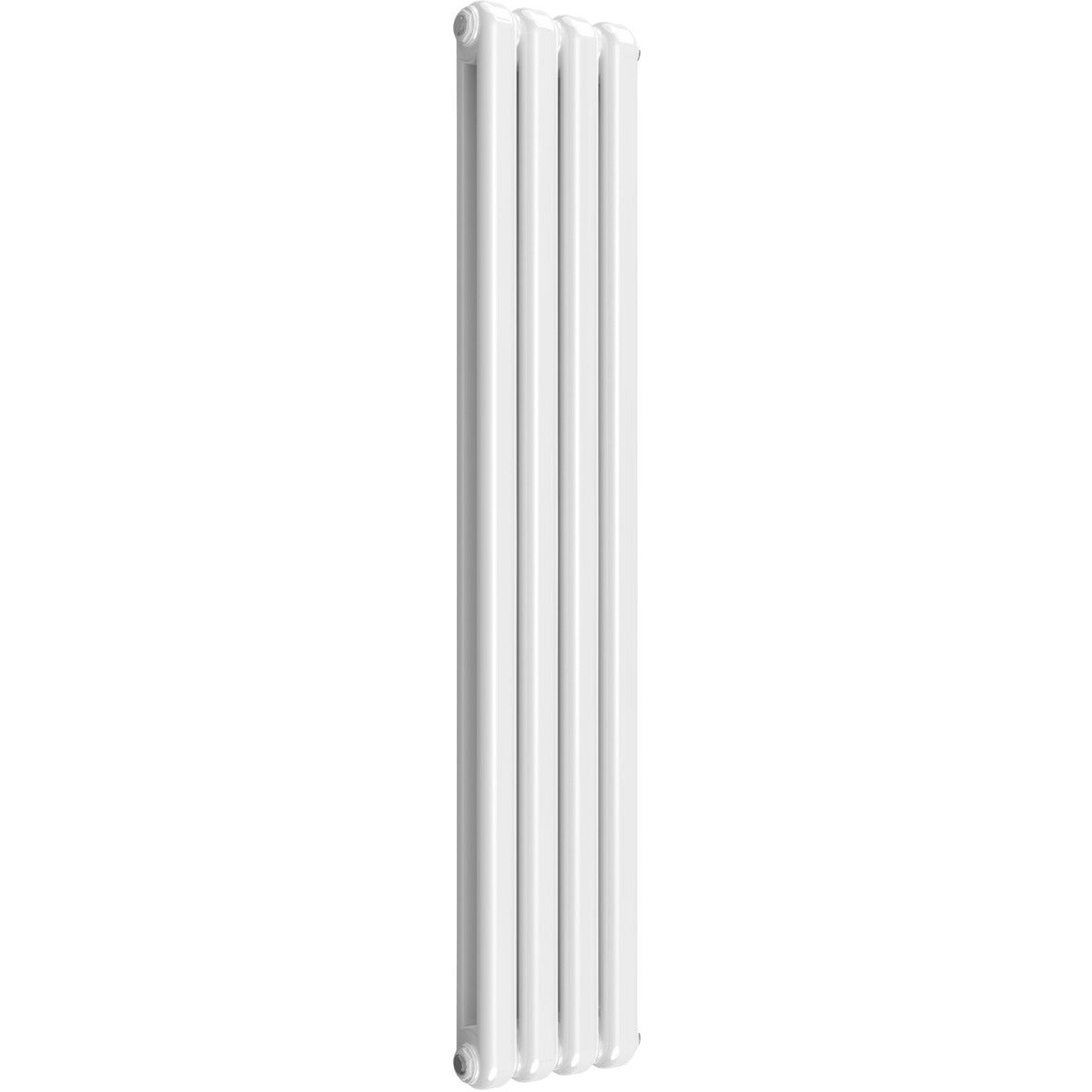

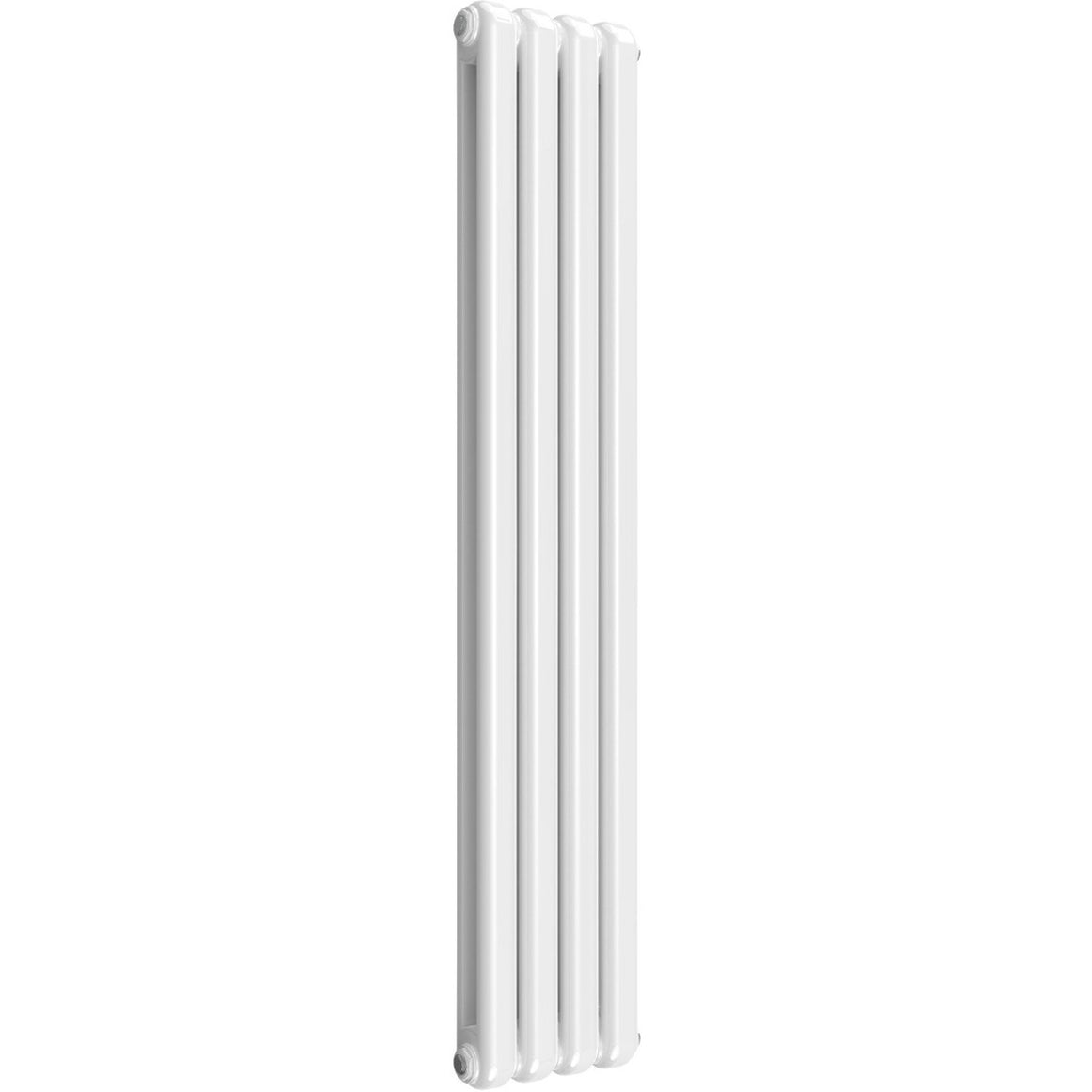

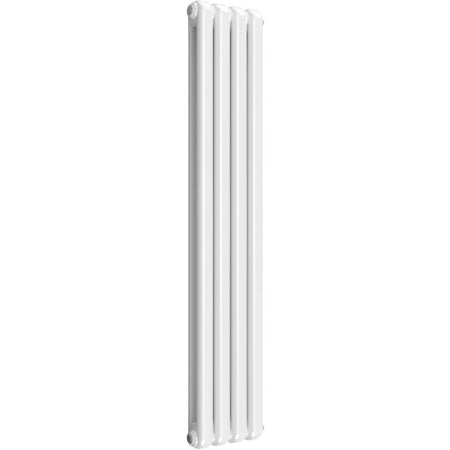

The Reina Coneva vertical designer radiator reworks the classic column radiator with smooth, rounded two-column tube sections, each measuring 70mm wide. This 1500mm height range spans four widths – 300mm, 370mm, 440mm, and 510mm – each available in a classic matt white (RAL 9016) or modern textured anthracite (RAL 7016) finish, built from durable mild steel.
This slightly shorter height makes the 1500mm range a strong fit for rooms with lower ceilings, or where a full 1800mm radiator would sit too close to a window sill or fitted furniture. Every model is supplied complete with wall brackets and fixings, manufactured to BS EN 442, and backed by a 5-year guarantee from Reina, for central heating use only.
1500mm
Height
300-510mm
Width Range
952-1667W
Output @ ΔT50
4 Widths
x 2 Colours
Mild Steel
Construction
5 Years
Guarantee
Radiator Valves Required
This radiator is supplied without valves. See the recommended valves section below for compatible options before you order.
Central Heating Only
Vertical Coneva radiators are only suitable for central heating systems and must not be fitted to dual-fuel or electric-only setups.
Rounded Column Profile
A modern reinterpretation of the classic column radiator, with smooth 70mm-wide two-column sections replacing traditional flat tubes.
Four Widths Available
Choose from 300mm, 370mm, 440mm, or 510mm to suit the available wall space and required output.
Two Colourways
Available in classic matt white (RAL 9016) or modern textured anthracite (RAL 7016) to suit the room.
Lower Profile Height
At 1500mm, this range suits rooms with lower ceilings or restricted wall heights beneath windows.
Wall-Mount Ready
Supplied complete with wall brackets and fixings for straightforward vertical installation.
BS EN 442 Compliant
Manufactured and heat-output tested to the BS EN 442 European standard for radiators.
Part Number
Width
Colour
Output @ ΔT50
Output @ ΔT70
RND-CNV15030W
300mm
White
952W / 3248 BTU
1475W / 5031 BTU
RND-CNV15030A
300mm
Anthracite
945W / 3222 BTU
1475W / 5031 BTU
RND-CNV15037W
370mm
White
1190W / 4060 BTU
1844W / 6289 BTU
RND-CNV15037A
370mm
Anthracite
1190W / 4060 BTU
1844W / 6289 BTU
RND-CNV15044W
440mm
White
1417W / 4833 BTU
2506W / 8547 BTU
RND-CNV15044A
440mm
Anthracite
1618W / 5517 BTU
2506W / 8547 BTU
RND-CNV15051W
510mm
White
1667W / 5683 BTU
2582W / 8803 BTU
RND-CNV15051A
510mm
Anthracite
1667W / 5683 BTU
2582W / 8803 BTU
Dimensions (all widths)
Height
1500mm
Wall to Front (Projection)
113mm
Wall to Pipe Centres
68mm
Pipe Centres
Width + valve
Construction & Compliance
Material
Mild Steel
Orientation
Vertical
Fuel Type
Central Heating only
Standard
BS EN 442
Guarantee
5 Years (Reina)
Confirmed Specification (300mm width)
Sections
4
Water Content
14.5 Litres
Confirmed Specification (440mm width)
Sections
6
Water Content
21.7 Litres
Confirmed EAN Barcodes
RND-CNV15030W
8800161125565
RND-CNV15044W
8800161126135
Recommended Radiator Valves
Reina recommends pairing this radiator with a matching Reina Modal TRV valve set (thermostatic radiator valve and lockshield, sold as a pair) in angled, straight, or corner configuration to suit your pipework. Choose a white valve set for the white colourway, or an anthracite valve set to match the anthracite finish. Valves are sold separately and are not included with the radiator.
Are radiator valves included with this radiator?
No. All widths in the vertical Coneva 1500mm range are supplied without valves. Reina recommends a matching Modal TRV valve and lockshield pair, chosen in angled, straight, or corner configuration to suit your pipe layout.
What is the difference between the Reina and UK Standard output figures?
Reina publishes its own output figures at ΔT70, while the current European and UK standard rating is ΔT50. The ΔT50 figures in the table above give the more realistic comparison against other manufacturers' radiators.
Why choose the 1500mm range over the 1800mm range?
The 1500mm height suits rooms with lower ceilings, or wall spaces restricted by a window sill, coving, or fitted furniture, while still offering the same width and colour choices as the taller 1800mm range.
Can this radiator be used with an electric or dual-fuel heating element?
No. The vertical Coneva range is designed and rated for central heating systems only, and is not suitable for dual-fuel or electric-only conversion.
What is included in the box?
Each radiator is supplied with wall-mounting brackets and fixings. Valves, pipework, and bleed accessories are ordered separately.
What guarantee does this radiator carry?
Reina provides a 5-year manufacturer's guarantee against manufacturing defects, provided the radiator is installed and maintained correctly on a central heating system.
