The Reina Coneva horizontal designer radiator carries the same rounded, two-column tube profile as the vertical range into a wall-hugging 550mm-high format. Six widths are available – 440mm, 580mm, 790mm, 1000mm, 1210mm, and 1420mm – each in a classic matt white (RAL 9016) or modern textured anthracite (RAL 7016) finish, built from mild steel.
Unlike the taller vertical Coneva models, this horizontal range is suitable for central heating, dual-fuel, and electric-only systems, making it a flexible choice for bathrooms, cloakrooms, and utility spaces. Every model is supplied complete with wall brackets and fixings, manufactured to BS EN 442, and backed by a 5-year guarantee from Reina.
550mm
Height
440-1420mm
Width Range
612-2041W
Output @ ΔT50
6 Widths
x 2 Colours
Mild Steel
Construction
5 Years
Guarantee
Radiator Valves Required
This radiator is supplied without valves. See the recommended valves section below for compatible options before you order.
Dual-Fuel & Electric Compatible
Unlike the vertical Coneva range, these 550mm horizontal models are suitable for central heating, dual-fuel, and electric-only systems, giving more flexibility for bathrooms and cloakrooms without a wet heating supply.
Rounded Column Profile
A modern reinterpretation of the classic column radiator, with smooth 70mm-wide two-column sections replacing traditional flat tubes.
Six Widths Available
Choose from 440mm up to 1420mm to suit the available wall space and required output.
Two Colourways
Available in classic matt white (RAL 9016) or modern textured anthracite (RAL 7016) to suit the room.
Dual-Fuel Ready
Suitable for central heating, dual-fuel, and electric-only systems, unlike the vertical Coneva range.
Wall-Mount Ready
Supplied complete with wall brackets and fixings for straightforward horizontal installation.
BS EN 442 Compliant
Manufactured and heat-output tested to the BS EN 442 European standard for radiators.
Part Number
Width
Colour
Output @ ΔT50
Output @ ΔT70
RND-CNV05044W
440mm
White
612W / 2087 BTU
948W / 3233 BTU
RND-CNV05044A
440mm
Anthracite
612W / 2087 BTU
948W / 3233 BTU
RND-CNV05058W
580mm
White
810W / 2761 BTU
1264W / 4311 BTU
RND-CNV05058A
580mm
Anthracite
816W / 2783 BTU
1264W / 4311 BTU
RND-CNV05079W
790mm
White
1113W / 3796 BTU
1738W / 5928 BTU
RND-CNV05079A
790mm
Anthracite
1122W / 3827 BTU
1738W / 5928 BTU
RND-CNV05100W
1000mm
White
1429W / 4872 BTU
2213W / 7547 BTU
RND-CNV05100A
1000mm
Anthracite
1429W / 4872 BTU
2213W / 7547 BTU
RND-CNV05121W
1210mm
White
1721W / 5868 BTU
2687W / 9164 BTU
RND-CNV05121A
1210mm
Anthracite
1735W / 5916 BTU
2687W / 9164 BTU
RND-CNV05142W
1420mm
White
2025W / 6904 BTU
3162W / 10781 BTU
RND-CNV05142A
1420mm
Anthracite
2041W / 6960 BTU
3162W / 10781 BTU

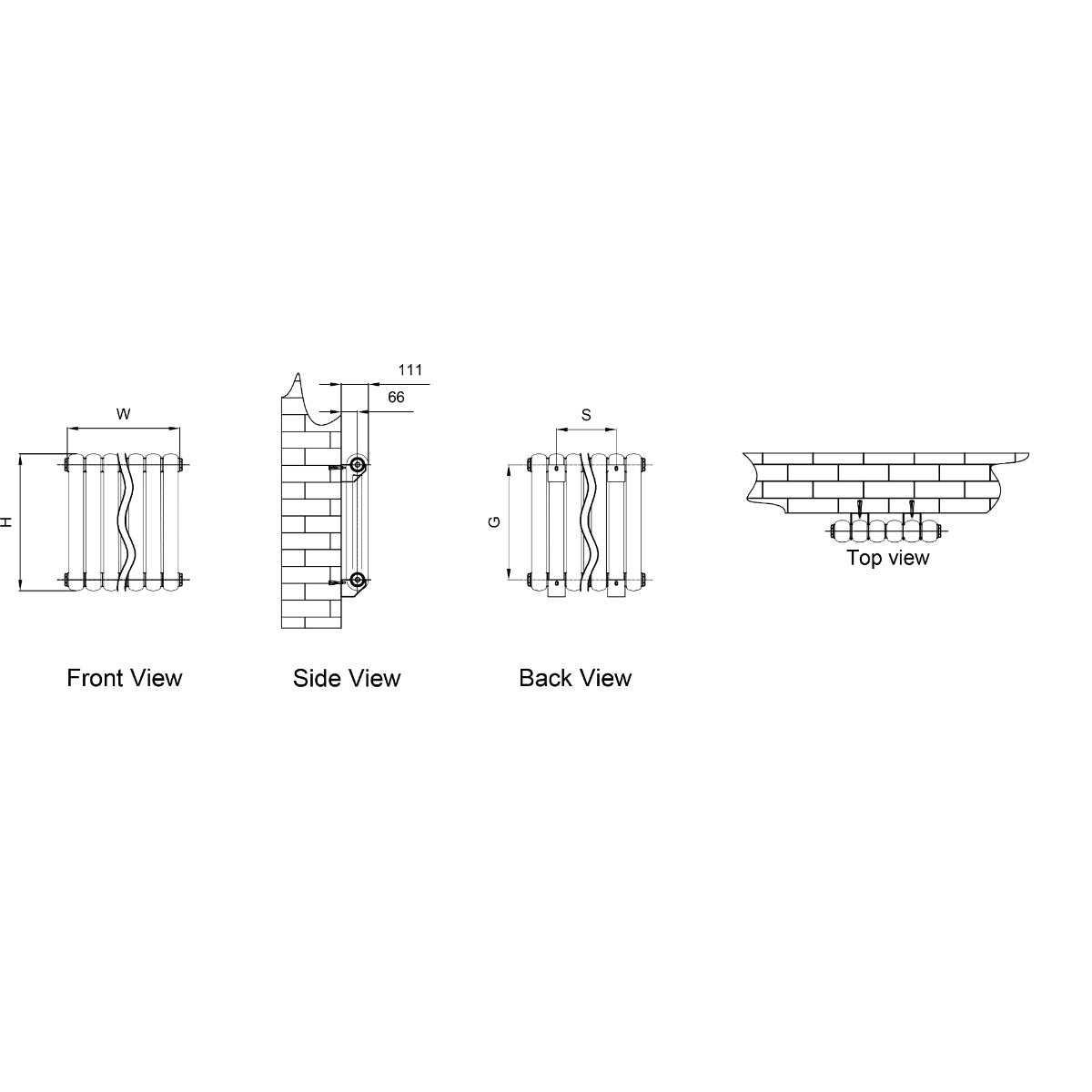

Dimensions (all widths)
Height
550mm
Wall to Front (Projection)
113mm
Wall to Pipe Centres
68mm
Pipe Centres
Width + valve
Construction & Compliance
Material
Mild Steel
Orientation
Horizontal
Fuel Type
Central Heating, Dual Fuel, or Electric-Only
Standard
BS EN 442
Guarantee
5 Years (Reina)
Confirmed Specification (580mm width)
Sections
8
Water Content
10.6 Litres
Confirmed Specification (790mm width)
Sections
11
Water Content
14.6 Litres
Confirmed Specification (1210mm width)
Sections
17
Water Content
22.6 Litres
Confirmed EAN Barcodes
RND-CNV05058W
8800161124315
RND-CNV05079W
8800161124605
RND-CNV05121W
8800161125275
Recommended Radiator Valves
Reina recommends pairing this radiator with a matching Reina Modal TRV valve set (thermostatic radiator valve and lockshield, sold as a pair) in angled, straight, or corner configuration to suit your pipework. Choose a white valve set for the white colourway, or an anthracite valve set to match the anthracite finish. Valves are sold separately and are not included with the radiator.
Are radiator valves included with this radiator?
No. All widths in the horizontal Coneva 550mm range are supplied without valves. Reina recommends a matching Modal TRV valve and lockshield pair, chosen in angled, straight, or corner configuration to suit your pipe layout.
Can this radiator be used on an electric or dual-fuel system?
Yes. Unlike the vertical Coneva range, the 550mm horizontal models are suitable for central heating, dual-fuel, and electric-only systems, making them a flexible option where a wet heating supply is not available.
What is the difference between the Reina and UK Standard output figures?
Reina publishes its own output figures at ΔT70, while the current European and UK standard rating is ΔT50. The ΔT50 figures in the table above give the more realistic comparison against other manufacturers' radiators.
Which width should I choose for a small cloakroom?
The 440mm or 580mm widths are the most compact options in the range and suit smaller cloakrooms and utility spaces, while the 1210mm and 1420mm widths deliver higher output for larger bathrooms.
What is included in the box?
Each radiator is supplied with wall-mounting brackets and fixings. Valves, pipework, and bleed accessories are ordered separately.
What guarantee does this radiator carry?
Reina provides a 5-year manufacturer's guarantee against manufacturing defects, provided the radiator is installed and maintained correctly.
