🟢 Why LiFePO₄ Chemistry Matters
Unlike NMC or LCO lithium chemistries, Lithium Iron Phosphate (LiFePO₄) has an inherently more stable molecular structure. Its thermal runaway threshold is approximately 600 °C — roughly double the ~270–300 °C threshold of NMC cells. This makes LiFePO₄ the chemistry of choice for indoor residential installations where fire safety is paramount. The trade-off is a slightly lower energy density, but the US5000's compact 19-inch module format demonstrates that Pylontech has minimised this disadvantage through cell engineering and pack design.
Integrated BMS — Multi-Layer Protection
Pylontech's proprietary Battery Management System is embedded inside every US5000 module — no external BMS unit is required. It provides real-time cell-level monitoring of voltage, current, temperature and state of charge, with active protection against over-charge, over-discharge, short circuit, over-temperature, and excessive current. A built-in pre-charge (soft-start) function limits the inrush current spike when an inverter powers up against a cold battery, protecting both the BMS and the inverter's input stage.
Modular Scalability — 4.8 kWh to 76.8 kWh in One String
The US5000's 48V modular architecture allows a homeowner to start with a single 4.8 kWh module and expand by adding units as budget or energy needs grow — no system redesign required. Up to 16 modules can be connected in a single parallel string, reaching 76.8 kWh nominal (72.96 kWh usable) without any additional hub hardware. For larger commercial systems, the Pylontech LV-HUB enables multi-string configurations extending to hundreds of kWh.
6,000+ Cycle Life — True 15-Year Cost Economics
The US5000 is rated for more than 6,000 full charge/discharge cycles at 25 °C, with a 15+ year design life. Cycling once daily, this equates to over 16 years of active service before capacity falls to 80% of nominal — the industry-standard end-of-life threshold. Combined with a 95% depth of discharge, the US5000 extracts far more usable energy per cycle than lead-acid alternatives (typically limited to 50% DoD), dramatically reducing the effective cost per kWh delivered over the product's lifetime.
High Continuous Current — 100A Max, 200A Peak
Pylontech specifies a recommended charge/discharge current of 50A (equivalent to approximately 2.4 kW at 48V), with a maximum continuous current of 100A (~4.8 kW). For short-duration surge demands, the US5000 can deliver 101–120A for up to 15 minutes (Peak 1) and 121–200A for up to 15 seconds (Peak 2) — providing genuine backup capacity for high-inrush loads such as heat pumps, motor start-up, and EV chargers when paired with a suitably sized inverter.
19-Inch Rack Format — Fast, Repeatable Installation

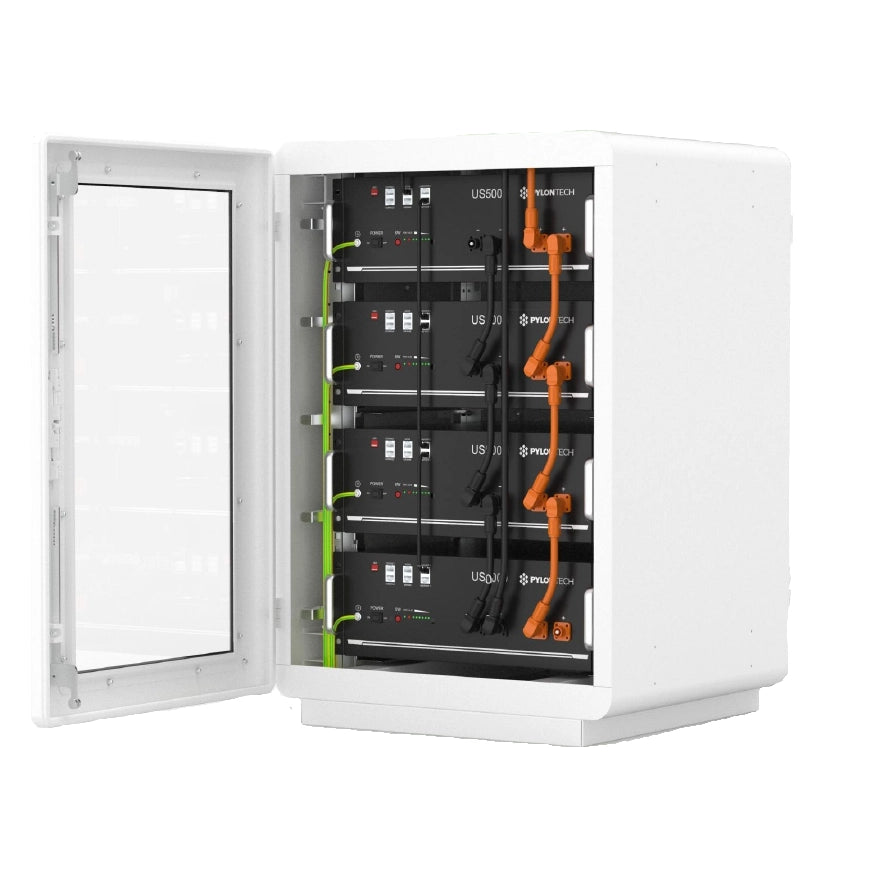

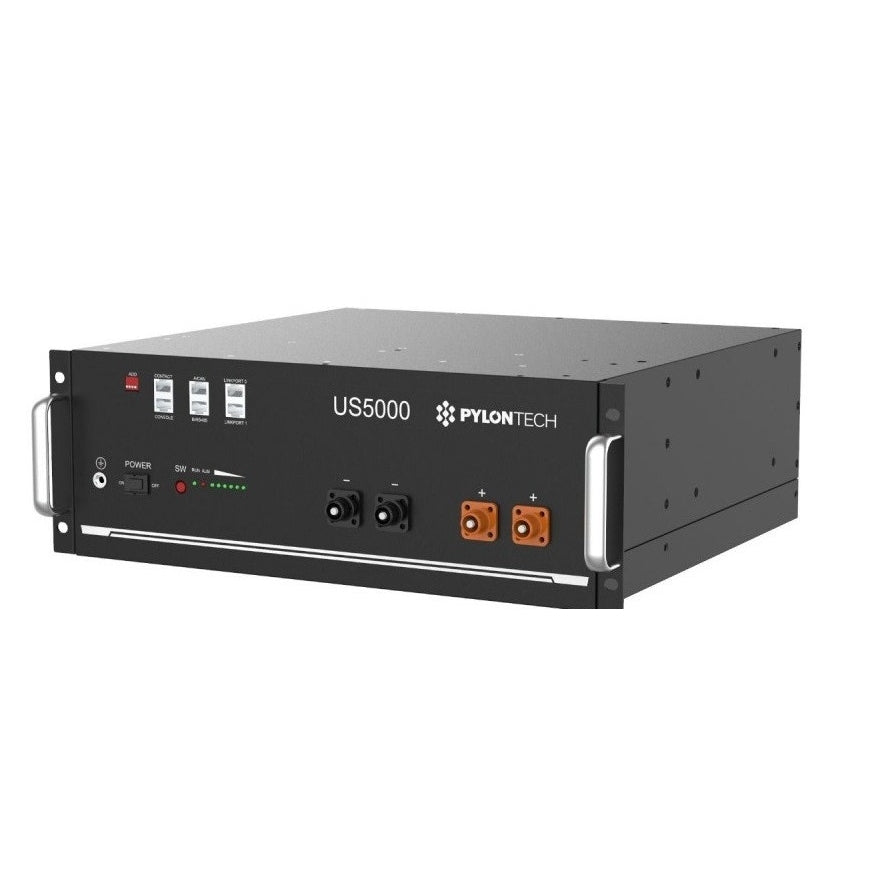

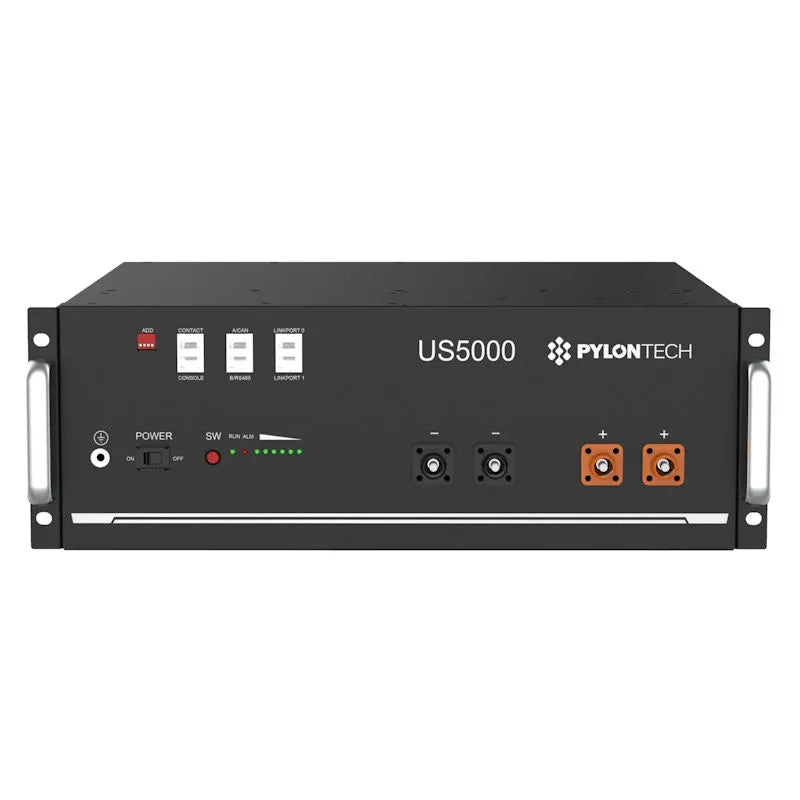

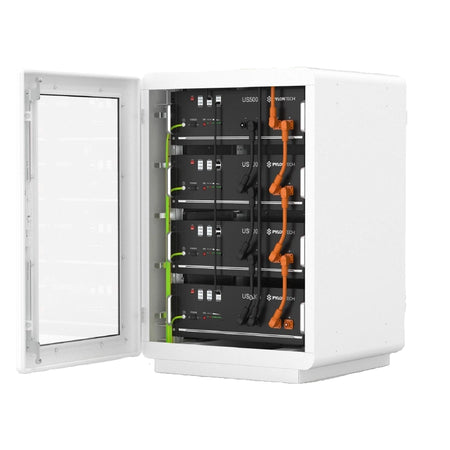

The US5000's 442 × 420 × 161 mm (W×D×H) 19-inch rack form factor is a deliberate design choice: it aligns with standard IT and electrical cabinet dimensions, simplifies cable management, and allows multiple units to be stacked vertically using Pylontech's optional stacking brackets. The buckle-fixing system accelerates installation and reduces the risk of racking errors. At 38 kg (US5000) or 39 kg (US5000-B), the module is manageable for a two-person team without lifting equipment.
Broad Inverter Compatibility — RS485 & CAN
The US5000 communicates via RS485 and CAN bus, and is compatible with more than 35 leading inverter brands including Victron Energy, Sungrow, SolarEdge, Growatt, Deye, Foxess, GivEnergy, Solax, and many more. This open-protocol approach means the battery integrates natively with inverter BMS protocols, allowing the inverter to read live SOC, cell temperatures, and alarm states — enabling more accurate charge/discharge scheduling and longer battery life through intelligent charge management.
Which inverters are compatible with the Pylontech US5000?
The US5000 is compatible with a very broad range of hybrid and battery inverters, including models from Victron Energy (MultiPlus, Quattro), Sungrow, SolarEdge, Growatt, Deye, Foxess, GivEnergy, Solax, Sofar, Huawei, Solis, and many others — over 35 brands in total. Communication is via RS485 or CAN bus using Pylontech's open BMS protocol. It is essential to download and check the official Pylontech Inverter Compatibility Sheet (available from the Pylontech website) before finalising your inverter selection, as firmware versions sometimes affect compatibility. If you are unsure, contact us before ordering.
