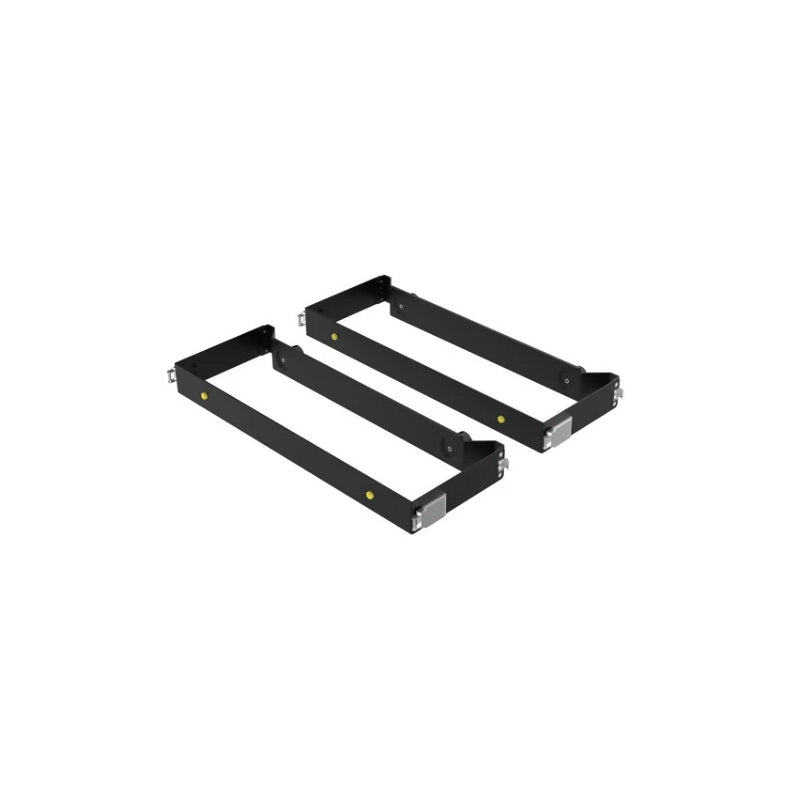

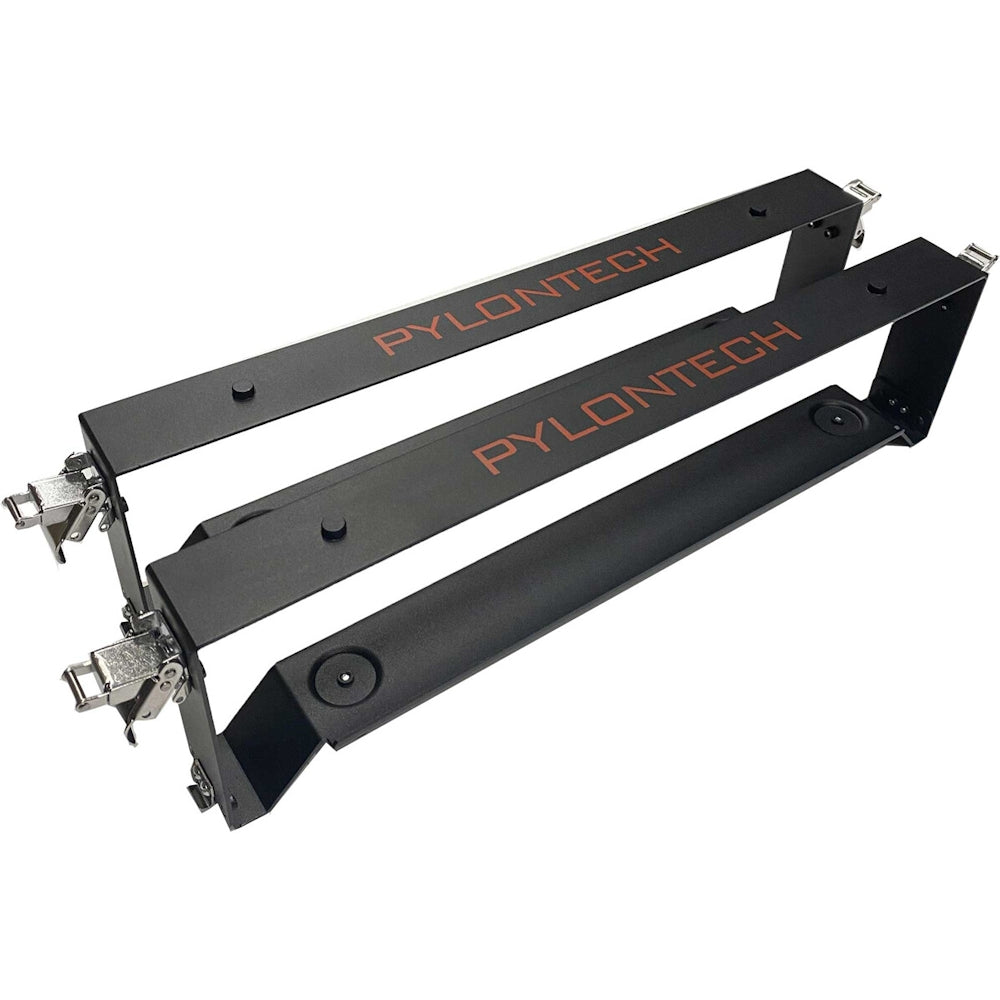

This 2x bracket set is the official Pylontech mounting accessory for the US3000 and US3000C lithium battery modules (also compatible with US5000). One set of two brackets is required per battery module, allowing units to be stacked securely — either horizontally in a rack cabinet or vertically on a wall-mounted bracket stack — while maintaining the spacing needed for proper air circulation around each module.
Each bracket pair locates onto the module's 4 fixing holes and connects to adjacent brackets via a side clamping mechanism, letting multiple modules be joined into a single secure stack. This is the same procedure detailed in Pylontech's official US3000C installation manual, and is a required accessory for any US3000/US3000C installation that isn't being rack-mounted into a dedicated battery cabinet.
1 set
Required per Module
510 x 140 x 60mm
Bracket Dimensions
Please Note
One bracket set is required per individual battery module — for a stack of 3 modules, you will need 3 bracket sets, not one. When stacking, Pylontech's official installation manual specifies a maximum of 4 modules in a single vertical stack.
Official Pylontech Accessory
Matches the exact mounting method shown in Pylontech's official US3000C installation manual, using the module's 4 factory-fitted fixing holes.
Horizontal or Vertical Mounting
Supports both horizontal rack-cabinet installation and vertical wall-bracket stacking, giving flexibility for different plant room and cupboard layouts.
Secure Clamped Stacking
Adjacent bracket pairs connect via a side clamping mechanism, joining modules into one rigid, stable stack rather than resting units loosely on top of one another.
Maintains Airflow
Correct bracket spacing keeps each module lifted clear of the one below, preserving the natural convection airflow the US3000C relies on for passive cooling.
Broad Compatibility
Fits the US3000, US3000C and US5000 module range, making it a standard accessory across most current Pylontech low-voltage battery installations.
Lightweight, Durable Build
Constructed from aluminium alloy at roughly 2.5kg per set, adding minimal extra weight to the overall battery stack.
| Product |
| Compatible Battery Modules |
Pylontech US3000, US3000C (also fits US5000) |
| Supplier Part Number |
BW0PLUSUS3KAZJ01 |
| Quantity per Set |
2 brackets |
| Sets Required |
1 set per battery module |
| Physical |
| Bracket Dimensions |
510 x 140 x 60mm |
| Set Weight |
Approx. 2.5kg |
| Material |
Aluminium alloy |
| Installation |
| Mounting Orientation |
Horizontal (rack) or vertical (wall stack) |
| Max. Modules per Stack |
4 (per Pylontech installation manual) |
| Fixing Method |
Locates via module's 4 fixing holes; side-clamped between adjacent brackets |
Important Safety Information
Installation should be carried out by a competent, qualified installer in accordance with Pylontech's official installation manual. Incorrectly stacked or unsecured modules can restrict cooling airflow or create an unstable, unsafe installation.
How many bracket sets do I need for my installation?
You need one bracket set per battery module. If you're installing 4 x US3000C modules, you will need 4 bracket sets in total, not one set for the whole stack.
Can these brackets be used for both the US3000 and US3000C?
Yes. This bracket set is compatible with both the US3000 and US3000C module range, and also fits the US5000.
Can I mount the modules vertically with these brackets?
Yes. The brackets support both horizontal rack-cabinet mounting and vertical wall-mounted stacking, giving flexibility depending on your installation space.
Is there a limit to how many modules I can stack?
Pylontech's official installation guidance specifies a maximum of 4 modules stacked together using this bracket method.
Do I still need a separate rack cabinet if I use these brackets?
No. These brackets are specifically designed as an alternative to a dedicated rack cabinet, allowing modules to be securely wall-mounted and stacked without one.
