Priority CAD Design Service
Description

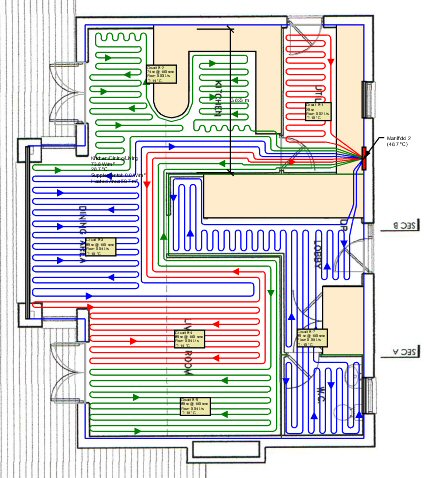

The Priority CAD Design Service provides a bespoke, detailed colour CAD pipe layout designed from your supplied plans. Ideal for those who want their warm water underfloor heating system designed professionally and tailored precisely to their requirements.
Your bespoke design includes detailed pipe layout with flow and return routes to/from manifold locations, created using specialist underfloor heating design software with full heat loss calculations to ensure optimal system performance and efficiency.
Simply order the service, then submit your details and plans via the provided link or email. The design team will communicate with you directly if any clarifications are needed. The completed room-by-room design and pipe layout are delivered within 48 hours as PDF or DWG files, allowing you to zoom, print, and analyse the design in detail.
What’s Included
- Detailed bespoke CAD pipe design and layout
- Flow and return pipe routing to manifold locations
- Heat loss calculations included for accurate sizing
- Delivery as PDF and/or DWG format files
- Fast turnaround—design delivered within 48 hours
- Direct communication with design team for project-specific needs
Benefits
- Professional and precise system design tailored to your project
- Reduces installation errors and material waste through accurate pipe layouts
- Ensures optimal system efficiency and performance based on heat loss analysis
- Quick delivery accelerates project timelines
- Easy-to-use digital design files compatible with standard CAD software
- Saves you time and complexity by outsourcing design to qualified experts
- Cost of the CAD design service is credited back when you purchase the system
How to Submit Your Plans
After ordering, email or WhatsApp your information directly to service@qualityheating.co.uk.
Once your details are received, the design team will immediately begin work and keep you informed of progress or any questions.
This service offers peace of mind with an expert, accurate design so your underfloor heating installation runs smoothly and efficiently.
