Pre-Assembled Heatpump Circulation Pack
Couldn't load pickup availability
Payment details
Pre-Assembled Heatpump Circulation Pack
Description

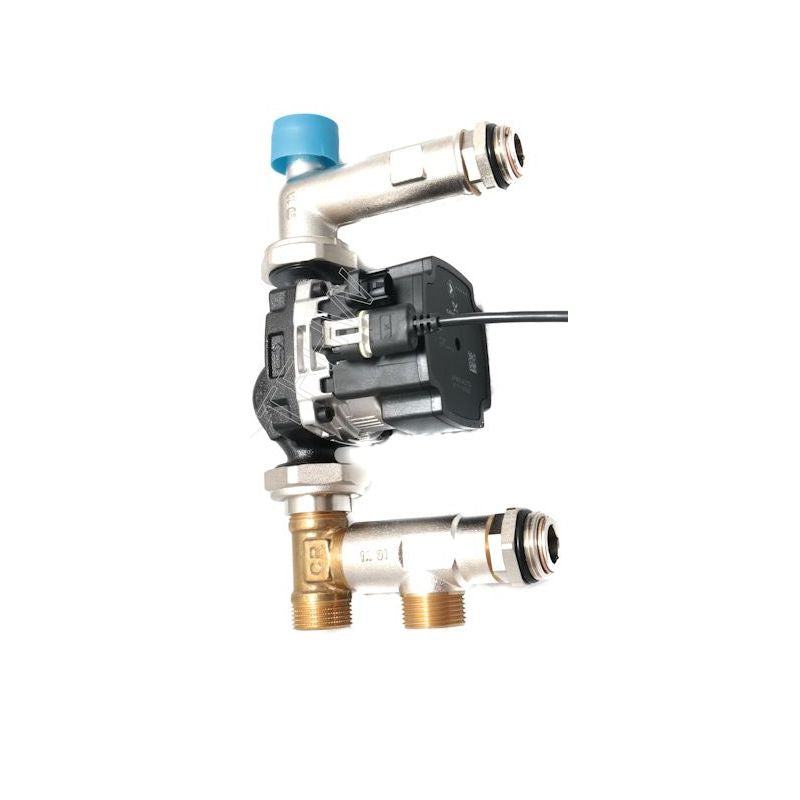

The Pre-Assembled Heatpump Circulation Pack is a compact, high-performance circulation pump unit designed specifically for underfloor heating systems supplied by heat pumps. It is pre-assembled in the UK for quick, easy installation directly onto compatible floor heating manifolds.
Specifically engineered for heatpump systems supplying water temperatures under 50°C, this pack features an “A” rated Grundfos UPM3 Auto variable speed 3-speed pump that optimizes flow for efficient heating. Please note that this pack does not include a temperature blending valve, which is required for systems with boiler-supplied higher temperature water.
What’s Included
- High Output Grundfos UPM3 Auto 3-speed circulation pump (A rated)
- Compact and lightweight pump assembly, designed to bolt directly to manifolds
- Adjustable inlets allowing side or bottom entry for flow and return pipes
- Fully reversible configuration for connection to either left or right side of the manifold
- Pre-assembled unit for instant connection and commissioning
- Suitable for manifolds up to 12 ports
- 3.4 kW / 18 kW high output capacity
- 2 Year manufacturer's warranty
Key Features
- Designed specifically for heatpump underfloor heating systems operating below 50°C
- “A” rated Grundfos UPM3 Auto pump for energy-efficient operation
- Compact design simplifies installation and service
- Adjustable, reversible inlet configuration provides installation flexibility
- Pre-assembled in the UK ensuring quality and rapid delivery
- High flow capacity suitable for up to 12 port manifolds
- Lightweight construction for easy handling
Benefits
- Optimizes flow and temperature control for heatpump-based underfloor heating
- Ensures energy-efficient operation with low power consumption
- Speeds up installation with ready-to-fit pre-assembled unit
- Provides reliable performance tailored to heatpump system requirements
- Reduces system complexity by omitting blending valve where not needed
- 2-year warranty guarantees product quality and reliability
Technical Specifications
| Pump Model | Grundfos UPM3 Auto, 3-speed |
|---|---|
| Energy Rating | Class A |
| Maximum Output Power | 3.4 kW |
| Maximum Heating Load Suitable | 18 kW |
| Maximum Manifold Size | Up to 12 ports |
| Inlet Configuration | Adjustable - side or bottom entry |
| Connection Reversibility | Left or right manifold connection possible |
| Operating Temperature | Up to 50°C (heat pump systems) |
| Warranty | 2 years |
| Manufacture Location | United Kingdom (assembled) |
| Weight | Compact and lightweight |
The Pre-Assembled Heatpump Circulation Pack is the ideal turnkey solution for heatpump-supplied underfloor heating systems, providing efficient, reliable circulation with simple manifold integration and energy-saving operation.
- Type Manifolds & Kits
- Vendor Grundfos
